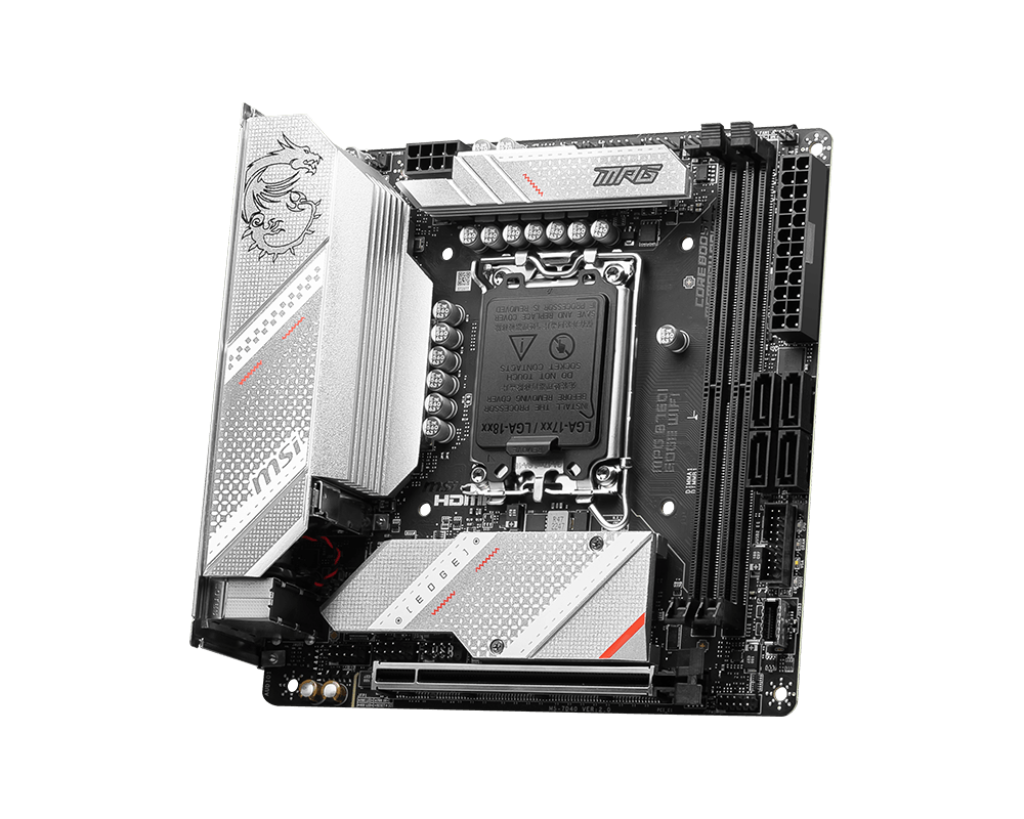

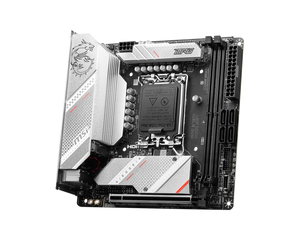

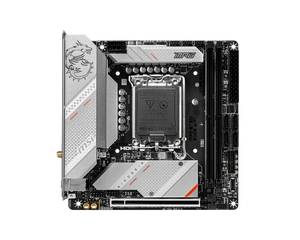

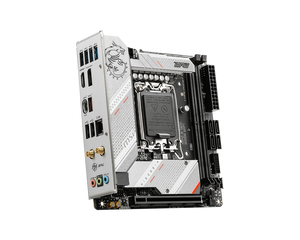

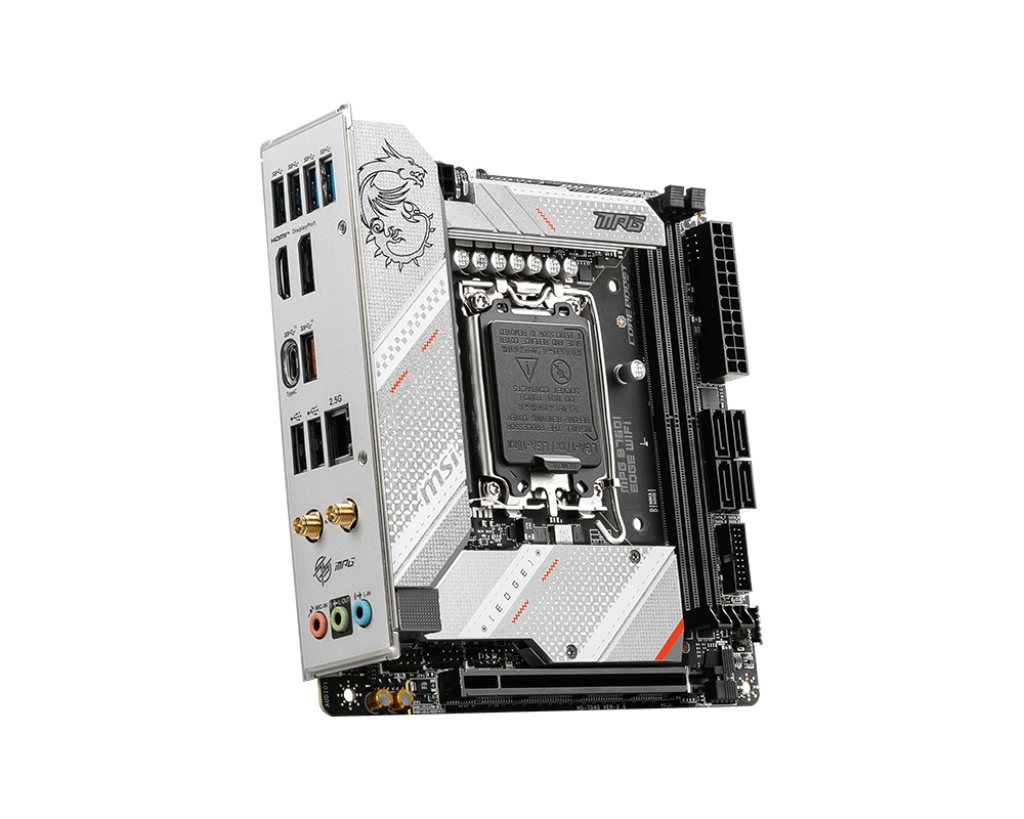

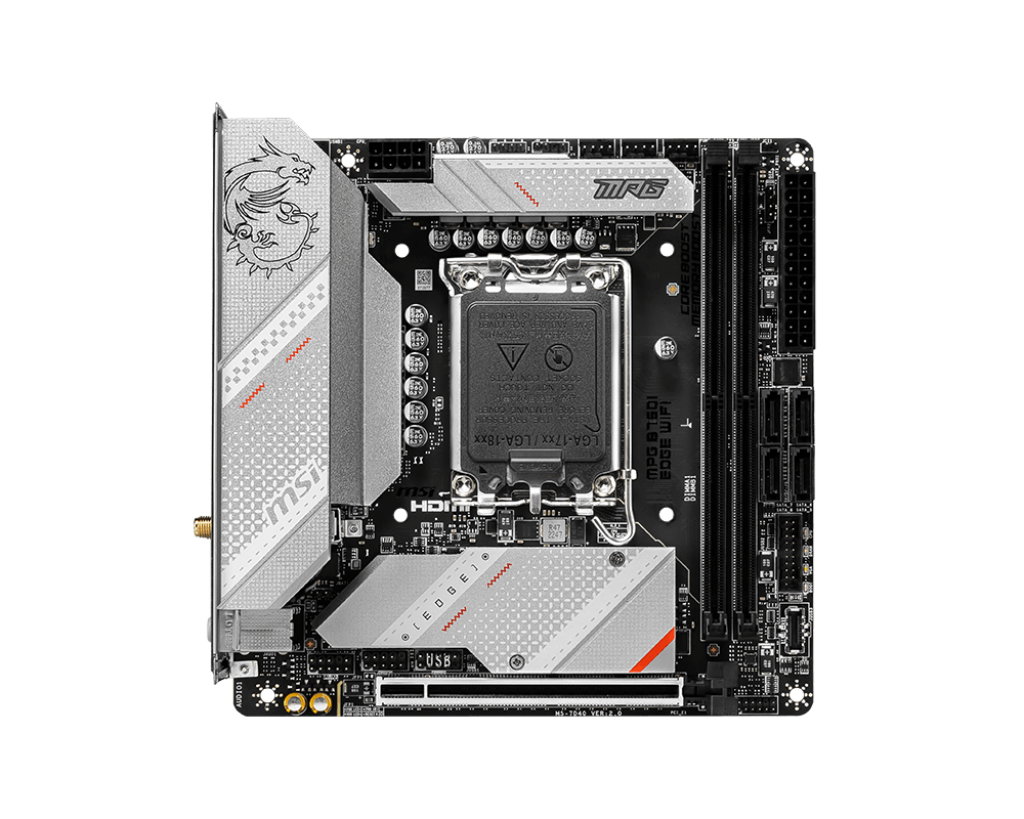

MSI B760i MPG Edge Wi-Fi & Bluetooth DDR5 Mini-ITX Motherboard

MSI B760i MPG Edge Wi-Fi & Bluetooth DDR5 Mini-ITX Motherboard

$315.00

OVERVIEW
SPECIFICATIONS
FAQs

3 YEAR DISTRIBUTOR WARRANTY

Corbell Technology Pte Ltd
4012 Ang Mo Kio Ave 10, #06-04 Techplace 1
Singapore 569628
Contact: 6452 4122

KEY FEATURES

-Enhanced Power Design: Features a direct 8+1+1 phases power design, Core Boost, and Memory Boost for stable and efficient performance.

-Premium Thermal Solution: Equipped with an enlarged heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads, and M.2 Shield Frozr to ensure optimal thermal management.

-Audio Boost: Provides studio-grade sound quality for an immersive gaming experience.
Chipset:

INTEL B760

CPU:

Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors

LGA 1700

Memory:

2x DDR5, Maximum Memory Capacity 128GB

Memory Support 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz

Max. overclocking frequency:

• 1DPC 1R Max speed up to 7200+ MHz

• 1DPC 2R Max speed up to 6600+ MHz

Supports Dual-Channel mode

Supports non-ECC, un-buffered memory

Supports Intel® Extreme Memory Profile (XMP)

Onboard Graphics:

1x HDMI™

Support HDMI™ 2.1 with HDR, maximum resolution of 4K 60Hz*

1x DisplayPort

Support DP 1.4, maximum resolution of 8K 60Hz*

*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

Slot:

1x PCI-E x16 slot

PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)

Audio:

Realtek® ALC897 Codec

7.1-Channel High Definition Audio

Storage:

2x M.2

M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280 devices

M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280 devices

4x SATA 6G

RAID:

Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

USB:

2x USB 2.0 (Rear)

2x USB 2.0 (Front)

4x USB 5Gbps Type A (Rear)

2x USB 5Gbps Type A (Front)

1x USB 10Gbps Type A (Rear)

1x USB 10Gbps Type C (Rear)

1x USB 10Gbps Type C (Front)

LAN:

Realtek® RTL8125BG 2.5Gbps LAN

Internal IO:

1x Power Connector(ATX_PWR)

1x Power Connector(CPU_PWR)

1x CPU Fan

1x Pump Fan

1x System Fan

2x Front Panel (JFP)

1x Chassis Intrusion (JCI)

1x Front Audio (JAUD)

1x Addressable V2 RGB LED connector (JARGB_V2)

1x RGB LED connector(JRGB)

1x TPM pin header(Support TPM 2.0)

2x USB 2.0 ports

2x USB 5Gbps Type A ports

1x USB 10Gbps Type C ports

WIRELESS LAN & BLUETOOTH:

Intel® Wi-Fi 6E

The Wireless module is pre-installed in the M.2 (Key-E) slot

Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps

Supports 802.11 a/ b/ g/ n/ ac/ ax

Supports Bluetooth® 5.3, FIPS, FISMA

* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.

** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.

LED FEATURE:

4x EZ Debug LED

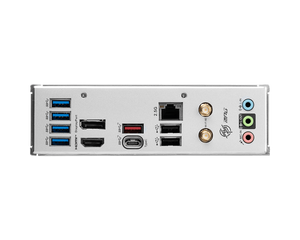

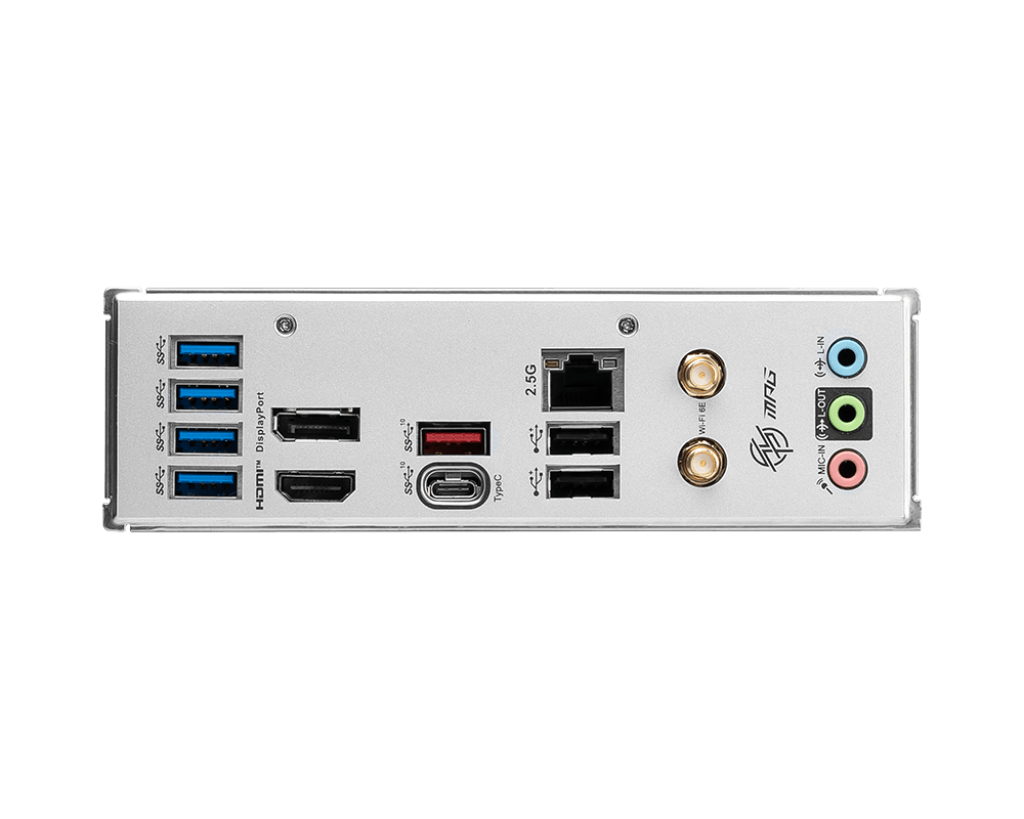

BACK PANEL PORTS:

USB 5Gbps

Display Port

USB 10Gbps

2.5G LAN

Audio Connectors

HDMI™

USB 10Gbps (Type-C)

USB 2.0

Wi-Fi / Bluetooth

OPERATING SYSTEM:

Support for Windows® 11 64-bit, Windows® 10 64-bit

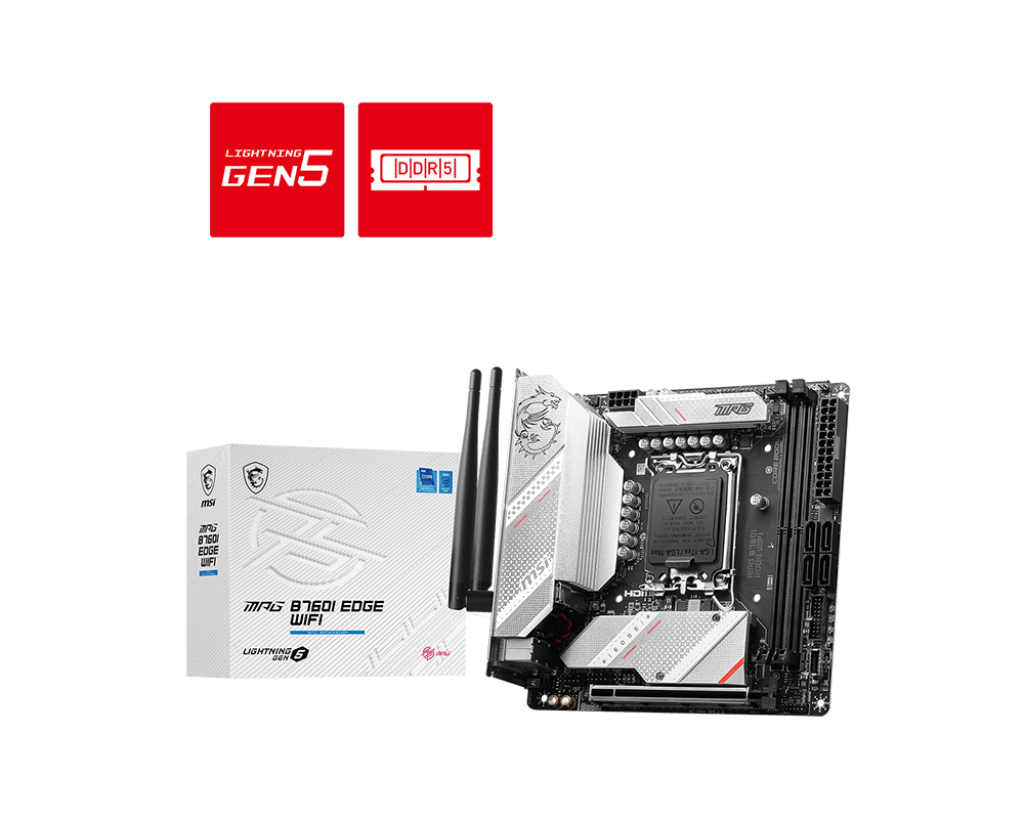

BOX CONTENT:

Quick Installation Guide

M.2 Screw Package

Wi-Fi Antenna

Cable Stickers

Sata Cable

Rainbow RGB LED Extension Cable

PCB Info:

Mini-ITX

170mm x 170mm
