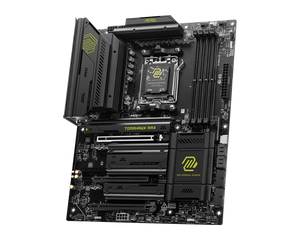

MSI MAG B850 TOMAHAWK MAX Wi-Fi 7 & Bluetooth DDR5 ATX Motherboard

MSI MAG B850 TOMAHAWK MAX Wi-Fi 7 & Bluetooth DDR5 ATX Motherboard

OVERVIEW
SPECIFICATIONS
FAQs

3 YEAR DISTRIBUTOR WARRANTY

Corbell Technology Pte Ltd
4012 Ang Mo Kio Ave 10, #06-04 Techplace 1
Singapore 569628
Contact: 6452 4122

KEY FEATURES

-Core Boost: Built with a premium layout and all-digital power design to handle more cores and unlock superior performance.

-Latest DDR5 Memory: Take DDR performance to the next level with cutting-edge DDR5 memory and MSI's advanced Memory Boost technology.

-Audio Boost 5: Enjoy deeply immersive gaming with isolated audio design and a high-grade processor that delivers rich, crystal-clear sound.
Chipset:

AMD B850

CPU:

Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors

Socket AM5

Memory:

4x DDR5 UDIMM, Maximum Memory Capacity 256GB

Memory Support DDR5 8400 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s

Ryzen™ 9000 Series Processors max. overclocking frequency:

• 1DPC 1R Max speed up to 8400+ MT/s

• 1DPC 2R Max speed up to 6400+ MT/s

• 2DPC 1R Max speed up to 6400+ MT/s

• 2DPC 2R Max speed up to 4800+ MT/s

Supports AMD POR Speed and JEDEC Speed

Supports Memory Overclocking and AMD EXPO™

Supports Dual-Channel mode

Supports Non-ECC, Un-buffered memory

Supports CUDIMM, Clock Driver bypass mode only*

* CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility.

• The DIMM slots on this motherboard have double-sided latches.

• Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/.

Onboard Graphics:

1x HDMI™

Support HDMI™ 2.1 FRL, maximum resolution of 8K 60Hz*

*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

Slot:

3x PCI-E x16 slot

PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)

PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)

PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)

PCI_E1 slot

• Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors)

• Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors)

• Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor)

*PCI_E3 slot will run at x2 speed when installing device in the M2_3 slot. You can switch PCI_E3 slot to x4 in the BIOS, but this will disable the M2_3 slot

Audio:

Realtek® ALC4080 Codec

7.1-Channel USB High Performance Audio

Supports up to 32-bit/384kHz playback on front panel

Supports S/PDIF output

Storage:

4x M.2

M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280 devices

M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices

M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280/2260 devices

M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices

4x SATA 6G

M2_1 slot

• Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors)

• Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors)

M2_2 slot

• Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors)

• Supports up to PCIe 4.0 x4 (For Ryzen™ 8700/ 8600/ 8400 Series processors)

• Supports up to PCIe 4.0 x2 (For Ryzen™ 8500/ 8300 Series processors)

*PCI_E3 slot will run at x2 speed when installing device in the M2_3 slot. You can switch PCI_E3 slot to x4 in the BIOS, but this will disable the M2_3 slot.

** Please refer to the manual for M.2 SSD heatsink restrictions

RAID:

Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices

USB:

4x USB 2.0 (Rear)

4x USB 2.0 (Front)

1x USB 5Gbps Type A (Rear)

4x USB 5Gbps Type A (Front)

2x USB 10Gbps Type A (Rear)

3x USB 10Gbps Type C (Rear)

1x USB 20Gbps Type C (Front)

LAN:

Realtek® 8126VB 5G LAN

Internal IO:

1x Power Connector(ATX_PWR)

2x Power Connector(CPU_PWR)

1x Power Connector(PCIE_PWR 8pin)

1x CPU Fan

1x Combo Fan (Pump_Sys Fan)

6x System Fan

1x EZ Conn-header (JAF_2)

2x Front Panel (JFP)

1x Chassis Intrusion (JCI)

1x Front Audio (JAUD)

3x Addressable V2 RGB LED connector (JARGB_V2)

1x RGB LED connector(JRGB)

1x TPM pin header(Support TPM 2.0)

4x USB 2.0 ports

4x USB 5Gbps Type A ports

1x USB 20Gbps Type C ports

WIRELESS LAN & BLUETOOTH:

Wi-Fi 7 Solution

The Wireless module is pre-installed in the M.2 (Key-E) slot

Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps

Supports 802.11 a/ b/ g/ n/ ac/ ax/ be

Supports Bluetooth® 5.4**, MLO, 4KQAM

* 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2.

** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2.

LED FEATURE:

4x EZ Debug LED

1x EZ Memory Detection LED

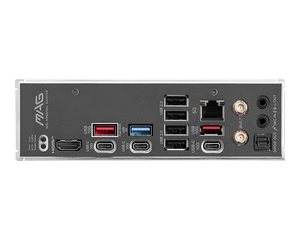

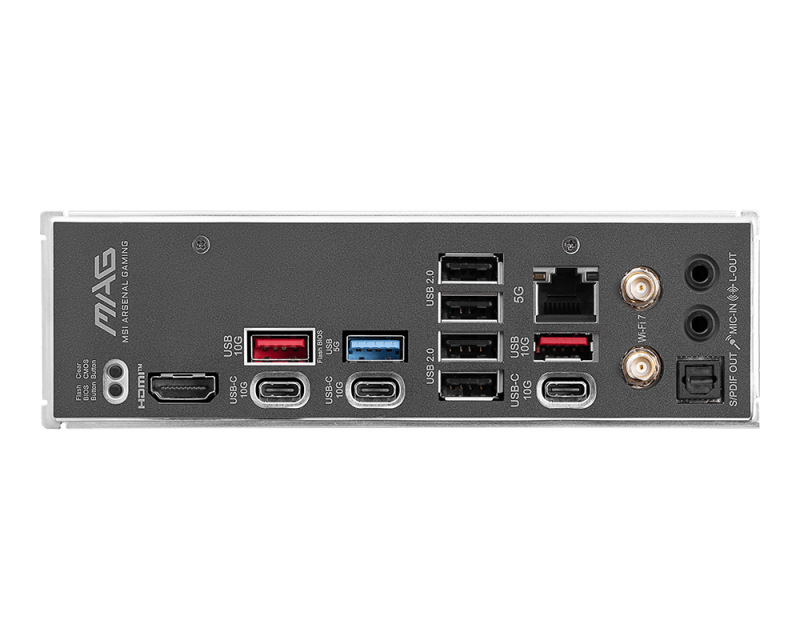

BACK PANEL PORTS:

Clear CMOS Button

USB 10Gbps Type-A

USB 5Gbps Type-A

USB 2.0

5G LAN

Wi-Fi / Bluetooth

Audio Connectors

Flash BIOS Button

HDMI™

USB 10Gbps Type-C

USB 10Gbps Type-C

USB 10Gbps Type-A

OPERATING SYSTEM:

Support for Windows® 11 64-bit

BOX CONTENT:

Quick Installation Guide

European Union Regulatory Notice

Shout out Flyer

SATA Cable x1

EZ M.2 Clips II

EZ M.2 Clip II Remover

Cable Sticker

EZ Wi-Fi Antenna

1 to 3 EZ Conn-Cable (V2)

EZ Front Panel Cable

PCB Info:

ATX

243.84mm x 304.8mm
