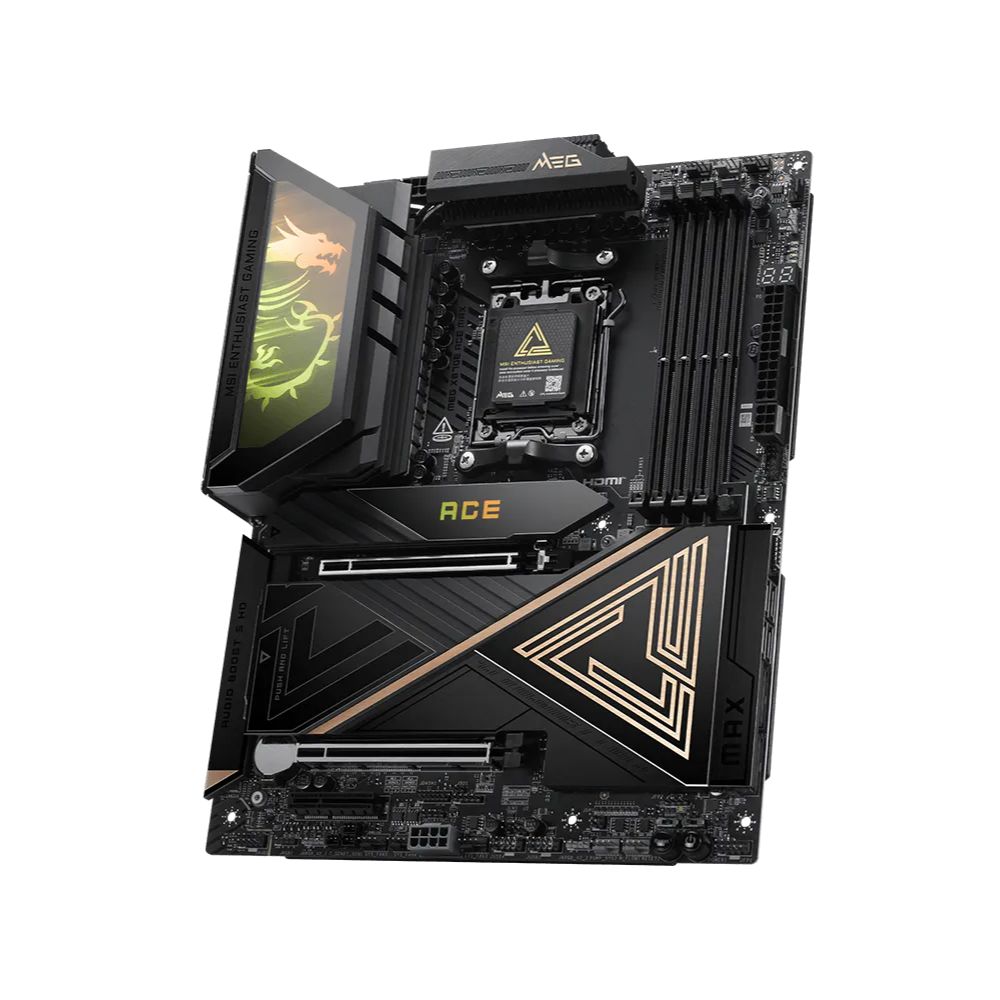

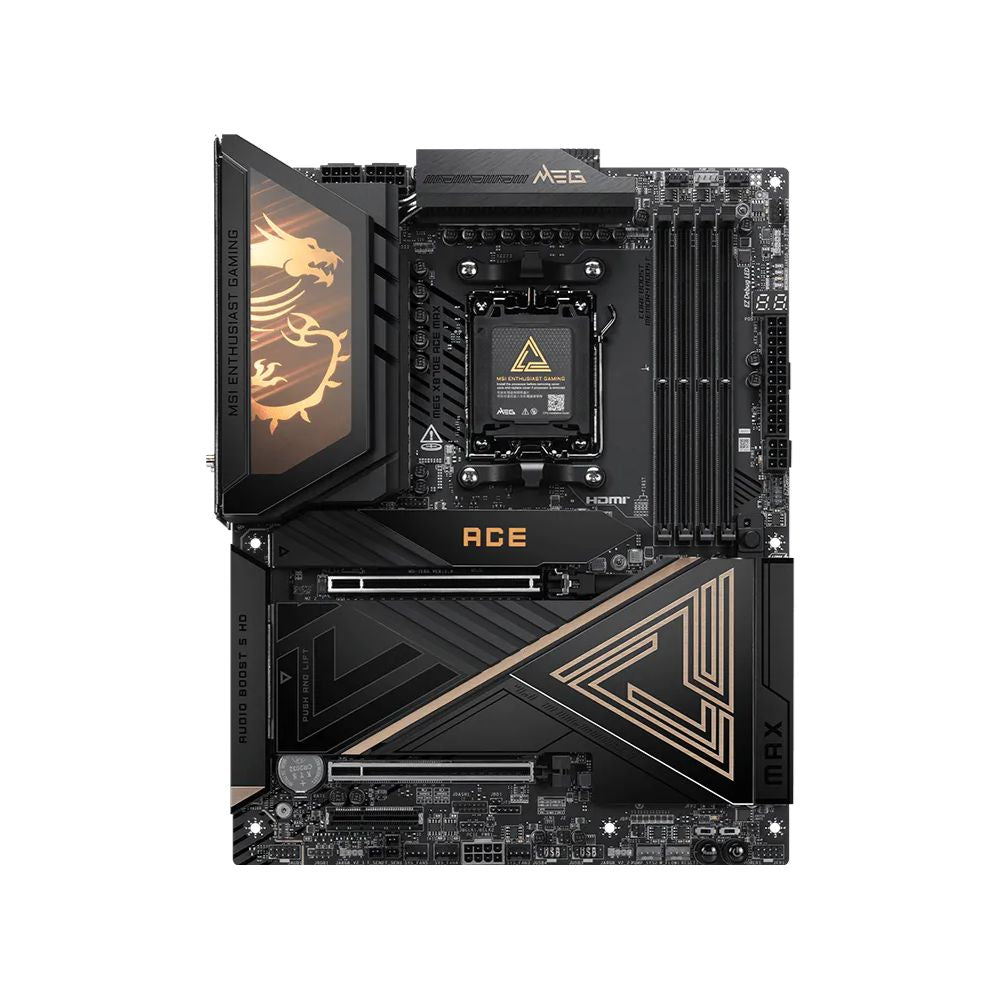

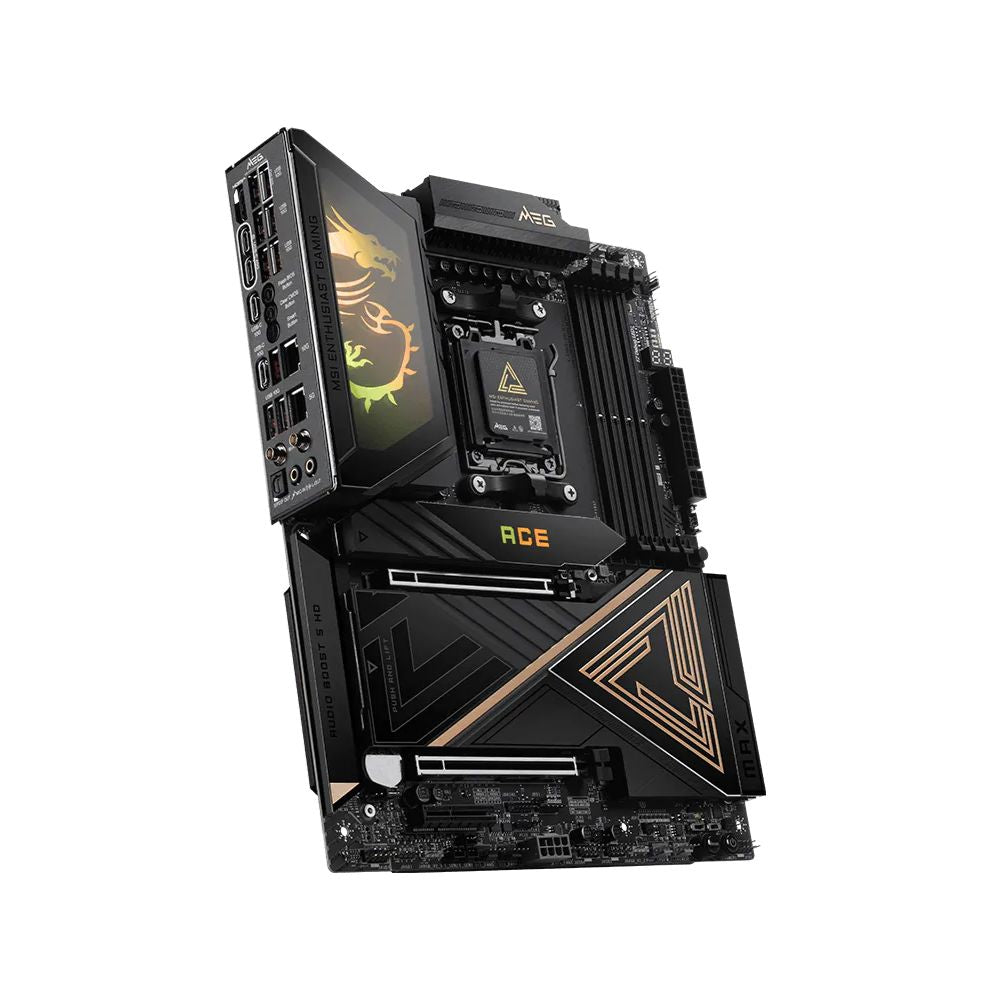

MSI MEG X870E ACE MAX - Flagship AM5 Performance

SKU: MEG X870E ACE MAX

Chipset: X870E flagship platform for Ryzen 9000

Memory: DDR5 up to 9000 MT/s (OC) support

Storage: 5 x M.2 slots + 4 x SATA ports

Networking: 10Gb LAN + 5Gb LAN + WiFi 7

Expansion: Dual PCIe 5.0 x16 slots

MSI MEG X870E ACE MAX delivers flagship AM5 performance with premium features built for serious high-end systems.

Handles Ryzen 9000 with extreme stability and overclocking headroom for demanding workloads. Dual PCIe 5.0 GPUs and five M.2 slots unlock maximum performance and expansion. Backed by 3-year Singapore warranty and Mansa support, you're covered daily.

Why Choose This MSI MEG X870E ACE MAX

  • WiFi 7 and dual USB4 deliver ultra-fast connectivity for high-performance gaming builds and next-gen networking performance.
  • Five M.2 slots with PCIe 5.0 support provide massive storage flexibility for DirectStorage-ready PCIe 5.0 speeds and fast workflows.
  • Premium X870E platform with strong VRM design ensures stable overclocking and maximum Ryzen 9000 performance without compromise.
  • 3-year Singapore warranty with MSI support. Fast WhatsApp replies from Mansa Computers, open 7 days for reliable assistance.
✓ Why Buy This

3 Year Warranty

WiFi-7 Connectivity

PCIe 5 Slots

Full Specifications

Model
MEG X870E ACE MAX

Chipset
AMD X870E

CPU Socket
AM5

CPU Support
AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors

Memory
4 x DDR5 UDIMM
Max 256GB
DDR5 9000-5600 (OC)
Dual Channel
Supports AMD EXPO™

Graphics Output
1 x HDMI™ 2.1 (up to 8K 60Hz)
2 x USB Type-C® DisplayPort (4K 120Hz)

Expansion Slots
2 x PCIe 5.0 x16
1 x PCIe 5.0 x4

Audio
Realtek ALC4082 + ESS9219Q DAC
7.1 Channel
Supports 32-bit / 384 kHz

Storage
5 x M.2 slots
4 x SATA 6Gb/s

M.2 Support
PCIe 5.0 x4 (M.2_1, M.2_2)
PCIe 4.0 x4 (M.2_3 / M.2_4 / M.2_5)

RAID Support
RAID 0 / 1 / 5 / 10

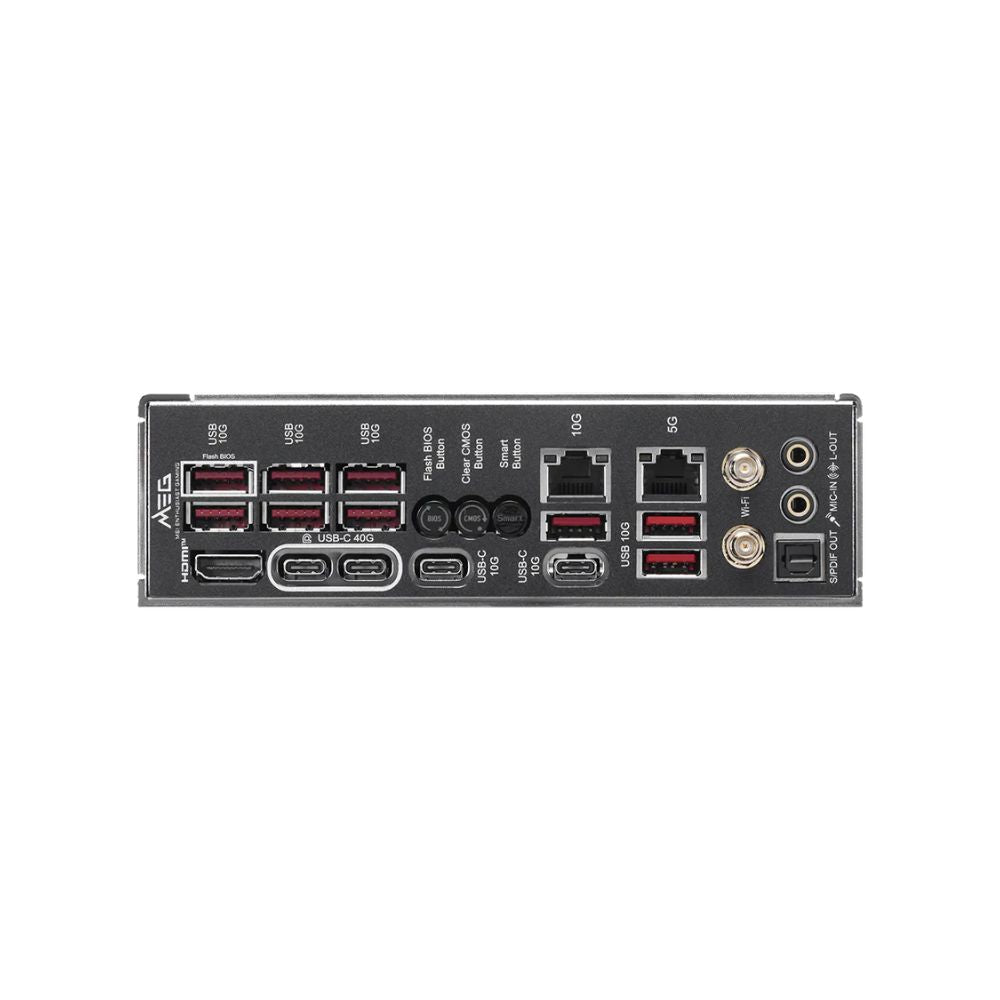

USB Ports
Rear:
9 x USB 10Gbps Type-A
2 x USB 10Gbps Type-C
2 x USB 40Gbps Type-C

Front:
4 x USB 2.0
4 x USB 5Gbps Type-A
1 x USB 20Gbps Type-C

Ethernet
1 x 10Gb LAN (Marvell)
1 x 5Gb LAN (Realtek)

Internal Connectors
1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x Power Connector(PCIE_PWR 8pin)
1x Front Type-C Quick Charge Connector(PD_PWR1)
1x CPU Fan
2x Combo Fan (Pump_Sys Fan)
5x System Fan
1x EZ Conn-header (JAF_2)
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Water Flow connector
1x Front Audio (JAUD)
2x Thermal Sensor connectors(T_SEN)
1x Tuning Controller connector(JDASH)
3x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
V-check point
2x Direct OC Jumper (JBCLK)
4x USB 2.0 ports
4x USB 5Gbps Type A ports
1x USB 20Gbps Type C ports

Wireless
WiFi 7
Supports 2.4GHz / 5GHz / 6GHz
Up to 5.8Gbps

Bluetooth
Bluetooth® 5.4

Special Features
1x EZ Digi-Debug LED
4x EZ Debug LED
1x EZ Memory Detection LED
1x EZ LED Control switch

Operating System
Windows 11 64-bit

Form Factor
ATX

Dimensions
243.84mm x 304.8mm

Warranty

3 YEARS WARRANTY
