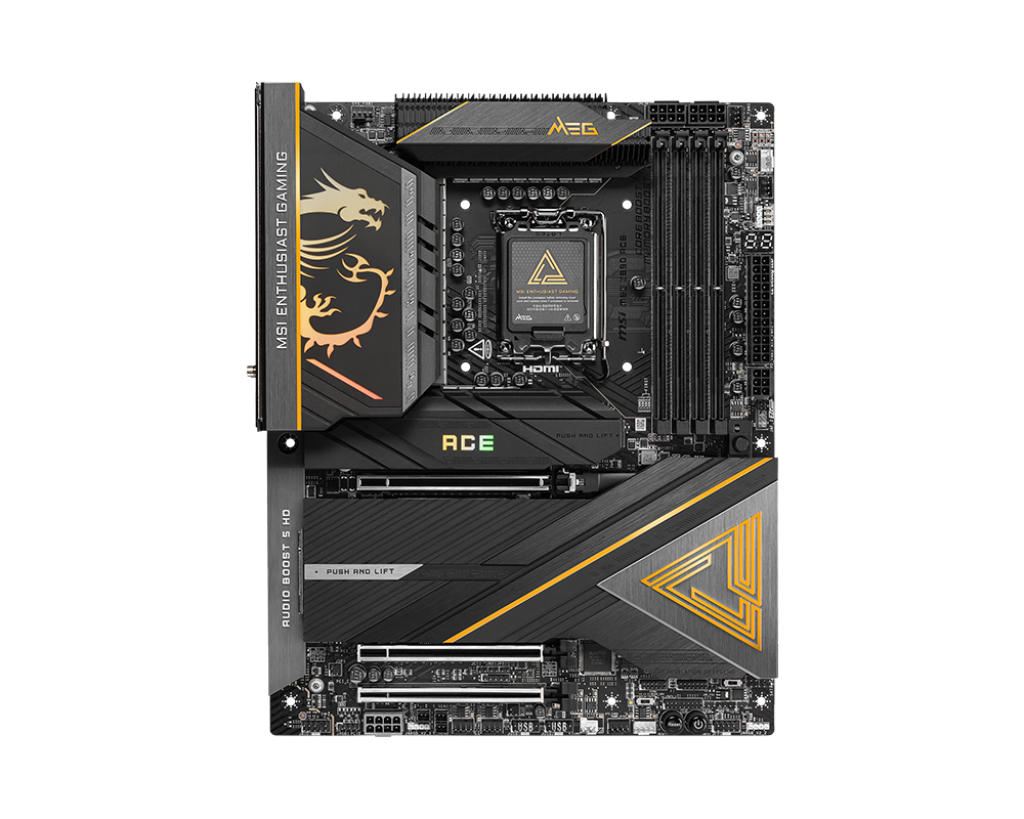

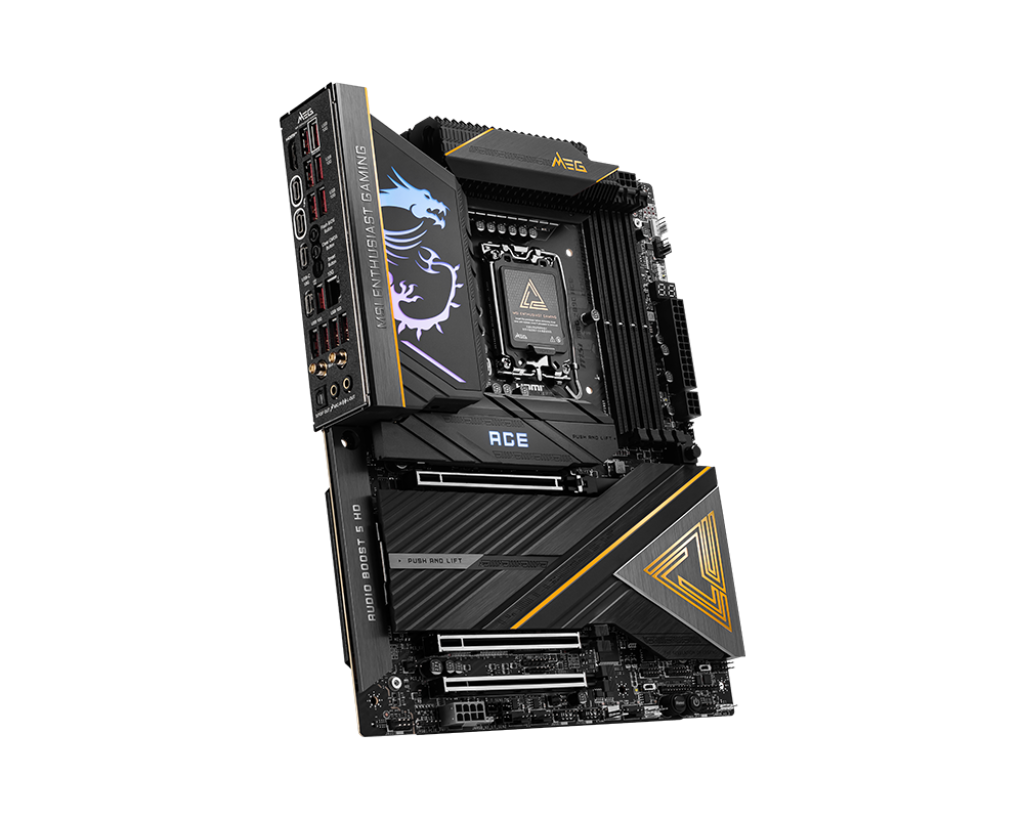

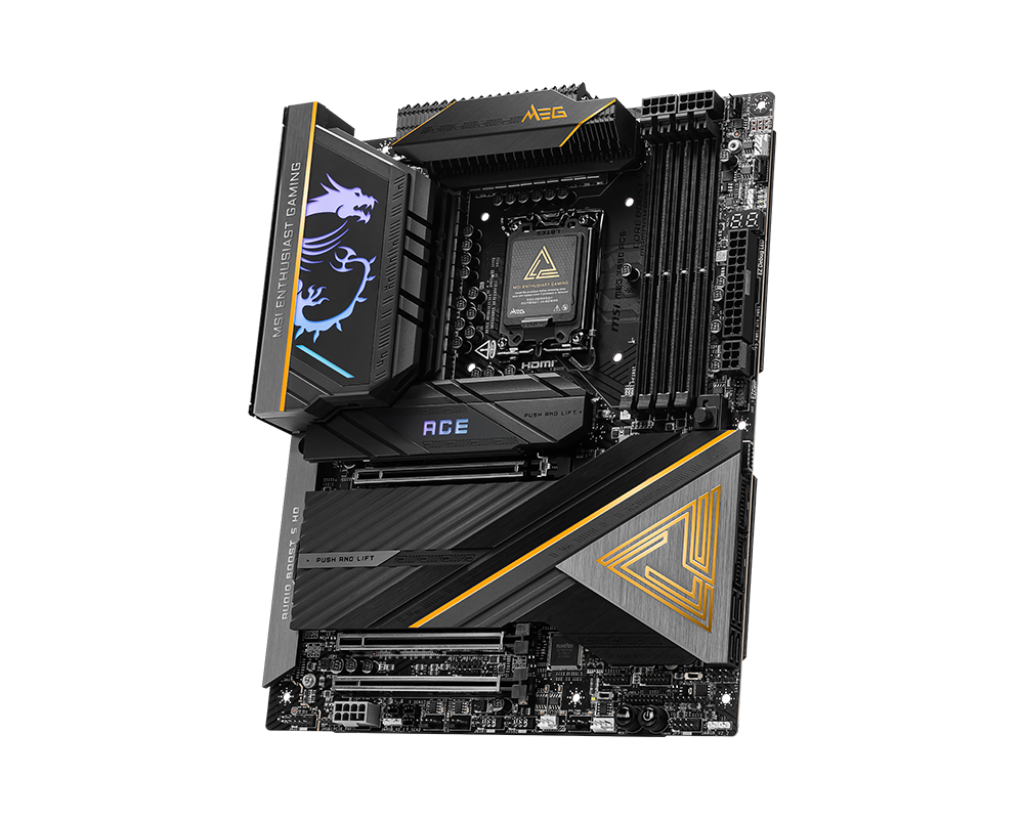

MSI MEG Z890 ACE Wi-Fi 7 & Bluetooth DDR5 ATX Motherboard

MSI MEG Z890 ACE Wi-Fi 7 & Bluetooth DDR5 ATX Motherboard

$1,139.00

OVERVIEW
SPECIFICATIONS
FAQs

3 YEAR DISTRIBUTOR WARRANTY

Corbell Technology Pte Ltd
4012 Ang Mo Kio Ave 10, #06-04 Techplace 1
Singapore 569628
Contact: 6452 4122

KEY FEATURES

-Audio Boost 5 HD: Experience immersive, high-fidelity sound powered by a premium audio processor, seamlessly blending an ESS DAC and amplifier for truly breathtaking clarity.

-Latest DDR5 Memory: A significant leap in DDR performance with the latest DDR5 memory and MSI Memory Boost technology.

-Ultra Power +: The ultimate power solution with 24+2+1+1 DRPS, 110A SPS, and OC Engine to unleash peak CPU performance.
Chipset:

INTEL Z890

CPU:

Supports Intel® Core™ Ultra Processors (Series 2)

LGA 1851

Memory:

4x DDR5 UDIMM, Maximum Memory Capacity 256GB

Memory Support 9200 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s

Max. overclocking frequency:

• 1DPC 1R Max speed up to 9200+ MT/s

• 1DPC 2R Max speed up to 7200+ MT/s

• 2DPC 1R Max speed up to 6400+ MT/s

• 2DPC 2R Max speed up to 5600+ MT/s

Supports Intel® POR Speed and JEDEC Speed

Supports Memory Overclocking and Intel® XMP 3.0

Supports Dual-Controller Dual-Channel mode

Supports Non-ECC, Un-buffered memory

Supports CUDIMM

* The DIMM slots on this motherboard only have single-sided latches.

** Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/.

Onboard Graphics:

1x HDMI™

Support HDMITM 2.1 with FRL port, maximum resolution of 8K 60Hz*

2x Type-C DisplayPort

Thunderbolt™ 4 ports, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz*

* Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

Slot:

3x PCI-E x16 slot

PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)

PCI_E2 Gen PCIe 5.0 supports up to x8 (From CPU)

PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)

• PCI_E1 support manual BIOS adjustment to X8+X8/X8+X4+X4

• PCI_E2 support manual BIOS adjustment to X4+X4

* PCI_E1 slot will run at x8 speed when PCI_E2 slot installing device.

** PCI_E1 slot will run at x8 speed and PCI_E2 slot will run at x4 speed when installing PCIe Gen 5 M.2 device in the M2_4 slot.

Audio:

Realtek® ALC4082 Codec + ESS9219Q Combo DAC/HPA

7.1-Channel USB High-Performance Audio

Supports S/PDIF output

Supports up to 32-Bit/384 kHz playback on front panel

Storage:

5x M.2

M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices

M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices

M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices

M.2_4 Source (From CPU+Chipset) supports up to PCIe 5.0 x4 + PCIe 4.0 x4 , supports 22110/2280/2260 devices

M.2_5 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 22110/2280 devices

4x SATA 6G

* M2_4 default from chipset, can support PCIe 5.0 x4 (From CPU) by manual BIOS adjustment.

** M2_4 and M2_5 cannot support 22110 Device at the same time.

*** Please refer to the manual for M.2 SSD heatsink restrictions.

RAID:

Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices

Onboard Thunderbolt:

2x Thunderbolt4 ports (Rear)

Support up to 40Gbps transfer rate with Thunderbolt devices

Support up to 20Gbps transfer rate with USB4 devices

Support up to 10Gbps transfer rate with USB 3.2 devices

Support up to 5V/3A,15W power charging

Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices

Support up to 8K display

USB:

4x USB 2.0 (Front)

4x USB 5Gbps Type A (Front)

11x USB 10Gbps Type A (Rear)

2x USB 10Gbps Type C (Rear)

1x USB 20Gbps Type C (Front)

* To achieve USB PD 60W fast charging for JUSBC1, the PD_PWR1 connector needs to be connected to the power supply unit.

LAN:

1x Marvell® AQC113CS 10Gbps LAN

Internal IO:

1x Power Connector(ATX_PWR)

2x Power Connector(CPU_PWR)

1x Power Connector(PCIE_PWR 8pin)

1x Front Type-C Quick Charge Connector(PD_PWR1)

1x CPU Fan

2x Combo Fan (Pump_Sys Fan)

5x System Fan

1x EZ Conn-header (JAF_2)

2x Front Panel (JFP)

1x Chassis Intrusion (JCI)

1x Water Flow connector

1x Slow Mode Booting Jumper(JSLOW)

1x Front Audio (JAUD)

2x Thermal Sensor connectors(T_SEN)

1x Tuning Controller connector(JDASH)

3x Addressable V2 RGB LED connector (JARGB_V2)

1x RGB LED connector(JRGB)

1x TPM pin header(Support TPM 2.0)

V-check point

4x USB 2.0 ports

4x USB 5Gbps Type A ports

1x USB 20Gbps Type C ports

WIRELESS LAN & BLUETOOTH:

Intel® Killer™ BE1750x Wi-Fi 7

The Wireless module is pre-installed in the M.2 (Key-E) slot

Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps

Supports 802.11 a/ b/ g/ n/ ac/ ax/ be

Supports Bluetooth® 5.4**, MLO, 4KQAM

* 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2.

** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2.

LED FEATURE:

4x EZ Debug LED

1x EZ Digit Debug LED

1x EZ LED Control switch

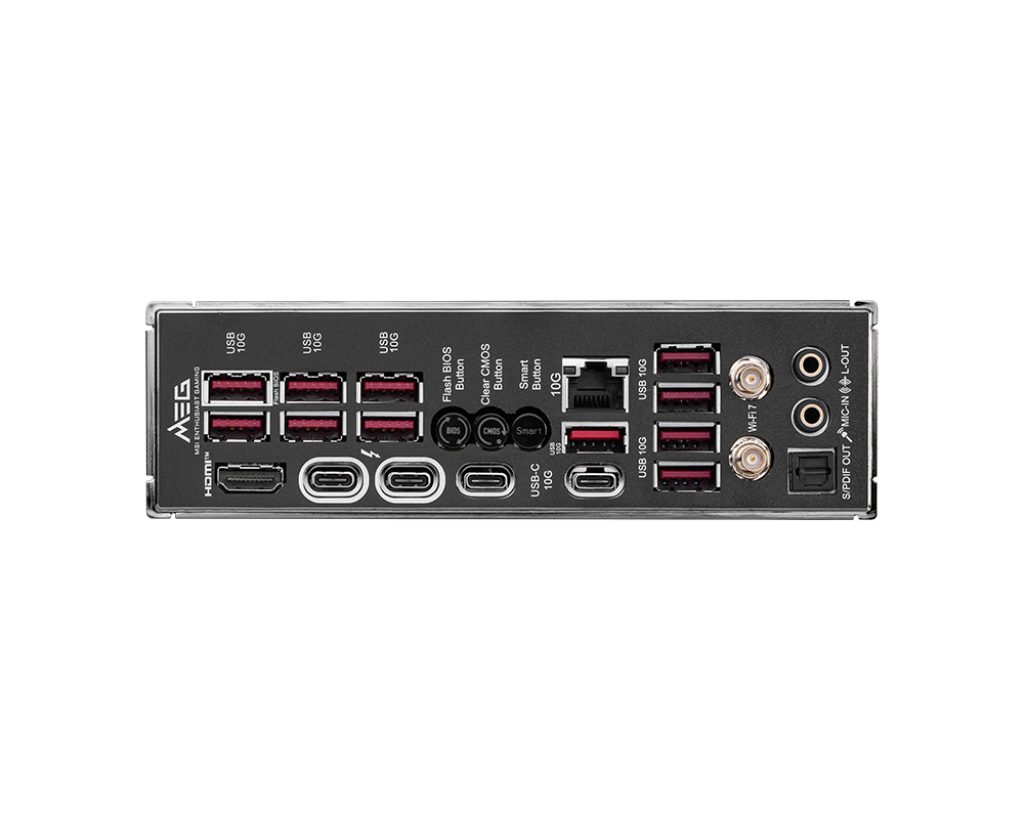

BACK PANEL PORTS:

USB 10Gbps (Type-A)

Flash BIOS Button

Clear CMOS Button

Smart Button

10G LAN

Wi-Fi / Bluetooth

HD Audio Connectors

HDMI™ 2.1 Port

Thunderbolt™ 4 40Gbps (Type-C)

USB 10Gbps (Type-C)

USB 10Gbps (Type-A)

Optical S/PDIF-Out

OPERATING SYSTEM:

Support for Windows® 11 64-bit

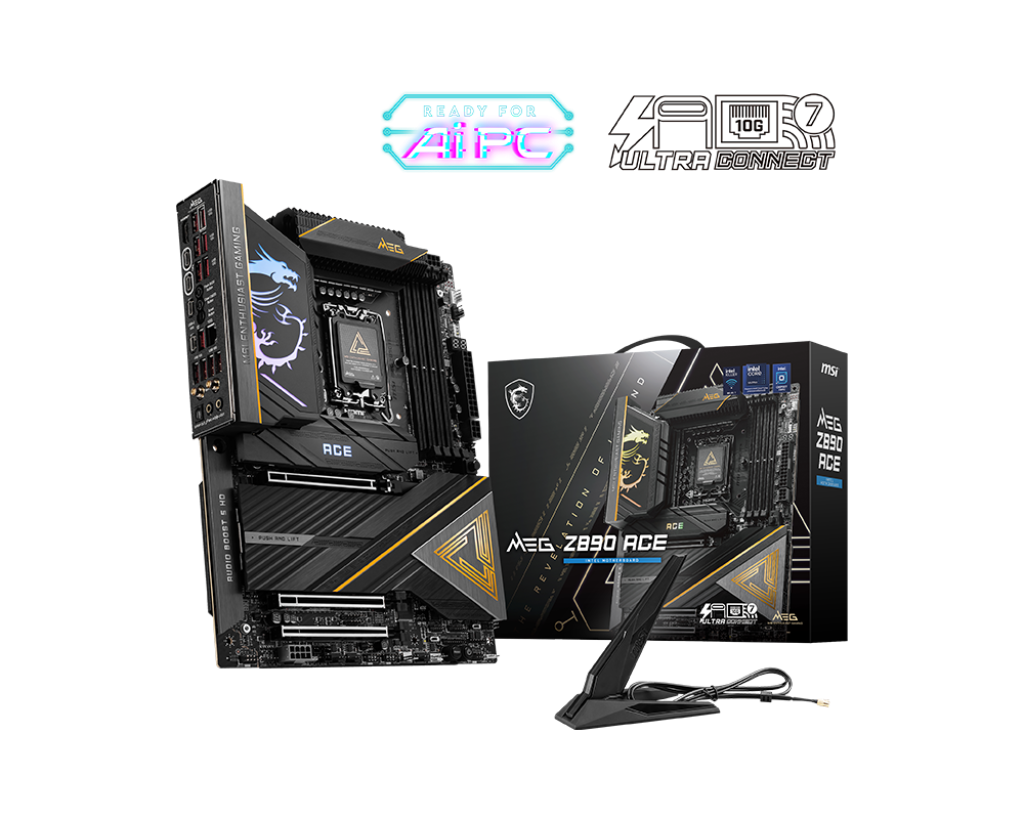

BOX CONTENT:

EZ Wi-Fi Antenna

USB Drive

Cable Sticker

SATA Cables x4

EZ Front Panel Cable

1 to 3 EZ Conn-Cable (V2)

1 to 2 RGB Extension Cable

ARGB Extension Cable

Thermistor Cables

EZ M.2 Clip II Remover

EZ m.2 Clips II

M.2 Screw and Standoff Set

Shout out Flyer

Quick Installation Guide

European Union Regulatory Notice

PCB Info:

ATX

243.84 mm x 304.8 mm
