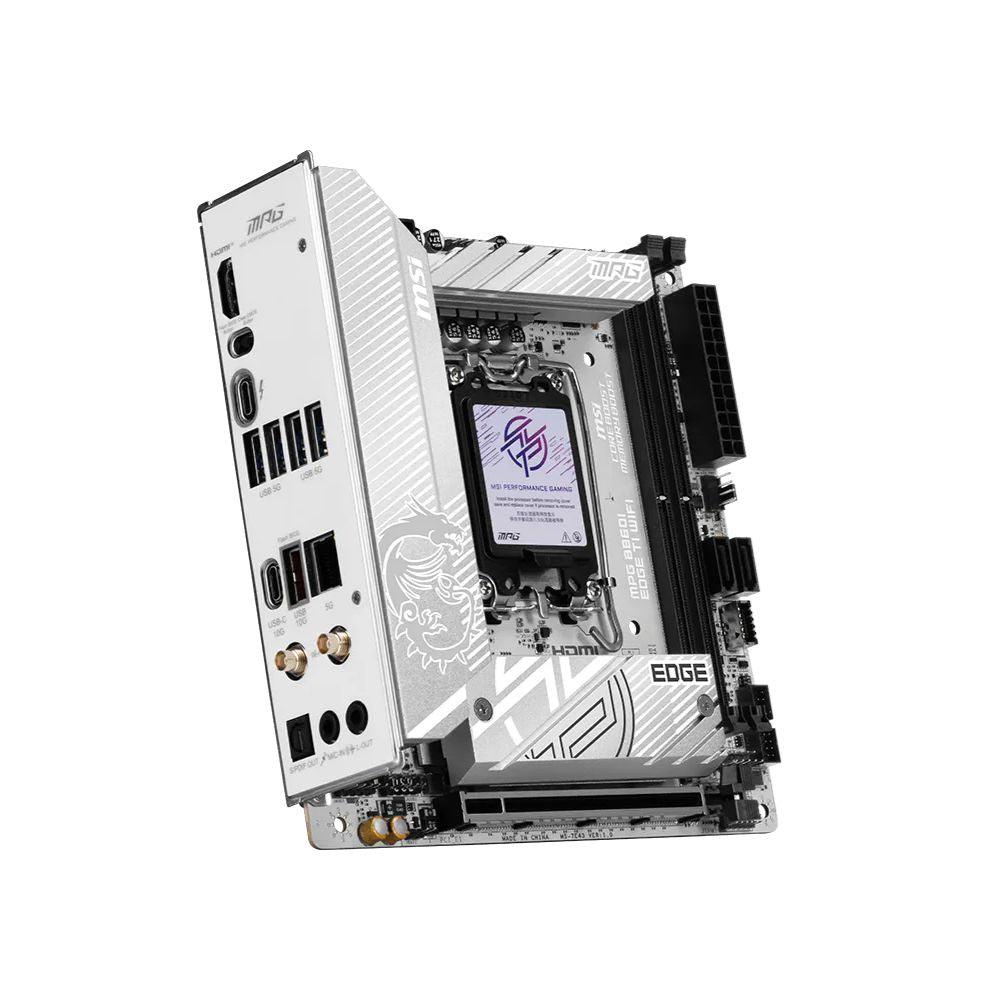

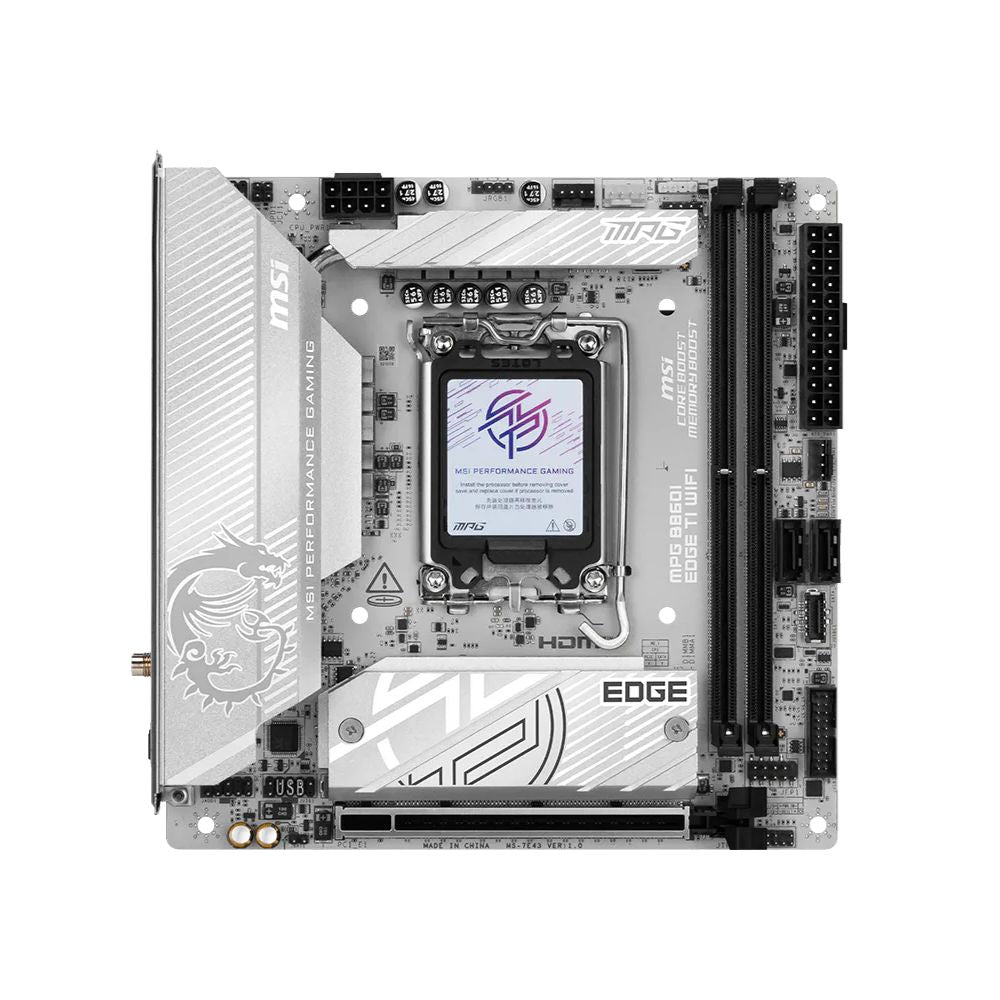

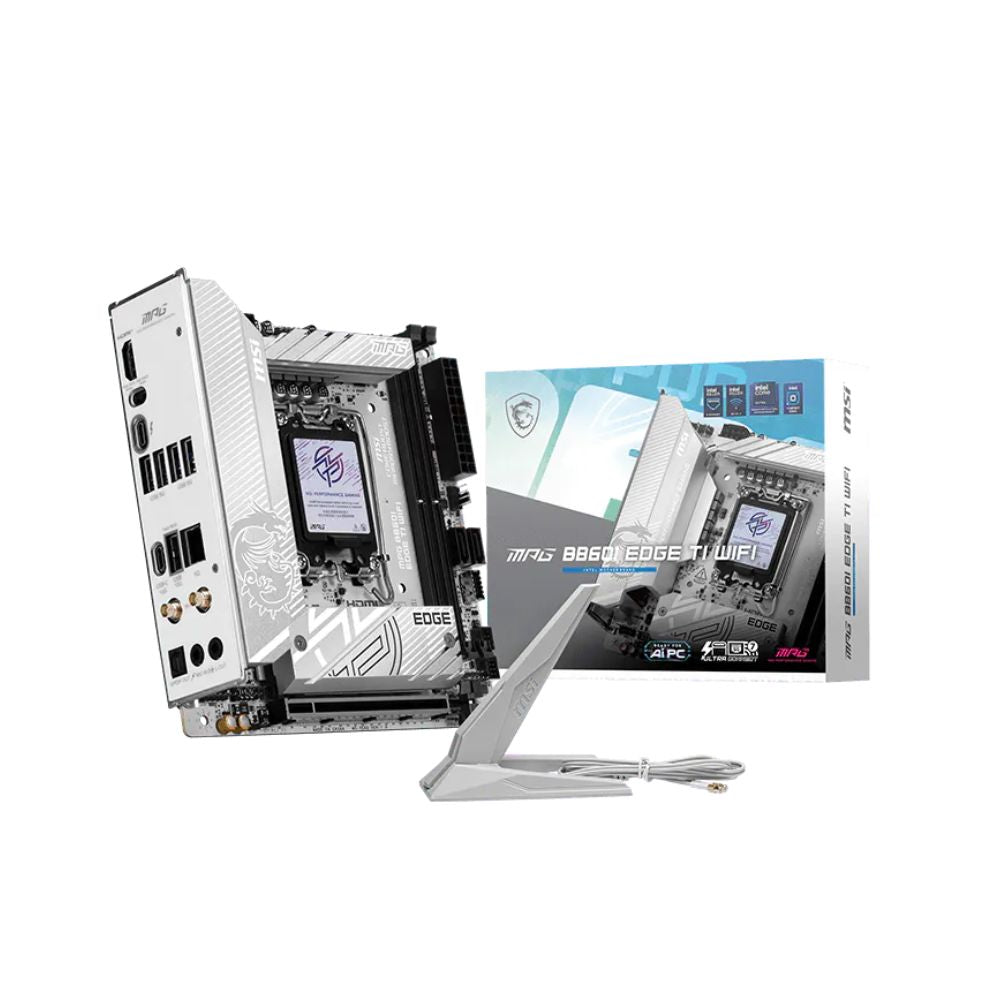

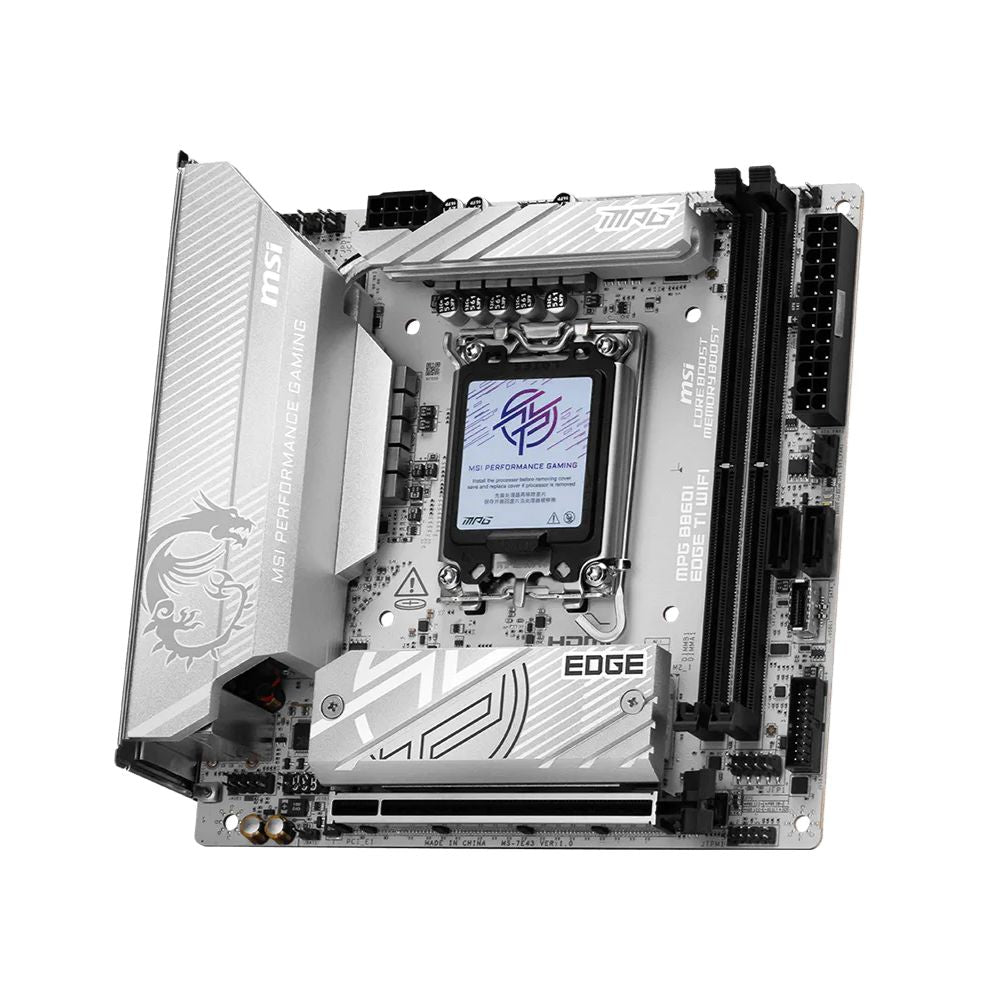

MSI MPG B860I EDGE TI WIFI - Compact Intel Power

Model
MSI MPG B860I EDGE TI WIFI

Chipset
Intel B860

CPU Support
Intel® Core™ Ultra Processors Series 2

CPU Socket
LGA1851

Memory
2 x DDR5 UDIMM slots
Maximum 128GB
DDR5 8600 - 6400 MT/s (OC)
DDR5 6400 - 4800 MT/s (JEDEC)
1DPC 1R up to 8600+ MT/s
1DPC 2R up to 7200+ MT/s
Supports Intel POR Speed and JEDEC Speed
Supports Memory Overclocking
Supports Intel XMP 3.0
Supports Dual-Controller Dual-Channel mode
Supports Non-ECC, Un-buffered memory
Supports CUDIMM

Graphics Output
1 x HDMI™
Supports HDMI™ 2.1 with FRL
Supports up to 8K 60Hz
1 x USB Type-C DisplayPort
Thunderbolt™ 4 supports DisplayPort 2.1 with UHBR20
Supports up to 4K@120Hz / 8K@60Hz

Expansion Slots
1 x PCIe x16 slot
PCI_E1: PCIe 5.0 x16 from CPU

Audio
Realtek® ALC897 Codec
7.1-Channel High Definition Audio
Supports S/PDIF Output

Storage
2 x M.2 slots
M.2_1: PCIe 5.0 x4 from CPU, supports 2280 devices
M.2_2: PCIe 4.0 x4 / SATA mode from Chipset, supports 2280 devices
2 x SATA 6G ports

RAID Support
RAID 0 / 1 for SATA storage devices

Thunderbolt
1 x Thunderbolt™ 4 rear port
Up to 40Gbps with Thunderbolt devices
Up to 20Gbps with USB4 devices
Up to 10Gbps with USB 3.2 devices
Supports up to 5V/3A, 15W power charging
Daisy-chain up to three Thunderbolt 4 devices
Daisy-chain up to five Thunderbolt 3 devices
Supports up to 8K display

USB Ports
2 x USB 2.0 Front
4 x USB 5Gbps Type-A Rear
2 x USB 5Gbps Type-A Front
1 x USB 10Gbps Type-A Rear
1 x USB 10Gbps Type-C Rear
1 x USB 10Gbps Type-C Front

LAN
Intel® Killer™ E5000B 5G LAN

Wireless
Intel® Killer™ BE1750x Wi-Fi 7
Pre-installed M.2 Key-E wireless module
Supports MU-MIMO TX/RX
Supports 2.4GHz / 5GHz / 6GHz
Supports 320MHz bandwidth
Up to 5.8Gbps
Supports 802.11 a/b/g/n/ac/ax/be
Supports MLO and 4KQAM

Bluetooth
Bluetooth® 5.4

Internal I/O
1 x ATX Power Connector
1 x CPU Power Connector
1 x CPU Fan Header
1 x Combo Fan Header
1 x System Fan Header
2 x Front Panel Headers
1 x Chassis Intrusion Header
1 x Front Audio Header
1 x Addressable V2 RGB LED Connector
1 x RGB LED Connector
1 x TPM Pin Header
2 x USB 2.0 Ports
2 x USB 5Gbps Type-A Ports
1 x USB 10Gbps Type-C Port

LED Feature
4 x EZ Debug LED
1 x EZ Memory Detection LED

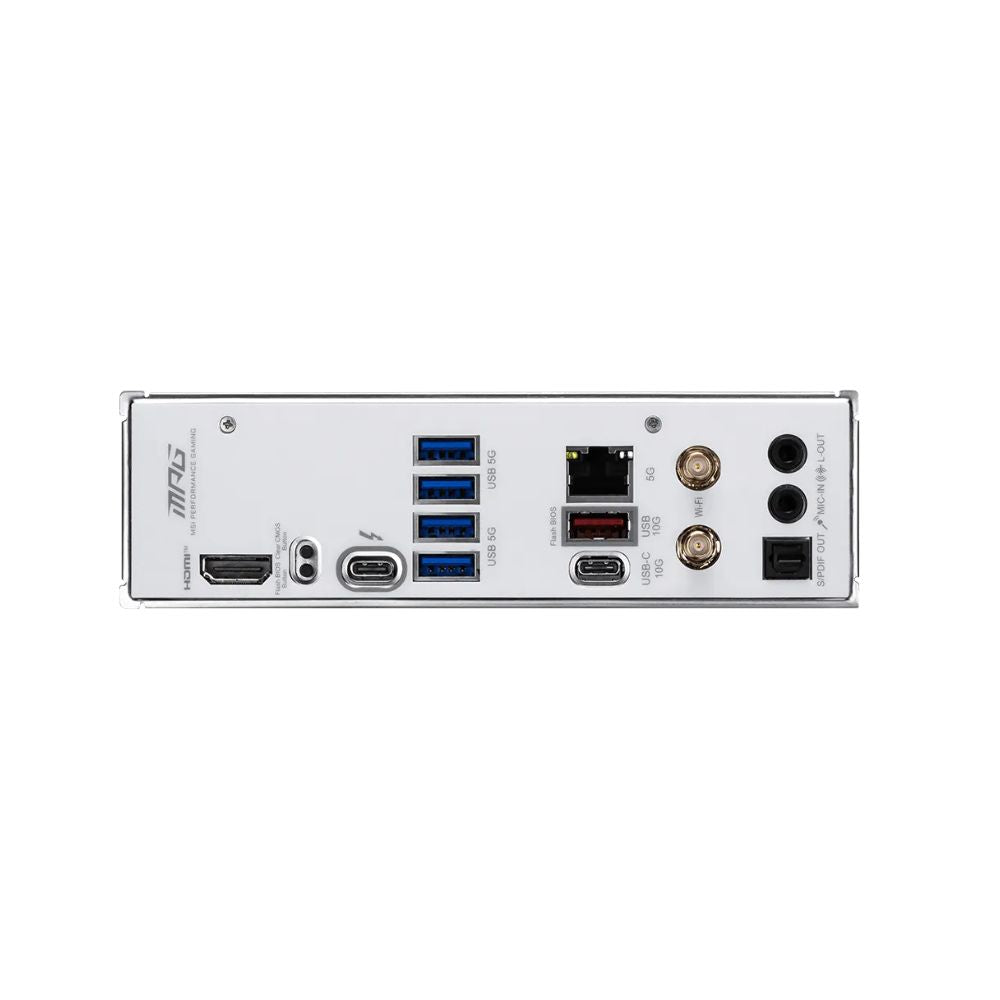

Back Panel Ports
Clear CMOS Button
USB 5Gbps Type-A
5G LAN
Wi-Fi / Bluetooth
Audio Connectors
HDMI™
Flash BIOS Button
Thunderbolt 4
USB 10Gbps Type-C
USB 10Gbps Type-A
Optical S/PDIF Out

Operating System
Windows® 11 64-bit

Form Factor
Mini-ITX

Dimensions
170mm x 170mm

3 YEARS WARRANTY
