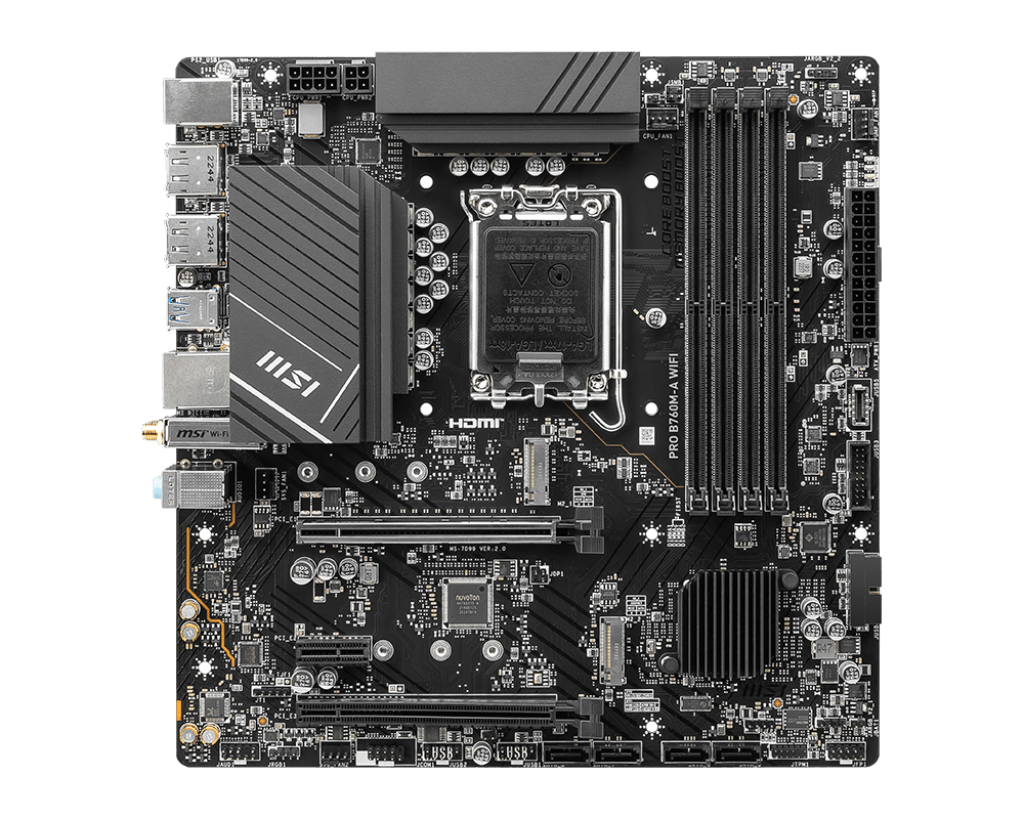

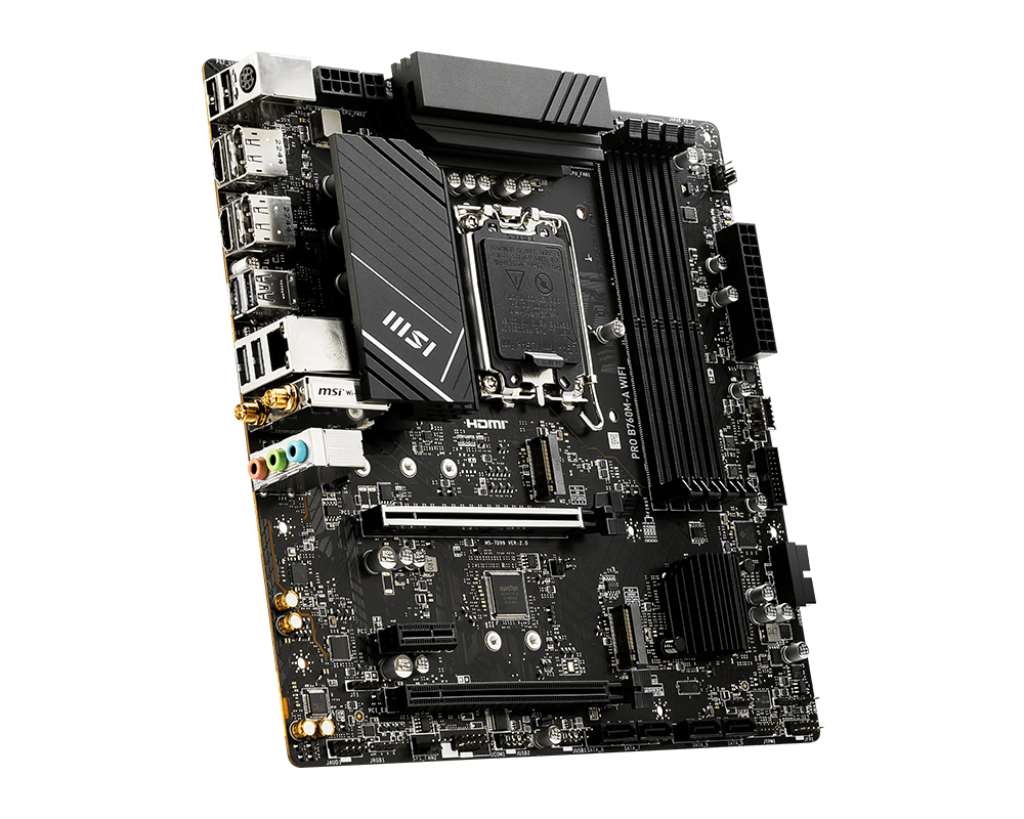

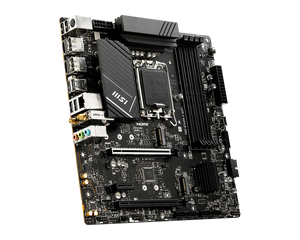

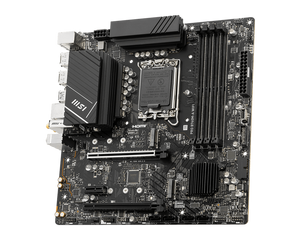

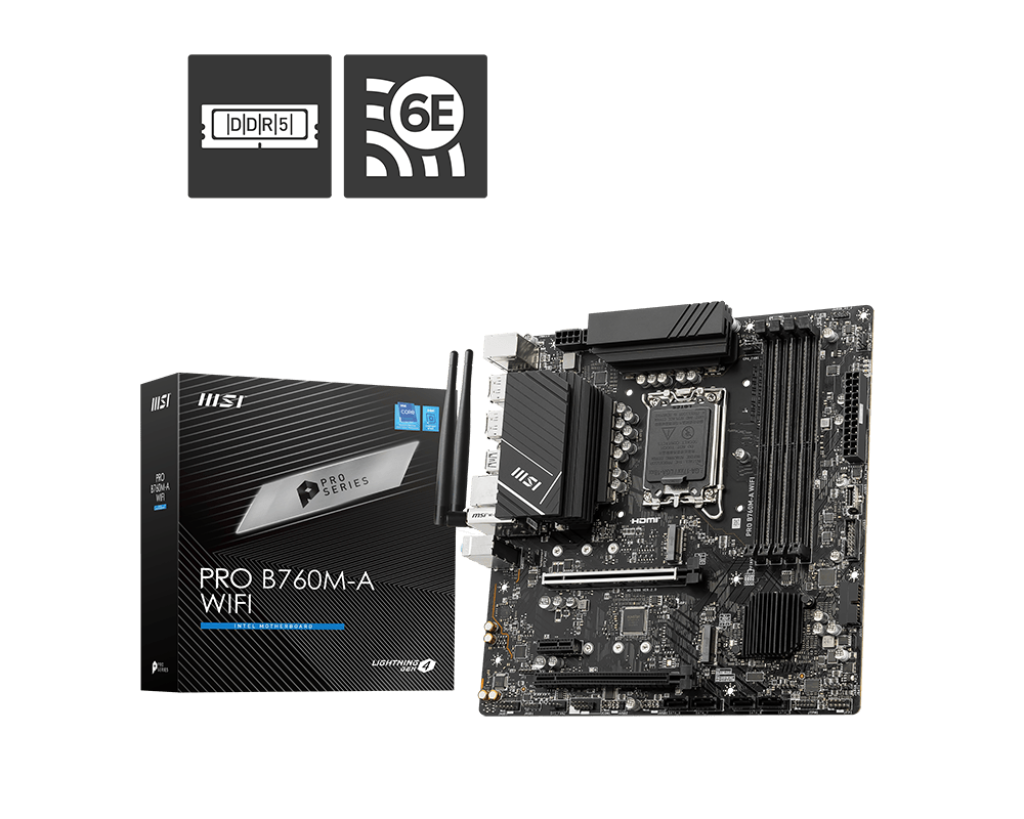

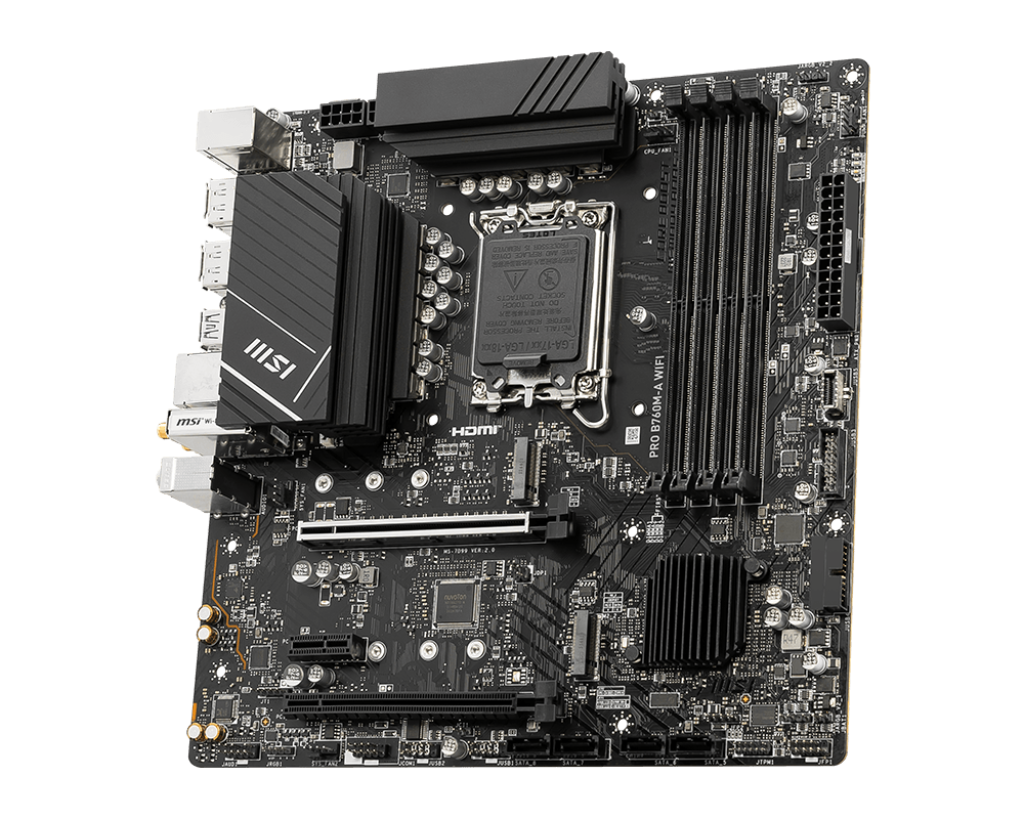

MSI PRO B760M-A WiFi – DDR5 Motherboard with WiFi 6E

About the MSI PRO B760M-A WiFi Motherboard

The MSI PRO B760M-A WiFi is your entry point into Intel's 12th, 13th, and 14th Gen platforms with DDR5 memory. It's built for budget-conscious builders who want modern features without paying for RGB lighting or extreme overclocking capabilities they won't use. The mATX form factor fits compact cases while still offering room for dual graphics cards if needed.

What This MSI PRO B760M-A WiFi Does for You

This DDR5 motherboard gets you onto Intel's latest platform at SGD 219. You can start with an i3-12100F and upgrade to an i7-14700K later without swapping boards. WiFi 6E handles faster wireless speeds than older WiFi 5, and you're not spending extra on a separate card. The 2.5G ethernet port transfers files faster than standard 1G LAN. Dual M.2 slots mean your OS drive and game storage both run at PCIe 4.0 speeds. Four SATA ports give you options for extra hard drives or older SSDs you already own.

Build Quality and Features

MSI keeps costs down by focusing on what matters for Intel WiFi 6E builds. The VRMs handle mid-range CPUs like the i5-13400F or i5-14600K without throttling. You get basic RGB headers if you want some lighting, but this isn't a show-off board. The ALC897 audio codec is entry-level but works fine for gaming headsets. Four DDR5 slots support up to 256GB if you need it for workstation tasks.

Perfect For

• First-time builders choosing Intel over AMD who want affordable mATX custom PC builds
• Upgraders moving from older platforms who need DDR5 support
• Office PCs and media centers where WiFi 6E eliminates cable runs
• Compact mATX gaming builds on a SGD 1500-2000 total budget

Why Buy from Mansa Computers

• 3-year Singapore warranty with MSI service support
• Fast WhatsApp inquiry response for compatibility questions
• Open 7 days a week for support
• Home delivery available

Technical Specifications Summary

Chipset
Intel B760

CPU Support
Intel 12th/13th/14th Gen, LGA1700

Memory
4x DDR5, up to 6800MHz (OC), 256GB max

Storage
2x M.2 PCIe 4.0, 4x SATA 6Gb/s

Networking
WiFi 6E, Bluetooth 5.3, 2.5G LAN

Form Factor
Micro-ATX (mATX)

PCIe Slots
2x PCIe x16, 1x PCIe x1

Video Outputs
2x HDMI 2.1, 2x DisplayPort 1.4

The MSI PRO B760M-A WiFi gives you a solid foundation for modern Intel builds. Questions about compatibility with your parts? WhatsApp us directly for help.

Model
MSI B760M PROJECT ZERO

Chipset
Intel B760

CPU
Supports Intel Core 14th, 13th, and 12th Gen Processors, Intel Pentium Gold, and Celeron Processors (LGA 1700)

Memory
4 x DDR5 slots, up to 256GB maximum capacity
Supports DDR5 6800+(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(JEDEC)/5400(JEDEC)/5200(JEDEC)/5000(JEDEC)/4800(JEDEC) MHz
Overclocking limits: 1DPC 1R up to 6800+ MHz, 1DPC 2R up to 6400+ MHz, 2DPC 1R up to 6000+ MHz, 2DPC 2R up to 5600+ MHz
Supports Intel XMP 3.0 OC, Dual-Controller Dual-Channel mode, non-ECC unbuffered memory

Graphics
2 x HDMI 2.1 ports supporting up to 4K 60Hz
2 x DisplayPort 1.4 ports supporting up to 4K 60Hz
Available only on processors with integrated graphics; performance varies by CPU

Expansion Slots
2 x PCIe x16 slots, 1 x PCIe x1 slot
PCI_E1 Gen PCIe 4.0 up to x16 (from CPU)
PCI_E2 Gen PCIe 3.0 up to x1 (from chipset)
PCI_E3 Gen PCIe 4.0 up to x4 (from chipset)

Audio
Realtek ALC897 Codec with 7.1-channel High Definition Audio

Storage
2 x M.2 slots:
• M.2_1 (from CPU) supports PCIe 4.0 x4, 2280/2260/2242 SSDs
• M.2_2 (from chipset) supports PCIe 4.0 x4/SATA mode, 2280/2260/2242 SSDs
4 x SATA 6G ports
SATA8 unavailable when using M.2 SATA SSD in M2_2 slot

RAID
Supports RAID 0, RAID 1, RAID 5, and RAID 10 for SATA storage

USB
Rear: 2 x USB 2.0, 2 x USB 5Gbps Type-A, 2 x USB 10Gbps Type-A
Front: 4 x USB 2.0, 4 x USB 5Gbps Type-A, 1 x USB 5Gbps Type-C

LAN
Realtek RTL8125BG 2.5G LAN

Internal I/O
1 x ATX Power Connector (24-pin)
2 x CPU Power Connectors (8-pin)
1 x CPU Fan, 1 x Pump Fan, 2 x System Fan
2 x Front Panel connectors (JFP)
1 x Chassis Intrusion (JCI), 1 x Front Audio (JAUD), 1 x COM Port (JCOM)
2 x Addressable RGB Gen2 headers (JARGB_V2), 1 x RGB LED header (JRGB)
1 x TPM Header (TPM 2.0 support)

Wireless LAN & Bluetooth
Intel Wi-Fi 6E (pre-installed M.2 Key-E module)
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz bands (160MHz), up to 2.4Gbps
Complies with 802.11 a/b/g/n/ac/ax
Bluetooth 5.3 support
Wi-Fi 6E 6GHz depends on regional regulations and Windows 11 readiness
Bluetooth 5.3 requires Windows 10 build 21H1 or Windows 11

LED Features
4 x EZ Debug LEDs

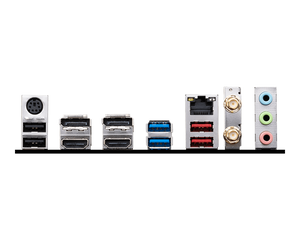

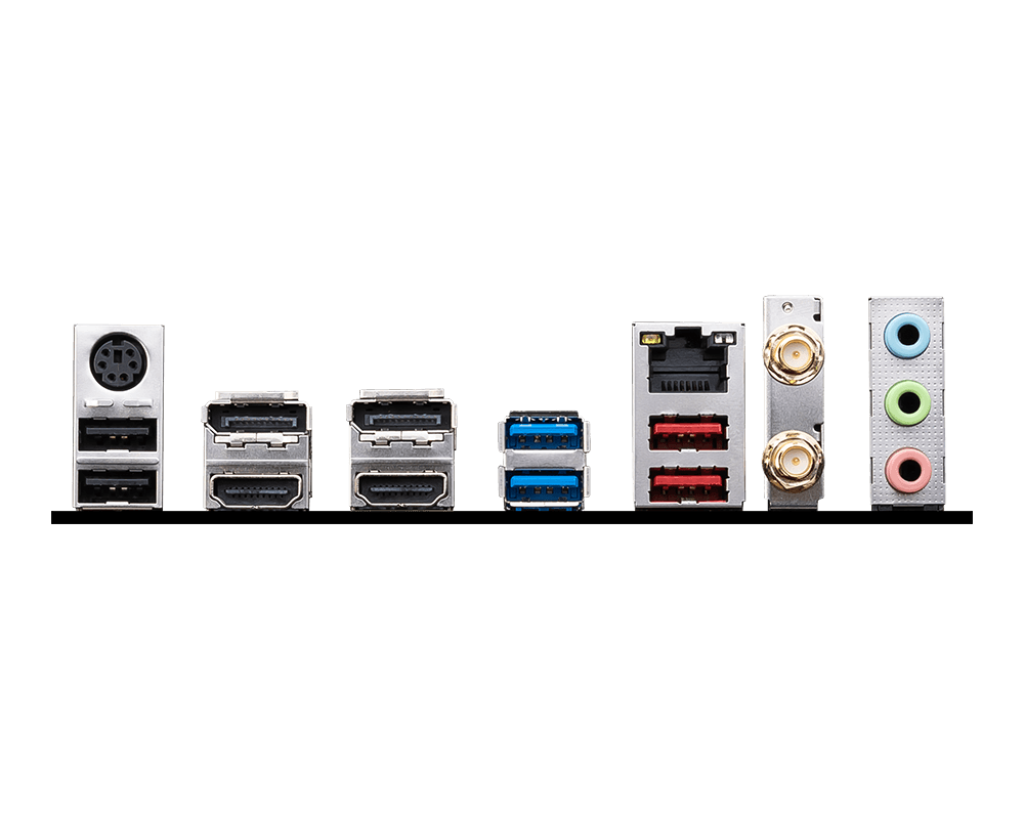

Back Panel Ports
Keyboard/Mouse Combo Port
DisplayPort
2 x USB 3.2 Gen 1 5Gbps Type-A
2.5G LAN Port
Wi-Fi / Bluetooth Antenna Connectors
Audio Jacks
2 x USB 2.0
HDMI
2 x USB 3.2 Gen 2 10Gbps Type-A

Operating System
Supports Windows 11 64-bit and Windows 10 64-bit

PCB Form Factor
Micro ATX (243.84mm x 243.84mm)

3 YEAR WARRANTY

Corbell Technology Pte Ltd
4012 Ang Mo Kio Ave 10 #06-04, Techplace 1,
Singapore 569628
Contact: 6452 4122

Frequently Asked Questions About MSI PRO B760M-A WiFi

Does this MSI PRO B760M-A WiFi support Intel 14th Gen CPUs?

Yes, it supports 12th, 13th, and 14th Gen Intel Core processors out of the box. You might need a BIOS update for the newest CPUs, which we can help with.

Can I use my DDR4 RAM with this motherboard?

No, the B760M-A WiFi only supports DDR5 memory. DDR4 and DDR5 use different slots and aren't compatible with each other.

Will this board handle an RTX 4070 graphics card?

Absolutely. The primary PCIe x16 slot runs at Gen 4.0 speeds from the CPU, which is perfect for any modern GPU including RTX 4070.

What's covered under the 3-year warranty?

MSI's Singapore warranty covers manufacturing defects and component failures. If something goes wrong, contact us and we'll coordinate with MSI service for you.

How does this compare to ASUS or Gigabyte B760 boards at similar prices?

The main advantage here is built-in WiFi 6E at SGD 219. Competing boards either cost SGD 20-40 more or only include WiFi 5.
