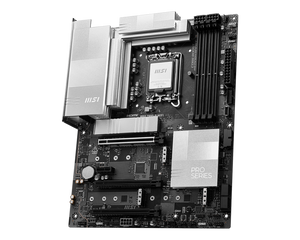

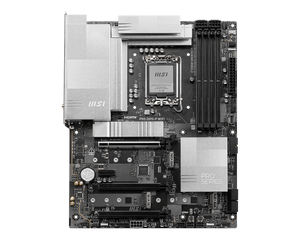

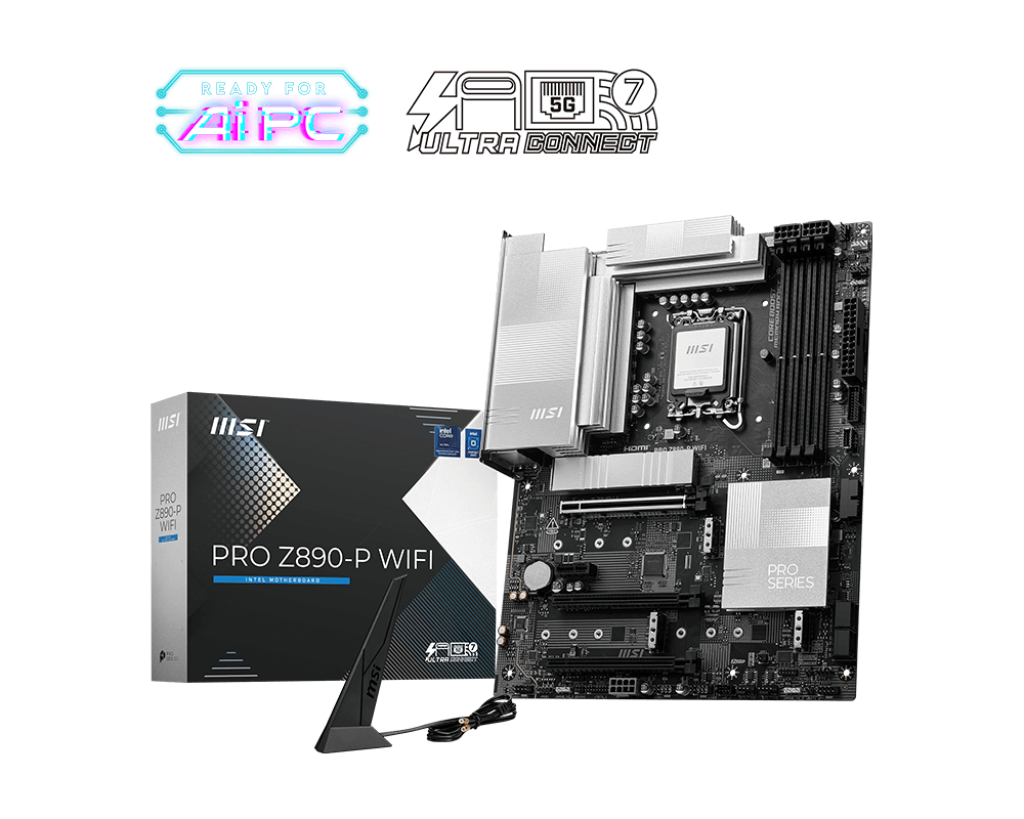

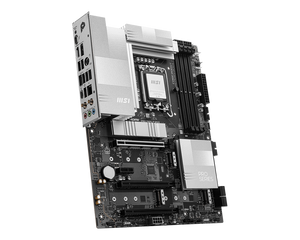

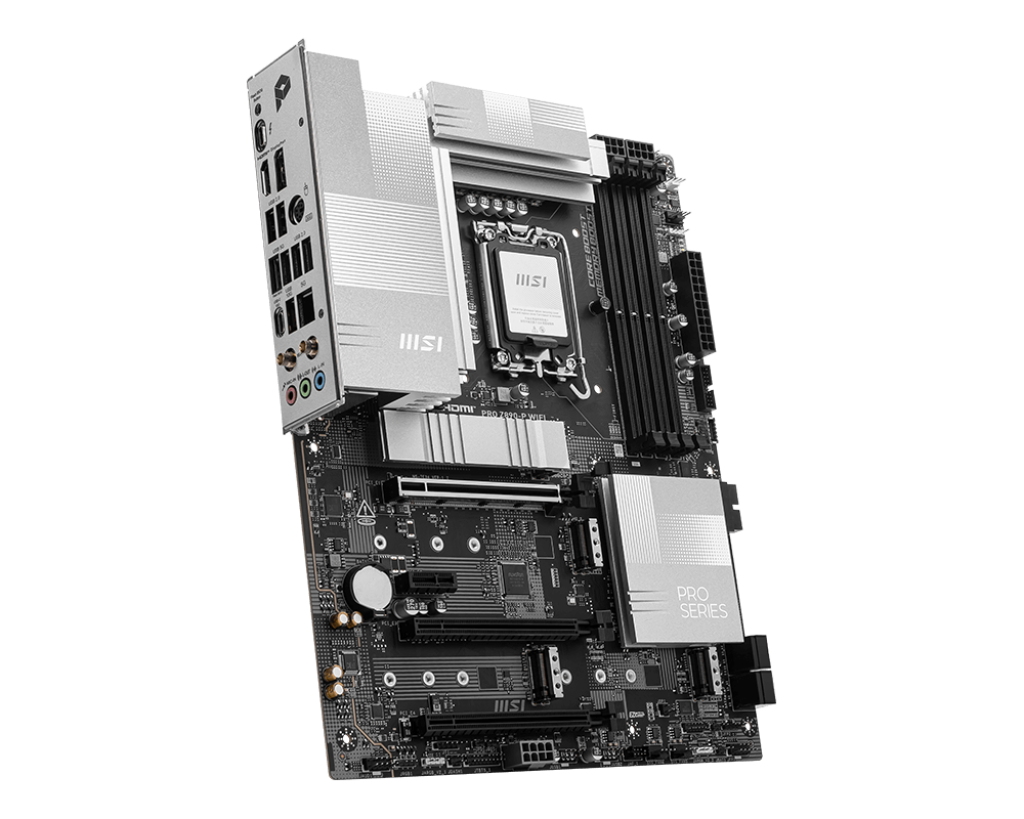

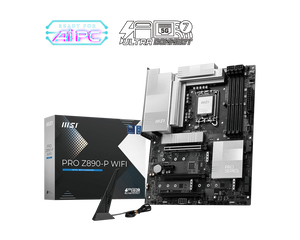

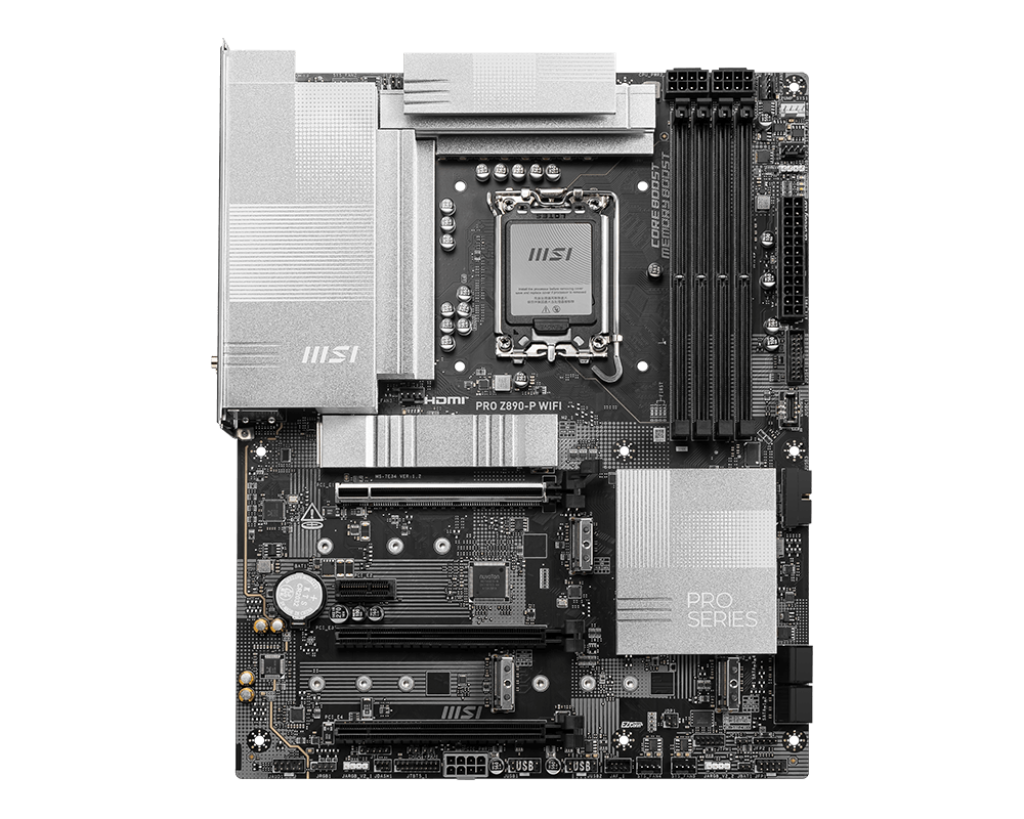

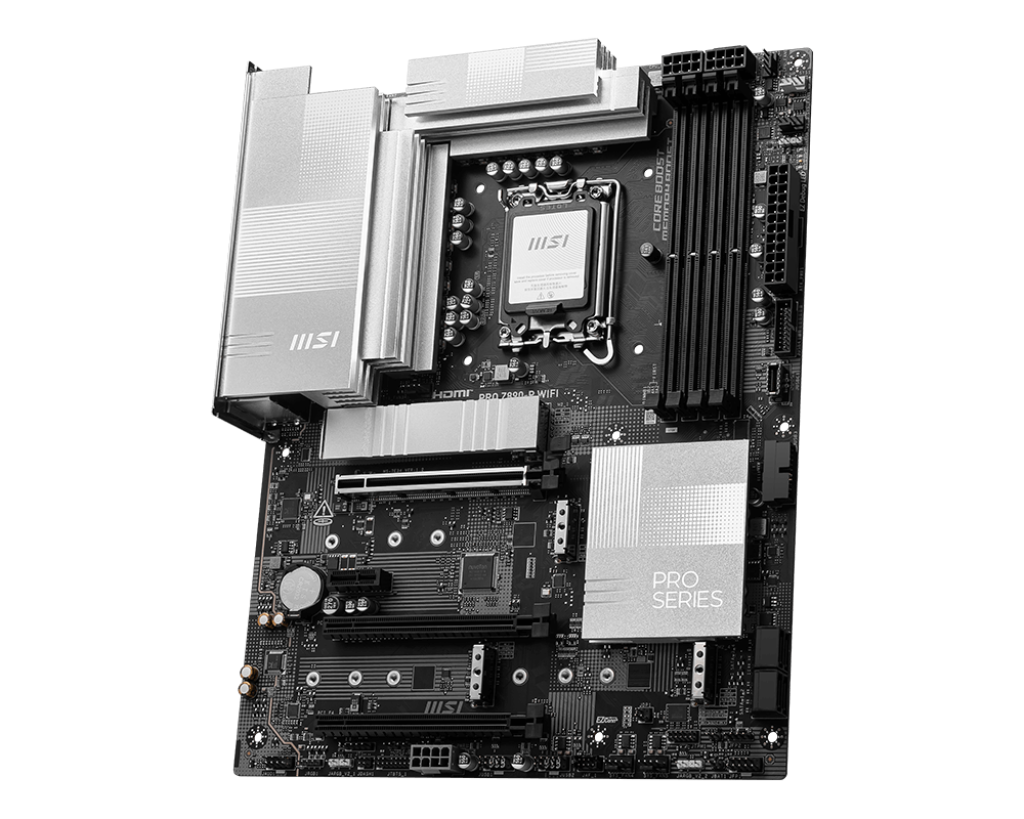

MSI PRO Z890-P WIFI – Intel Core Ultra Series 2 Motherboard

SKU: PRO Z890-P

CPU Support: Intel® Core™ 14th / 13th / 12th Gen Processors (LGA 1700)
Memory Support: 4 x DDR5 slots, up to 256GB, 7800+ MHz (OC)
Expansion & Storage: 1 x PCIe 5.0 x16 slot, 4 x M.2 (Gen4), 6 x SATA 6Gb/s
Networking: Wi-Fi 7 + 2.5G LAN for ultra-fast connectivity

The MSI PRO Z890-P WIFI handles Intel Core Ultra Series 2 processors with reliable power delivery and future-ready connectivity.

WiFi 7, Thunderbolt 4, and 4 M.2 slots give you professional-grade features without flagship pricing. PCIe 5.0 storage support means your drives won't bottleneck in 2-3 years. Backed by 3-year MSI Singapore warranty with fast WhatsApp support from Mansa Computers.

Why Choose This MSI PRO Z890-P

  • WiFi 7 and Thunderbolt 4 deliver cutting-edge wireless speeds and 40Gbps data transfer. Perfect for custom ATX PC builds that need modern connectivity.
  • 4 M.2 slots with PCIe 5.0 support let you run multiple fast drives without compromise. Gamers get future-proof NVMe storage speeds with instant load times and smooth responsiveness.
  • 5Gbps LAN and USB 20Gbps keep your workflow fast.
  • 3-year MSI Singapore warranty with official MSI service support. Fast WhatsApp inquiry response from Mansa Computers. We're open 7 days a week.
✓ Why Buy This

3 Years Warranty

4 M.2 Slots

WiFi 7

Overview

About the MSI PRO Z890-P WIFI

The MSI PRO Z890-P WIFI is built for Intel's newest Core Ultra Series 2 processors (Arrow Lake). This Z890 motherboard sits in the mainstream enthusiast segment, offering professional-grade connectivity without flagship pricing. If you're upgrading to Intel's latest platform or building a future-ready workstation, this PRO series board delivers the features that matter. At SGD 419, it competes with ASUS PRIME and Gigabyte UD series while bringing WiFi 7 and Thunderbolt 4 to the table.

What This MSI PRO Z890-P WIFI Does for You

You get WiFi 7 wireless speeds up to 5.8Gbps, which handles 4K streaming and large file transfers without dropouts. Thunderbolt 4 lets you daisy-chain displays and storage at 40Gbps, turning this motherboard into a workstation hub. Four M.2 slots mean you can run your OS drive, game library, work files, and backup storage without cable clutter. PCIe 5.0 support future-proofs your build for next-gen SSDs hitting 14GB/s speeds. The 5Gbps LAN keeps wired connections fast for content creators moving massive video files.

Connectivity That Lasts Years

This board brings USB 20Gbps Type-C for external SSDs that don't bottleneck. Multiple USB 5Gbps ports handle peripherals, cameras, and drives simultaneously. The Realtek 8126 5Gbps ethernet adapter beats standard 1Gbps boards by 5x. WiFi 7 with 320MHz channels prepares you for routers launching this year. Bluetooth 5.4 handles low-latency audio for gaming headsets and conference calls. These aren't gimmicks—they're features you'll use in 2025-2028 builds.

Perfect For

  • Mainstream PC builders upgrading to Intel Core Ultra Series 2 who want reliable VRM and modern connectivity without overspending on gaming motherboard features they won't use.
  • Content creators needing Thunderbolt 4 for fast external storage and 8K display output without buying workstation-tier boards.
  • Small business builds requiring WiFi 7, multiple M.2 slots, and professional I/O for 5+ year deployment cycles.
  • Tech enthusiasts who value PCIe 5.0 storage support, USB 20Gbps, and future-ready specs over RGB lighting.

Why Buy from Mansa Computers

  • 3-year MSI Singapore warranty with official MSI service support
  • Fast WhatsApp inquiry response for compatibility questions
  • Open 7 days a week for support
  • Home delivery available

Technical Specifications Summary

Chipset
Intel Z890

CPU Socket
LGA 1851 (Core Ultra Series 2)

Memory
4x DDR5 up to 256GB (9200 MT/s)

Storage
4x M.2 (PCIe 5.0/4.0), 4x SATA

Networking
WiFi 7, Bluetooth 5.4, 5GbE LAN

Connectivity
Thunderbolt 4, USB 20Gbps Type-C

Form Factor
ATX (304.8 x 243.84mm)

Warranty
3 Years MSI Singapore

The MSI PRO Z890-P WIFI gives you Intel's latest platform with connectivity features that matter. In stock in Singapore with 3-year warranty. Questions about compatibility? We're here to help.

Full Specifications

Model
PRO Z890-P WIFI

Chipset
INTEL Z890

CPU
Supports Intel® Core™ Ultra Processors (Series 2) LGA 1851

Memory
4x DDR5 UDIMM up to 256GB, supports 9200–4800 MT/s, Dual Channel, Intel® XMP 3.0, Non-ECC, Un-buffered

Onboard Graphics
HDMI 2.1 (4K@60Hz), DisplayPort 1.4 (4K@60Hz), Type-C (DP 2.1 up to 8K@60Hz, Thunderbolt™ 4)
Available only with CPUs featuring integrated graphics

Expansion Slots
3x PCIe x16, 1x PCIe x1 (PCIe 5.0/4.0 support varies by slot and CPU)

Audio
Realtek® ALC897 Codec, 7.1-Channel HD Audio

Storage
4x M.2 (PCIe 5.0/4.0/SATA mode, supports RAID 0/1/5/10) and 4x SATA 6Gb/s ports

Thunderbolt
1x Thunderbolt 4 port (rear), up to 40Gbps, 15W PD, supports 8K display and daisy-chain

USB
Rear: 4x USB 2.0, 2x USB 5Gbps Type-A, 1x USB 10Gbps Type-A, 1x USB 10Gbps Type-C
Front: 4x USB 2.0, 4x USB 5Gbps Type-A, 1x USB 20Gbps Type-C

LAN
Realtek® 8126 5Gbps LAN

Wireless
Intel® Wi-Fi 7, MU-MIMO, 2.4GHz/5GHz/6GHz (320MHz, up to 5.8Gbps), Bluetooth® 5.4

Internal I/O
ATX_PWR, CPU_PWR, PCIE_PWR (8-pin), CPU Fan, Pump Fan, 5x System Fan, Front Audio, TPM 2.0 header, RGB/ARGB headers, USB 2.0, USB 5Gbps, USB 20Gbps Type-C

LED Feature
4x EZ Debug LEDs

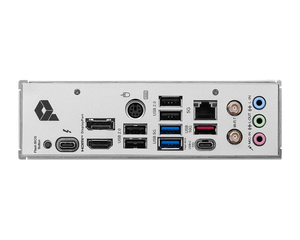

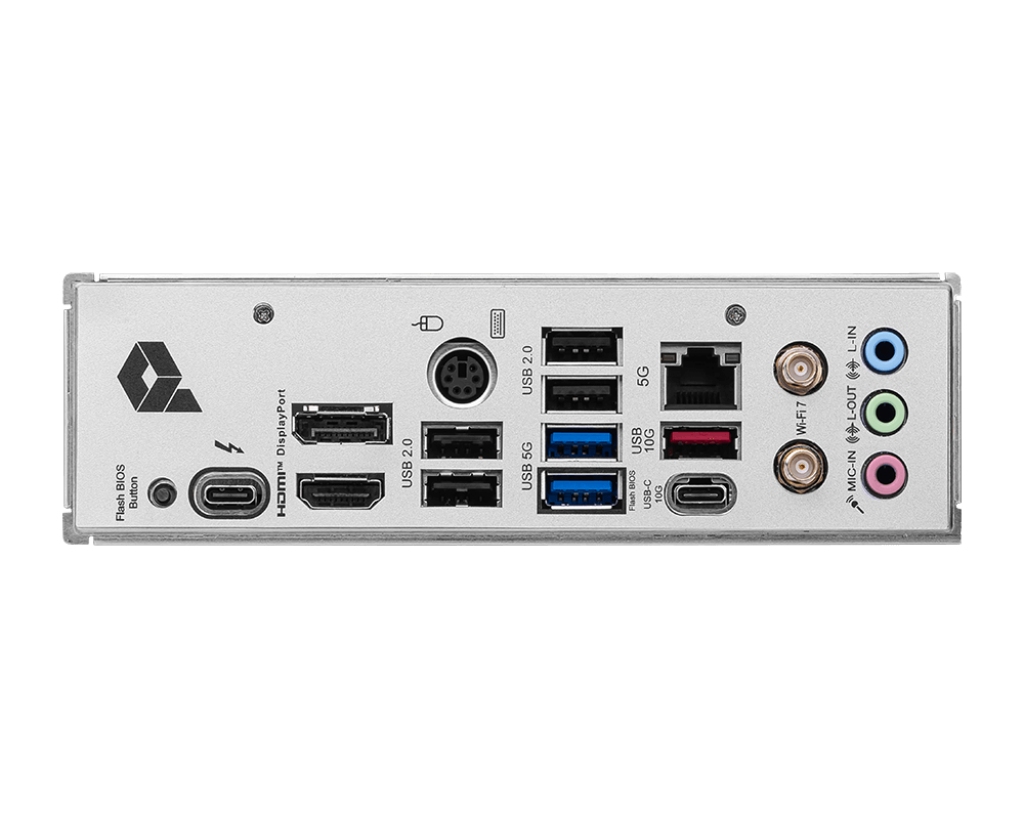

Back Panel Ports
DisplayPort, HDMI, Thunderbolt 4 (40Gbps Type-C), 5G LAN, Wi-Fi/Bluetooth, Audio, Flash BIOS Button, multiple USB 2.0/5Gbps/10Gbps

Operating System
Windows® 11 64-bit

PCB Info
ATX, 243.84 x 304.8 mm

Warranty

3 YEARS WARRANTY

Corbell Technology Pte Ltd
4012 Ang Mo Kio Ave 10 #06-04, Techplace 1,
Singapore 569628
Contact: 6452 4122

FAQs

Frequently Asked Questions About MSI PRO Z890-P WIFI

Does this motherboard support Intel Core Ultra 9 285K processors?

Yes, the MSI PRO Z890-P WIFI supports all Intel Core Ultra Series 2 processors using LGA 1851 socket. This includes Core Ultra 9 285K, Core Ultra 7, and Core Ultra 5 models.

Can I use this for content creation with multiple drives?

Absolutely. Four M.2 slots plus four SATA ports let you run OS, work files, render cache, and backups simultaneously. Thunderbolt 4 adds fast external storage for video editing workflows.

What RAM speeds does this board support?

It supports DDR5 memory from 4800 MT/s up to 9200 MT/s with Intel XMP 3.0 overclocking. You can install up to 256GB across four DIMM slots in dual-channel configuration.

What warranty and support do I get in Singapore?

You get 3-year MSI Singapore warranty with official MSI service support. Mansa Computers provides fast WhatsApp inquiry response and we're open 7 days a week for technical questions.

How does this compare to more expensive Z890 boards?

This PRO series board costs SGD 419 versus SGD 600+ for ROG STRIX or MPG models. You get WiFi 7, Thunderbolt 4, and PCIe 5.0 without paying for RGB lighting or extreme overclocking features.
