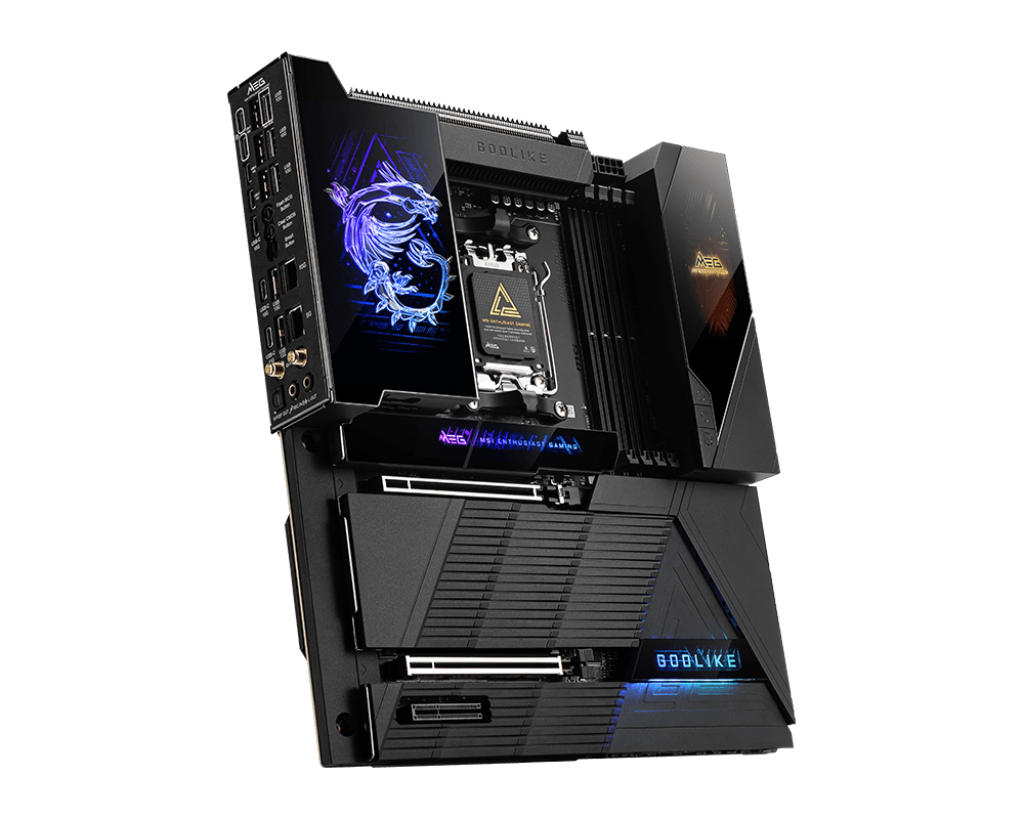

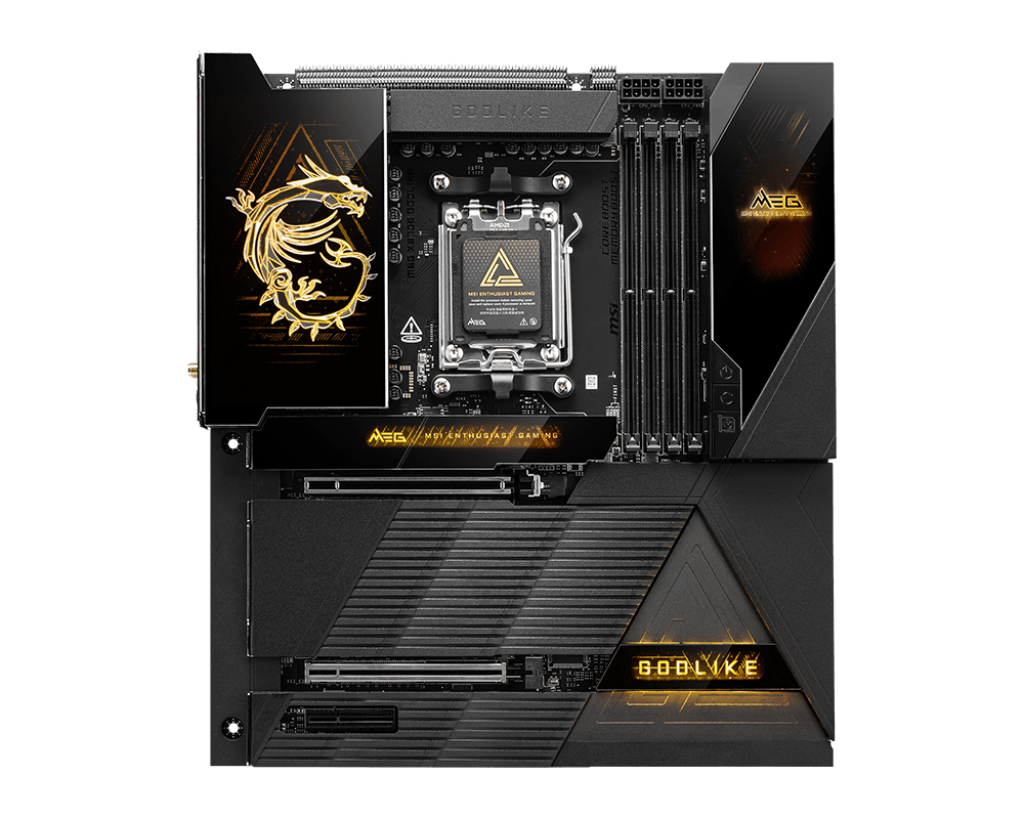

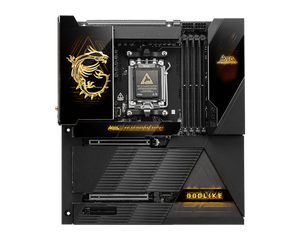

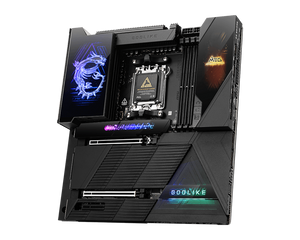

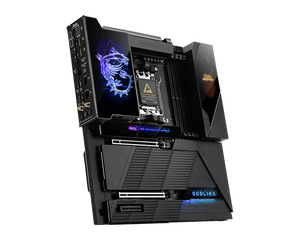

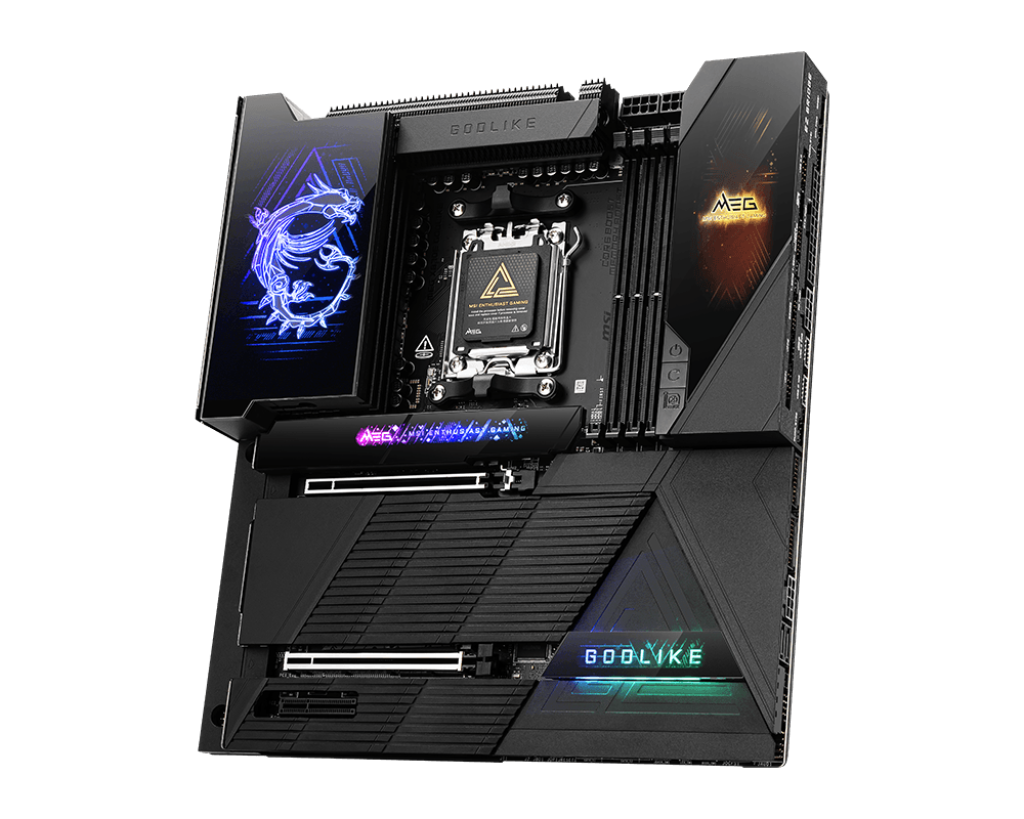

MSI X870E MEG GODLIKE Wi-Fi 7 & Bluetooth DDR5 E-ATX Motherboard

MSI X870E MEG GODLIKE Wi-Fi 7 & Bluetooth DDR5 E-ATX Motherboard

$1,598.00

OVERVIEW
SPECIFICATIONS
FAQs

3 YEAR DISTRIBUTOR WARRANTY

Corbell Technology Pte Ltd
4012 Ang Mo Kio Ave 10, #06-04 Techplace 1
Singapore 569628
Contact: 6452 4122

KEY FEATURES

-Frozr Design: Incorporates an aluminum cover, wavy fin design, direct touch cross heat-pipe, and 9W/mK thermal pads to ensure optimal heat dissipation.

-Multiple M.2 Slots: Includes five onboard M.2 slots with Lightning Gen 5 support, accommodating high-speed NVMe SSDs for enhanced storage performance.

-Double-Sided M.2 Shield Frozr: Provides effective thermal management for M.2 SSDs, maintaining consistent performance.
Chipset:

AMD X870E

CPU:

Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors

Socket AM5

Memory:

4x DDR5 UDIMM, Maximum Memory Capacity 256GB

Memory Support DDR5 9000 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s

Ryzen™ 9000 Series Processors max. overclocking frequency:

• 1DPC 1R Max speed up to 8400+ MT/s

• 1DPC 2R Max speed up to 6400+ MT/s

• 2DPC 1R Max speed up to 6400+ MT/s

• 2DPC 2R Max speed up to 4800+ MT/s

Supports AMD POR Speed and JEDEC Speed

Supports Memory Overclocking and AMD EXPOTM

Supports Dual-Channel mode

Supports Non-ECC, Un-buffered memory

Supports CUDIMM, Clock Driver bypass mode only*

* CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility.

** Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/.

Onboard Graphics:

2x Type-C DisplayPort

USB4® port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K@60Hz*

* Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

Slot:

2x PCI-E x16 slot

1x PCI-E x4 slot

PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)

PCI_E2 Gen PCIe 5.0 supports up to x8 (From CPU)

PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)

PCI_E1 & PCI_E2 slots

• Supports up to PCIe 5.0 x16/ x0 or x8/ x8 (For Ryzen™9000/ 7000 Series processors)

• Supports up to PCIe 4.0 x8/ x0 (For Ryzen™ 8700/ 8600/ 8400 Series processors)

• Supports up to PCIe 4.0 x4/ x0 (For Ryzen™ 8500/ 8300 Series processors)

PCI_E3 slot

• Supports up to PCIe 4.0 x4

* PCI_E3 slot will run at x2 speed when installing device in the M2_4 slot. You can switch PCI_E3 slot to x4 in the BIOS, but this will disable the M2_4 slot.

Please refer to the PCIe configuration table in the manual for more details.

Audio:

Realtek® ALC4082 Codec + ESS9219Q Combo DAC/HPA

7.1-Channel USB High-Performance Audio

Supports S/PDIF output

Supports up to 32-Bit/384 kHz playback on front panel

Storage:

7x M.2

M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices

M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices

M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices

M.2_4 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280/2260 devices

M.2_5 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices

4x SATA 6G

M.2_1 Source (via M.2 XPANDER-Z SLIDER GEN5) supports up to PCIe 5.0 x4 , supports 2280 devices

M.2_2 Source (via M.2 XPANDER-Z SLIDER GEN5) supports up to PCIe 5.0 x4 , supports 2280 devices

M.2_1:

• Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors)

• Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors)

M.2_2:

• Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors)

• Supports up to PCIe 4.0 x4 (For Ryzen™ 8700/ 8600/ 8400 Series processors)

• The M2_2 slot will be unavailable when using Ryzen™ 8500/ 8300 Series processors.

M2_4:

PCI_E3 slot will run at x2 speed when installing device in the M2_4 slot. You can switch PCI_E3 slot to x4 in the BIOS, but this will disable the M2_4 slot.

* Supports onboard 5x M.2 slots and additional 2x M.2 slots via M.2 card.

** Please refer to the manual for M.2 SSD heatsink restrictions.

RAID:

Supports RAID 0, RAID 1 and Raid 10 for SATA storage devices

Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices

*RAID 5 configuration is only supported by Ryzen™ 9000 series processors.

**RAID 10 for M.2 NVMe storage devices is only supported by Ryzen™ 9000/7000 series processors.

USB:

4x USB 2.0 (Front)

4x USB 5Gbps Type A (Front)

8x USB 10Gbps Type A (Rear)

5x USB 10Gbps Type C (Rear)

1x USB 10Gbps Type C (Front)

1x USB 20Gbps Type C (Front)

2x USB 40Gbps Type C (Rear)

* USB 40Gbps Type-C ports on the back panel and M2_2 slot share PCIe 5.0 x4 bandwidth. Both run at PCIe 5.0 x2 when a device is installed in the M2_2 slot. You can switch M2_2 to PCIe 5.0 x4 in the BIOS, but this will disable the USB 40Gbps Type-C ports. The USB4 host controller supports up to PCIe 4.0 x4.

** USB 40Gbps Type-C ports on the back panel only run PCIe 4.0 x2 when install Ryzen™ 8500/ 8300 Series processors.

LAN:

1x Marvell® AQC113CS 10Gbps LAN

1x Realtek® 8126 5Gbps LAN

Internal IO:

1x Power Connector(ATX_PWR)

2x Power Connector(CPU_PWR)

1x Power Connector(PCIE_PWR 8pin)

1x Front Type-C Quick Charge Connector(PD_PWR1)

1x CPU Fan

2x Combo Fan (Pump_Sys Fan)

1x EZ Conn-header (JAF_2)

2x Front Panel (JFP)

1x Chassis Intrusion (JCI)

1x Front Audio (JAUD)

2x Thermal Sensor connectors(T_SEN)

1x Tuning Controller connector(JDASH)

1x Addressable V2 RGB LED connector (JARGB_V2)

V-check point

4x USB 2.0 ports

4x USB 5Gbps Type A ports

1x USB 10Gbps Type C ports

1x USB 20Gbps Type C ports

WIRELESS LAN & BLUETOOTH:

Wi-Fi 7 Solution

The Wireless module is pre-installed in the M.2 (Key-E) slot

Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps

Supports 802.11 a/ b/ g/ n/ ac/ ax/ be

Supports Bluetooth® 5.4**, MLO, 4KQAM

* 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 SV3.

** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor's website for details. Bluetooth 5.4 support schedule depends on MSFT Windows 11 plan.

LED FEATURE:

1x Dynamic Dashboard III

1x EZ Digit Debug LED

1x EZ LED Control switch

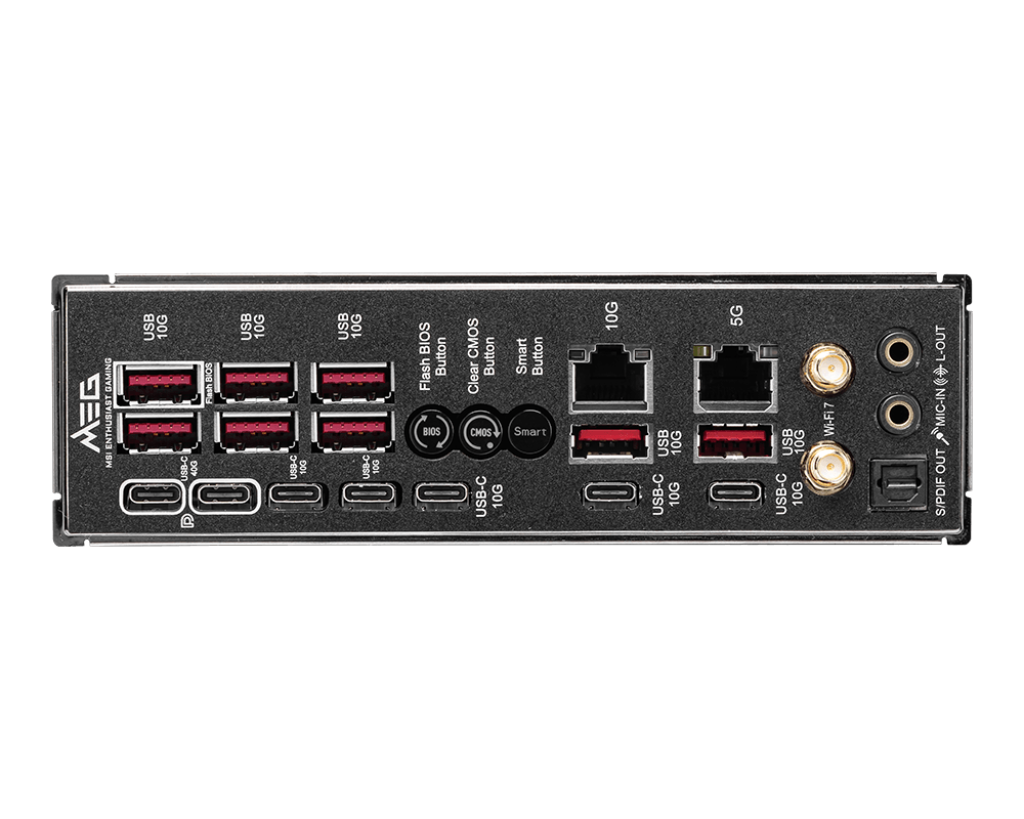

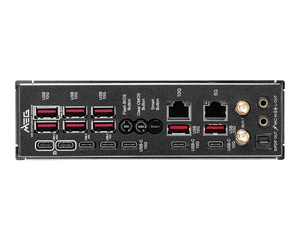

BACK PANEL PORTS:

USB 10Gbps (Type-A)

Flash BIOS Button

Clear CMOS Button

Smart Button

10G LAN

5G LAN

Wi-Fi / Bluetooth

HD Audio Connectors

USB 40Gbps (Type-C)

USB 10Gbps (Type-C)

USB 10Gbps (Type-A)

Optical S/PDIF-Out

OPERATING SYSTEM:

Support for Windows® 11 64-bit

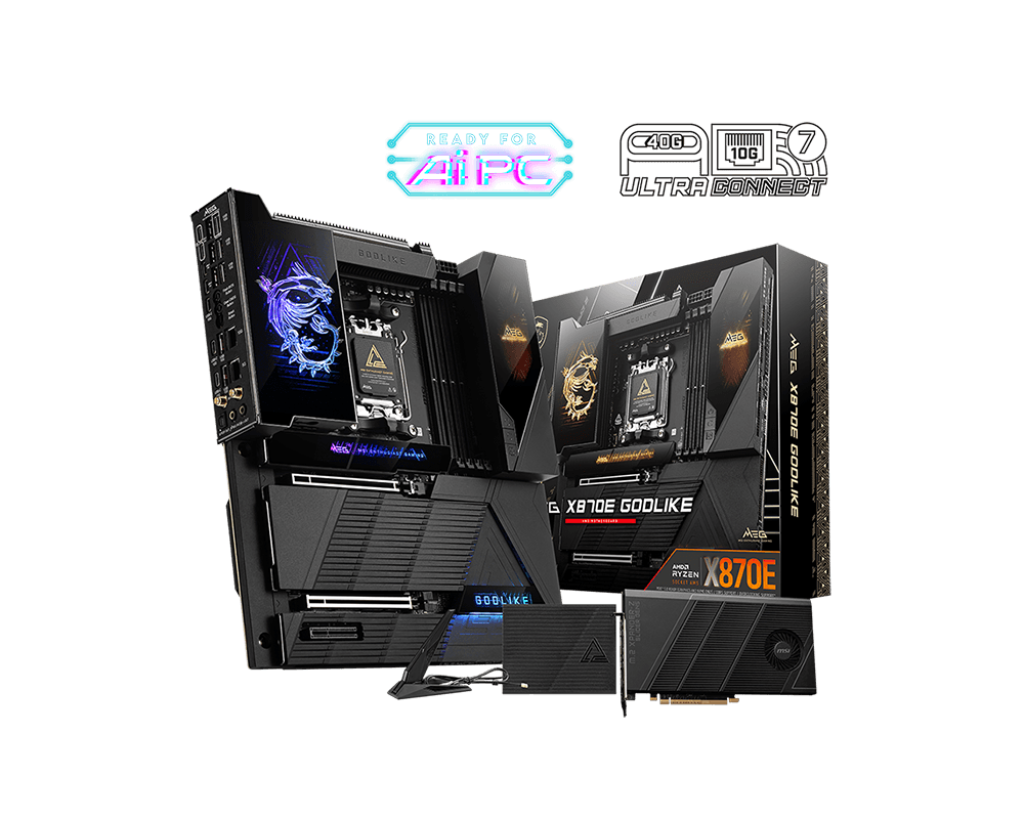

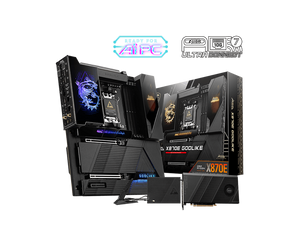

BOX CONTENT:

M.2 Xpander-Z Slider Gens

EZ Control Hub

EZ Wi-Fi Antenna

USB Drive

1 to 3 ARGB Gen 2 Extension Cable

1 to 2 RGB Extension Cable

ARGB Extension Cable

1 to 3 EZ Conn-Cable (V2)

EZ Link Cable

EZ Control Hub SATA Power Cable

M.2 Xpander Card FAN Control Cable

EZ Front Panel Cable

SATA Cables x 4

Thermistor Cables x 2

M.2 Xpander Card Thermal Pads

EZ M.2 Clip II Remover

EZ Control Hub Screw Sets

Cable Sticker

Shout out Flyer

Quick Installation Guide

PCB Info:

E-ATX

304.8mm x 277mm
