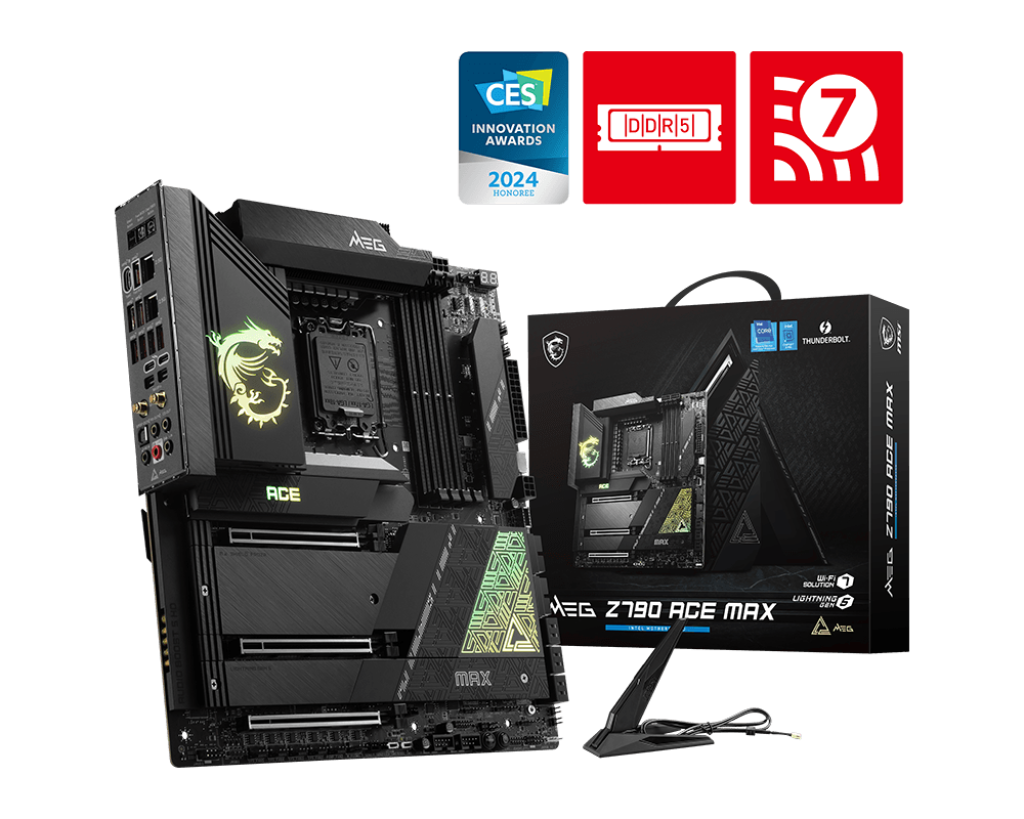

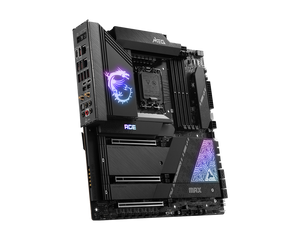

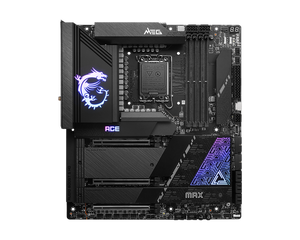

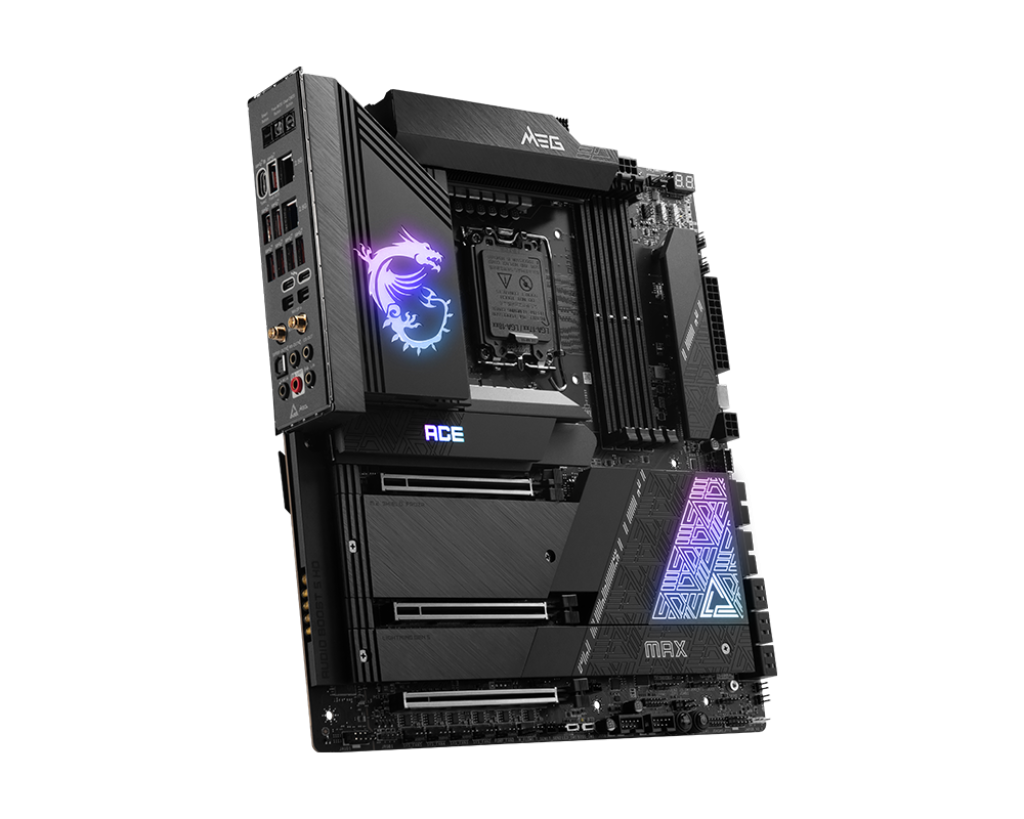

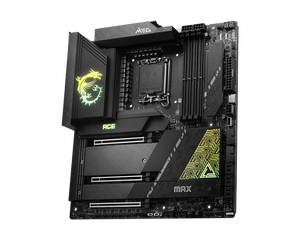

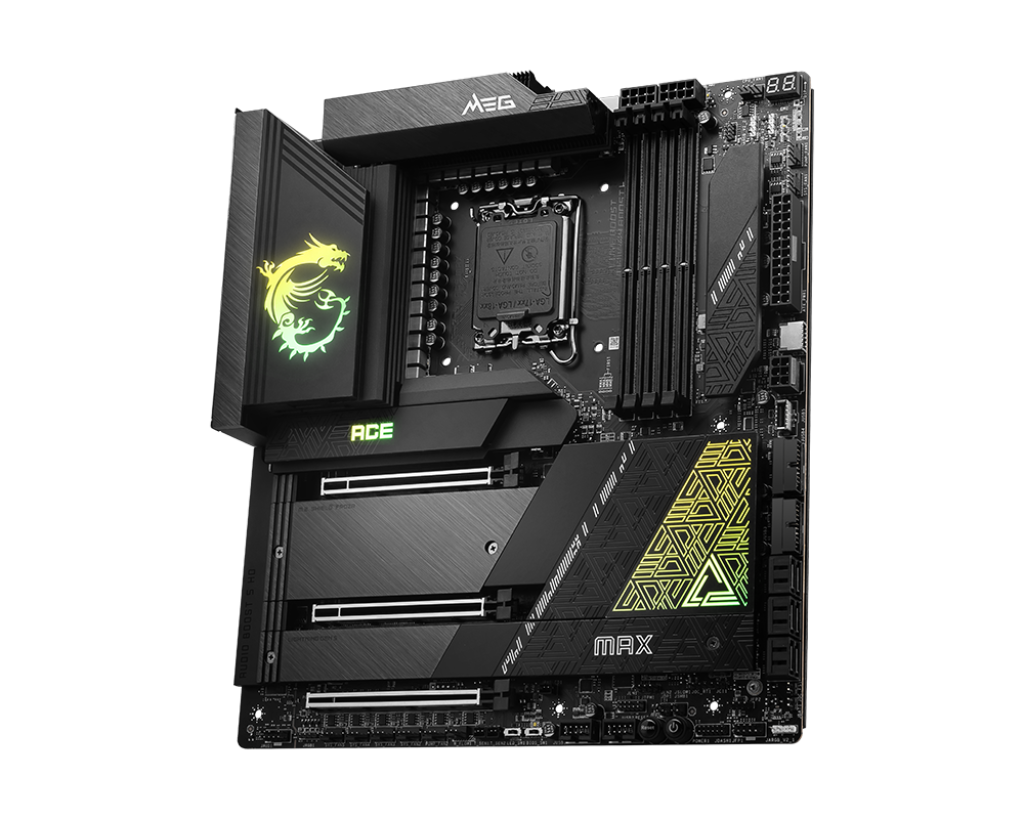

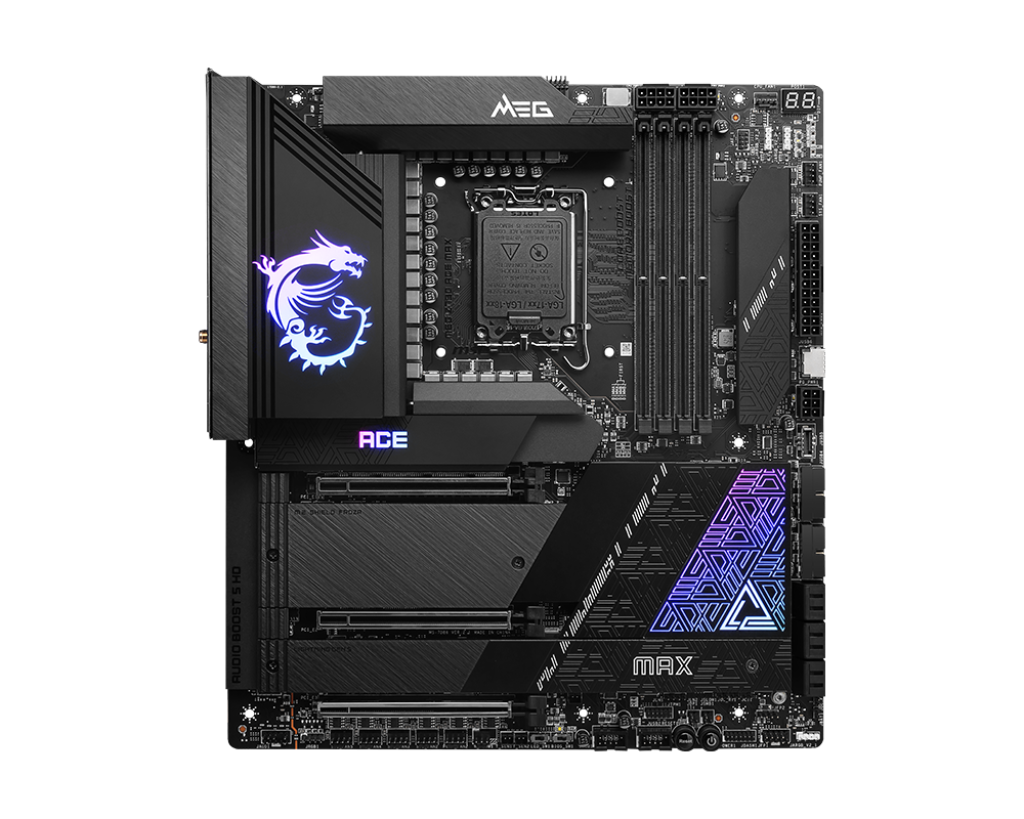

MSI Z790 MEG ACE MAX Wi-Fi 7 & Bluetooth DDR5 E-ATX Motherboard

MSI Z790 MEG ACE MAX Wi-Fi 7 & Bluetooth DDR5 E-ATX Motherboard

$1,058.00

OVERVIEW
SPECIFICATIONS
FAQs

3 YEAR DISTRIBUTOR WARRANTY

Corbell Technology Pte Ltd
4012 Ang Mo Kio Ave 10, #06-04 Techplace 1
Singapore 569628
Contact: 6452 4122

KEY FEATURES

-24+1+2 Phases Power Design: The ultimate power solution with DRPS and 105A Smart PowerStage unleashes the maximum CPU performance.

-Audio Boost 5 HD: Features a high-end ALC4082 audio codec, ESS SABRE DAC, and isolated audio circuits for studio-grade sound quality.

-Extreme DDR5 Overclocking: Supports 8000+ MHz DDR5 (OC) with Memory Boost and SMT welding technology for signal integrity.
Chipset:

INTEL Z790

CPU:

Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors

LGA 1700

Memory:

4x DDR5 UDIMM, Maximum Memory Capacity 256GB

Memory Support 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz

Max. overclocking frequency:

• 1DPC 1R Max speed up to 7800+ MHz

• 1DPC 2R Max speed up to 6800+ MHz

• 2DPC 1R Max speed up to 6400+ MHz

• 2DPC 2R Max speed up to 6000+ MHz

Supports Intel® XMP3.0 OC

Supports Dual-Controller Dual-Channel mode

Supports non-ECC, un-buffered memory

Onboard Graphics:

1x Type-C DisplayPort

Supports a maximum resolution of 4K 60Hz

*Available only on processors featuring integrated graphics.

**Graphics specifications may vary depending on the CPU installed.

Slot:

3x PCI-E x16 slot

PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)

PCI_E2 Gen PCIe 5.0 supports up to x8 (From CPU)

PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)

*PCI_E1 slot will run at x8 speed when installing device in the PCI_E2 slot or M2_4 slot.

**M2_4 slot will be unavailable when installing device in the PCI_E2 slot.

Audio:

Realtek® ALC4082 Codec + ESS ES9280AQ Combo DAC/HPA

7.1-Channel USB High Performance Audio

Supports S/PDIF output

Supports up to 32-Bit/384 kHz playback on front panel

Storage:

5x M.2

M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices

M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices

M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260 devices

M.2_4 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280 devices

M.2_5 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 22110/2280/2260 devices

6x SATA 6G

*M2_4 slot will be unavailable when installing in the PCI_E2 slot.

**SATA7 will be unavailable when installing M.2 SATA SSD in the M2_5 slot.

Multi-GPU:

AMD MULTI-GPU Support

RAID:

Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices

*SATA_A1_A2 do not support RAID function.

Onboard Thunderbolt:

Thunderbolt chip JHL8540

Thunderbolt Resource JHL8540

2x Thunderbolt4 ports (Rear)

2x Thunderbolt4 (USB-C) ports Q’ty

Supports up to 40Gbps transfer rate with Thunderbolt devices

Supports up to 20Gbps transfer rate with USB4 devices

Supports up to 10Gbps transfer rate with USB 3.2 devices

Supports up to 5V/3A,15W power charging

Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices

Supports up to 8K display (need to connect the DisplayPort of the discrete graphics card to the Mini DisplayPort Input port on the back panel)

USB:

4x USB 2.0 (Front)

4x USB 5Gbps Type A (Front)

7x USB 10Gbps Type A (Rear)

1x USB 10Gbps Type C (Rear)

2x USB 20Gbps Type C (Front)

*To achieve 60W PD fast charging for JUSB6, the PD_PWR1 connector needs to be connected to the power supply unit.

LAN:

2x Intel® 2.5Gbps LAN

Internal IO:

1x Power Connector(ATX_PWR)

2x Power Connector(CPU_PWR)

1x Front Type-C Quick Charge Connector(PD_PWR1)

1x CPU Fan

2x Pump Fan

5x System Fan

1x EZ Conn-header (JAF_1)

2x Front Panel (JFP)

1x Chassis Intrusion (JCI)

1x Water Flow connector

1x Slow Mode Booting Jumper(JSLOW)

1x Front Audio (JAUD)

2x Thermal Sensor connectors(T_SEN)

1x Tuning Controller connector(JDASH)

3x Addressable V2 RGB LED connector (JARGB_V2)

1x RGB LED connector(JRGB)

1x TPM pin header(Support TPM 2.0)

V-check point

4x USB 2.0 ports

2x USB 5Gbps Type A ports

2x USB 20Gbps Type C ports

WIRELESS LAN & BLUETOOTH:

Wi-Fi 7

The Wireless module is pre-installed in the M.2 (Key-E) slot

Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps

Supports 802.11 a/ b/ g/ n/ ac/ ax/ be

Supports Bluetooth® 5.4**, MLO, 4KQAM

* 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 SV3.

** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 support schedule depends on MSFT Windows 11 plan.

LED FEATURE:

1x EZ LED Control switch

4x EZ Debug LED

1x 2-Digit Debug Code LED

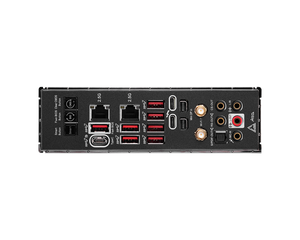

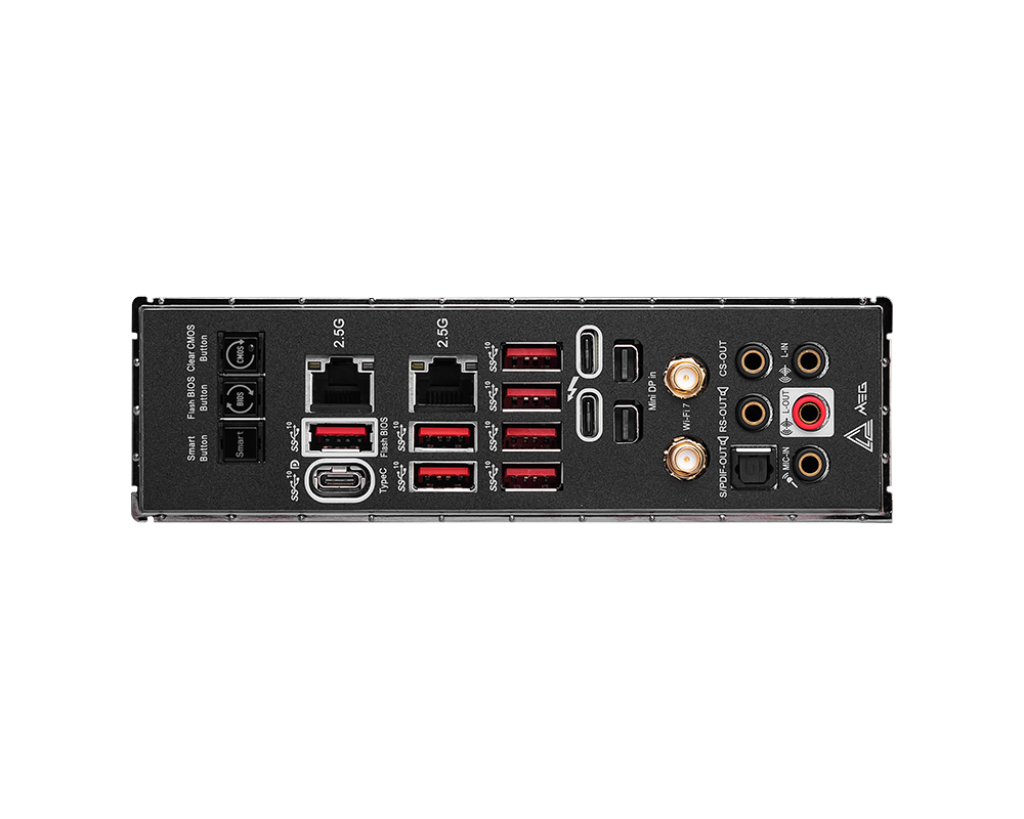

BACK PANEL PORTS:

Clear CMOS Button

Flash BIOS Button

2.5G LAN

2.5G LAN

Thunderbolt 4 40Gbps (Type-C)

Wi-Fi / Bluetooth

Audio Connectors

Smart Button

USB 3.2 Gen 2 10Gbps (Type-C Display port)

USB 3.2 Gen 2 10Gbps (Type-A)

Mini DisplayPort Input (for Thunderbolt passthrough)

Optical S/PDIF-Out

OPERATING SYSTEM:

Support for Windows® 11 64-bit

BOX CONTENT:

Wi-Fi Antenna

USB Drive

Cable Stickers

Sata Cables x 4

Rainbow RGB LED Extension Cable

1 to 2 RGB LED Extension Y Cable

ARGB & Fan Extension Y-Cable

Shout-out Flyer

DP to Mini DP Cables x 2

EZ Front Panel Cable

Thermistor Cables

M.2 Screws/Standoff Sets/Ez M.2 Clips

Quick Installation Guide

PCB Info:

E-ATX

277mm x 304.8mm
