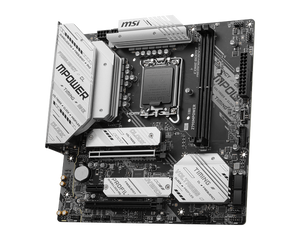

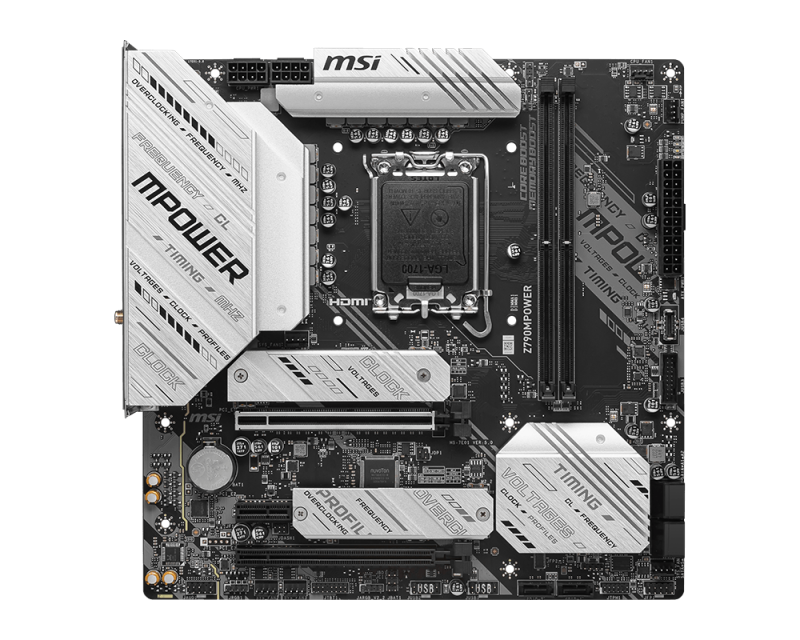

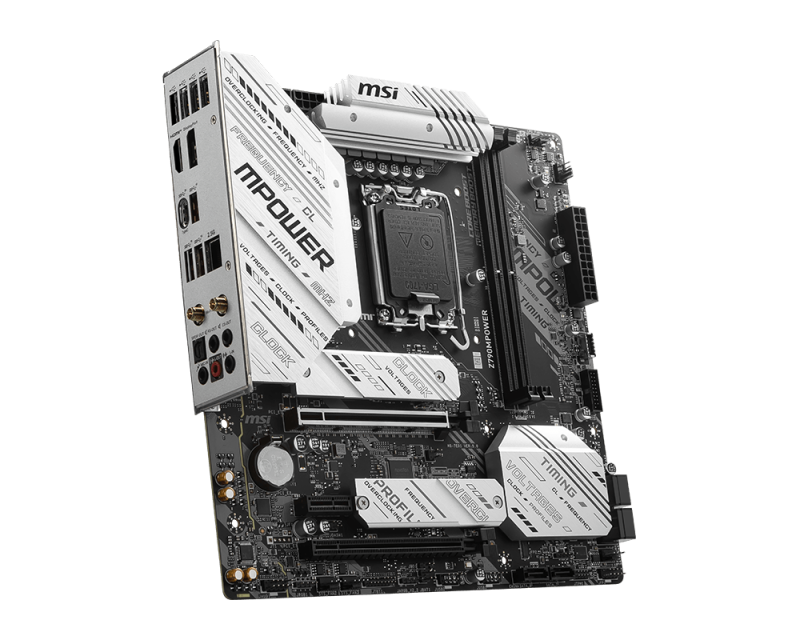

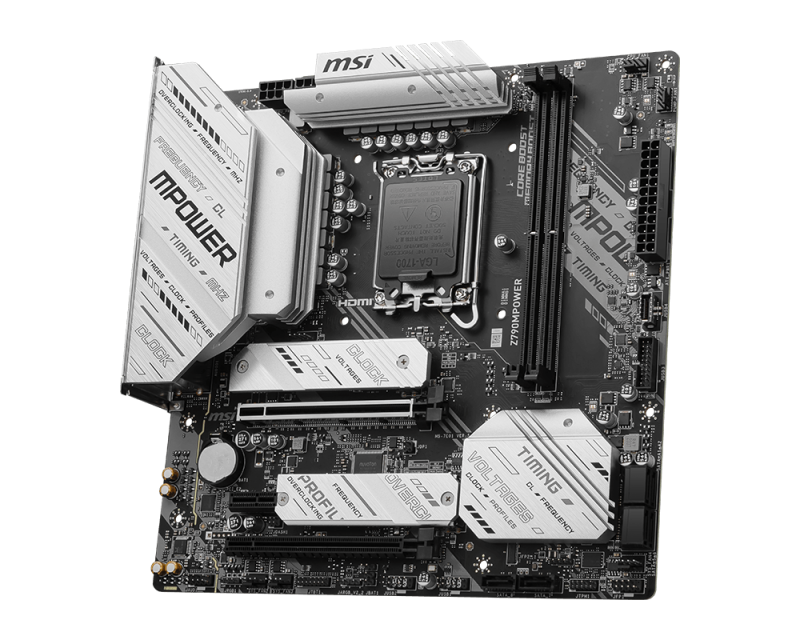

MSI Z790MPower Wi-Fi & Bluetooth DDR5 MATX Motherboard

MSI Z790MPower Wi-Fi & Bluetooth DDR5 MATX Motherboard

$369.00

OVERVIEW
SPECIFICATIONS
FAQs

3 YEAR DISTRIBUTOR WARRANTY

Corbell Technology Pte Ltd
4012 Ang Mo Kio Ave 10, #06-04 Techplace 1
Singapore 569628
Contact: 6452 4122

KEY FEATURES

-Audio Boost: Reward your ears with studio grade sound quality for the mostimmersive audio experience.

-Extended Heatsink Design: MSI extended PWM heatsink and enhanced circuit design ensures even high-end processors to run in full speed.

-Extreme DDR5 Memory OC: The top-notch R&D design and exclusive 2 DIMM solution for aneven clearer DDR5 memory signal to deliver the world classmemory performance.
Chipset:

INTEL Z790

CPU:

Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors

LGA1700

Memory:

2x DDR5, Maximum Memory Capacity 128GB

Memory Support 8000+(OC)/ 7800(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz

Max. overclocking frequency:

• 1DPC 1R Max speed up to 8000+ MHz

• 1DPC 2R Max speed up to 6400+ MHz

Supports Dual-Channel mode

Supports non-ECC, un-buffered memory

Supports Intel® Extreme Memory Profile

Onboard Graphics:

1x HDMI™

Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz*

1x DisplayPort

Support DP 1.4, maximum resolution of 8K 60Hz*

*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

Slot:

2x PCI-E x16 slot (Qty)

Supports x16/x4

1x PCI-E x1 slot (Qty)

PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)

PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)

PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)

Audio:

Realtek® ALC897 Codec

7.1-Channel High Performance Audio

Supports S/PDIF output

Storage:

2x M.2 (Qty)

M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices

M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices

6x SATA 6G (Qty)

RAID:

Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices*

* SATA_A1_A2 do not support RAID function.

USB:

4x USB 2.0 (Rear)

4x USB 2.0 (Front)

2x USB 5Gbps Type A (Front)

3x USB 10Gbps Type A (Rear)

1x USB 10Gbps Type C (Front)

1x USB 20Gbps Type C (Rear)

LAN:

Realtek® 2.5Gbps LAN

Internal IO:

1x Power Connector(ATX_PWR)

2x Power Connector(CPU_PWR)

1x CPU Fan

1x Pump Fan

4x System Fan

2x Front Panel (JFP)

1x Chassis Intrusion (JCI)

1x Front Audio (JAUD)

1x Tuning Controller connector(JDASH)

2x Addressable V2 RGB LED connector (JARGB_V2)

1x RGB LED connector(JRGB)

1x TPM pin header(Support TPM 2.0)

4x USB 2.0 ports

WIRELESS LAN & BLUETOOTH:

Intel® Wi-Fi 6E

The Wireless module is pre-installed in the M.2 (Key-E) slot

Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps

Supports 802.11 a/ b/ g/ n/ ac/ ax

Supports Bluetooth® 5.3, FIPS, FISMA

* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.

** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.

LED FEATURE:

4x EZ Debug LED

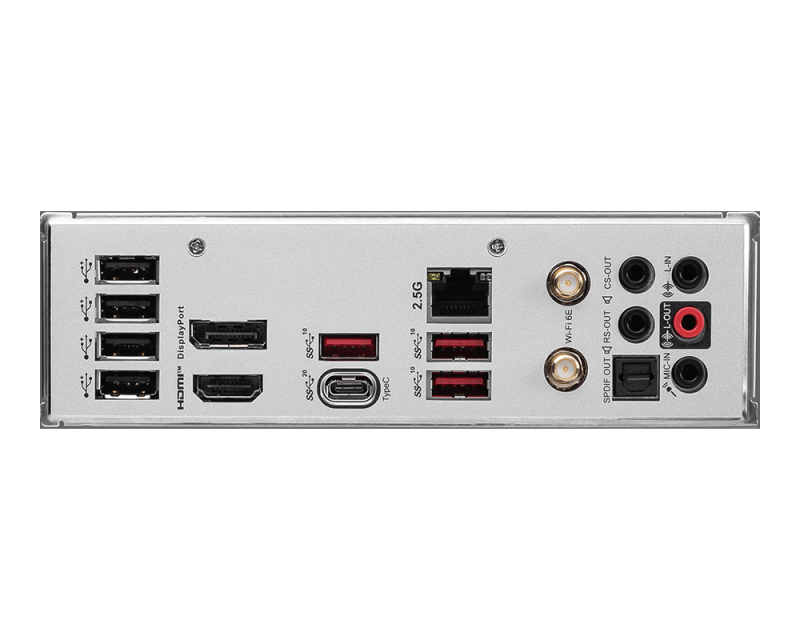

BACK PANEL PORTS:

USB 2.0

DisplayPort 1.4

USB 3.2 Gen 2 10Gbps Type-A

2.5G LAN Port

Wi-Fi / Bluetooth Antenna

HD Audio Connectors

HDMI™ 2.1 Port

USB 3.2 Gen 2x2 20Gbps Type-C

Optical S/PDIF OUT

OPERATING SYSTEM:

Support for Windows® 11 64-bit, Windows® 10 64-bit

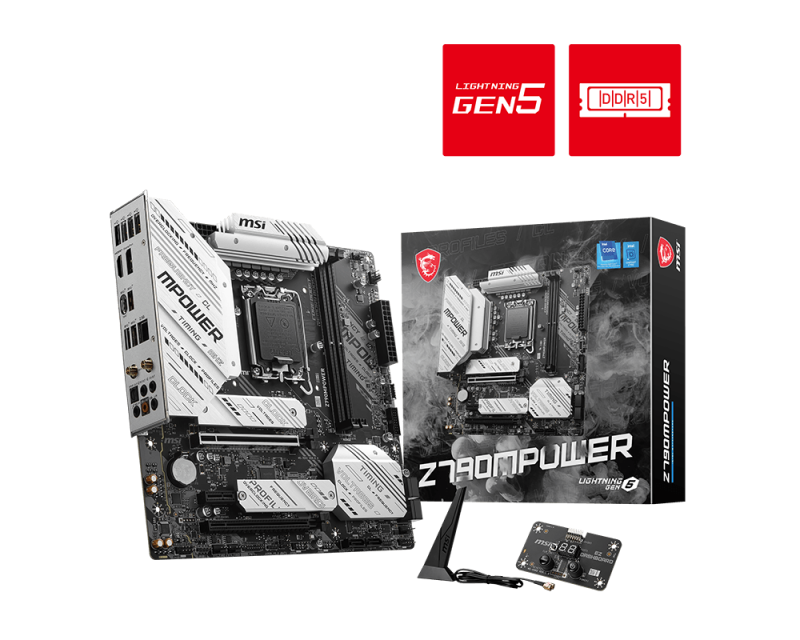

BOX CONTENT:

Wi-Fi Antenna

EZ Dashboard

Cable Stickers

SATA Cable

EZ M.2 Clip

M.2 Screw/Standoff Set

Shout-out Flyer

European Union Regulatory Notice

Quick Installation Guide

PCB Info:

mATX

243.84 mm x 243.84 mm
