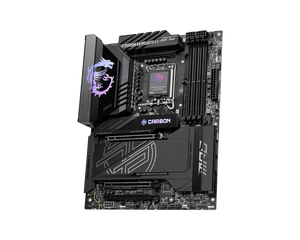

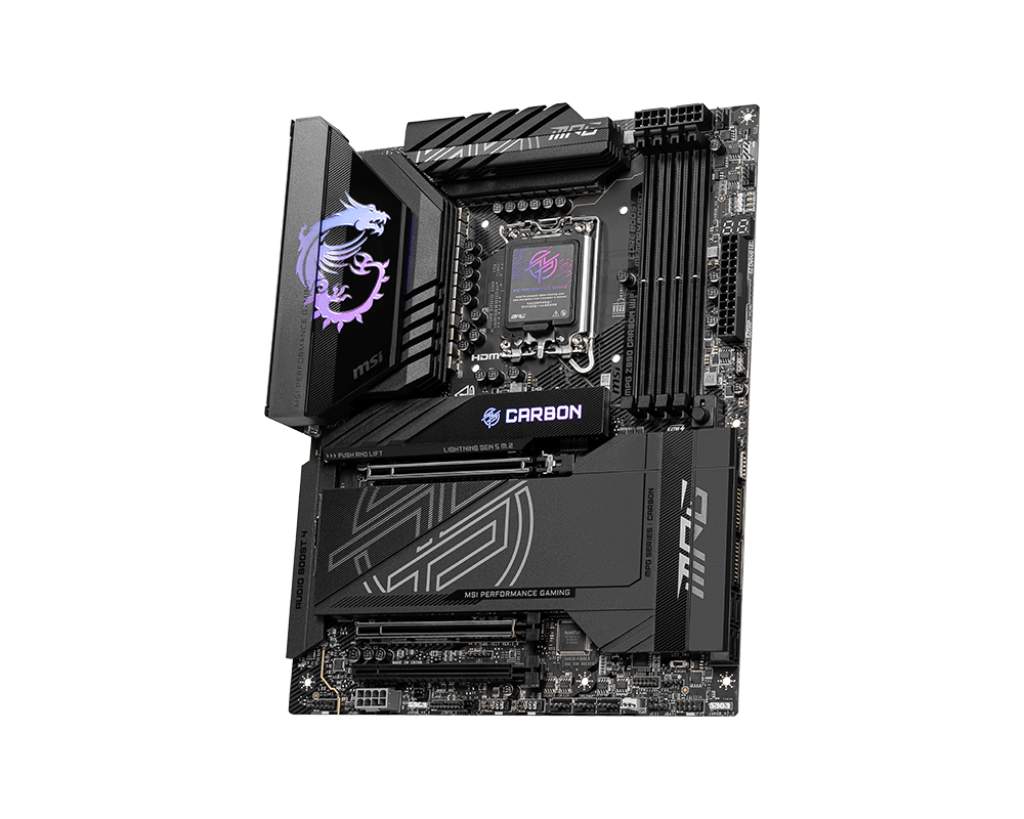

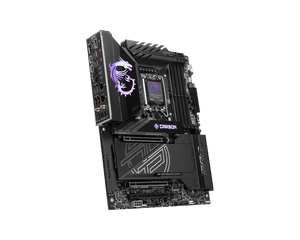

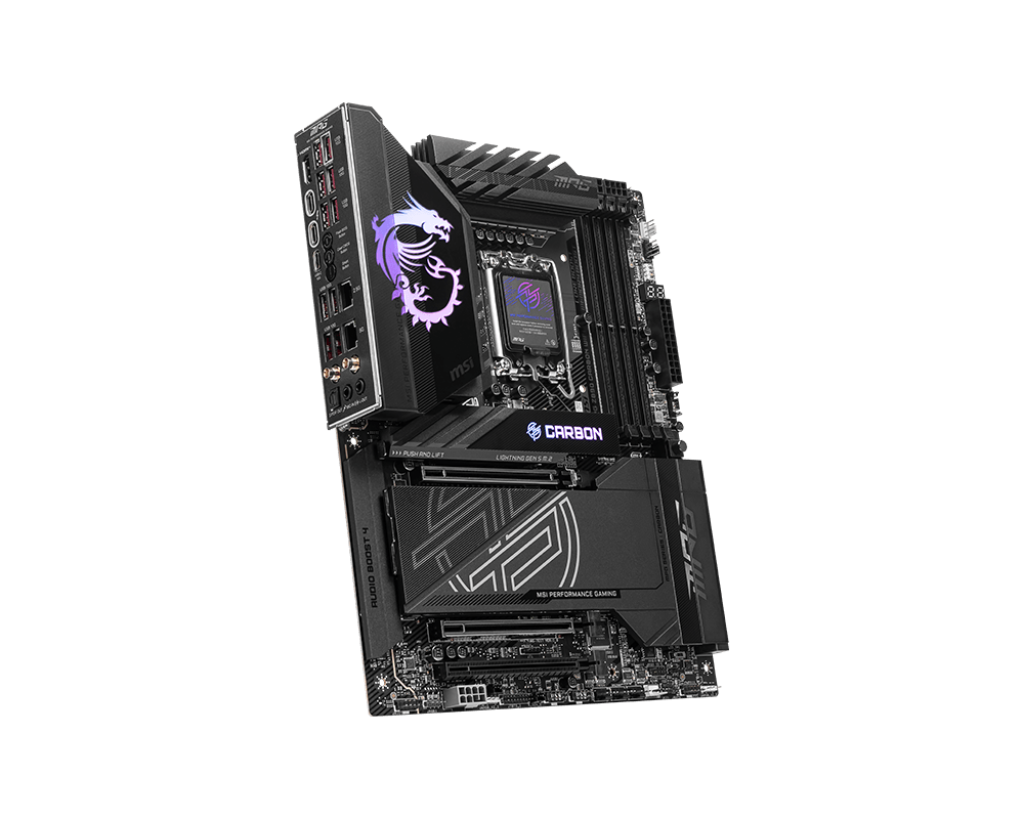

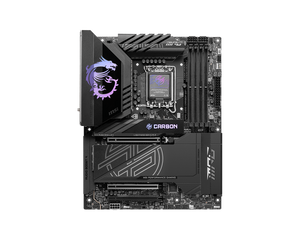

MSI Z890 MPG Carbon Wi-Fi 7 & Bluetooth DDR5 ATX Motherboard

MSI Z890 MPG Carbon Wi-Fi 7 & Bluetooth DDR5 ATX Motherboard

$988.00

OVERVIEW
SPECIFICATIONS
FAQs

3 YEAR DISTRIBUTOR WARRANTY

Corbell Technology Pte Ltd
4012 Ang Mo Kio Ave 10, #06-04 Techplace 1
Singapore 569628
Contact: 6452 4122

KEY FEATURES

-Thunderbolt 4 Support: Offers high-speed data transfer up to 40Gbps and supports USB-C compatible 8K displays.

-Premium Thermal Design: Equipped with heavy plated heatsinks with heat-pipe, high-quality 7W/mK MOSFET thermal pads, extra choke thermal pads, and onboard M.2 Shield Frozr for optimal cooling.

-Audio Boost 4 Technology: Provides high-definition audio with studio-grade sound quality for an immersive gaming experience.
Chipset:

INTEL Z890

CPU:

Supports Intel® Core™ Ultra Processors (Series 2)

LGA 1851

Memory:

4x DDR5 UDIMM, Maximum Memory Capacity 256GB

Memory Support 9200 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s

Max. overclocking frequency:

• 1DPC 1R Max speed up to 9200+ MT/s

• 1DPC 2R Max speed up to 7200+ MT/s

• 2DPC 1R Max speed up to 6400+ MT/s

• 2DPC 2R Max speed up to 5600+ MT/s

Supports Intel POR Speed and JEDEC Speed

Supports Memory Overclocking and Intel XMP 3.0

Supports Dual-Controller Dual-Channel mode

Supports Non-ECC, Un-buffered memory

Supports CUDIMM

• The DIMM slots on this motherboard have single-sided latches.

• Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/.

Onboard Graphics:

1x HDMI™

Support HDMITM 2.1 with FRL port, maximum resolution of 8K 60Hz*

2x Type-C DisplayPort

ThundeboltTM 4 ports, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz*

*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

Slot:

3x PCI-E x16 slot

PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)

PCI_E2 Gen PCIe 5.0 supports up to x8 (From CPU)

PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)

• PCI_E1 supports BIOS adjustment to x8+x4+x4*

• PCI_E2 supports BIOS adjustment to x4+x4*

Audio:

Realtek® ALC1220P Codec

7.1-Channel USB High Defination Audio

Supports S/PDIF output

Storage:

5x M.2

M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices

M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices

M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices

M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices

M.2_5 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260 devices

4x SATA 6G

*Please refer to the manual for M.2 SSD heatsink restrictions.

RAID:

•Supports RAID 0, RAID 1, RAID 5 and Raid 10 for SATA storage devices

•Supports RAID 0, RAID 1, RAID 5 and Raid 10 for M.2 NVMe storage devices

Onboard Thunderbolt:

2x Thunderbolt4 ports (Rear)

Supports up to 40Gbps transfer rate with Thunderbolt devices

Supports up to 20Gbps transfer rate with USB4 devices

Supports up to 10Gbps transfer rate with USB 3.2 devices

Supports up to 5V/3A,15W power charging

Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices

Supports up to 8K display

USB:

4x USB 2.0 (Front)

4x USB 5Gbps Type A (Front)

10x USB 10Gbps Type A (Rear)

1x USB 10Gbps Type C (Rear)

1x USB 20Gbps Type C (Front)

*USB 20Gbps Type-C (Front) support USB PD 27W fast charging for JUSBC1

LAN:

1x Intel® Killer™ E5000B 5G LAN

1x Intel® I226V 2.5G LAN

Internal IO:

1x Power Connector(ATX_PWR)

2x Power Connector(CPU_PWR)

1x Power Connector(PCIE_PWR 8pin)

1x Front Type-C Quick Charge Connector(PD_PWR1)

1x CPU Fan

1x Combo Fan (Pump_Sys Fan)

5x System Fan

1x EZ Conn-header (JAF_2)

2x Front Panel (JFP)

1x Chassis Intrusion (JCI)

1x Water Flow connector

1x Front Audio (JAUD)

1x Thermal Sensor connectors(T_SEN)

3x Addressable V2 RGB LED connector (JARGB_V2)

1x RGB LED connector(JRGB)

1x TPM pin header(Support TPM 2.0)

4x USB 2.0 ports

4x USB 5Gbps Type A ports

1x USB 20Gbps Type C ports

WIRELESS LAN & BLUETOOTH:

Intel® Killer™ BE1750x Wi-Fi 7

The Wireless module is pre-installed in the M.2 (Key-E) slot

Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps

Supports 802.11 a/ b/ g/ n/ ac/ ax/ be

Supports Bluetooth® 5.4**, MLO, 4KQAM

* 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2.

** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2.

LED FEATURE:

4x EZ Debug LED

1x EZ Digit Debug LED

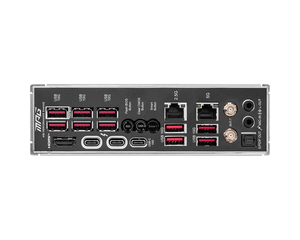

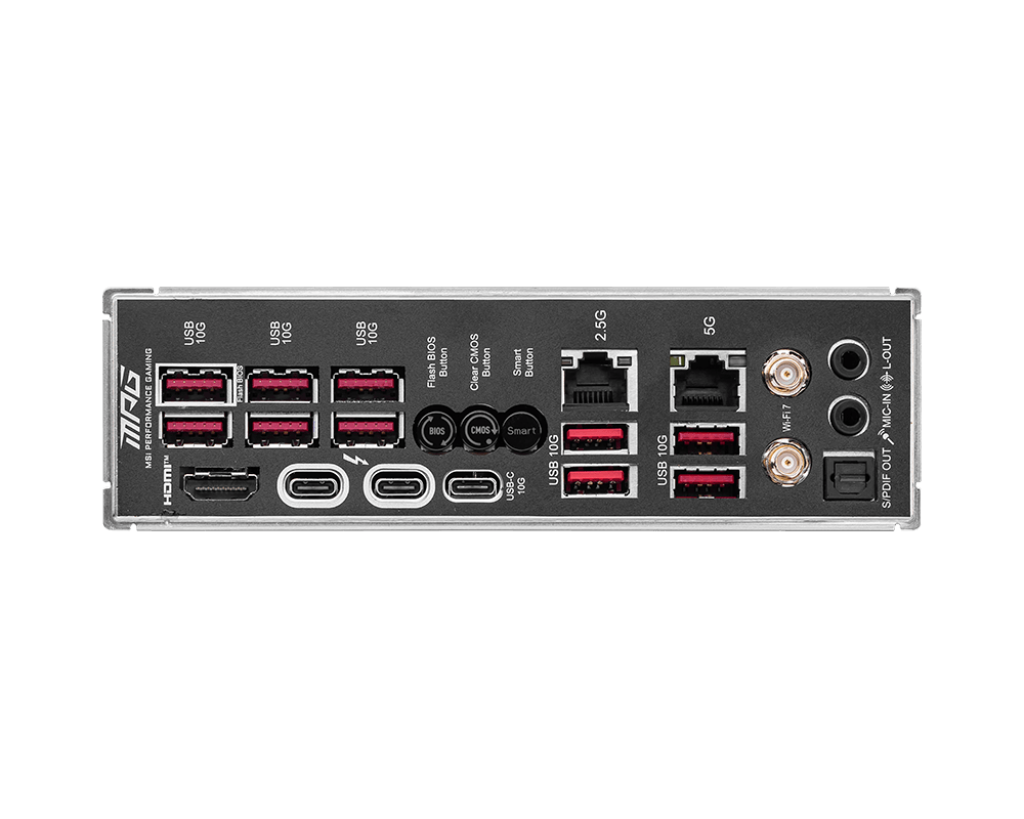

BACK PANEL PORTS

USB 10Gbps Type-A

Flash BIOS Button

Clear CMOS Button

Smart Button

2.5G LAN

5G LAN

Audio Connectors

HDMI™

Thunderbolt 4

USB 10Gbps Type-C

USB 10Gbps Type-A

Wi-Fi / Bluetooth

Optical S/PDIF Out

OPERATING SYSTEM:

Support for Windows® 11 64-bit

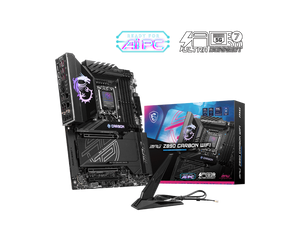

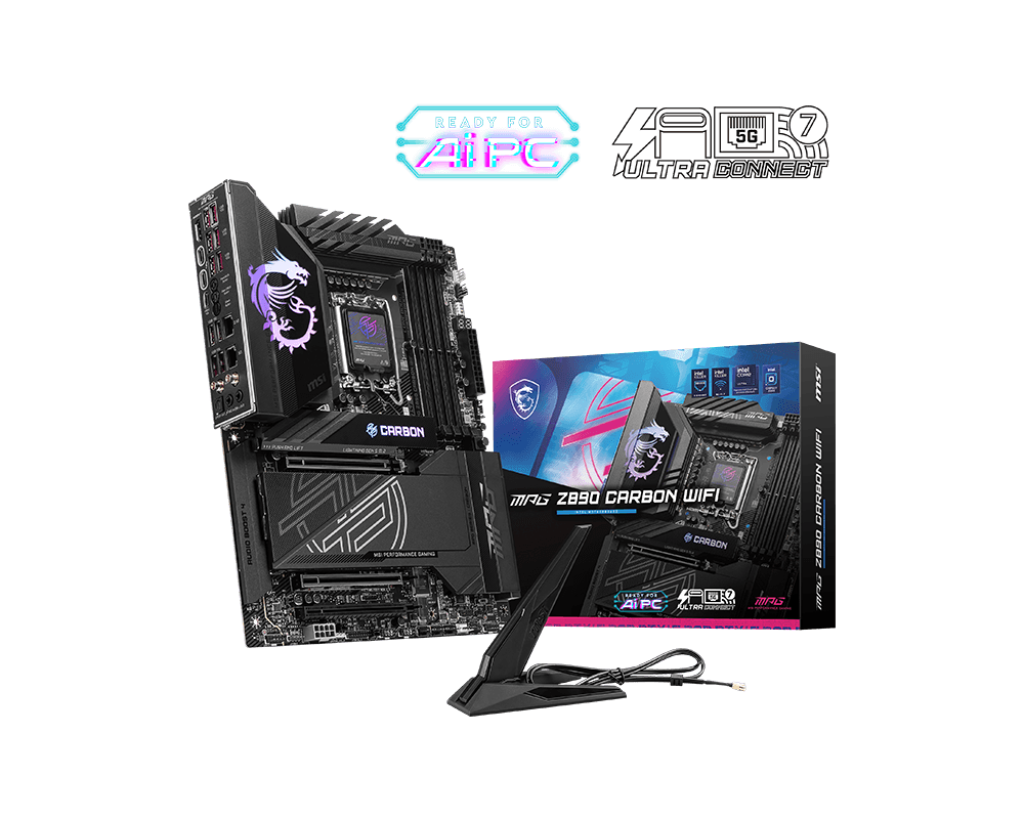

BOX CONTENT:

EZ Front Panel Cable

1 to 2 RGB Extension Cable

ARGB Extension Cable

Sata Cables x 2

USB Drive

1 to 3 EZ Conn-Cable (V2)

EZ M.2 Clip II Remover

EZ M.2 Clip II

EZ Wi-Fi Antenna

Shout-out Flyer

Cable Sticker

Quick Installation Guide

PCB Info:

ATX

243.84mm x 304.8mm
