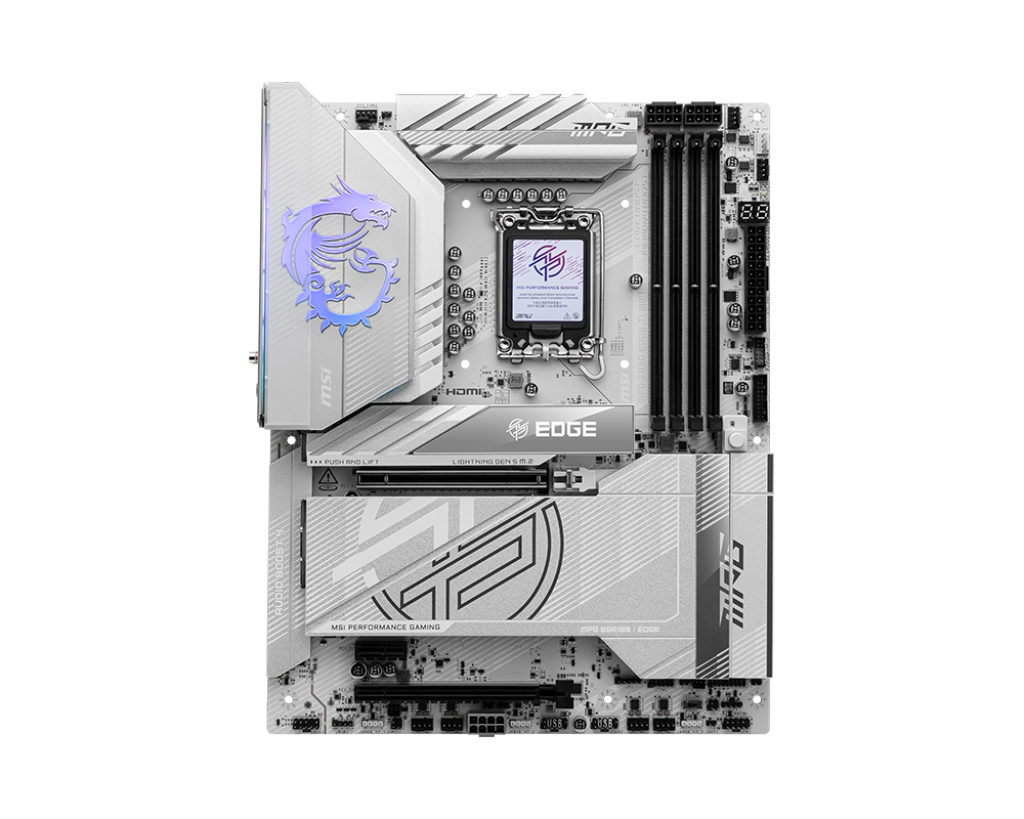

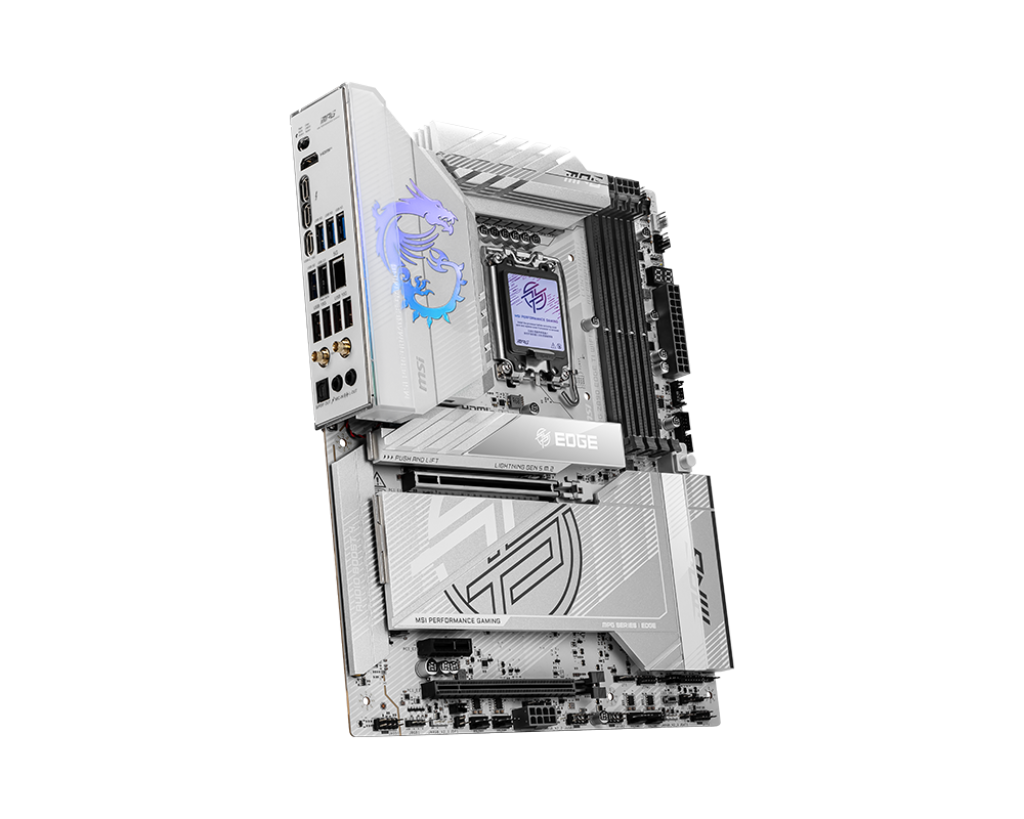

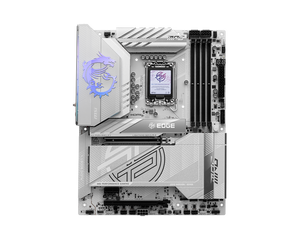

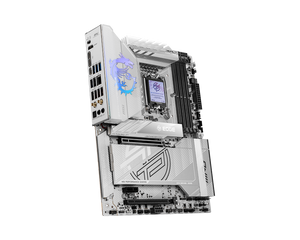

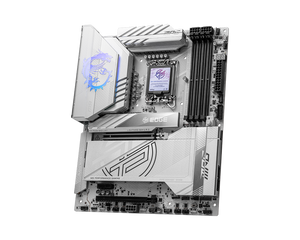

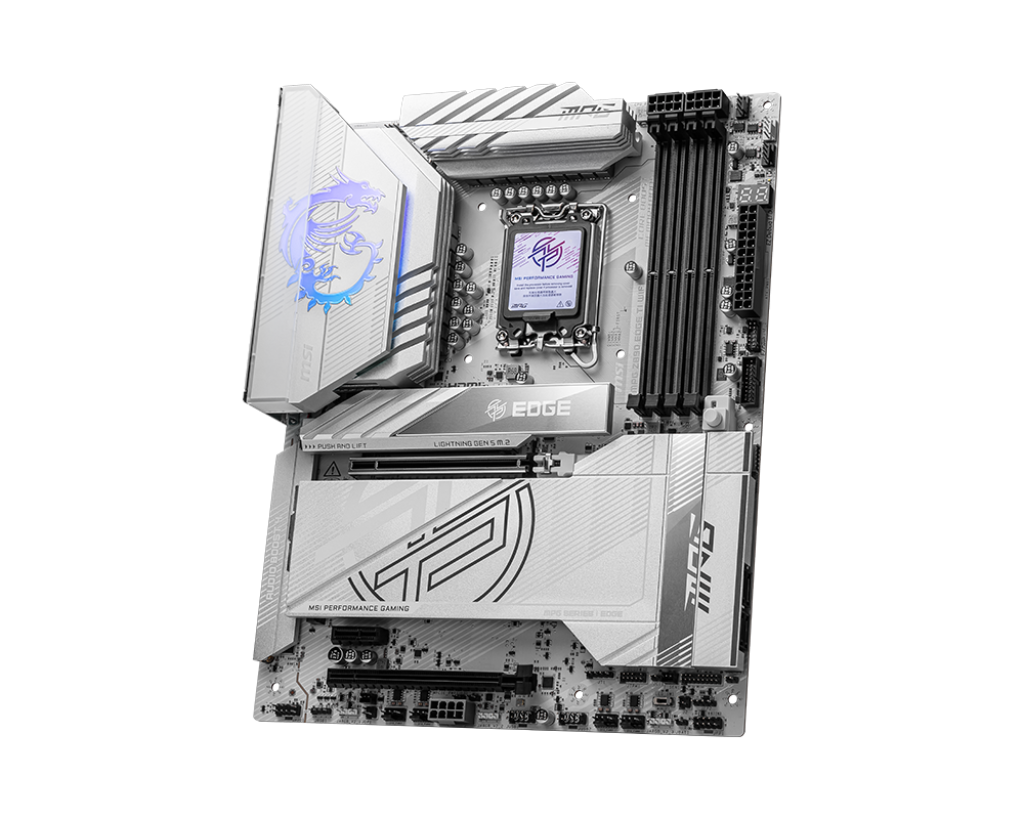

MSI Z890 MPG Edge Ti Wi-Fi 7 & Bluetooth DDR5 ATX Motherboard

MSI Z890 MPG Edge Ti Wi-Fi 7 & Bluetooth DDR5 ATX Motherboard

$689.00

OVERVIEW
SPECIFICATIONS
FAQs

3 YEAR DISTRIBUTOR WARRANTY

Corbell Technology Pte Ltd
4012 Ang Mo Kio Ave 10, #06-04 Techplace 1
Singapore 569628
Contact: 6452 4122

KEY FEATURES

- Latest DDR5 Memory Optimization: Features SMT welding technology and Memory Boost to improve signal integrity, allowing for better DDR5 overclocking and stability.

-Audio Boost 4: Isolated audio with a high quality audio processor for the most immersive gaming experience.

-Frozr AI Cooling: Uses AI algorithms to automatically adjust fan speeds based on CPU & GPU temperatures for better cooling efficiency.
Chipset:

INTEL Z890

CPU:

Supports Intel® Core™ Ultra Processors (Series 2)

LGA 1851

Memory:

4x DDR5 UDIMM, Maximum Memory Capacity 256GB

Memory Support 9200 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s

Max. overclocking frequency:

• 1DPC 1R Max speed up to 9200+ MT/s

• 1DPC 2R Max speed up to 7200+ MT/s

• 2DPC 1R Max speed up to 6400+ MT/s

• 2DPC 2R Max speed up to 5600+ MT/s

Supports Intel POR Speed and JEDEC Speed

Supports Memory Overclocking and Intel XMP 3.0

Supports Dual-Controller Dual-Channel mode

Supports Non-ECC, Un-buffered memory

Supports CUDIMM

• The DIMM slots on this motherboard have single-sided latches.

• Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/.

Onboard Graphics:

1x HDMI™

Supports HDMITM 2.1 with FRL port, maximum resolution of 8K 60Hz*

2x Type-C DisplayPort

ThundeboltTM 4 ports, , supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz*

*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

Slot:

2x PCI-E x16 slot (Qty)

1x PCI-E x1 slot (Qty)

PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)

PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset)

PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)

• PCI_E1 support manual BIOS adjustment to X8+X8 / X8+X4+X4

Audio:

Realtek® ALC1220P Codec

7.1-Channel High Definition Audio

Supports S/PDIF output

Storage:

5x M.2 (Qty)

M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices

M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices

M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices

M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices

M.2_5 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 22110/2280/2260 devices

4x SATA 6G (Qty)

*Please refer to the manual for M.2 SSD heatsink restrictions.

RAID:

•Supports RAID 0, RAID 1, RAID 5 and Raid 10 for SATA storage devices

•Supports RAID 0, RAID 1, RAID 5 and Raid 10 for M.2 NVMe storage devices

Onboard Thunderbolt:

2x Thunderbolt4 ports (Rear)

Supports up to 40Gbps transfer rate with Thunderbolt devices

Supports up to 20Gbps transfer rate with USB4 devices

Supports up to 10Gbps transfer rate with USB 3.2 devices

Supports up to 5V/3A,15W power charging

Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices

Supports up to 8K display

USB:

1x USB 2.0 (Rear)

4x USB 2.0 (Front)

4x USB 5Gbps Type A (Rear)

2x USB 5Gbps Type A (Front)

4x USB 10Gbps Type A (Rear)

1x USB 10Gbps Type C (Rear)

1x USB 20Gbps Type C (Front)

*USB 20Gbps Type-C (Front) support USB PD 27W fast charging for JUSBC1

LAN:

1x Intel® Killer™ E5000B 5G LAN

Internal IO:

1x Thunderbolt5 card connector(JTBT5, support RTD3)

1x Power Connector(ATX_PWR)

2x Power Connector(CPU_PWR)

1x Power Connector(PCIE_PWR 8pin)

1x CPU Fan

1x Combo Fan (Pump_Sys Fan)

6x System Fan

1x EZ Conn-header (JAF_2)

2x Front Panel (JFP)

1x Chassis Intrusion (JCI)

1x Front Audio (JAUD)

1x Thermal Sensor connectors(T_SEN)

3x Addressable V2 RGB LED connector (JARGB_V2)

1x RGB LED connector(JRGB)

1x TPM pin header(Support TPM 2.0)

4x USB 2.0 ports

2x USB 5Gbps Type A ports

1x USB 20Gbps Type C ports

WIRELESS LAN & BLUETOOTH:

Intel® Killer™ BE1750x Wi-Fi 7

The Wireless module is pre-installed in the M.2 (Key-E) slot

Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps

Supports 802.11 a/ b/ g/ n/ ac/ ax/ be

Supports Bluetooth® 5.4**, MLO, 4KQAM

* 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2.

** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2.

LED FEATURE:

4x EZ Debug LED

1x EZ Digit Debug LED

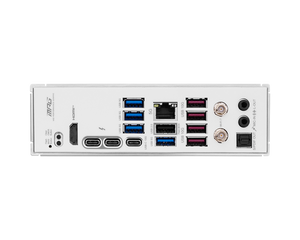

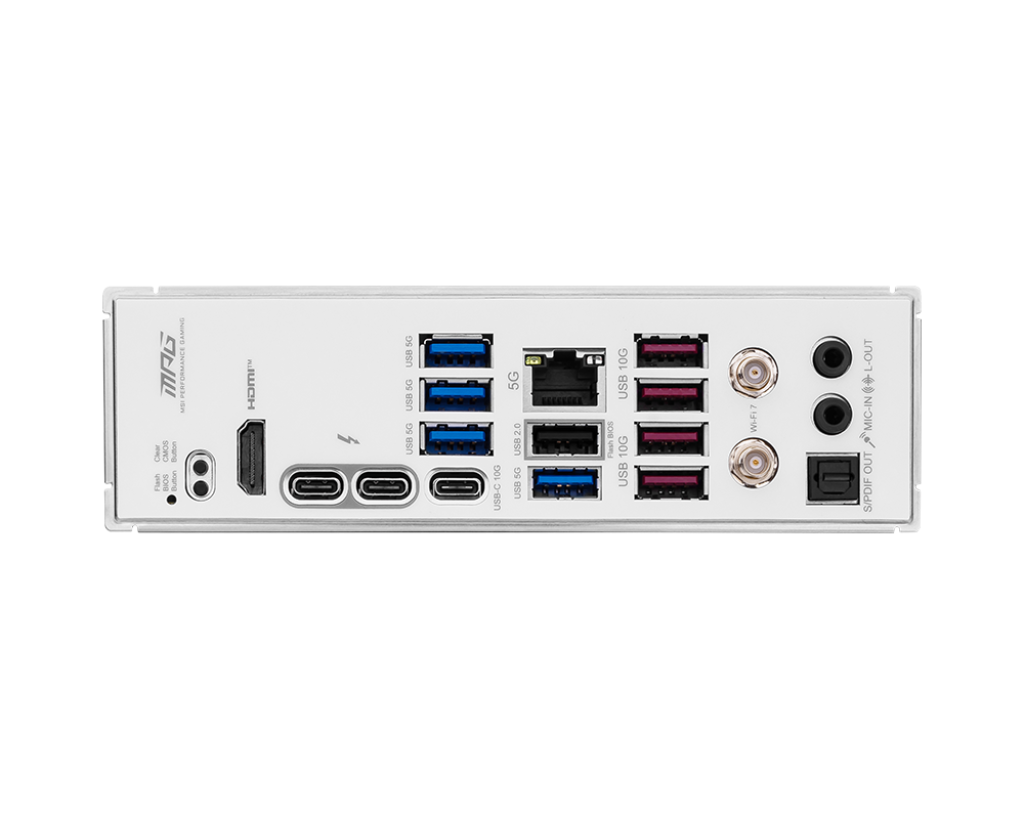

BACK PANEL PORTS:

USB 5Gbps Type-A

5G LAN

USB 10Gbps Type-A

Wi-Fi / Bluetooth

Audio Connectors

Clear CMOS Button

Flash BIOS Button

HDMI™

Thunderbolt 4

USB 10Gbps Type-C

USB 2.0

Optical S/PDIF Out

OPERATING SYSTEM:

Support for Windows® 11 64-bit

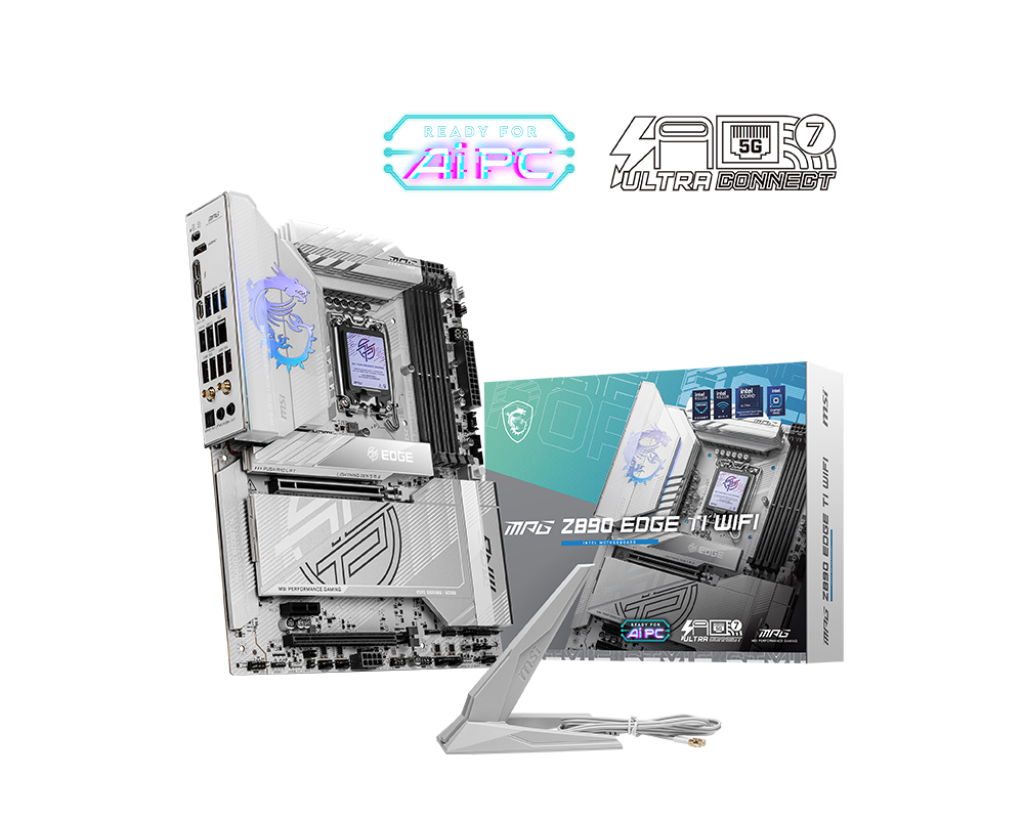

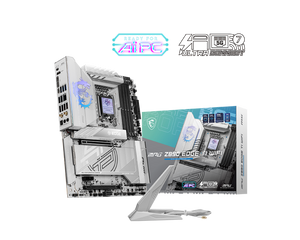

BOX CONTENT:

EZ Front Panel Cable

1 to 3 EZ Conn-Cable (V2)

Sata Cables x 2

USB Drive

M.2 Screw/Standoff Set

EZ M.2 Clip II Remover

EZ M.2 Clip II x 3

EZ Wi-Fi Antenna

Shout-out Flyer

Cable Sticker

Quick installation Guide

PCB Info:

ATX

243.84mm x 304.8mm
