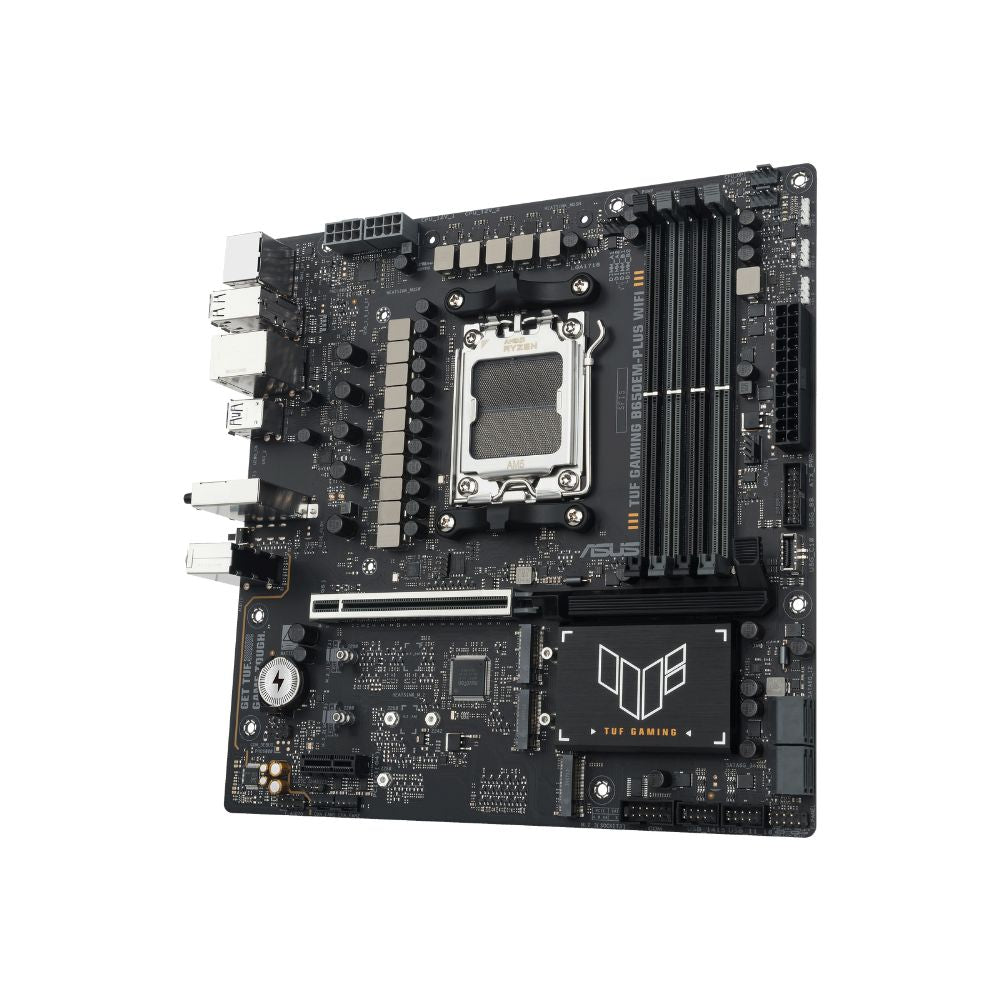

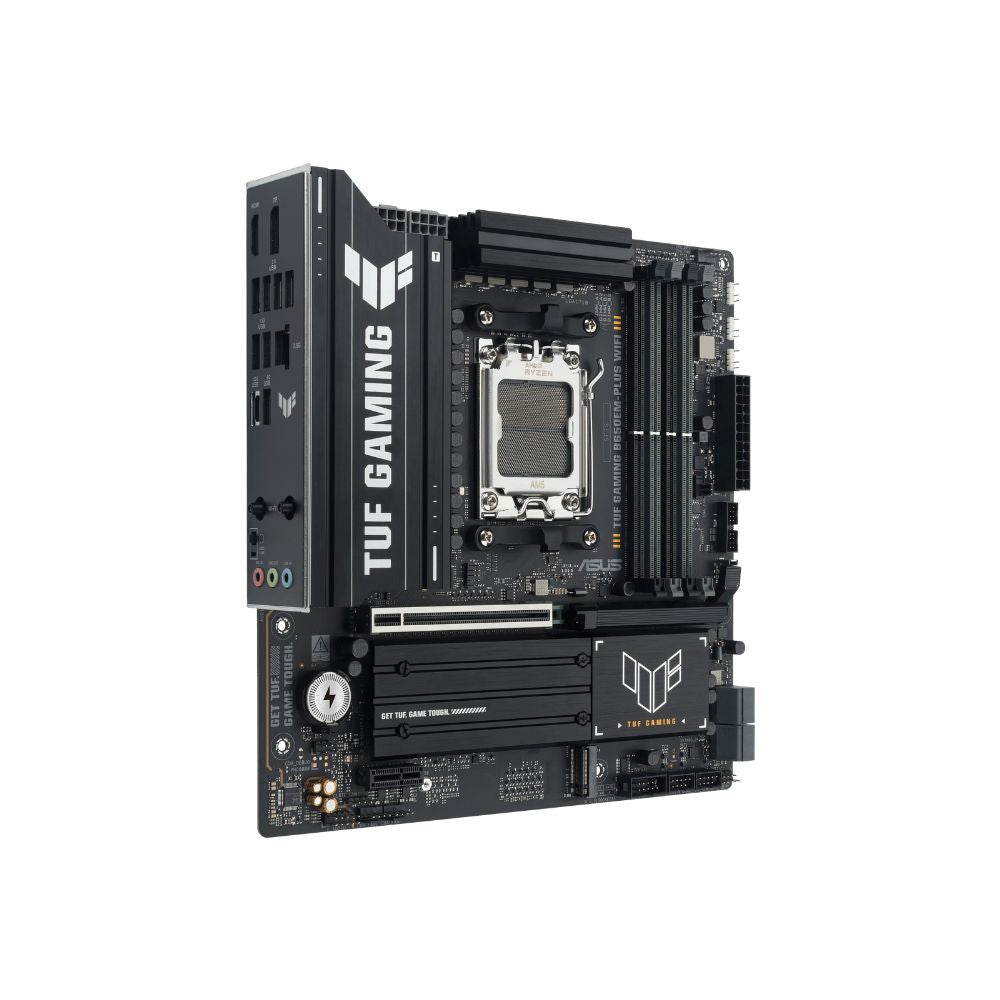

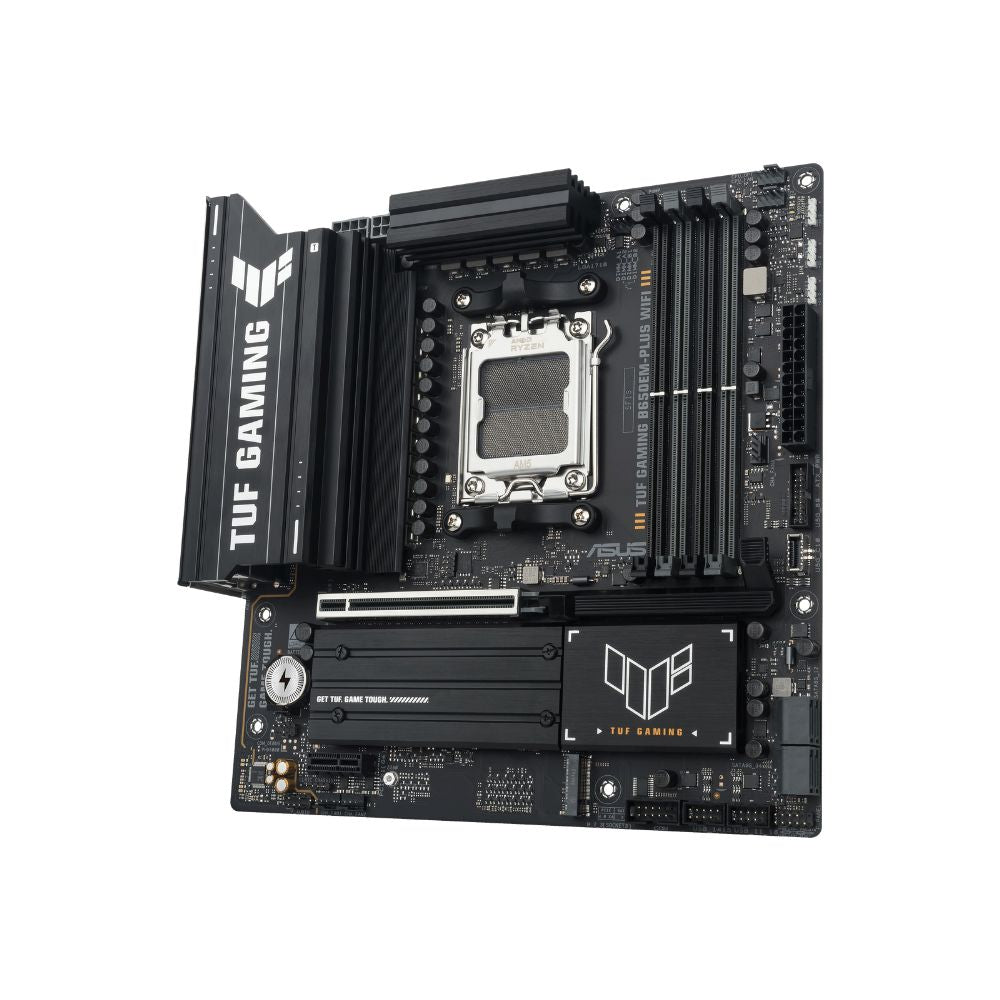

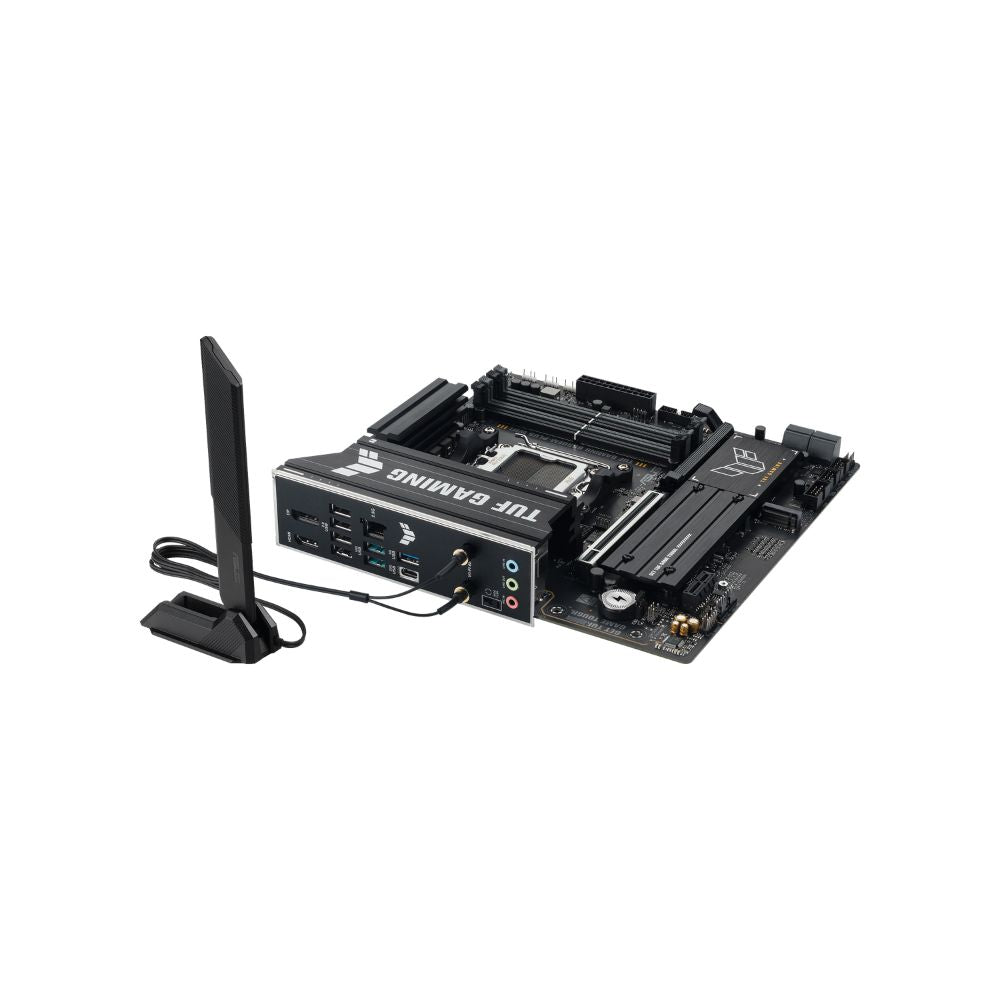

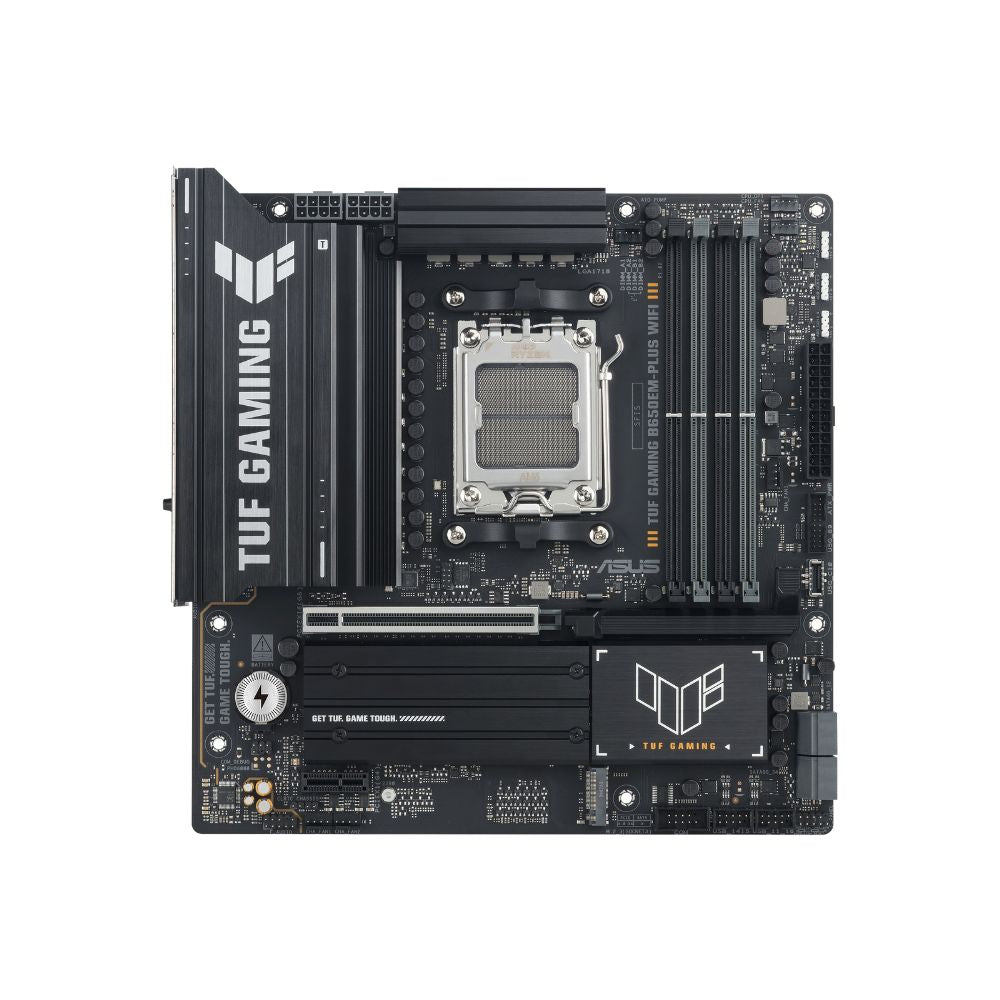

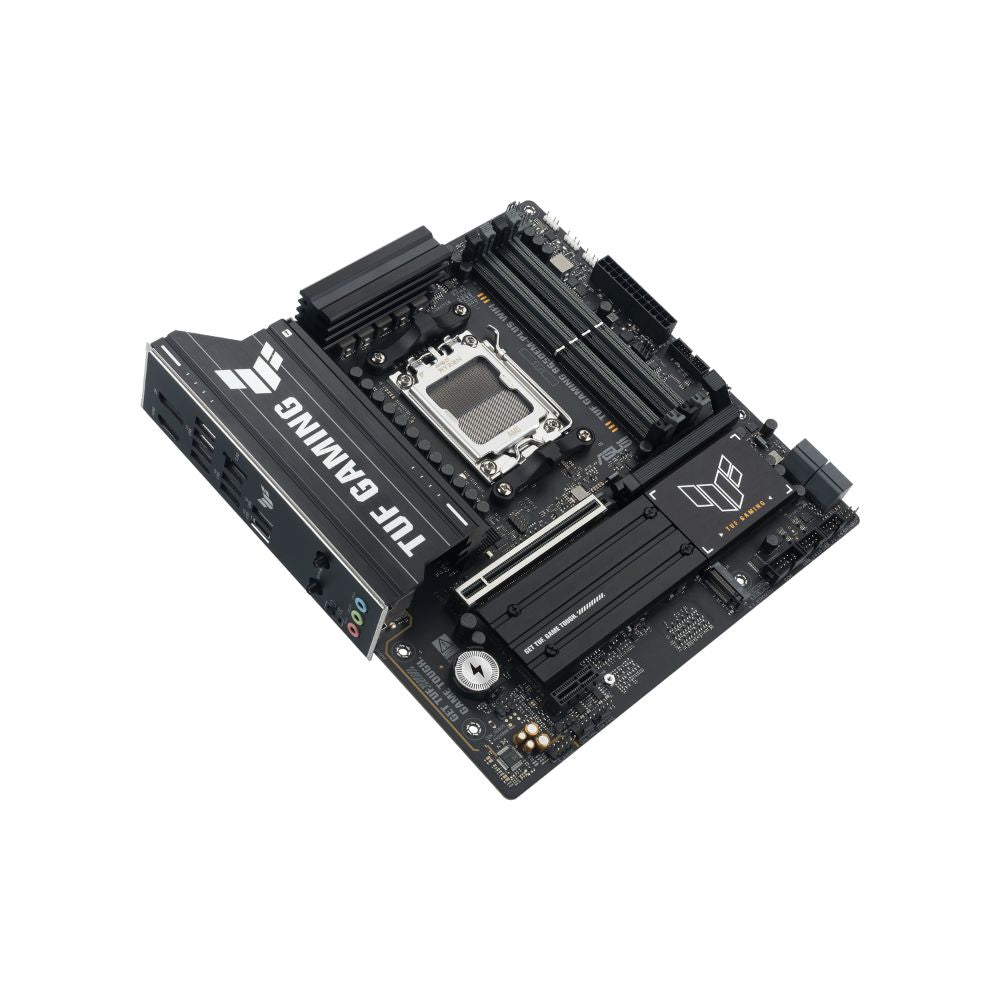

ASUS TUF GAMING B650EM-PLUS WIFI – Micro-ATX AM5 Motherboard

About the ASUS TUF GAMING B650EM-PLUS WIFI

The ASUS TUF GAMING B650EM-PLUS WIFI is a micro-ATX motherboard designed for AMD Ryzen 9000, 8000, and 7000 series processors. This board fits smaller cases while keeping premium features like PCIe 5.0, WiFi 6E, and 2.5Gb Ethernet. TUF military-grade components ensure long-term reliability for your AM5 build.

What This ASUS TUF GAMING B650EM-PLUS WIFI Does for You

Tool-free building saves time with M.2 Q-Latch that secures SSDs without screws. PCIe Q-Release lets you remove graphics cards with one button press. Q-DIMM clips make RAM installation easier for first-time builders. DDR5 memory support up to 8000+MT/s with EXPO profiles means you can overclock high-speed RAM without manual tuning. The PCIe 5.0 x16 slot supports current and future graphics cards. WiFi 6E operates on 6GHz band for less interference than standard WiFi. 2.5Gb Ethernet provides 2.5 times faster wired network speeds. USB 20Gbps Type-C on rear panel handles fast external storage. This motherboard that support DDR5 works with all modern AMD Ryzen processors on AM5 socket.

Connectivity Built for Modern Gaming

Three M.2 slots accommodate multiple NVMe drives without blocking other slots. First M.2 slot runs at PCIe 5.0 x4 speeds with Ryzen 9000/7000 CPUs. Second and third M.2 slots provide PCIe 4.0 x4 bandwidth. Four SATA ports let you add mechanical hard drives for mass storage. Realtek 2.5Gb Ethernet handles large game downloads faster. WiFi 6E with Bluetooth 5.3 eliminates cable clutter. Eight rear USB ports plus seven front headers connect all your peripherals. Realtek 7.1 audio codec with dedicated PCB layers delivers clear sound.

Perfect For

• Compact gaming builds that need full-size performance in smaller cases without sacrificing micro ATX motherboards for gaming features
• First-time PC builders who want tool-free M.2 SSD installation and clear Q-LED troubleshooting indicators
• Ryzen 9000/8000/7000 upgrades from older AM4 systems seeking DDR5 and PCIe 5.0 support
• Value-focused enthusiasts wanting TUF durability features without premium X870 pricing

Why Buy from Mansa Computers

• 3-year Singapore warranty with ASUS service center support
• Fast WhatsApp inquiry response for compatibility questions
• Open 7 days a week for technical support
• Home delivery available across Singapore

Technical Specifications Summary

Socket
AMD AM5

Chipset
AMD B650

Form Factor
Micro-ATX (24.4cm x 24.4cm)

Memory
4x DDR5, up to 256GB, 8000+MT/s OC

Expansion
1x PCIe 5.0 x16, 1x PCIe 4.0 x1

Storage
3x M.2 (1x PCIe 5.0, 1x PCIe 4.0), 4x SATA

Networking
WiFi 6E, Bluetooth 5.3, 2.5Gb LAN

USB
1x USB 20Gbps Type-C, 2x USB 10Gbps Type-A

The ASUS TUF GAMING B650EM-PLUS WIFI delivers essential enthusiast features in a compact micro-ATX package. Order yours today from Mansa Computers with 3-year local warranty support.

Model
TUF GAMING B650EM-PLUS WIFI

CPU
AMD Socket AM5 for AMD Ryzen™ 9000, 8000 & 7000 Series Desktop Processors

Chipset
AMD B650

Memory
4 x DIMM slots, max 256GB DDR5
Supports up to 8000+MT/s (OC) with Ryzen™ 9000, 8000 & 7000 Series
ECC and Non-ECC un-buffered DIMM
Dual channel memory architecture
Supports AMD EXPO™ and ASUS Enhanced Memory Profile (AEMP)

Graphics
1 x DisplayPort
1 x HDMI™ port

Expansion Slots
Ryzen™ 9000 & 7000 Series: 1 x PCIe 5.0 x16 slot (x16 mode)
Ryzen™ 8000 Series: 1 x PCIe 4.0 x16 slot (x8/x4 mode)
B650 Chipset: 1 x PCIe 4.0 x1 slot

Storage
Supports 3 x M.2 slots and 4 x SATA 6Gb/s ports
Ryzen™ 9000 & 7000 Series: M.2_1 (PCIe 5.0 x4), M.2_2 (PCIe 4.0 x4)
Ryzen™ 8000 Series: M.2_1 (PCIe 4.0 x4), M.2_2 (PCIe 4.0 x4/x2)
B650 Chipset: M.2_3 (PCIe 4.0 x4)
RAIDXpert2 Technology
Ryzen™ 9000: RAID 0/1/5/10
Ryzen™ 8000: RAID 0/1
Ryzen™ 7000: RAID 0/1/10

Ethernet
1 x Realtek 2.5Gb Ethernet (TUF LANGuard)

Wireless & Bluetooth
Wi-Fi 6E (2x2, 802.11ax), supports 2.4/5/6GHz bands
Bluetooth® v5.3

USB
Rear I/O (8 ports): 1 x USB 20Gbps (Type-C), 2 x USB 10Gbps (Type-A), 1 x USB 5Gbps (Type-A), 4 x USB 2.0 (Type-A)
Front I/O (7 ports): 1 x USB 5Gbps (Type-C), 1 x USB 5Gbps header (2 ports), 2 x USB 2.0 headers (4 ports)

Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC
Supports Jack detection, Multi-streaming, Front Panel Jack retasking
Supports up to 24-bit/192kHz playback
Audio Shielding, Premium capacitors, Dedicated audio PCB layers
Front panel HD audio module required for 7.1 output

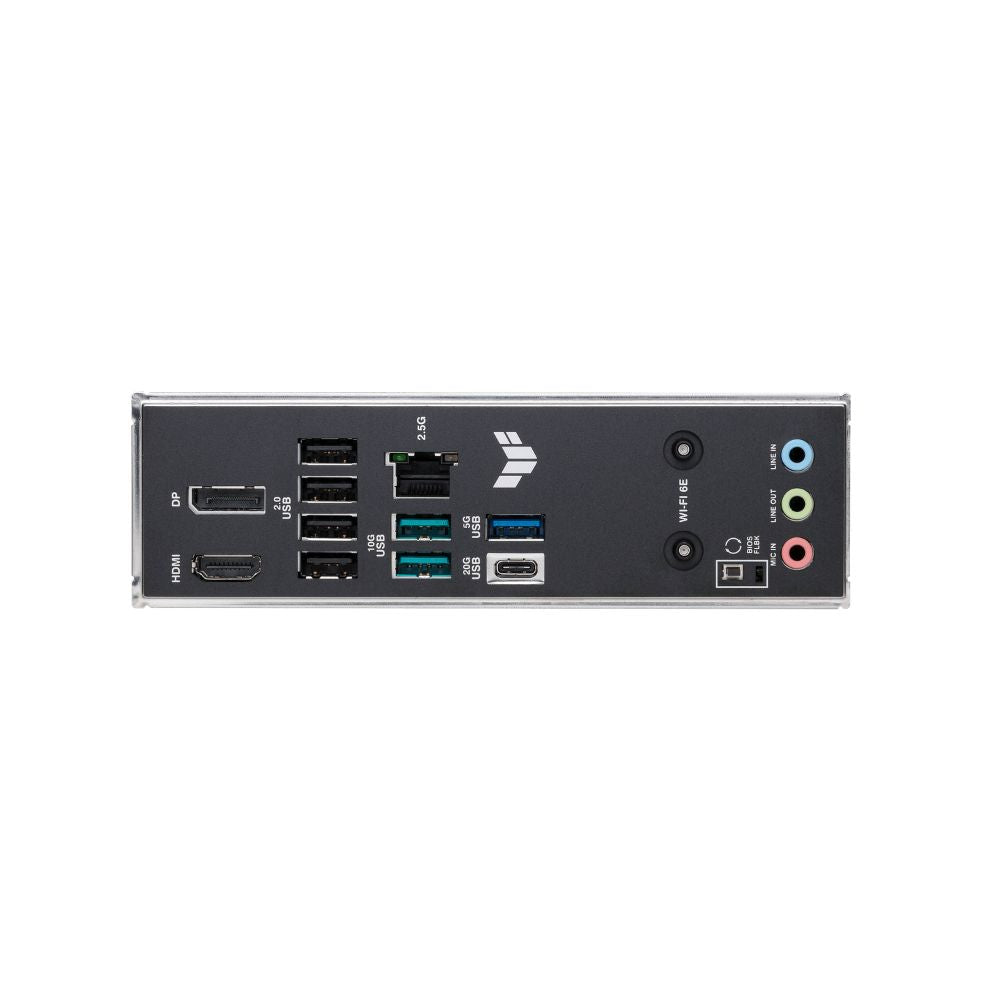

Back Panel I/O Ports
1 x USB 20Gbps (Type-C), 2 x USB 10Gbps (Type-A), 1 x USB 5Gbps (Type-A), 4 x USB 2.0 (Type-A)
1 x DisplayPort, 1 x HDMI™, 1 x Wi-Fi module, 1 x Realtek 2.5Gb Ethernet, 3 x Audio jacks, 1 x BIOS FlashBack™ button

Internal I/O
Cooling: 1 x CPU Fan, 1 x CPU OPT, 1 x AIO Pump, 3 x Chassis Fan Headers
Power: 1 x 24-pin ATX, 2 x 8-pin +12V
Storage: 3 x M.2, 4 x SATA
USB: 1 x USB 5Gbps (Type-C), 1 x USB 5Gbps header (2 ports), 2 x USB 2.0 headers (4 ports)
Misc: 3 x ARGB Gen 2, 1 x Clear CMOS, 1 x COM, 1 x Front Audio, 1 x Front Panel header, 1 x Chassis Intrusion header

Special Features
TUF Protection: DIGI+ VRM, ESD Guards, LANGuard, Overvoltage Protection, SafeSlot, Stainless-steel I/O
Q-Design: M.2 Q-Latch, PCIe Slot Q-Release, Q-DIMM, Q-LED, Q-Slot, Q-Antenna
Thermal: M.2 & VRM heatsinks
EZ DIY: BIOS FlashBack™, ProCool, Pre-mounted I/O, SafeDIMM
Aura Sync: Addressable RGB Gen 2 headers

Software Features
Armoury Crate (Aura Creator, Aura Sync, Fan Xpert 2+, AI Noise Cancelation, DIGI+ VRM, PC Cleaner)
ASUS DriverHub, TUF GAMING CPU-Z, DTS Audio Processing, Adobe Creative Cloud (Trial), Norton 360 (Trial), WinRAR (Trial)
UEFI BIOS: CrashFree BIOS 3, EZ Flash 3, UEFI EZ Mode

BIOS
256 Mb Flash ROM, UEFI AMI BIOS

Manageability
WOL by PME, PXE

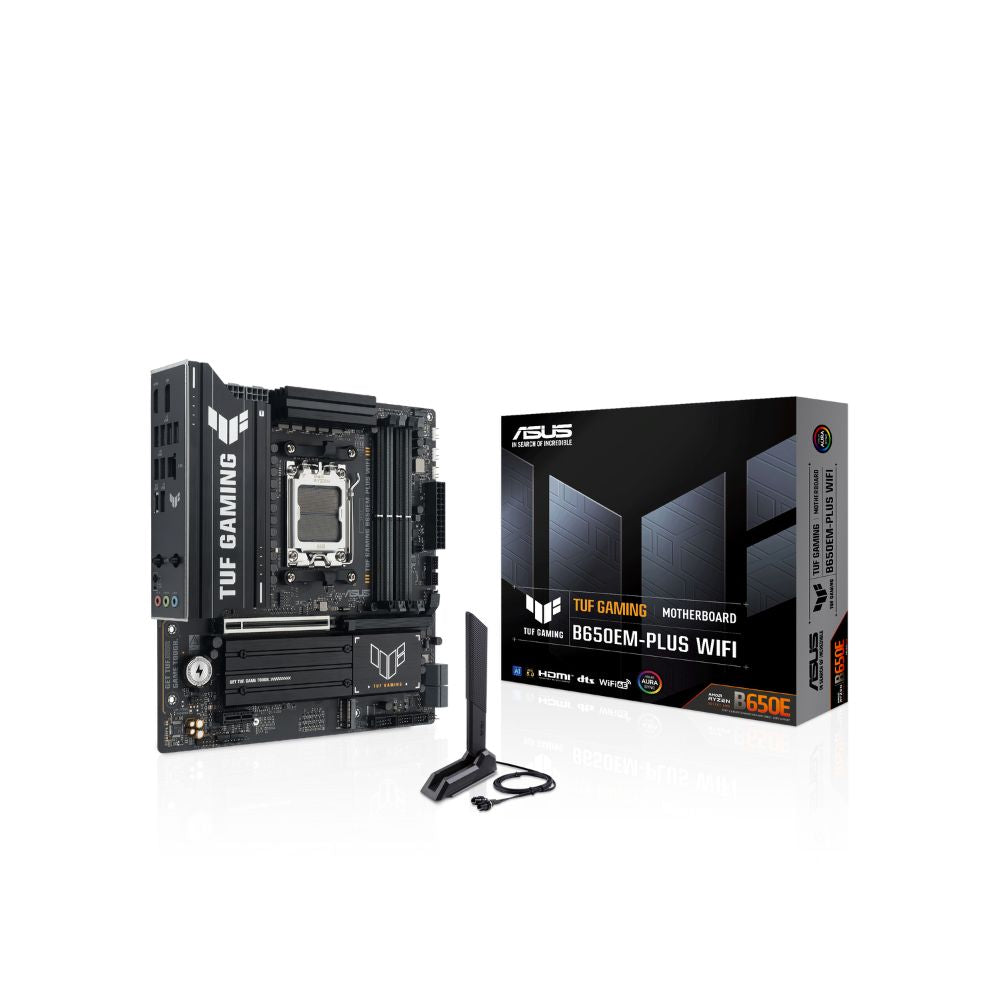

Accessories
Cables: 2 x SATA 6Gb/s
Misc: 1 x ASUS WiFi Q-Antenna, 1 x M.2 Rubber Package, 1 x Screw pack for M.2 SSD, 1 x TUF Gaming sticker
Documentation: 1 x Quick Start Guide

Operating System
Windows 11, Windows 10 64-bit

Form Factor
micro-ATX (24.4 cm x 24.4 cm)

3 YEARS WARRANTY

Avertek Enterprises Pte Ltd
25 Kallang Ave, #03-03,
Singapore 339416
Contact: 6341 7839

Ban Leong Technologies Ltd
150, #04-01 Ubi Ave 4, Ubi Biz-Hub,
Singapore 408825
Contact: 6512 9250

Frequently Asked Questions About ASUS TUF GAMING B650EM-PLUS WIFI

Which AMD processors work with this motherboard?

This board supports AMD Ryzen 9000, 8000, and 7000 series desktop processors on AM5 socket. You'll need a discrete graphics card as these CPUs don't have integrated graphics support on this board.

Does the PCIe 5.0 slot work with all Ryzen CPUs?

Ryzen 9000 and 7000 series CPUs run the first PCIe slot at 5.0 x16 speeds. Ryzen 8000 series APUs run it at PCIe 4.0 x8 mode instead.

Can I install M.2 drives without tools?

Yes, all three M.2 slots use Q-Latch mechanism. Just slide your SSD in and flip the latch. No screwdriver needed for installation or removal.

What warranty comes with this motherboard?

You get 3-year ASUS Singapore warranty with service center support. Mansa Computers provides fast WhatsApp response for warranty claims and technical questions.

How does this compare to X870 motherboards?

This B650 board offers PCIe 5.0 slot, WiFi 6E, and DDR5 8000MT/s support at lower cost. X870 boards add more USB ports and lanes but cost significantly more.
