Model

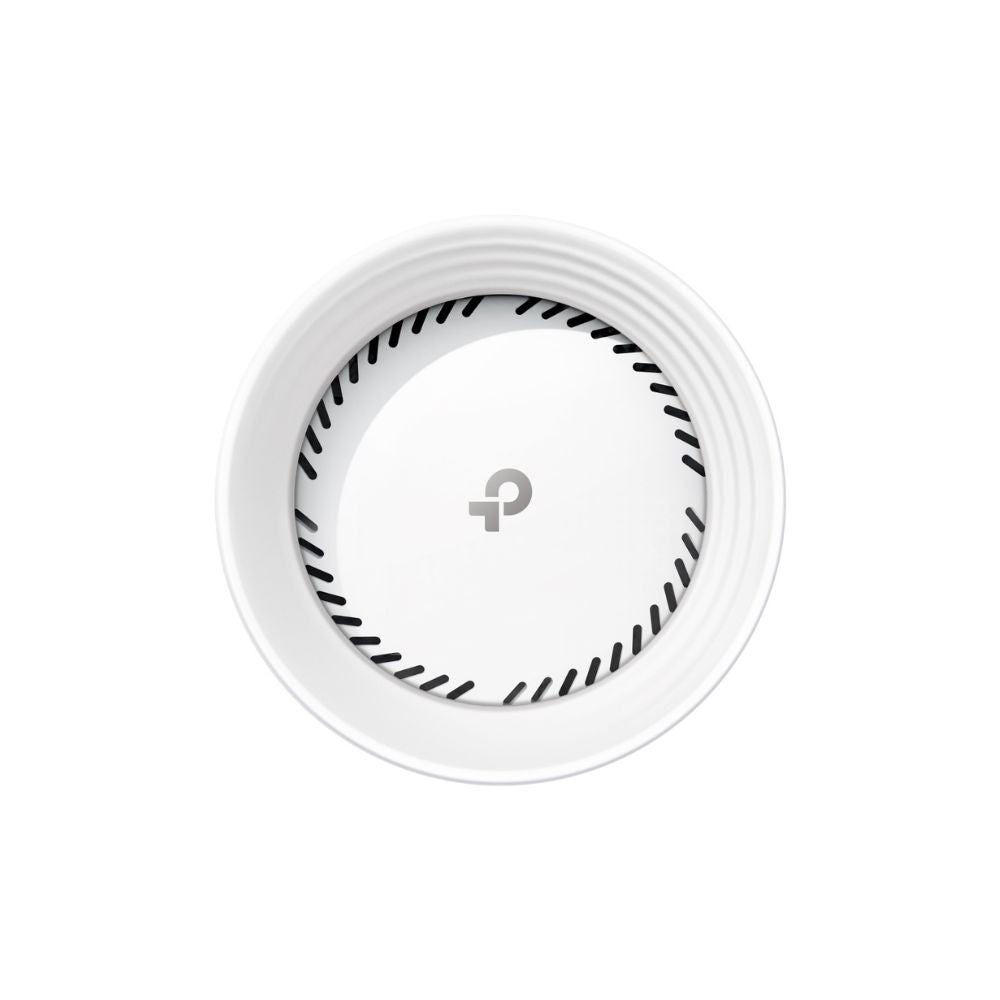

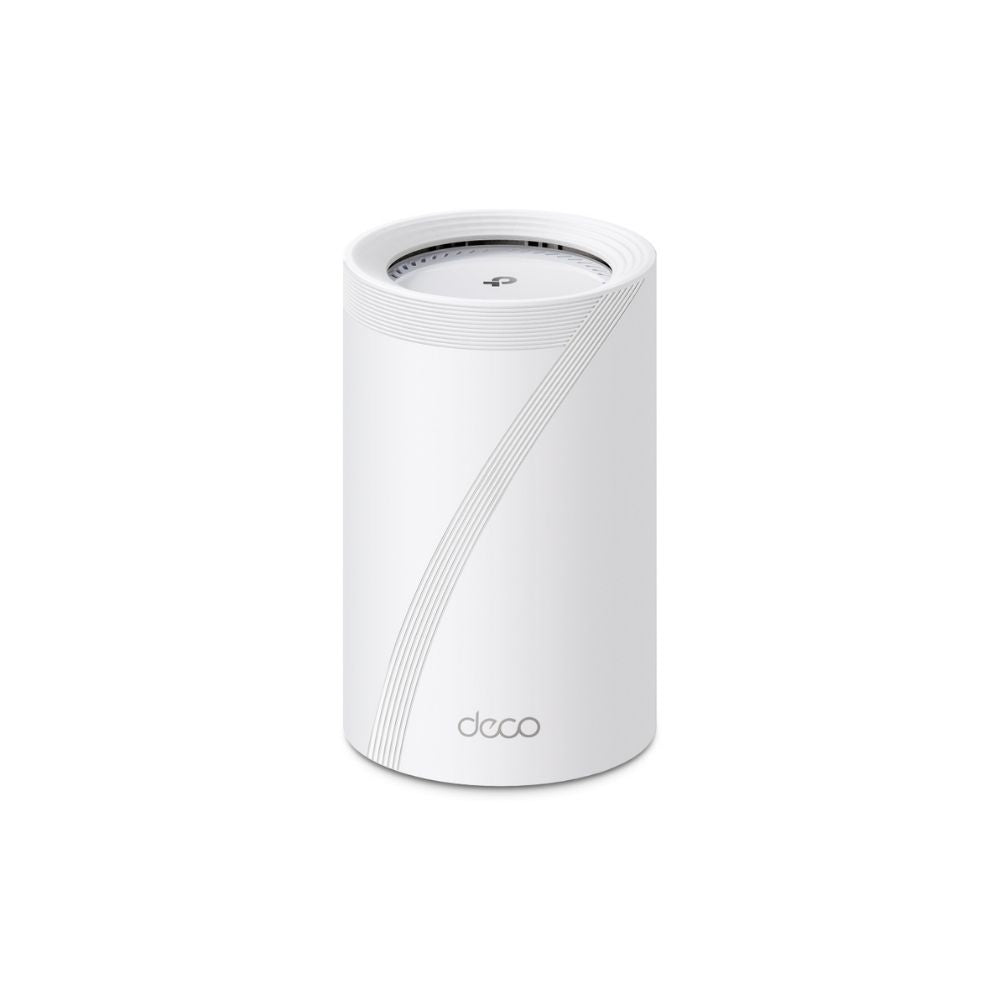

TP-Link Deco BE68

Model Name
BE68 (1-pack)

Wi-Fi 7 Standards and Protocols
IEEE 802.11be/ax 6 GHz
IEEE 802.11be/ax/ac/n/a 5 GHz
IEEE 802.11be/ax/n/b/g 2.4 GHz

WiFi Speeds
BE14000
6 GHz: 8647 Mbps (802.11be)
5 GHz: 4324 Mbps (802.11be)
2.4 GHz: 688 Mbps (802.11be)

WIFI Range
Broader Whole Home Coverage
• TP-Link Mesh Technology
• AI-Driven Mesh
• 8× High-Gain Antennas (Internal)
• Tri-Band

WiFi Capacity
Very High
• Tri-Band
• 4×4 MU-MIMO
• OFDMA
• 8 Streams

Working Modes
Router Mode
Access Point Mode

Advanced Features
Multi-Link Operation (MLO)
320 MHz Channel
4K-QAM
Multi-RUs
Works with Alexa and Google Assistant

Network Security
SPI Firewall
Access Control
HomeShield Security
• Real-Time IoT Protection
• Malicious Site Blocker
• Intrusion Prevention System
• DDoS Attack Prevention
• Home Network Scanner

Guest Network
1× 6 GHz Guest Network
1× 5 GHz Guest Network
1× 2.4 GHz Guest Network
Effective Time
Bandwidth Control

VPN Server
OpenVPN Server
PPTP VPN Server
L2TP/IPSec VPN Server
WireGuard VPN Server

VPN Client
OpenVPN Client
PPTP VPN Client
L2TP/IPSec VPN Client
WireGuard VPN Client

WiFi Encryption
WPA-Personal
WPA2-Personal
WPA3-Personal

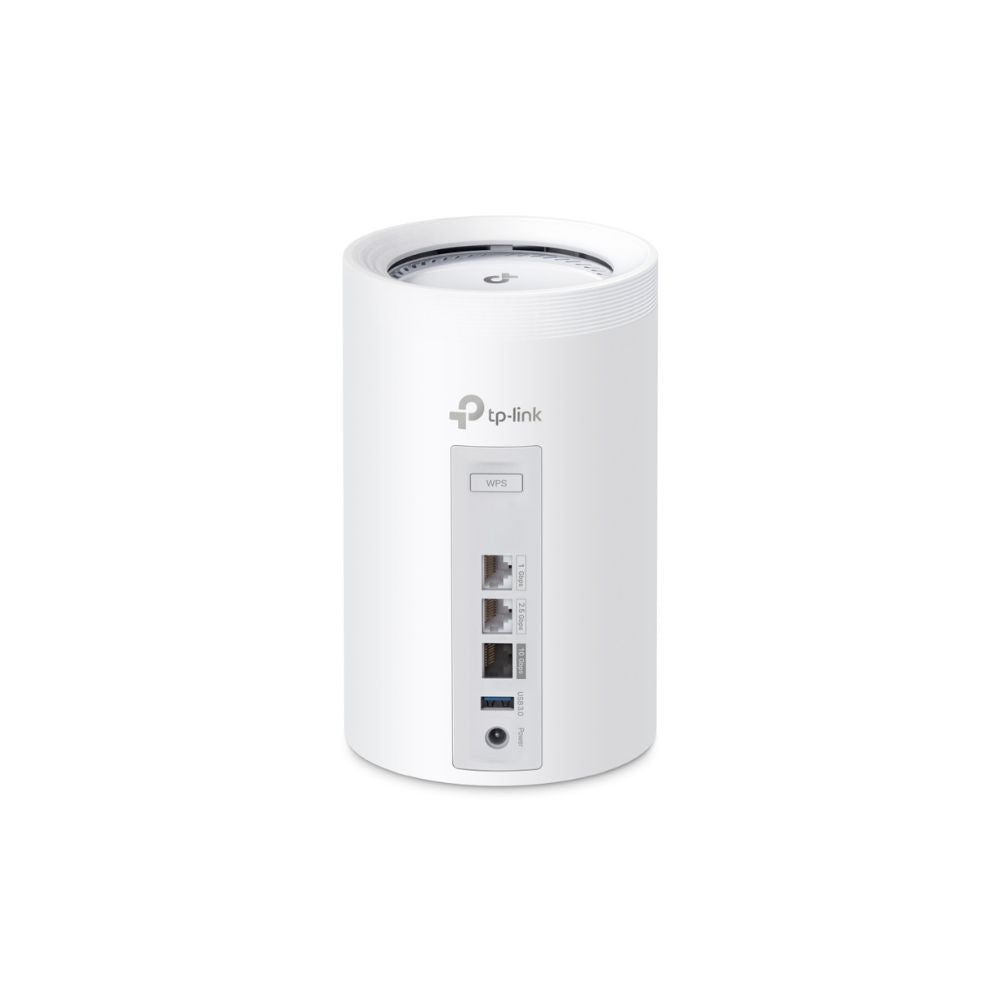

Ethernet Ports
1× 10 Gbps
1× 2.5 Gbps
1× 1.0 Gbps

USB Support
1× USB 3.0 Port
• FTP Server
• Media Server
• Samba Server

Buttons
1× Reset Button
1× WPS

Advanced Features
Reboot Schedule
Tapo/Kasa Onboarding
IoT network & Device Isolation
Static Route Function
Node/Band Connection Preference

Protocols
IPv4
IPv6

Service Kits
HomeShield

Parental Controls
HomeShield Parental Controls
• Youtube Restriction
• SafeSearch
• Custom Profiles
• Professional Content Filter Library
• Family Time
• Bedtime
• Off Time
• Time Rewards
• Family Online Time Ranking
• Pause the Internet
• Weekly and Monthly Reports

WAN Types
Dynamic IP
Static IP
PPPoE
PPTP
L2TP

Quality of Service
HomeShield QoS by Device

Cloud Service
OTA Firmware Upgrade
TP-Link ID
DDNS

NAT Forwarding
Port Forwarding
UPnP

IPTV
IGMP Proxy
IGMP Snooping
Bridge
Tag VLAN

DHCP
Address Reservation
DHCP Client List
Server

DDNS
TP-Link

Management Features
Deco App

Default Web Server
• Manage and configure device through web (HTTP/HTTPS)
• Port: 80/443  
• Protocol: TCP

Default DNS
• Port: 53
• Protocol: TCP & UDP

Default DHCP Server
• IP address assignment (DHCP)
• Port: 67
• Protocol: UDP

Default App management
• Manage and configure device through app
• Port: 22, Protocol: TCP
• Port: 20001, Protocol: TCP
• Port: 30001, Protocol: TCP
• Port: 20002, Protocol: UDP

Dimensions (W×D×H)
4.23 × 4.23 × 6.93 in
107.5 × 107.5 × 176 mm

Package Content
1x Deco BE68 unit
1x RJ45 Ethernet cable
1x Power adapter
Quick Installation Guide

Certifications
CE, FCC, RoHS

Environment
Operating Temperature: 0°C~40°C (32 °F~104 °F)
Storage Temperature: -40°C~60°C (-40 °F~140 °F)
Operating Humidity: 10%~90% RH
Storage Humidity: 5%~90% RH

3 YEARS WARRANTY
