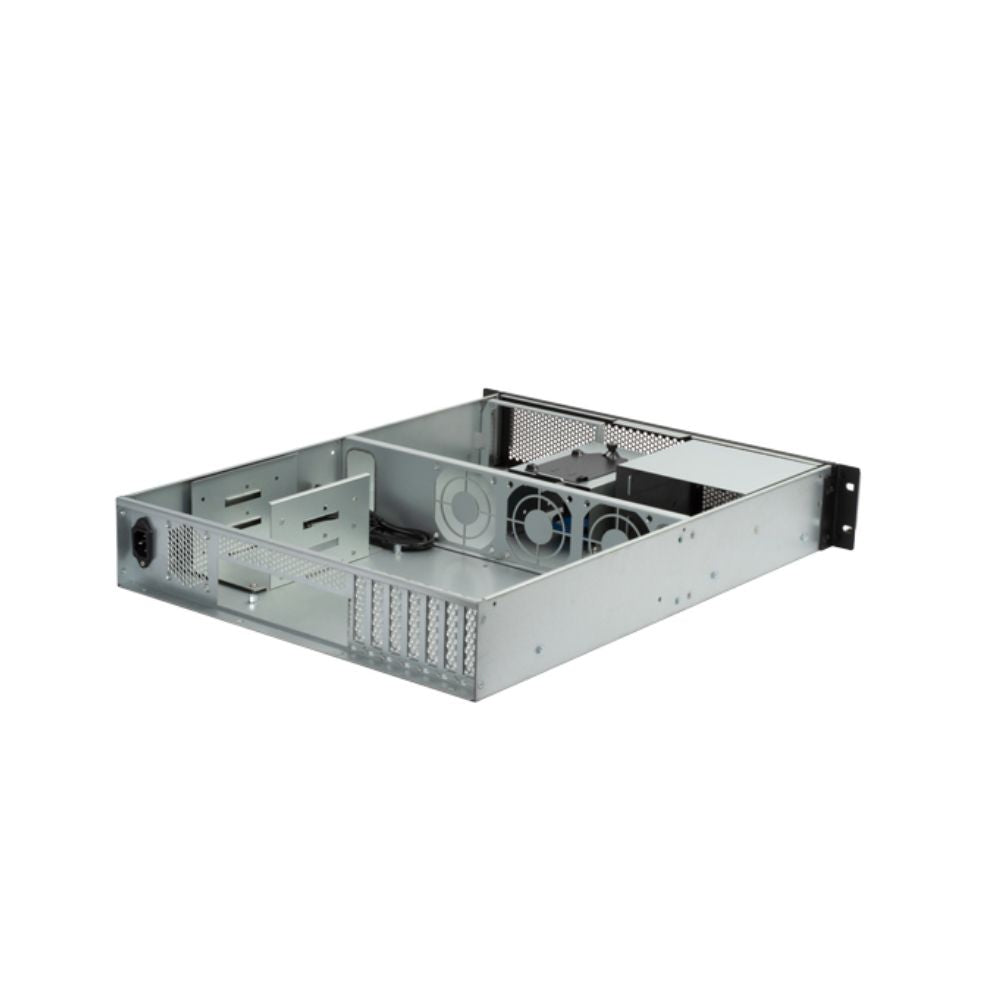

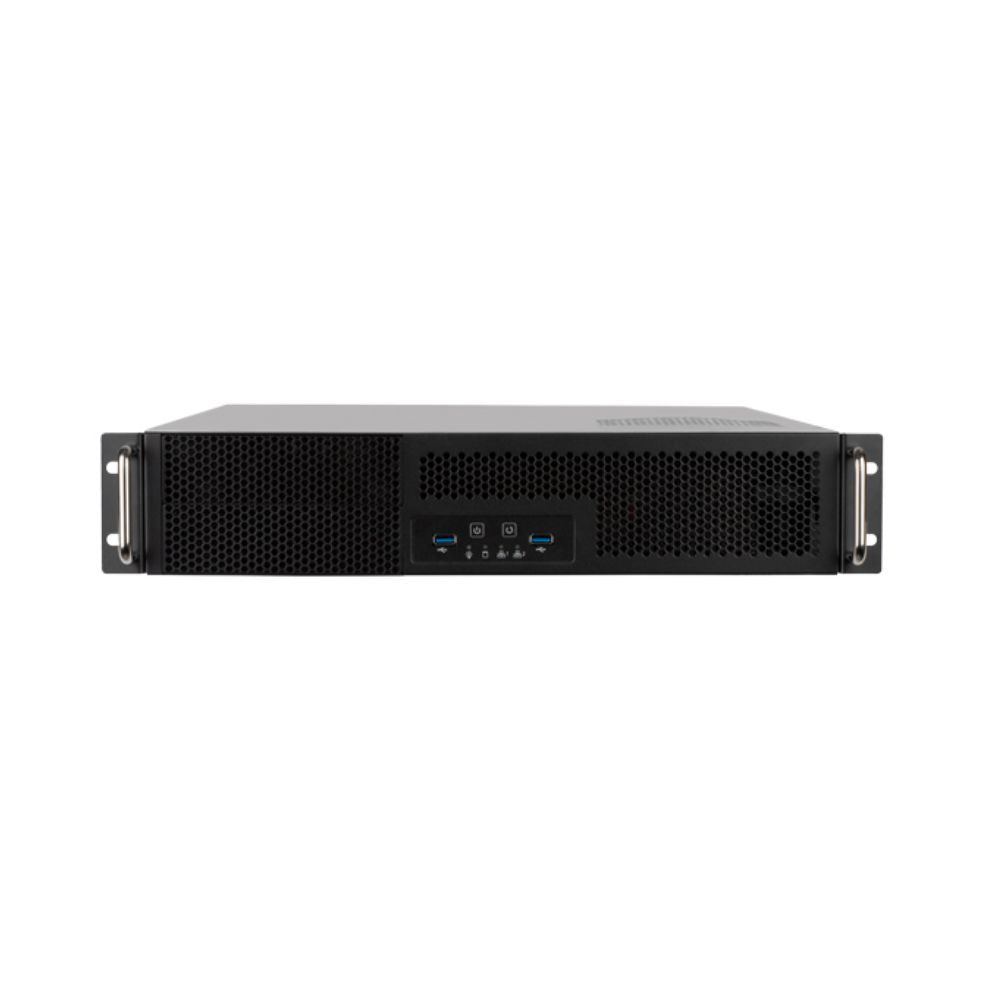

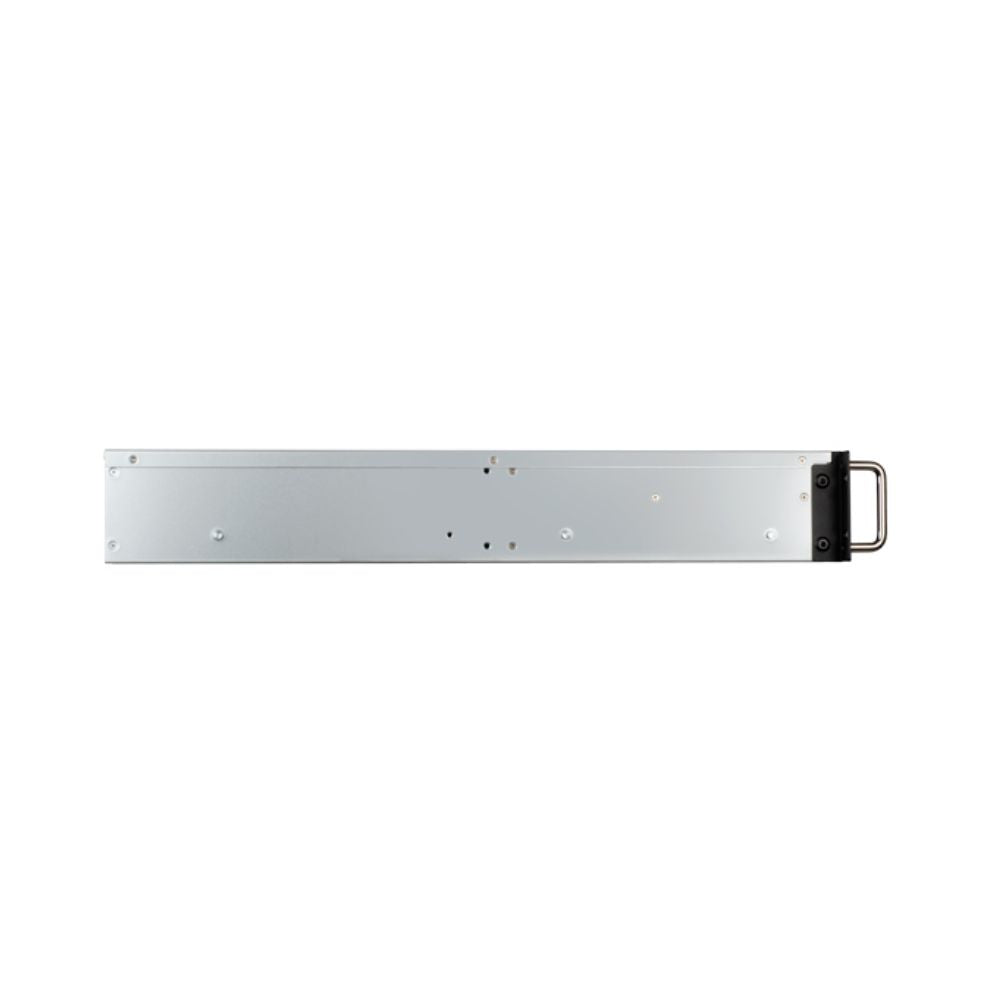

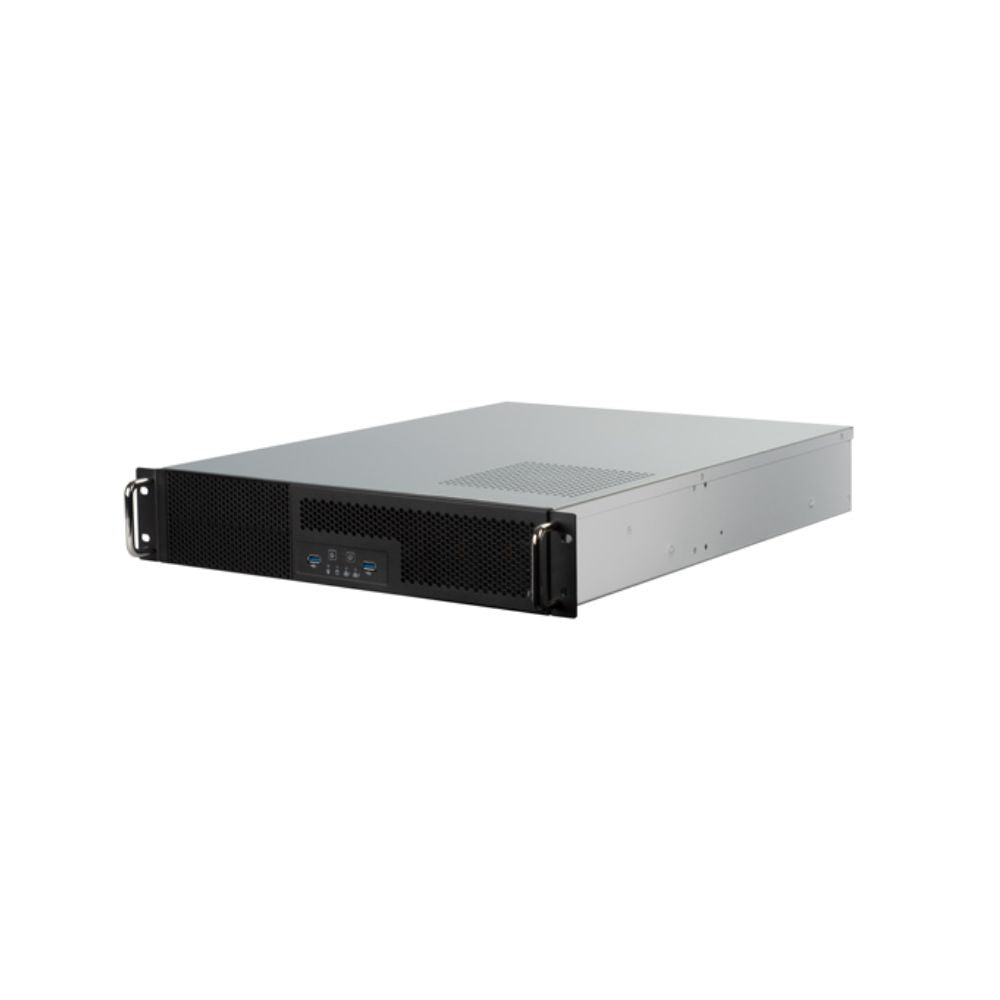

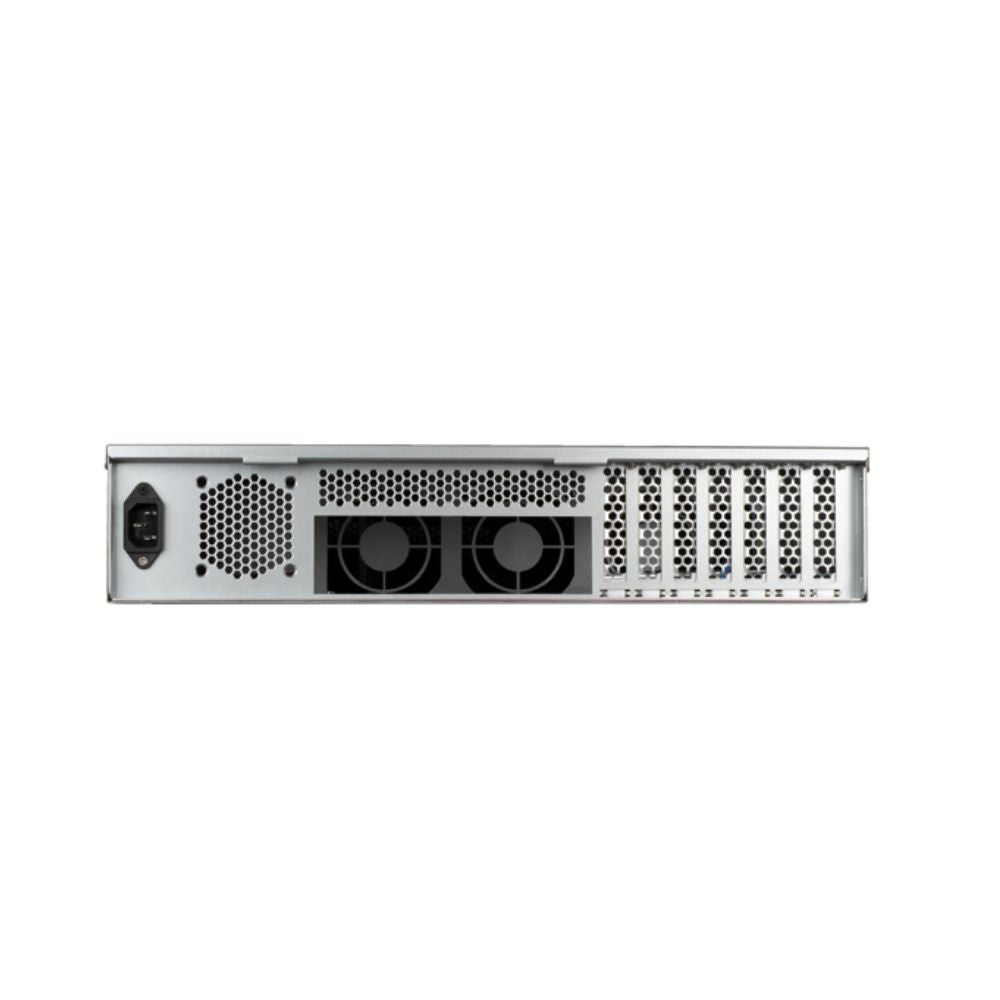

SilverStone RM23-502 2U Rackmount Server Chassis

SilverStone RM23-502 is a 2U general-purpose rackmount chassis for servers and workstations. Supports ATX, Micro-ATX, and Mini-ITX boards with 2 x 5.25" external, 5 x 3.5" internal and 1 x 2.5" internal. Four fan mounting positions and seven low-profile PCI/PCIe slots support configurable cooling and expansion.

Who it suits

• Server integrators building standard-form workstations get ATX motherboard support with two 5.25" external bays for optical drives or legacy storage.
• Data center teams need compact 2U form with internal 3.5" and 2.5" slots for boot drives and storage without dedicated hot-swap infrastructure.
• Budget-conscious system builders benefit from the 6.8kg chassis, standard ATX PSU compatibility, and four fan mounting positions for configurable airflow.
• Less suitable for high-density NAS builds requiring hot-swap drive bays or motherboards larger than ATX. The RM21 and RM22 series offer dedicated hot-swap storage options.

Before you buy

• A standard ATX PS2 power supply is required and sold separately. Check the 180mm PSU length limit and compatibility before purchasing.
• The five 3.5" and one 2.5" internal bays are fixed mounts without a built-in hot-swap backplane. Consider a suitable hot-swap chassis if required.

Model
SST-RM23-502

Chassis Form Factor
2U rackmount

Motherboard Support
ATX (12" x 9.6"), Micro-ATX (9.6" x 9.6"), Mini-ITX (6.7" x 6.7")

Main Metal Thickness
1mm

Drive Support - External
2 × 5.25" external device bays

Drive Support - Internal
3.5" x 5, 2.5" x 1

Cooling - Front
3 × 80mm fan mounting positions

Cooling - Rear
1 × 60mm fan mounting position

CPU Cooler Clearance
65mm maximum height

Expansion Slots
7 x low-profile PCI / PCIe

Power Supply
Standard PS2 (ATX), up to 180mm length (not included)

Front I/O
2 x USB 3.1 Gen 1 Type-A

Front Panel Controls
Power On/Off, system reset

LED Indicators
Power status, HDD activity, LAN activity x 2

Dimensions
430mm (W) x 88.5mm (H) x 580mm (D)

Volume
22.07 litres

Net Weight
6.8 kg

1 YEAR WARRANTY

Avertek Enterprises Pte Ltd
25 Kallang Ave #03-03, Singapore 339416
Contact: 6341 7839

How long will it take to receive my purchase?

Standard Shipping - 3 to 5 days
Express Shipping - 1 to 2 days

Can I opt for store pickup?

Yes, we are open daily for collection from 11 AM - 6.30 PM.
Address: 1 Ubi View #01-22, Focus One Building Singapore 408555 (Door located nearest to carpark exit gantry) We will contact you once your order is ready for collection!

Can I use hot-swap drives in the RM23-502?

No. The 3.5" and 2.5" internal bays are fixed mounts, not hot-swap. If you need hot-swap capability, the RM21 or RM22 series provide dedicated SAS backplanes and hot-swap trays.

What can I install in the two 5.25" bays?

The RM23-502 provides two external 5.25" bays for compatible optical drives and other bay-mounted accessories. These bays can accommodate suitable removable storage devices or legacy hardware, depending on accessory dimensions and installation requirements.

What is the CPU cooler height limit?

The RM23-502 supports CPU coolers up to 65mm in height. Check the cooler's specifications and motherboard clearance before purchasing, as many tower-style coolers exceed this limit.
