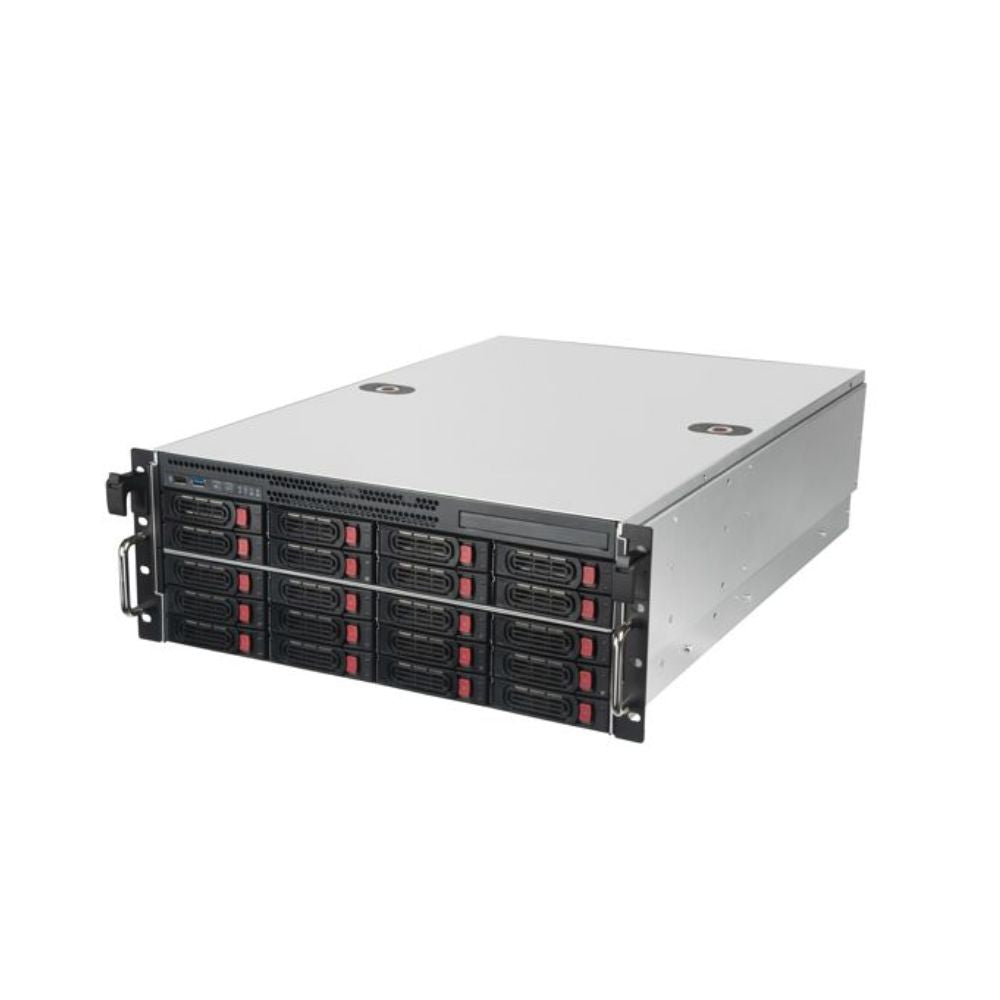

SilverStone RM43-320-RS 4U Rackmount Server Chassis

SilverStone RM43-320-RS is a high-density 4U rackmount chassis with 20 x 3.5" hot-swap bays for large-scale NAS and SAN deployments. Supports SSI-EEB and E-ATX boards with 5 x Mini-SAS HD SFF-8643 backplane connectors, 7 standard-profile PCIe slots, and rail kit included.

Who it suits

• Enterprise NAS and SAN builders get 20 x 3.5" hot-swap bays with SGPIO support and five Mini-SAS HD SFF-8643 connectors for connecting compatible SAS/SATA storage controllers.
• Data center deployments benefit from rail-slide kit included (80 kg max), three hot-swap 120mm PWM fans, and individual LED indicators per drive.
• GPU-capable server builds get 7 standard-profile PCIe slots with GPU holder, supporting cards up to 340mm alongside full SSI-EEB board compatibility.
• Not for compact racks under 660mm depth. Not for builds needing only a few drives. RM22-308 or RM41-H08 serve smaller storage needs at lower cost.

Before you buy

• Check rack depth and motherboard compatibility before ordering. The 660mm-deep chassis supports SSI-EEB, SSI-CEB, E-ATX, ATX, Micro-ATX and Mini-ITX motherboards.
• CPU cooler clearance is 130mm with the GPU holder installed, or 148mm without it. Check cooler and expansion-card dimensions.
• Five Mini-SAS HD SFF-8643 connectors serve the 20 drive bays. Confirm compatible SAS/SATA controllers, cabling and sufficient backplane power connections before ordering.

Model
SST-RM43-320-RS

Chassis Form Factor
4U rackmount

Material
Steel, 1.0mm to 1.2mm thickness

Motherboard Support
SSI-EEB, SSI-CEB, Extended ATX, ATX, Micro-ATX, Mini-ITX

HDD Backplane
20 ports SAS/SATA to Mini-SAS HD SFF-8643 x 5 with SGPIO

Backplane Power
4-pin peripheral x 10

Interface
SAS III / II / I, SATA III / II / I

Drive Support - External Hot-Swap

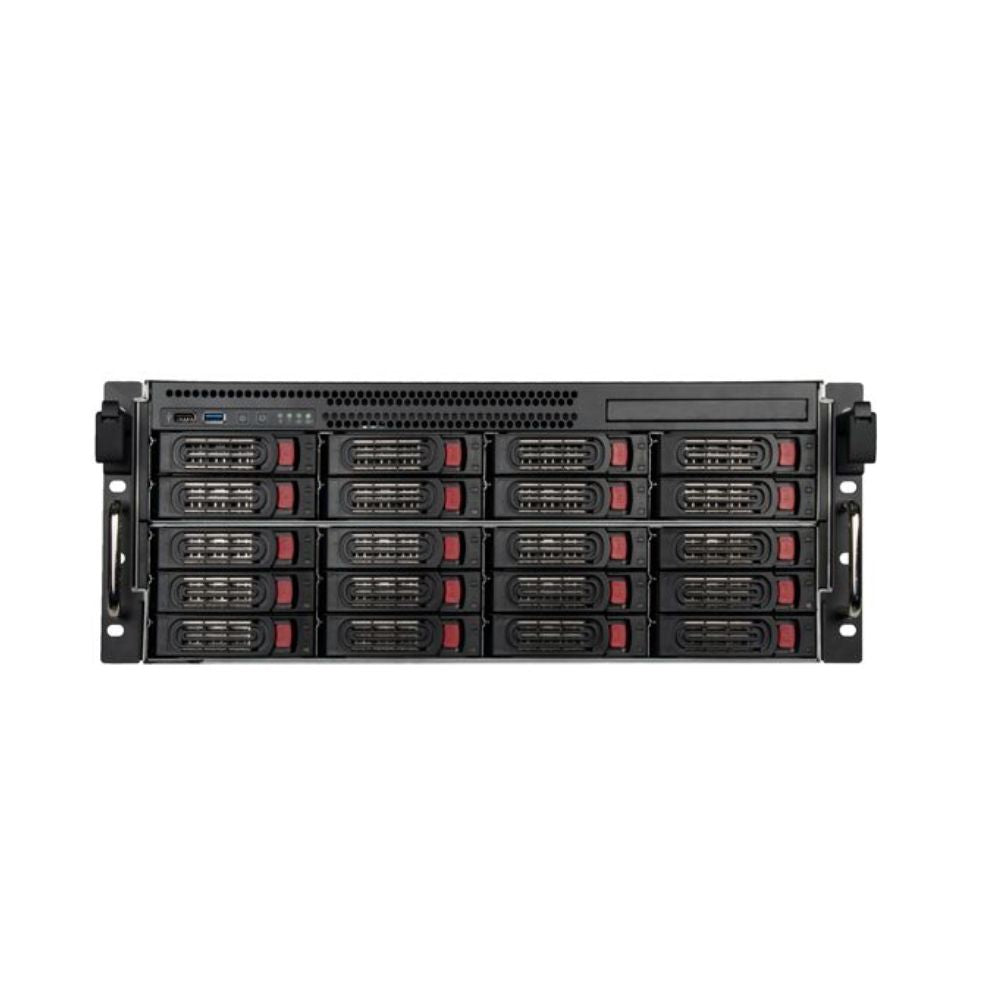

20 x 3.5" hot-swap bays

Drive Support - External Other
1 x slim optical (up to 12.7mm)

Drive Support - Internal
2 x 2.5" (up to 15mm)

Cooling - Internal

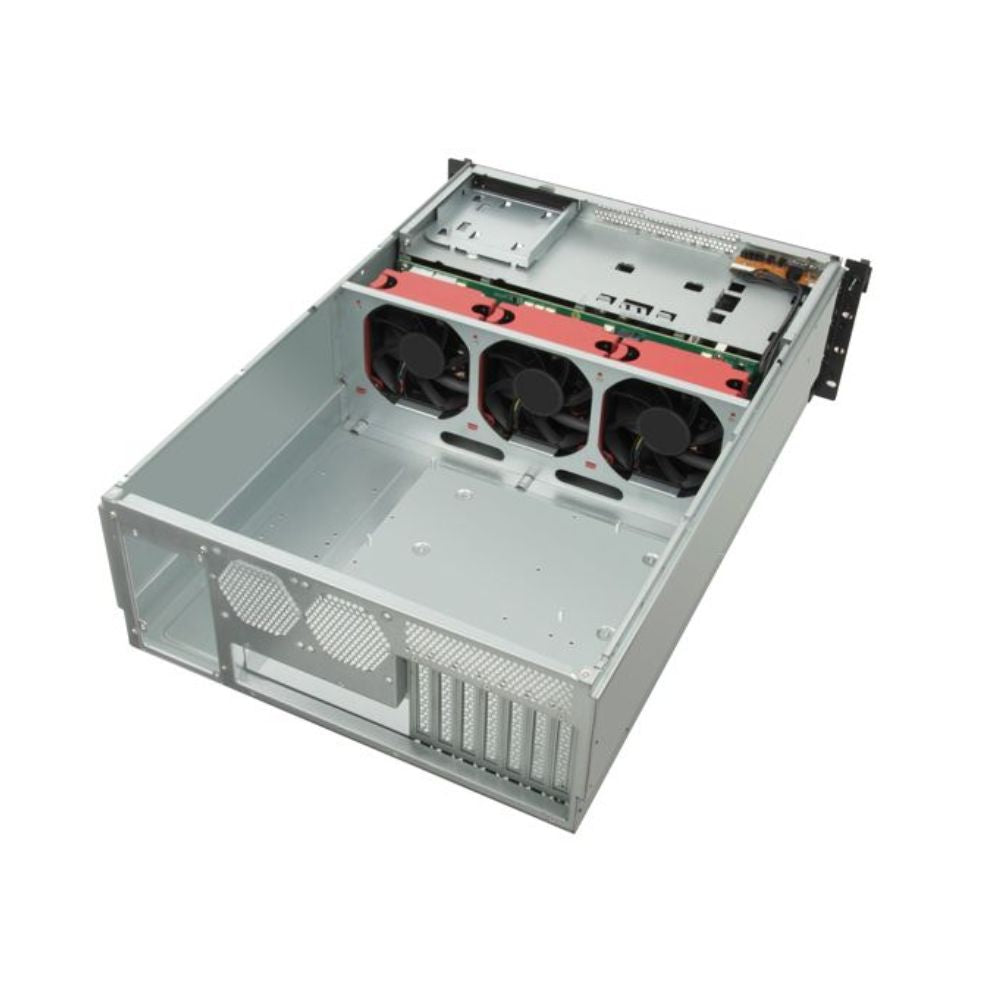

3 x 120mm x 38mm hot-swap PWM ball bearing fans (pre-installed)

Cooling - Rear

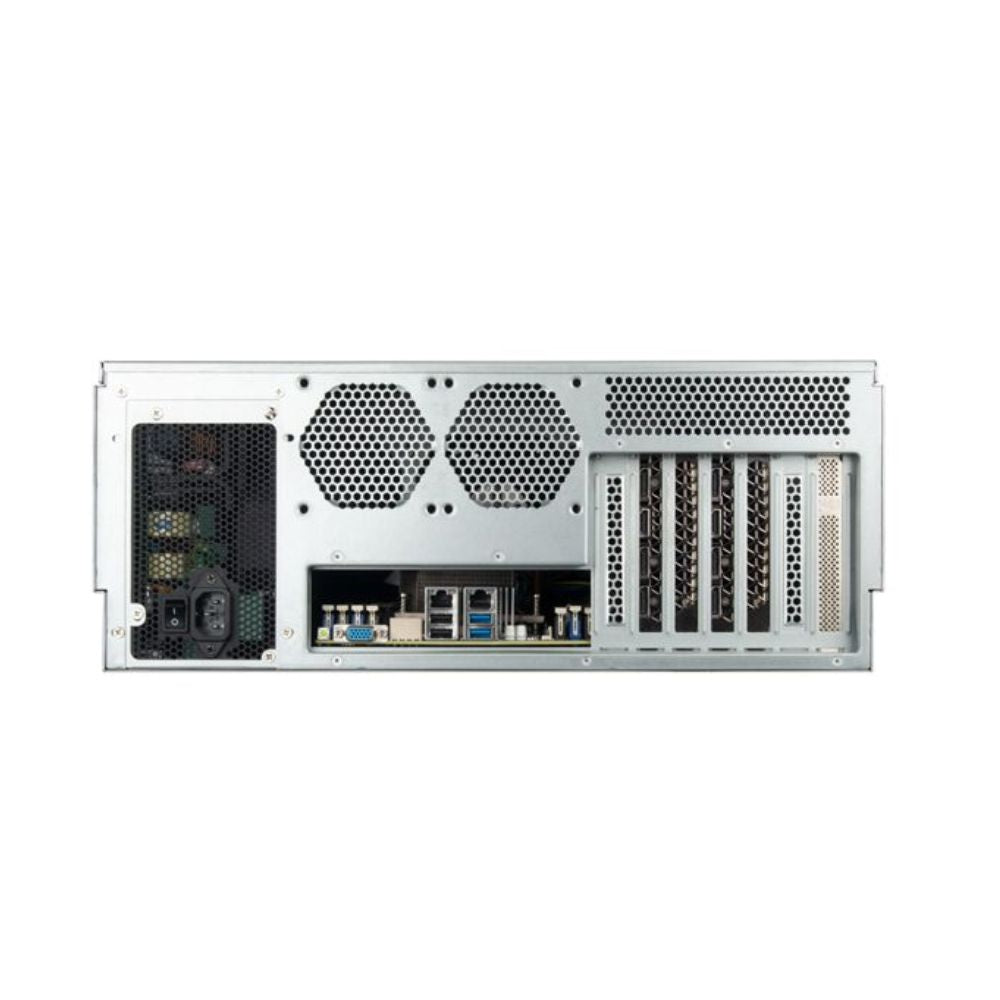

80mm x 2 fan slots

CPU Cooler Clearance
130mm with GPU holder, 148mm without

Expansion Slots
7 x standard-profile PCI / PCIe

Expansion Card Length
340mm

Expansion Card Width
116mm with GPU holder, 154mm without

Power Supply
ATX (PS2); Mini Redundant (rear-panel mounting-hole compatibility required); 2U Redundant (RM43-320-RS V2.0 or later)

Front I/O
1 x USB 2.0, 1 x USB 3.1 Gen 1 Type-A

Front Panel Controls
Power On/Off, system reset

LED - Chassis
Power (blue), HDD Access (green), LAN x 2 (green)

LED - HDD Tray
HDD Power x 20 (yellow), HDD Access x 20 (blinking green)

Rail Slide
Included, max supported weight 80 kg

Rail Slide Weight
2.48 kg

Rail Cabinet Mounting Distance
663mm to 915mm

Dimensions
442mm (W) x 175mm (H) x 660mm (D)

Volume
51.1 litres

Net Weight
16.2 kg

1 YEAR WARRANTY

Avertek Enterprises Pte Ltd
25 Kallang Ave #03-03, Singapore 339416
Contact: 6341 7839

How long will it take to receive my purchase?

Standard Shipping - 3 to 5 days
Express Shipping - 1 to 2 days

Can I opt for store pickup?

Yes, we are open daily for collection from 11 AM - 6.30 PM.
Address: 1 Ubi View #01-22, Focus One Building Singapore 408555 (Door located nearest to carpark exit gantry) We will contact you once your order is ready for collection!

How many SAS or RAID controllers do I need for 20 drives?

The RM43-320-RS backplane has five Mini-SAS HD SFF-8643 connectors, each serving four drive bays. To connect all 20 drives directly, use compatible SAS/SATA HBA or RAID controller ports providing at least 20 drive connections. Alternatively, a compatible SAS expander configuration may allow fewer controller ports. Verify controller capacity, cabling, and backplane compatibility before purchasing.

Does the RM43-320-RS come with rail slides?

Yes. Rail slides are included and support up to 80 kg total weight. The rail cabinet mounting hole distance ranges from 663mm to 915mm for standard 19" racks.

Can I use this for GPU compute alongside storage?

Yes. The RM43-320-RS has seven expansion slots and supports expansion cards up to 340mm long. Maximum card width is 116mm with the GPU holder installed or 154mm without it. GPU compute alongside SAS HBA controllers is possible, subject to motherboard slot layout, cooling and power compatibility.
