KEY FEATURES

-Mystic Light Infinity II: Features dynamic RGB lighting with millions of color combinations, allowing extensive personalization.

-Premium Thermal Design: Equipped with Stacked Fin Array Heatsinks, Heatpipes, and MOSFET Cooling, ensuring superior heat dissipation.

-PCIe 5.0 Support: The latest PCIe 5.0 slots provide double the bandwidth of PCIe 4.0, allowing for the fastest GPUs and NVMe SSDs.
Chipset:

AMD X670

CPU:

Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors

Socket AM5

Memory:

4x DDR5, Maximum Memory Capacity 256GB

Memory Support DDR5 8000+(OC)/ 7800(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz

Max. overclocking frequency:

• 1DPC 1R Max speed up to 8000+ MHz

• 1DPC 2R Max speed up to 6400+ MHz

• 2DPC 1R Max speed up to 6400+ MHz

• 2DPC 2R Max speed up to 5400+ MHz

Supports Dual-Channel mode

Supports non-ECC, un-buffered memory

Supports AMD EXPO

Slot:

3x PCI-E x16 slot

• Supports x16/x0/x4 or x8/x8/x4 (For Ryzen™ 9000/ 7000 Series processors)

• Supports x8/x0/x4 (For Ryzen™ 8700/ 8600/ 8400 Series processors)

• Supports x4/x0/x2 (For Ryzen™ 8500/ 8300 Series processors)

PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)

PCI_E2 Gen PCIe 5.0 supports up to x8 (From CPU)

PCI_E3 Gen PCIe 5.0 supports up to x4 (From CPU)

* This rear USB 3.2 Gen 2x2 20Gbps Type-C port and PCI_E3 slot share the same bandwidth. When installing a device in the PCI_E3 slot, the port would be unavailable by default. You can go to BIOS > Setting > Advanced > PCIe/PCI Subsystem Setting > PCI_E3/Rear USB-C 20 Switch to select the available device.

Audio:

Realtek® ALC4082 Codec + ESS ES9280AQ Combo DAC/HPA

7.1-Channel USB High Performance Audio

Supports S/PDIF output

Supports up to 32-Bit/384 kHz playback on front panel

Storage:

4x M.2

M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices

M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices

M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices

M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices

8x SATA 6G

Multi-GPU:

AMD MULTI-GPU Support

RAID:

Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices

*SATA_A1_A2, SATA_B1_B2 and SATA_B3_B4 do not support RAID function.

**RAID 5 configuration is only supported by Ryzen™ 9000 series processors.

***RAID 10 for M.2 NVMe storage devices is only supported by Ryzen™ 9000/7000 series processors.

USB:

4x USB 2.0 (Front)

4x USB 2.0 ports (Front)

4x USB 5Gbps Type A (Front)

7x USB 10Gbps Type A (Rear)

1x USB 10Gbps Type C (Front)

2x USB 20Gbps Type C (Rear)

1x USB 20Gbps Type C (Front)

LAN:

Marvell® AQC113CS-B1-C 10Gbps LAN

Intel® I225V 2.5Gbps LAN

Internal IO:

1x Power Connector(ATX_PWR)

2x Power Connector(CPU_PWR)

1x Power Connector(PCIE_PWR 4pin or 6 pin)

1x Front Type-C Quick Charge Connector(PD_PWR1)

1x CPU Fan

2x Pump Fan

6x System Fan

2x Front Panel (JFP)

1x Chassis Intrusion (JCI)

1x Water Flow connector

1x Front Audio (JAUD)

2x Thermal Sensor connectors(T_SEN)

1x Tuning Controller connector(JDASH)

3x Addressable V2 RGB LED connector (JARGB_V2)

1x RGB LED connector(JRGB)

1x TPM pin header(Support TPM 2.0)

V-check point

4x USB 2.0 ports

4x USB 5Gbps Type A ports

1x USB 10Gbps Type C ports

1x USB 20Gbps Type C ports

WIRELESS LAN & BLUETOOTH:

AMD Wi-Fi 6E

The Wireless module is pre-installed in the M.2 (Key-E) slot

Supports MU-MIMO TX/RX

Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands

Supports 802.11 a/ b/ g/ n/ ac/ ax

Supports Bluetooth® 5.3**

* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.

** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.

LED FEATURE:

1x EZ LED Control switch

4x EZ Debug LED

1x 2-Digit Debug Code LED

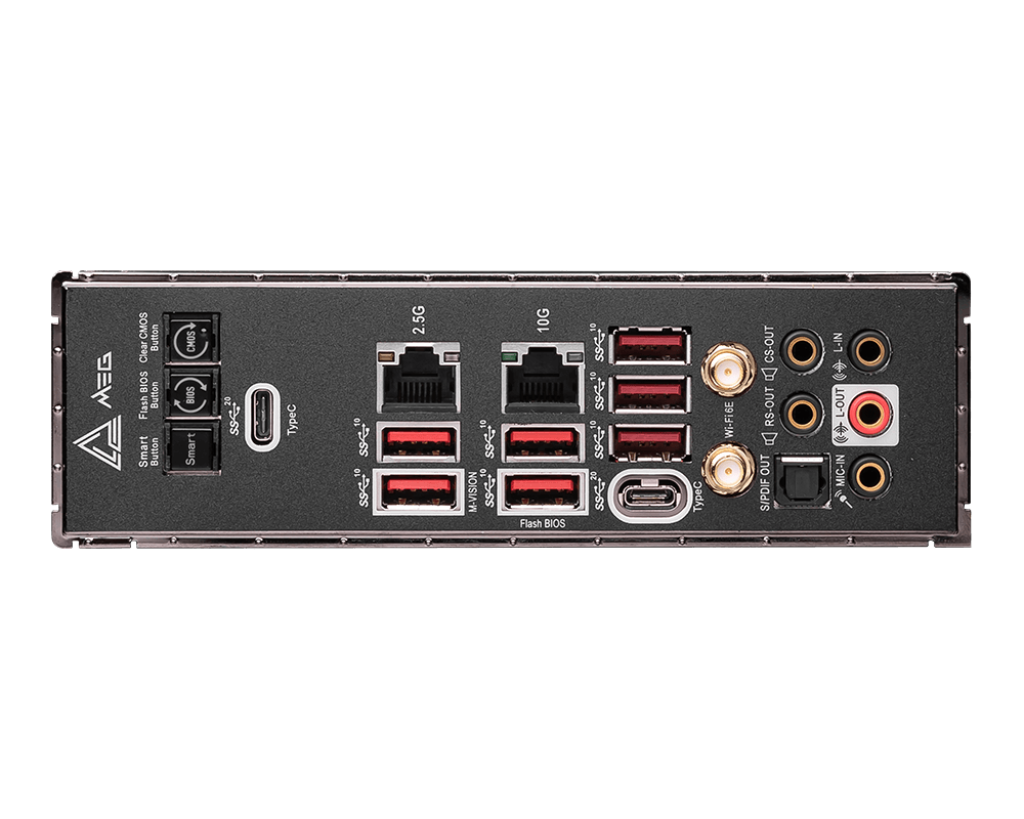

BACK PANEL PORTS:

Clear CMOS Button

Flash BIOS Button

2.5G LAN

10G Super LAN

USB 3.2 Gen 2 10Gbps (Type-A)

Wi-Fi / Bluetooth

HD Audio Connectors

Smart Button

USB 3.2 Gen 2x2 20Gbps (Type-C)

USB 3.2 Gen 2 10Gbps (Type-A)

USB 3.2 Gen 2 10Gbps (Type-A)

USB 3.2 Gen 2x2 20Gbps (Type-C)

Optical S/PDIF-Out

OPERATING SYSTEM:

Support for Windows® 11 64-bit, Windows® 10 64-bit

BOX CONTENT:

M-Vision Dashboard

M.2 Xpander-Z Gens Dual

Wi-Fi Antenna

M-Vision Cable

Sata Cables x 3

Thermistor Cables x 2

1 to 2 RGB LED Extension Y Cable

ARGB LED Extension Cable

1 to 3 ARGB Gen 2 Extension Cable

EZ Front Panel Cable

Metal Dragon Badge

EZ M.2 Clips

USB Drive

Cable Stickers

Quick Installation Guide

PCB Info:

E-ATX

288mm x 304.8mm
