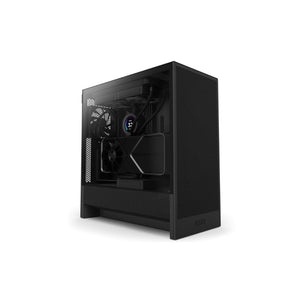

NZXT H5 Flow Case – Compact Airflow Mid-Tower ATX Case

About This Compact Airflow Case

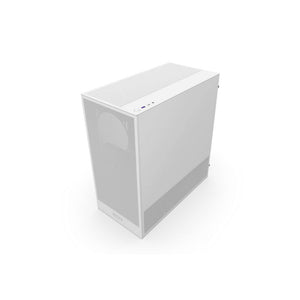

This mid-tower gaming case is built for practical PC builders who need solid airflow without fancy extras. The 2024 NZXT H5 Flow refresh addresses the main complaint about older H510 models—airflow that actually works. The perforated steel front panel plus bottom angled GPU fan means your components stay cool under load. Perfect for custom PC Singapore builds from compact gaming rigs to full workstation setups.

What This NZXT H5 Flow Does for You

Your GPU runs hottest during gaming sessions, and most cases just blow room-temperature air past it. The H5 Flow's bottom 120mm fan sits at an angle, directing fresh air straight onto your graphics card. Combined with the two front fan mounts and perforated front panel, hot air escapes instead of building up inside. If you're running an RTX 5070 or 5080, this design keeps temps in check without needing expensive aftermarket cooling. The compact 225mm width saves desk space compared to typical mid-towers at 230-250mm. You still get full compatibility—E-ATX boards up to 272mm, GPUs up to 365mm, and CPU coolers up to 165mm fit without issues.

Build Quality and Features

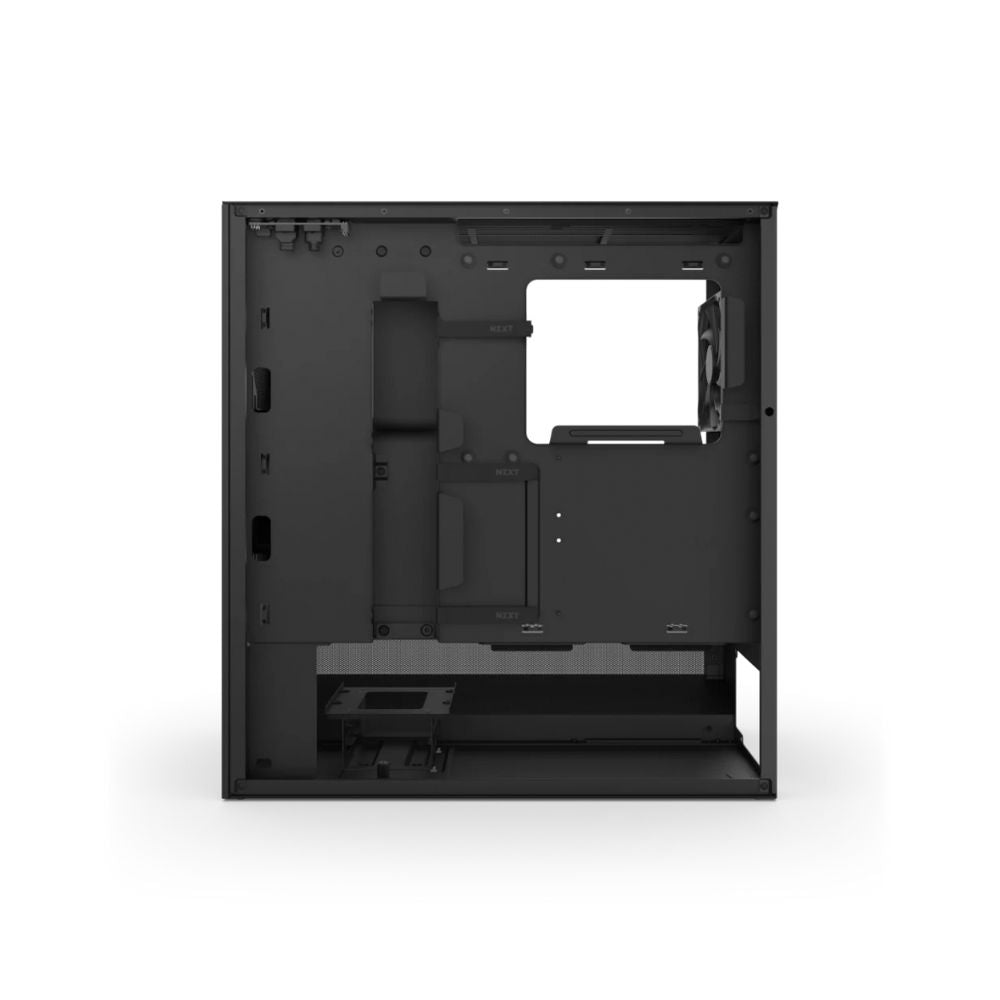

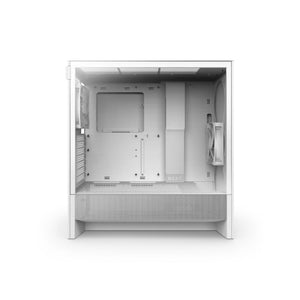

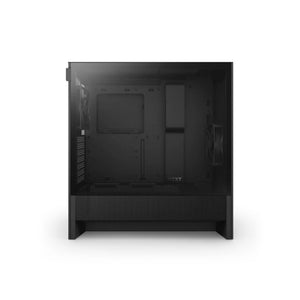

The tempered glass side panel shows off your components while the perforated front maximizes intake. Cable management channels and pre-installed straps make routing cleaner than older NZXT cases. The USB 3.2 Gen 2 Type-C front port gives you fast file transfers for external drives and modern peripherals. Two 3.5" HDD bays plus two 2.5" SSD mounts handle plenty of storage. The PSU shroud hides cables for a cleaner look. This is the 2024 version with improvements over the original H5 Flow.

Perfect For

• First-time builders creating custom PC Singapore systems with solid airflow and modern I/O without overspending
• Mid-range RTX 5060 Ti or RTX 5070 builds where GPU cooling matters but RGB isn't a priority
• Compact desk setups that need this best airflow ATX case design with full motherboard support
• Upgraders replacing old cases with poor airflow who want proven build quality in a mid-tower gaming case

Why Buy from Mansa Computers

• 2-year Singapore warranty with NZXT service support
• Fast WhatsApp inquiry response for build compatibility questions
• Open 7 days a week for support
• Home delivery available (case is 7.3kg)

Technical Specifications Summary

Case Type
Mid-Tower ATX

Motherboard Support
E-ATX (up to 272mm), ATX, Micro-ATX, Mini-ITX

Dimensions
465mm × 225mm × 430mm (H × W × D)

Max GPU Length
Up to 365mm

Max CPU Cooler Height
Up to 165mm

Pre-Installed Fans
1 × 120mm rear, 1 × 120mm bottom angled

Front I/O
USB 3.2 Gen 2 Type-C, USB 3.2 Gen 1 Type-A, 3.5mm audio

Radiator Support
Front: up to 280mm, Top: up to 240mm, Rear: 120mm

The NZXT H5 Flow case gives you practical airflow features and modern connectivity without gimmicks. Ready to build? We've got stock and can answer compatibility questions via WhatsApp.

Model
NZXT H5 Flow

Case Type
Mid-Tower

Motherboard Support
E-ATX (Up to 277 mm wide), ATX, Micro-ATX, Mini-ITX

Case Material
SGCC Steel, Ultra-Clear Tempered Glass (White), Dark Tinted Tempered Glass (Black)

Dimensions (H x W x D)
465 x 225 x 430 mm

Weight
7.28 kg

CPU Cooler Height
Up to 170 mm

GPU Length
Up to 410 mm

PSU Length
Up to 200 mm

Cable Management
Up to 28.7 mm

Top Radiator
Up to 240 mm (280 mm with low-profile memory)

Top Mounted Radiator + Fan Thickness
Up to 55 mm

Front Ports
1 x USB 3.2 Type-A
1 x USB 3.2 Gen 2x2 Type-C (20 Gbps)
1 x Headset Audio Jack

Expansion Slots
7 Std

Drive Bays
2 x 2.5"
1 x 3.5"

Fan Support
Front: 3 x 120 / 140 mm (1 x F120Q Case Version included)
Top: 2 x 120 / 140 mm
Bottom: 2 x 120 mm
Rear: 1 x 120 mm (1 x F120Q Case Version included)

Radiator Support
Front: Up to 360 mm
Top: Up to 240 mm (280 mm with low-profile memory only)

Fan Model
F120Q (Case Version)

Fan Speed
1,350 ± 150 RPM

Fan Airflow
60.2 CFM

Fan Static
1.05 mm-H₂O

Fan Noise
24.1 dBA

Fan Connector
3-pin DC

2 YEARS DISTRIBUTOR WARRANTY

Tech Dynamic Pte Ltd
514 Chai Chee Ln, #05-09, Singapore 469029
Contact: 6717 3000

Frequently Asked Questions About NZXT H5 Flow Case

Will the NZXT H5 Flow Case fit my RTX 5070 or RTX 5080?

Yes, the H5 Flow supports GPUs up to 365mm long. Most RTX 5070 and 5080 cards are 300-320mm, so they fit with room to spare. The bottom angled fan actually helps cool these cards.

Can I install a 280mm AIO radiator in this case?

Yes, the front supports up to 280mm radiators (2 × 140mm fans). The top supports up to 240mm radiators. Make sure to check your RAM clearance with top-mounted radiators.

Does the NZXT H5 Flow come with fans included?

Yes, it includes two 120mm fans pre-installed—one rear exhaust and one bottom angled intake. You can add more fans to the front (2 × 120mm or 2 × 140mm) and top (2 × 120mm).

What's the warranty coverage in Singapore?

You get a 2-year NZXT warranty with local Singapore service support. If anything goes wrong with the case, we handle the warranty claim process for you. WhatsApp us for help.

Is this the best airflow ATX case for a custom PC Singapore build?

The NZXT H5 Flow is one of the top mid-tower gaming cases for airflow at this price point. The bottom GPU fan and perforated front make it excellent for Singapore's warm climate.
