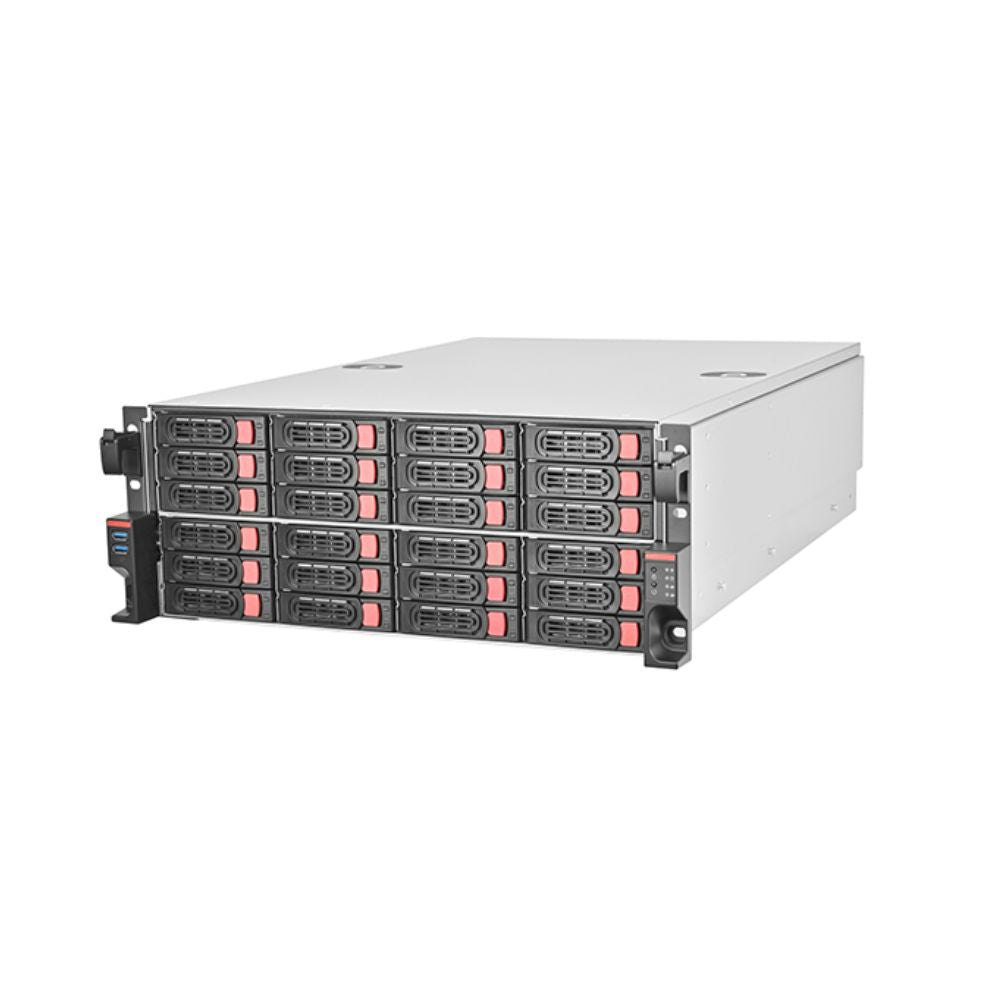

SilverStone RM43-324-RS 4U Rackmount Server Chassis

The SilverStone RM43-324-RS is a high-density 4U rackmount chassis with 24 hot-swap 3.5" drive bays for large-scale NAS and SAN deployments. It supports compatible 2.5" and 3.5" SAS/SATA drives, six Mini-SAS HD SFF-8643 backplane connectors, and includes a sliding rail kit.

Who it suits

• Enterprise storage builds get 24 x 3.5" hot-swap bays with SGPIO support and six Mini-SAS HD SFF-8643 connectors for connecting compatible SAS/SATA storage controllers.
• Data center deployments benefit from the included 80kg-rated sliding rail kit, three hot-swappable 120mm PWM fans, and individual LED indicators for all 24 drives.
• GPU-capable server builds can use seven standard-profile PCI/PCIe slots and expansion cards up to 340mm long. Card width clearance depends on the GPU holder configuration.
• Not suitable for shallow racks without sufficient usable mounting depth and rear cable clearance.

Before you buy

• The chassis supports SSI-EEB, SSI-CEB, E-ATX, ATX, Micro-ATX and Mini-ITX motherboards, and its 660mm depth requires sufficient rack clearance.
• CPU cooler clearance is 130mm with the GPU holder installed or 148mm without it. Verify your cooler and expansion-card dimensions.
• The 24-bay backplane requires compatible SAS/SATA controllers and cabling through six Mini-SAS HD SFF-8643 connectors. Verify Mini Redundant PSU mounting-hole compatibility separately.

Model
SST-RM43-324-RS

Chassis Form Factor
4U rackmount

Material
Steel, 1.0mm to 1.2mm thickness

Motherboard Support
SSI-EEB, SSI-CEB, Extended ATX, ATX, Micro-ATX, Mini-ITX

HDD Backplane
24 ports SAS/SATA to Mini-SAS HD SFF-8643 x 6 with SGPIO

Backplane Power
4-pin peripheral x 12

Interface
SAS III / II / I, SATA III / II / I

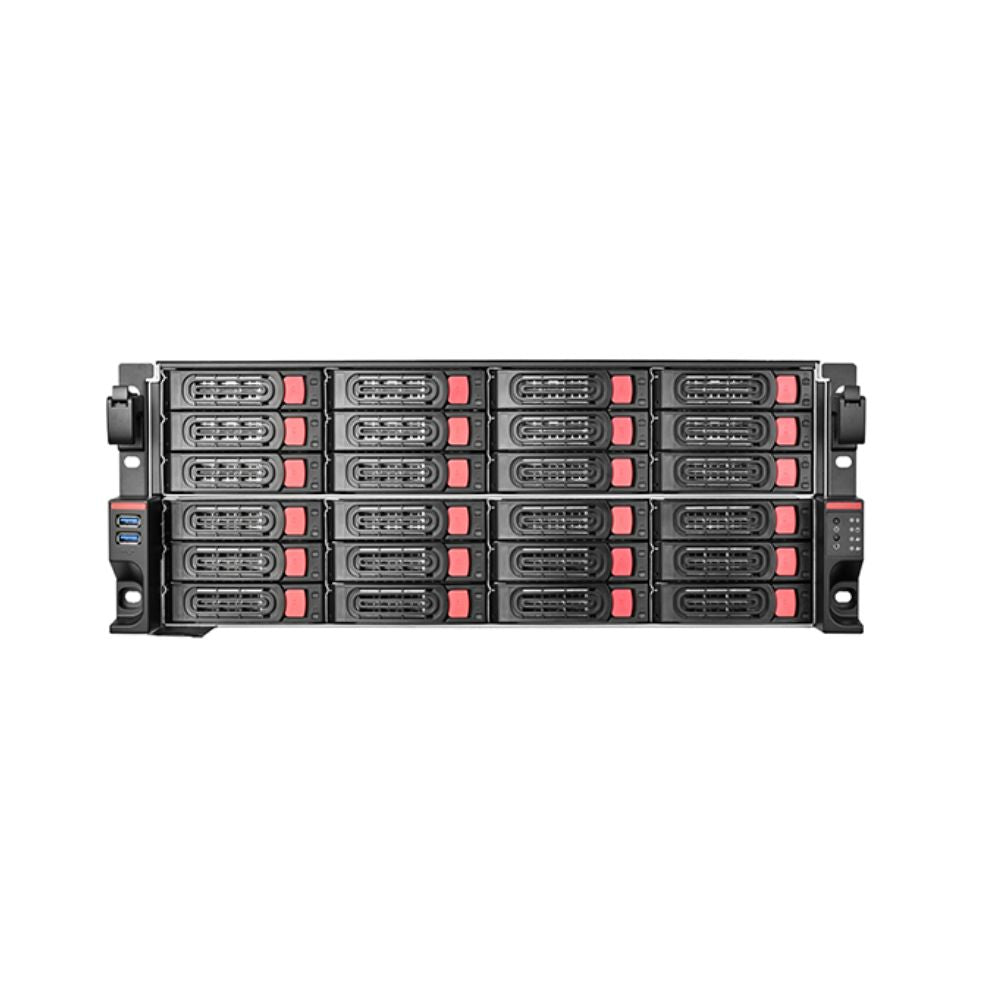

Drive Support - External Hot-Swap
24 x 3.5" hot-swap bays

Cooling - Internal
Hot-swap 120 x 38mm PWM ball bearing fan x 3 (Pre-installed 3 × 120mm fans)

Cooling - Rear
80mm x 2 fan slots

CPU Cooler Clearance
130mm with GPU holder, 148mm without

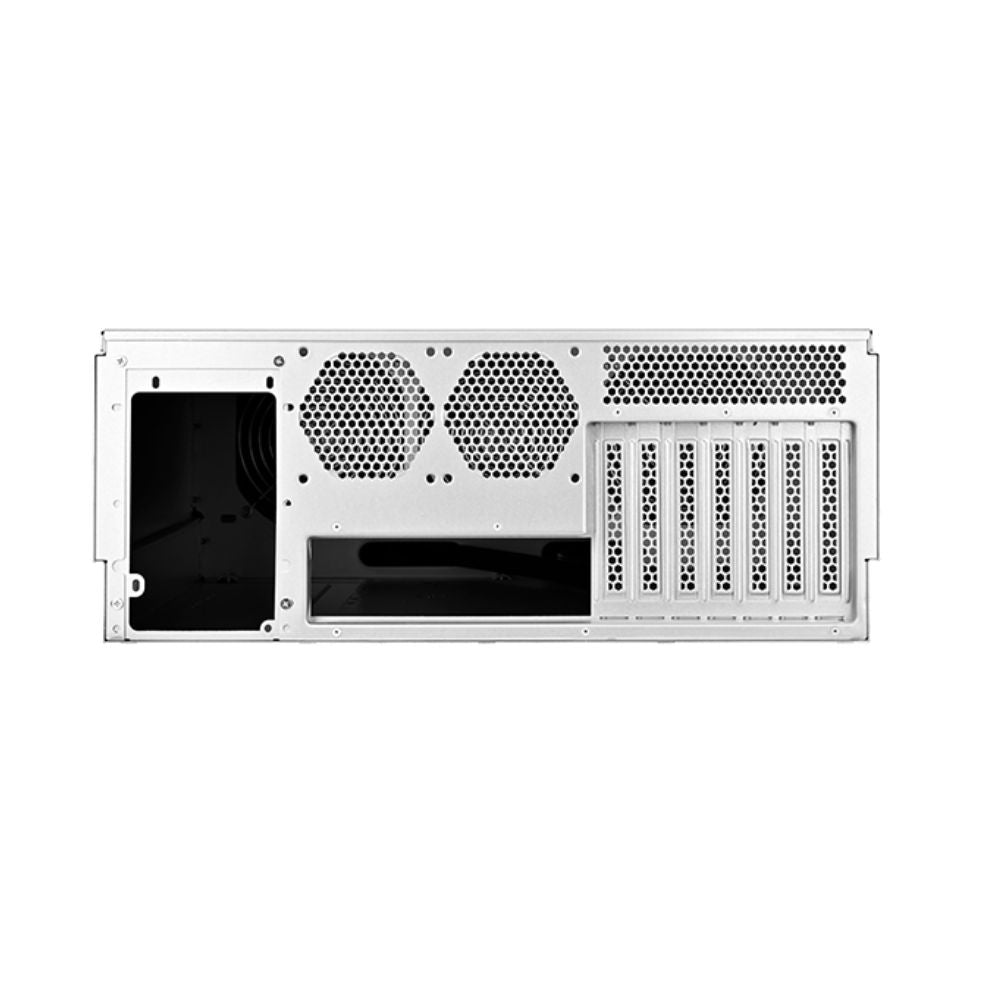

Expansion Slots
7

Expansion Card Length
340mm

Expansion Card Width
116mm with GPU holder, 154mm without

Power Supply
ATX (PS2) / Mini Redundant / 2U Redundant

Front I/O
USB 3.1 Gen 1 Type-A x 2

Front Panel Controls
Power On/Off, system reset

LED - Chassis
Power (blue), HDD Access (green), LAN x 2 (green)

LED - HDD Tray
HDD Power x 24 (yellow), HDD Access x 24 (blinking green)

Rail Slide Load Rating
80 kg maximum

Rail Cabinet Mounting Distance
663mm to 915mm (±3mm)

Dimensions
442mm (W) x 175mm (H) x 660mm (D)

Volume
51.1 litres

Max. Supported Weight
16.8 kg

1 YEAR WARRANTY

Avertek Enterprises Pte Ltd
25 Kallang Ave #03-03, Singapore 339416
Contact: 6341 7839

How long will it take to receive my purchase?

Standard Shipping - 3 to 5 days
Express Shipping - 1 to 2 days

Can I opt for store pickup?

Yes, we are open daily for collection from 11 AM - 6.30 PM.
Address: 1 Ubi View #01-22, Focus One Building Singapore 408555 (Door located nearest to carpark exit gantry) We will contact you once your order is ready for collection!

What is the difference between RM43-324-RS and RM43-320-RS?

RM43-324-RS has 24 hot-swap bays with 6 x Mini-SAS HD connectors, while RM43-320-RS has 20 bays with 5 connectors. The 320-RS also includes a slim optical drive slot and 2 x 2.5" internal bays. Both share the same 4U dimensions and rail kit.

How many RAID controllers do I need for 24 drives?

The RM43-324-RS backplane has six Mini-SAS HD SFF-8643 connectors, each serving four drive bays. To connect all 24 drives directly, use compatible HBA or RAID controller ports providing at least 24 drive connections. Alternatively, a compatible SAS expander configuration may allow fewer controller ports. Verify controller capacity, cabling, and backplane compatibility before purchasing.

Does the RM43-324-RS come with rail slides?

Yes. The RM43-324-RS includes a sliding rail kit rated for up to 80kg. The supported rack mounting-hole distance is 663mm to 915mm (±3mm). Verify your rack dimensions before purchasing.
