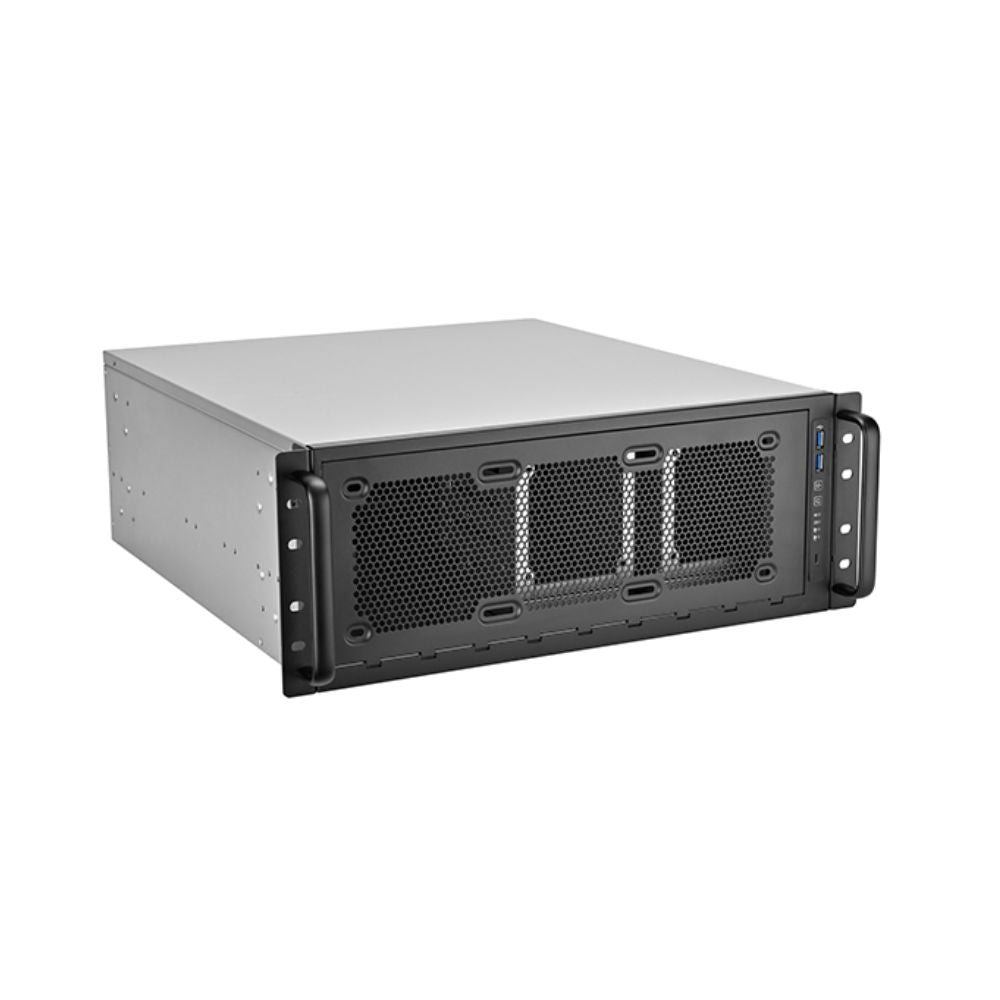

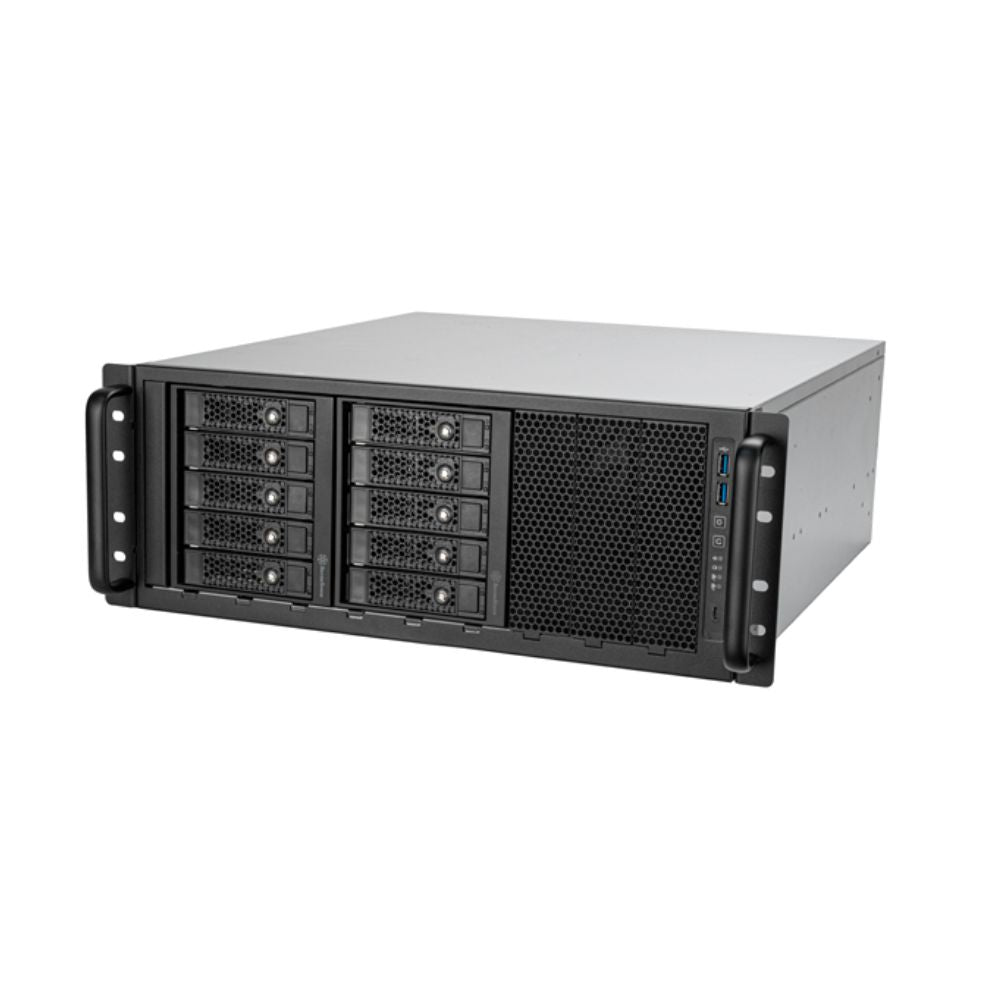

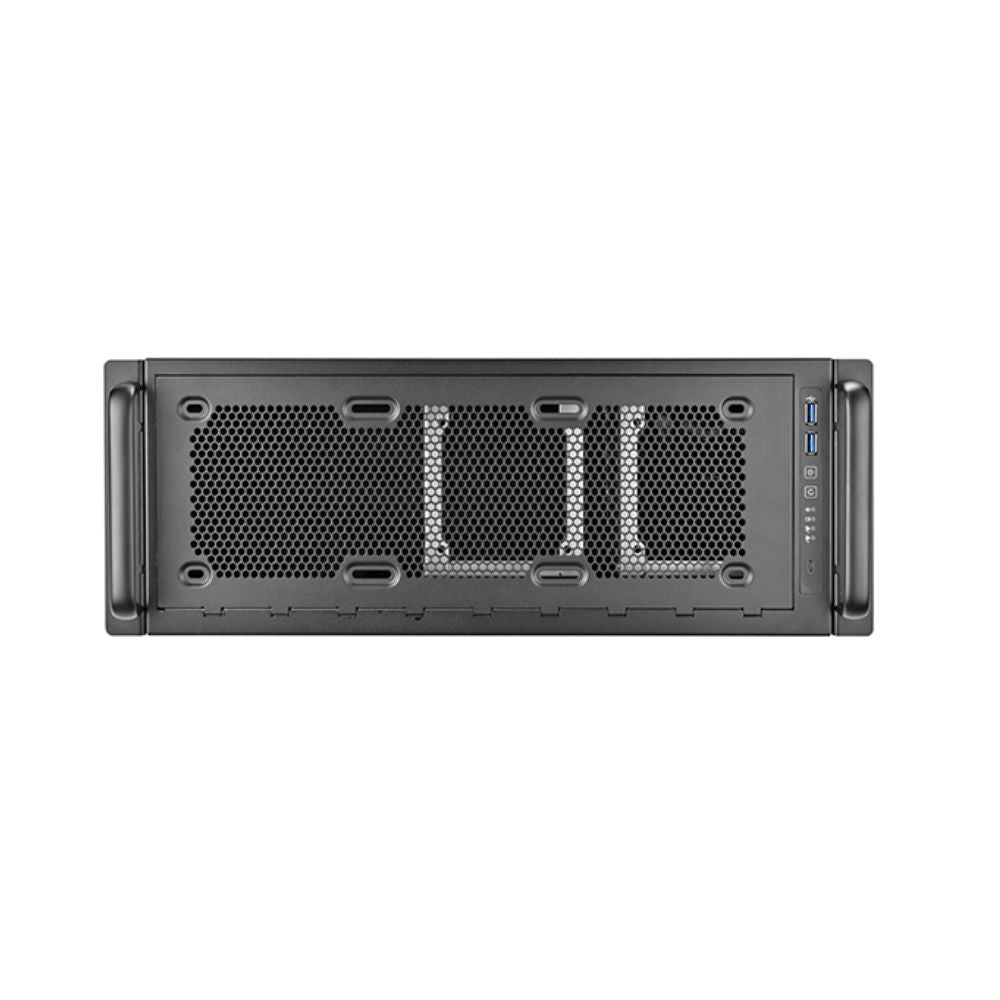

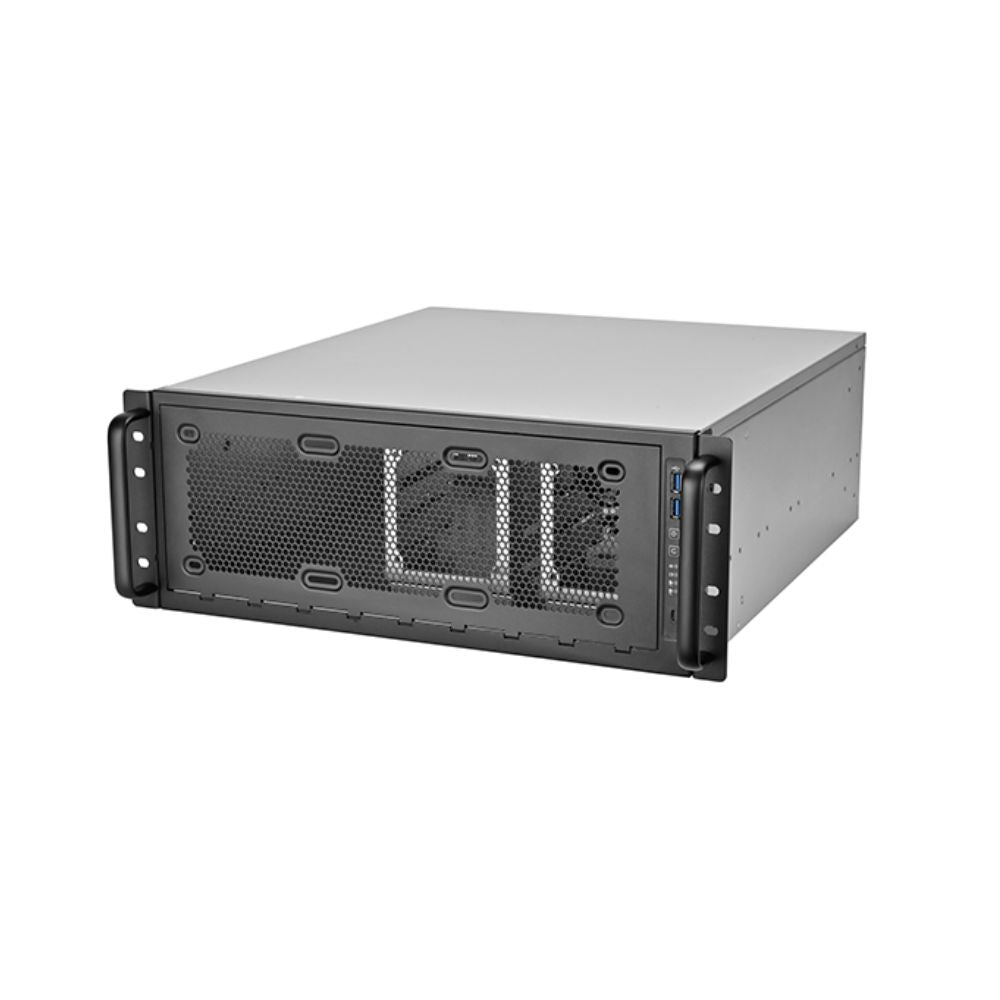

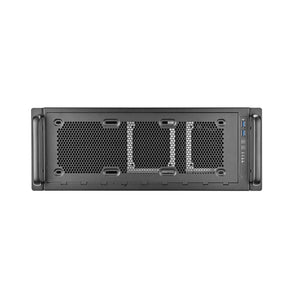

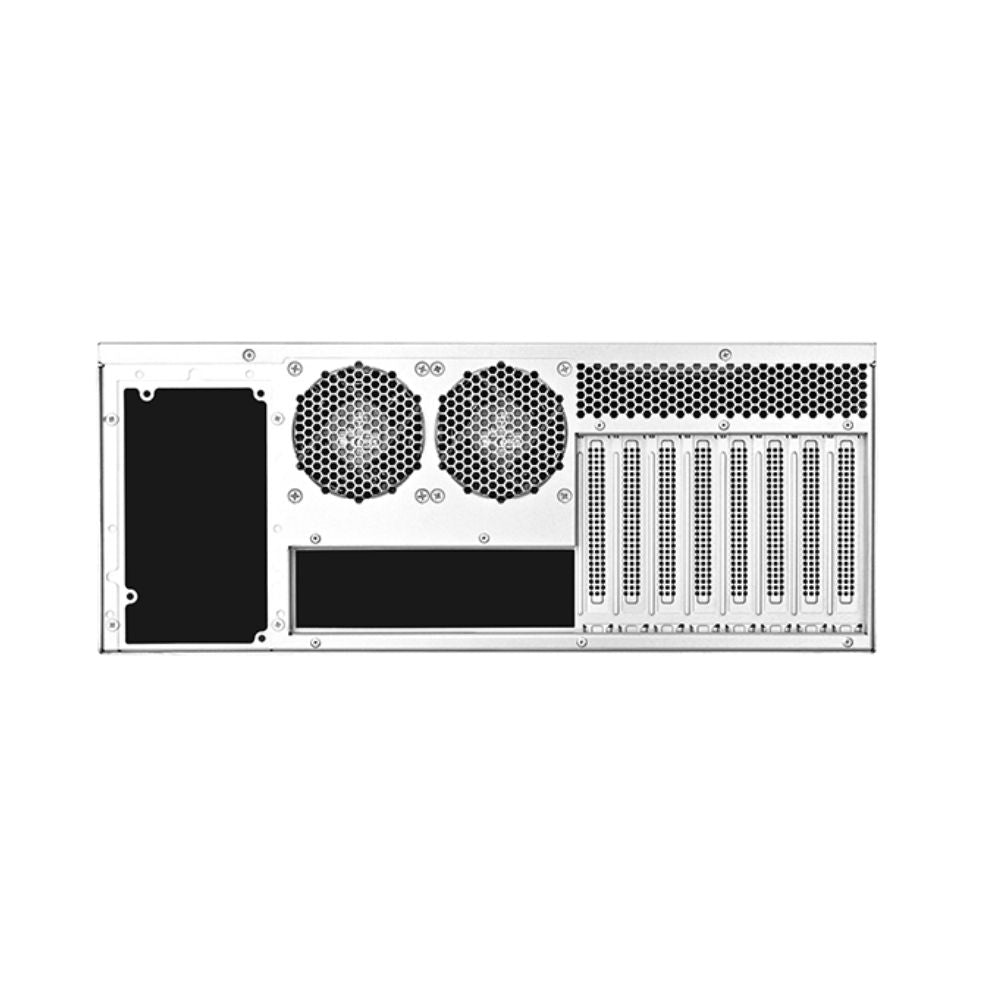

SilverStone RM45-360 4U Rackmount Server Chassis

SilverStone RM45-360 is a 4U rackmount chassis for servers that need both GPU slots and plenty of internal storage. It takes SSI-EEB and E-ATX boards, holds 8 x 3.5" and 4 x 2.5" drives, and fits a front 360mm radiator. Local Singapore warranty support through Mansa.

Who it suits

• If you want GPUs and bulk storage in one 4U box, you get 8 expansion slots plus 12 internal drive positions.
• Water-cooled workstation builds benefit from front 120mm, 240mm, or 360mm radiator support, with GPU holder clearance figures provided for compatible optional configurations.
• Large server boards fit, from SSI-EEB and E-ATX down to Mini-ITX, with up to 148mm CPU cooler height.
• Not for hot-swap NAS. The 8 x 3.5" bays are internal, so swapping a drive means opening the case. The RM43-320-RS has front hot-swap trays.

Before you buy

• CPU cooler height is 130mm with the GPU holder installed, or 148mm without it.
• Expansion cards can be up to 340mm long. Card width is 116mm with the GPU holder, or 154mm without.
• Only two rear 80mm fans are included. Front fans or radiators require separate installation. Combined 5.25" device and motherboard length must not exceed 481mm.

Model
SST-RM45-360

Chassis Form Factor
4U rackmount

Material
Steel, 1.0mm to 1.2mm thickness

Motherboard Support
SSI-EEB, SSI-CEB, Extended ATX, ATX, Micro-ATX, Mini-ITX

Drive Support - Internal
3.5" x 8, 2.5" x 4

Cooling - Front
120mm x 3

Cooling - Rear
80mm x 2 (2 x 80mm fans included)

Radiator Support
Front: 120mm / 240mm / 360mm

CPU Cooler Clearance
130mm with GPU holder, 148mm without

Expansion Slots
8

Expansion Card Length
340mm

Expansion Card Width
116mm with GPU holder, 154mm without

5.25" Device / Motherboard Clearance
Combined length must not exceed 481mm

Power Supply
PS2 (ATX) / Mini Redundant / 2U Redundant

Front I/O
1 x USB Type-C, 2 x USB 3.0

Front Buttons
Power On/Off, System Reset

LED Indicators
Power (blue), HDD Access (green), LAN x 2 (green)

Compatible Slide Rail
RMS09-20 (chassis depth limit 510mm)

Dimensions
438mm (W) x 176mm (H) x 500mm (D)

Volume
38.54 litres

Net Weight
10.44 kg

1 YEAR WARRANTY

Avertek Enterprises Pte Ltd
25 Kallang Ave #03-03, Singapore 339416
Contact: 6341 7839

How long will it take to receive my purchase?

Standard Shipping - 3 to 5 days
Express Shipping - 1 to 2 days

Can I opt for store pickup?

Yes, we are open daily for collection from 11 AM - 6.30 PM.
Address: 1 Ubi View #01-22, Focus One Building Singapore 408555 (Door located nearest to carpark exit gantry) We will contact you once your order is ready for collection!

Are the 3.5" bays on the RM45-360 hot-swap?

No. SilverStone lists all 8 x 3.5" and 4 x 2.5" positions as internal, so you power down and open the case to change a drive.

Does the RM45-360 come with rack rails?

SilverStone lists the RMS09-20 slide rail as compatible. The spec sheet does not say rails are in the box, so treat them as separate unless we confirm otherwise.
