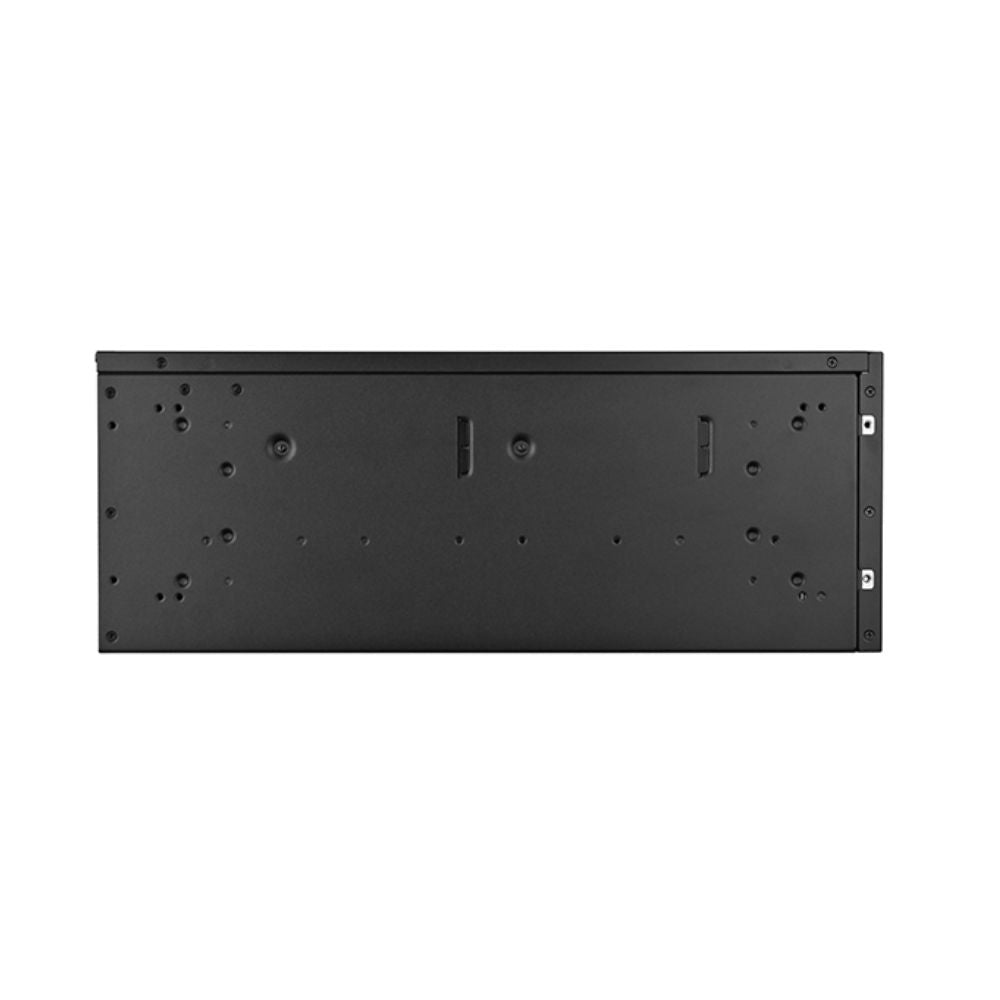

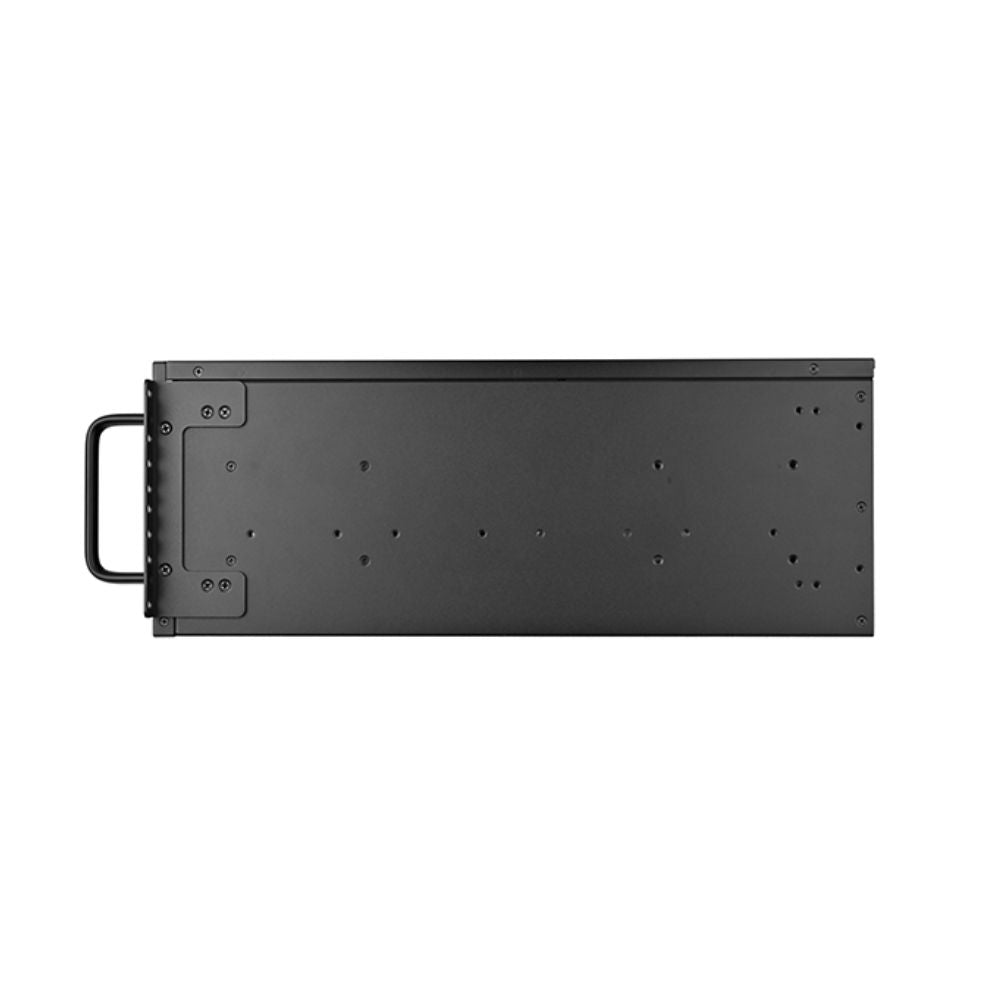

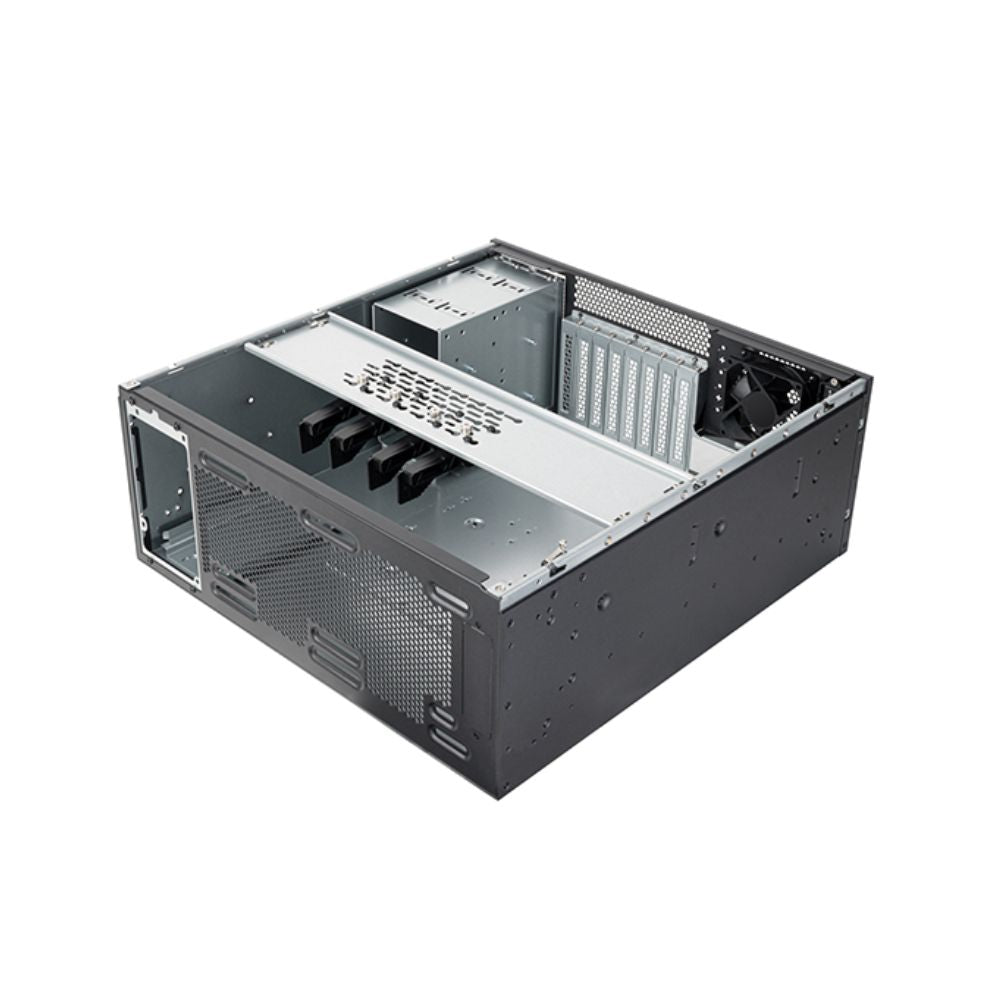

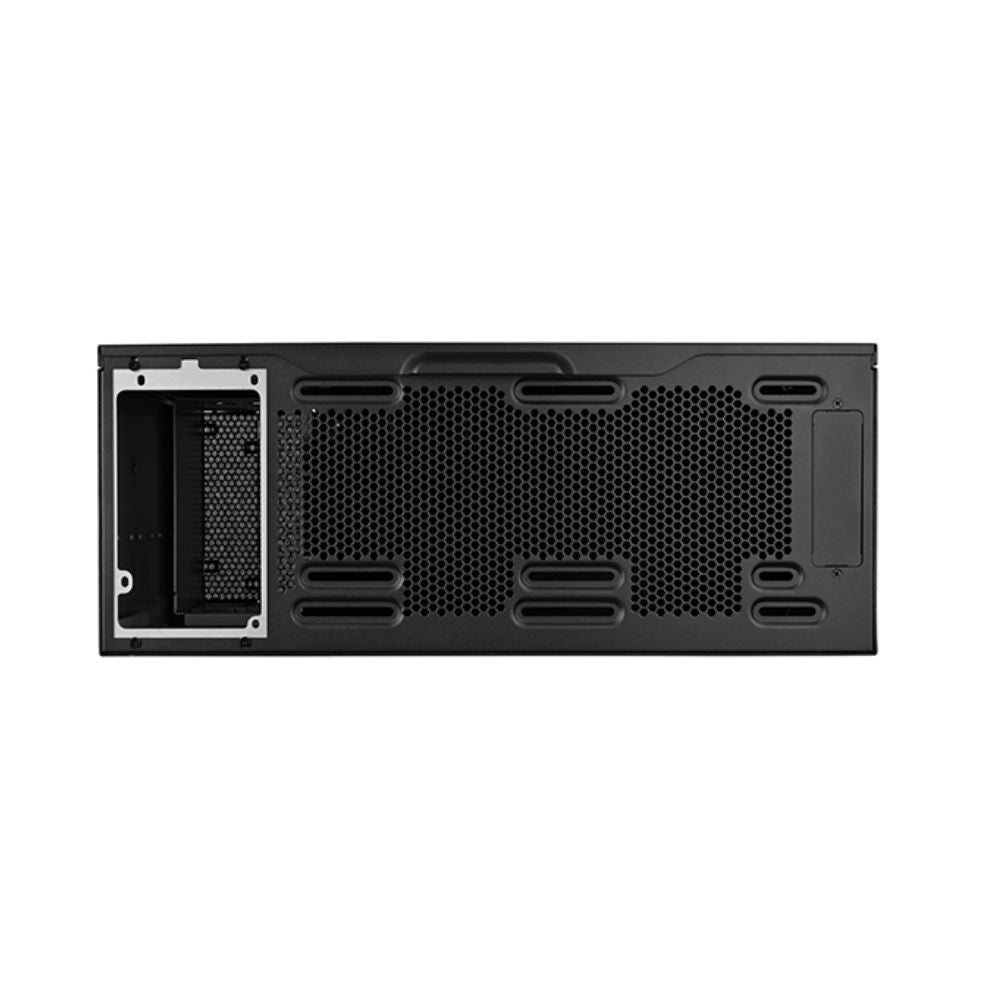

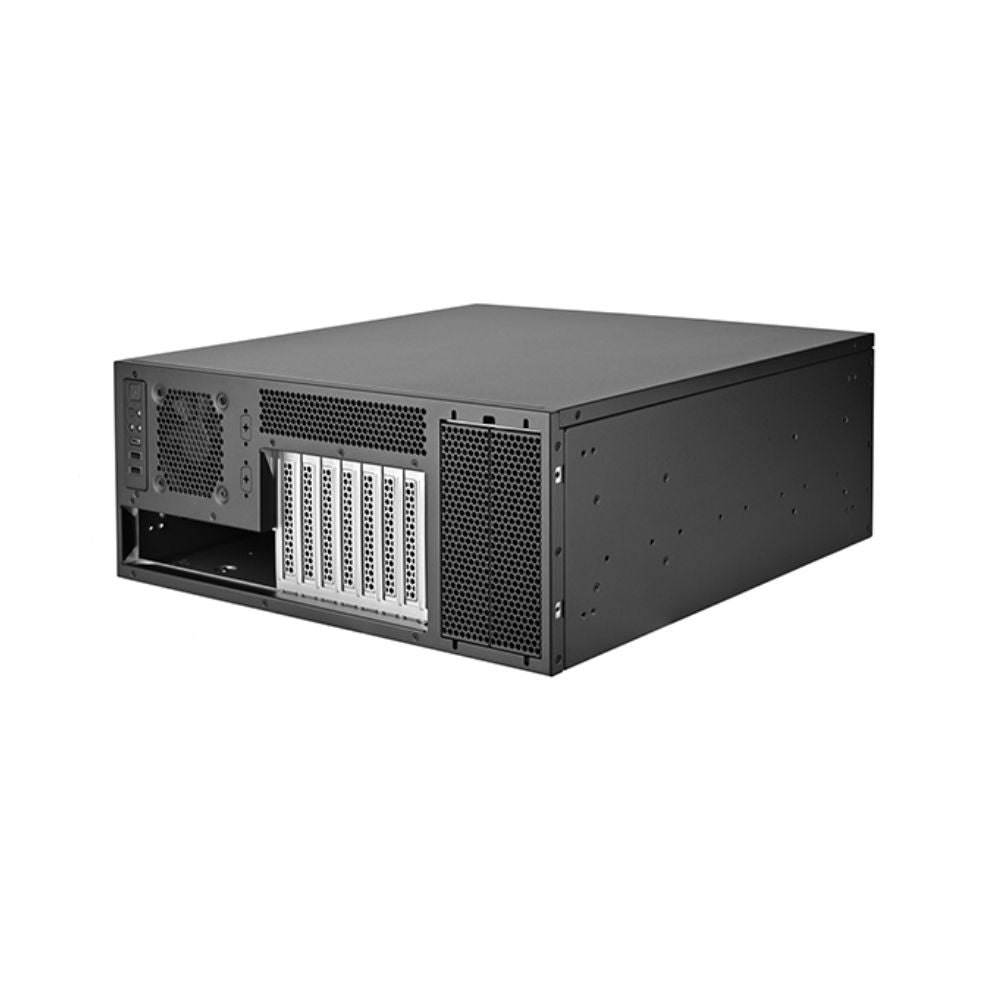

SilverStone RM46-502-I 4U Rackmount Server Chassis

SilverStone RM46-502-I is a 4U rackmount chassis whose expansion slots and I/O can face the front of the rack. It takes SSI-EEB boards and has 8 expansion slots, which SilverStone rates for up to 4 server-grade graphics cards. Local Singapore warranty support through Mansa.

Who it suits

• If you swap GPUs or network cards often, front-facing expansion slots let you reach them without pulling the chassis out of the rack.
• Multi-GPU servers get 8 expansion slots and cards up to 437mm long when no rear fans or radiator are fitted.
• Liquid-cooled builds fit a rear radiator up to 280mm, or two 120mm, 140mm or 160mm fans.
• Not ideal for high-density storage servers. Two external 5.25" bays and two internal 2.5" positions limit storage capacity. Consider RM45-360 or RM43-320-RS for larger storage builds.

Before you buy

• Two 160mm rear fans cannot be installed when the I/O is moved to the rear side, because they share the 140mm mounting holes.
• The 437mm card length applies only without rear fans or a radiator installed. A rear radiator reduces it.
• PSU plus any 5.25" device must total 430mm or less. 2U Redundant PSUs need RM46-502-I V2.0 or later.

Model
SST-RM46-502-I

Chassis Form Factor
4U rackmount

Material
Steel

Motherboard Support
SSI-EEB, SSI-CEB, Extended ATX, ATX, Micro-ATX, Mini-ITX

Drive Support - External
5.25" x 2 (downwards compatible with 2.5" SSD x 4 or 3.5" HDD x 2)

Drive Support - Internal
2.5" x 2

Cooling - Front
80mm x 1 (1 x 80mm fan included)

Cooling - Rear
120mm x 2 / 140mm x 2 / 160mm x 2

Radiator Support
Rear: 120mm x 2 / 240mm x 1 / 280mm x 1

CPU Cooler Clearance
132mm with GPU holder, 148mm without

Expansion Slots
8, front-accessible

Graphics Card Capacity
Up to 4 server-grade graphics cards (SilverStone rating)

Expansion Card Length
437mm (without rear fans and radiator installed)

Expansion Card Width
116mm with expansion card retainer, 154mm without

Power Supply
PS2 (ATX) / Mini Redundant / 2U Redundant (V2.0 or after) / 2U 1+1 CRPS

PSU Limitation
PSU + ODD / 5.25" device: 430mm

Front I/O
1 x USB Type-C, 2 x USB 3.0

LED Indicators
Power LED x 1, HDD Access x 1, LAN LED x 2

Extras
Anti-theft lock, 2 x reserved RS232 mounting ports (ECD01 adapter sold separately)

Vertical Orientation
Needs optional RAC-CF4-440 vertical kit

Compatible Slide Rail
RMS05-22 (chassis depth limit 560mm)

Dimensions
440mm (W) x 176mm (H) x 456mm (D)

Volume
35.3 litres

Net Weight
8.69 kg

1 YEAR WARRANTY

Avertek Enterprises Pte Ltd
25 Kallang Ave #03-03, Singapore 339416
Contact: 6341 7839

How long will it take to receive my purchase?

Standard Shipping - 3 to 5 days
Express Shipping - 1 to 2 days

Can I opt for store pickup?

Yes, we are open daily for collection from 11 AM - 6.30 PM.
Address: 1 Ubi View #01-22, Focus One Building Singapore 408555 (Door located nearest to carpark exit gantry) We will contact you once your order is ready for collection!

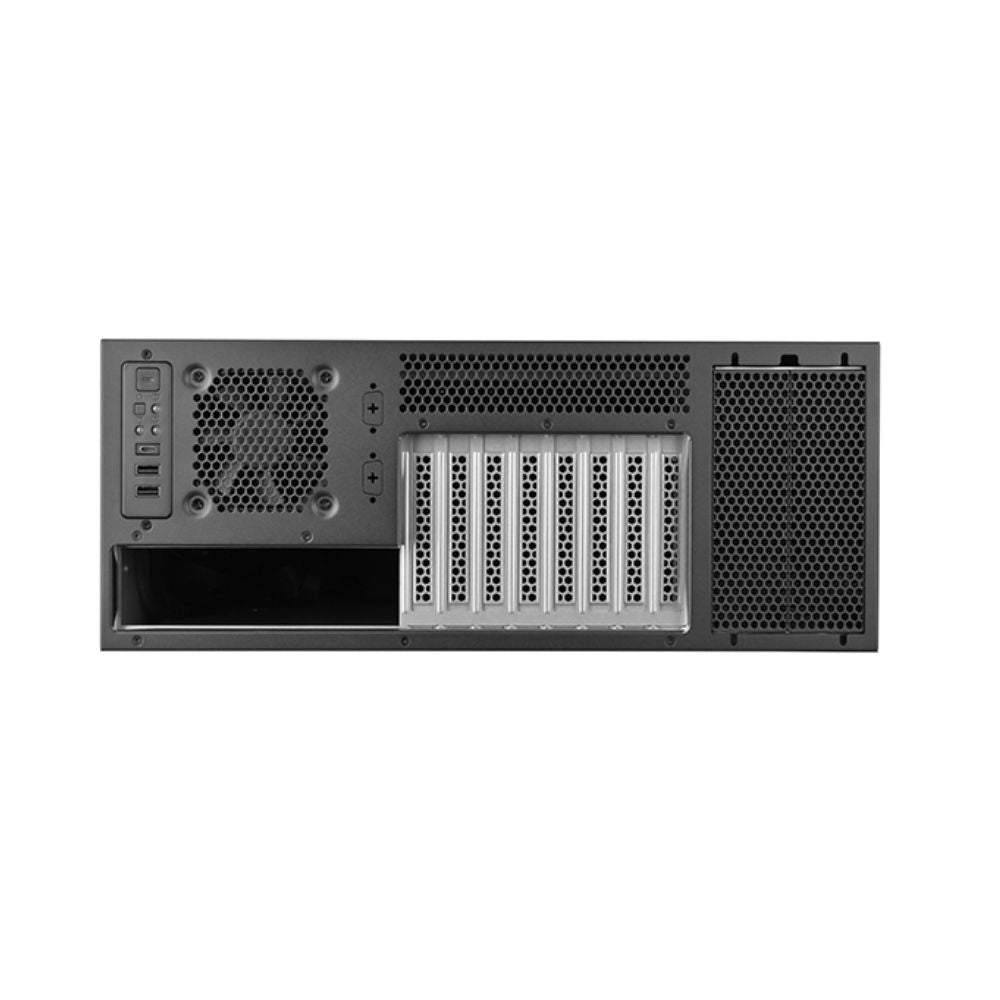

What does front-accessible expansion slots mean on the RM46-502-I?

The card brackets and I/O can face the front of the rack. SilverStone also lets you swap the handles, rail positions, 5.25" cage and PSU mount between front and rear layouts.

Does the RM46-502-I come with rack rails?

SilverStone lists the RMS05-22 slide rail as compatible. The spec sheet does not say rails are in the box, so treat them as separate unless we confirm otherwise.
