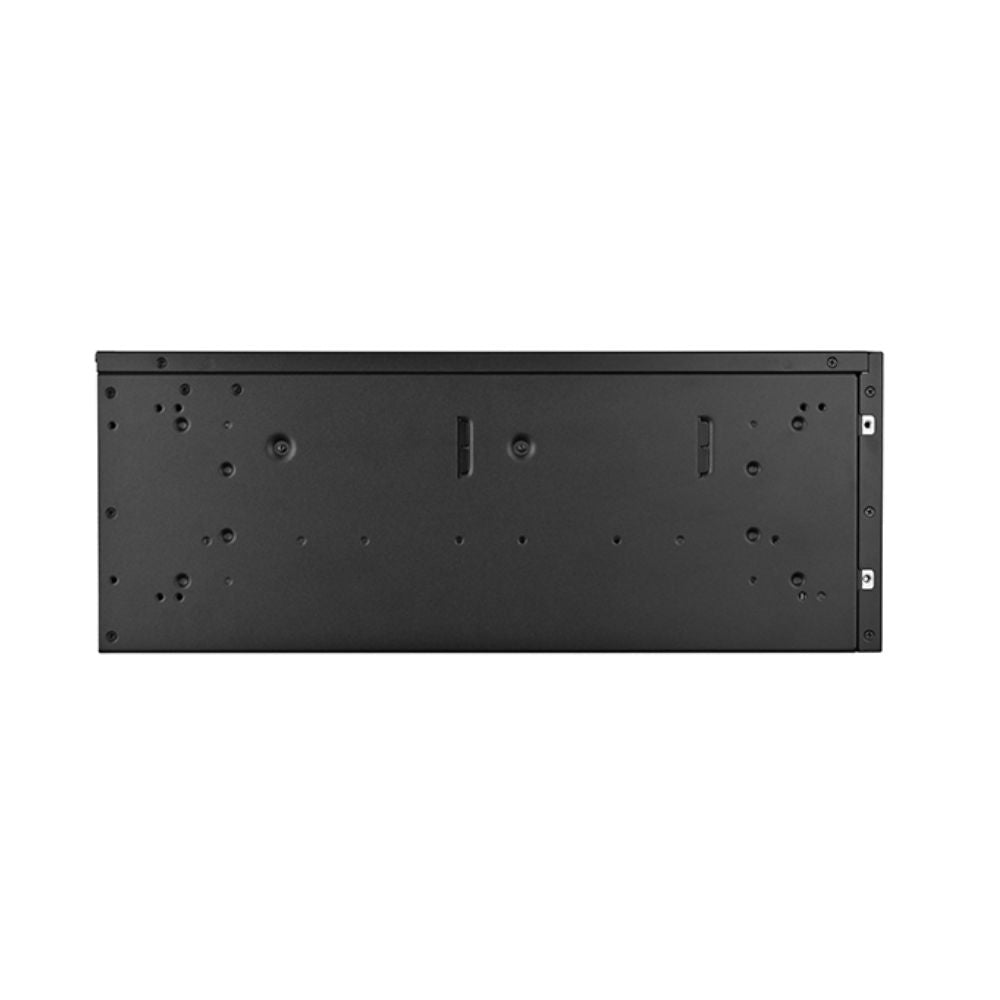

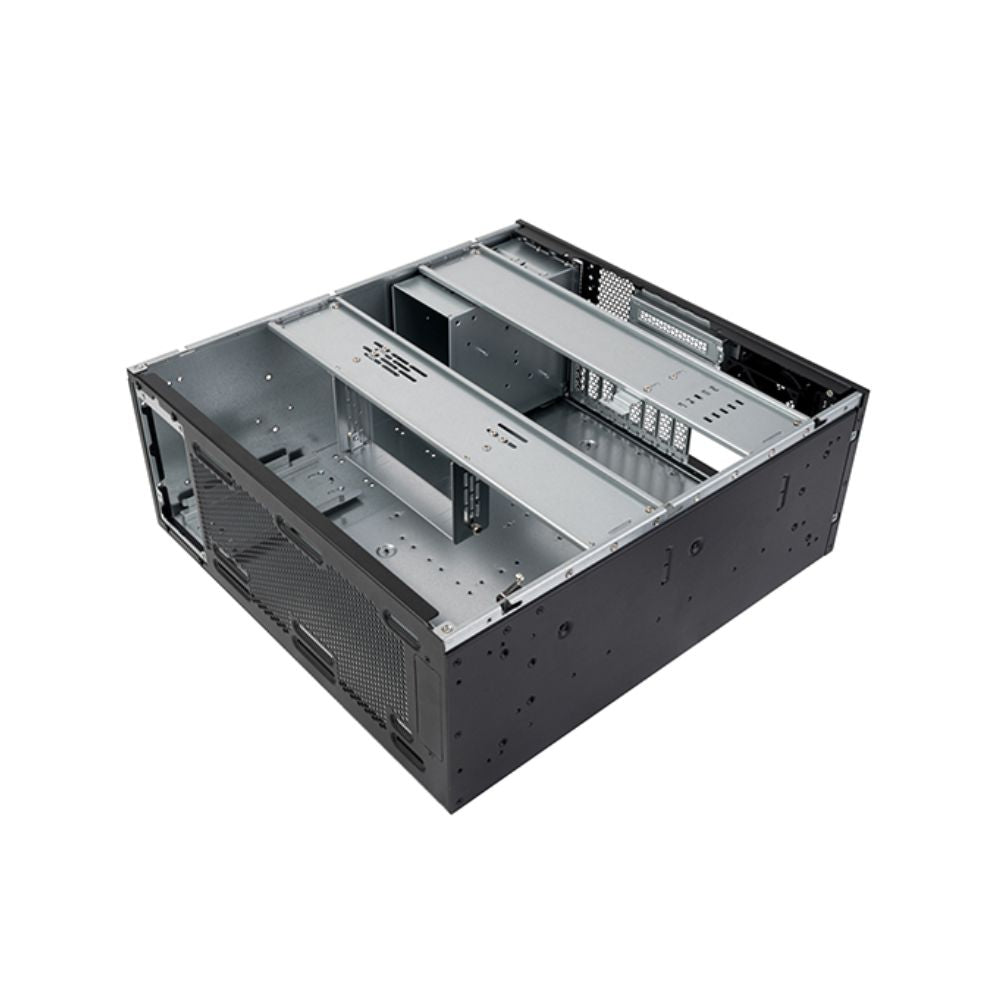

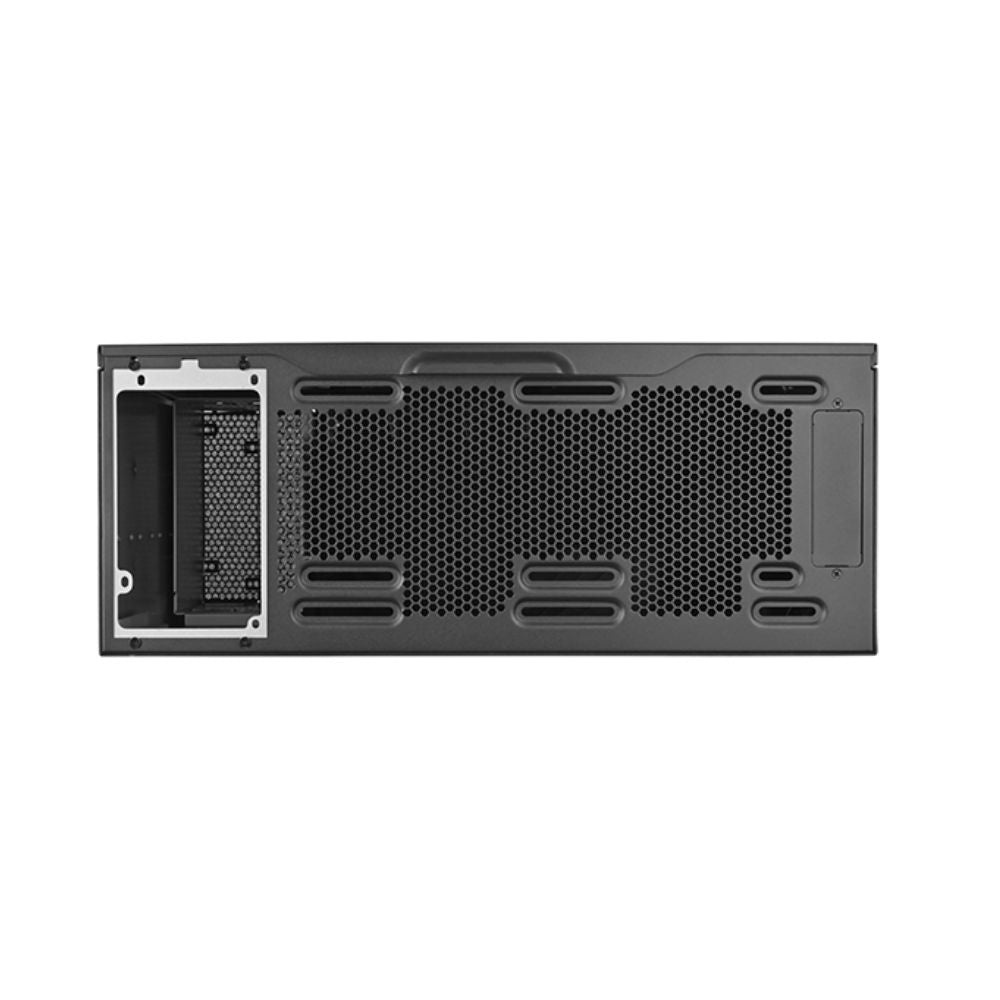

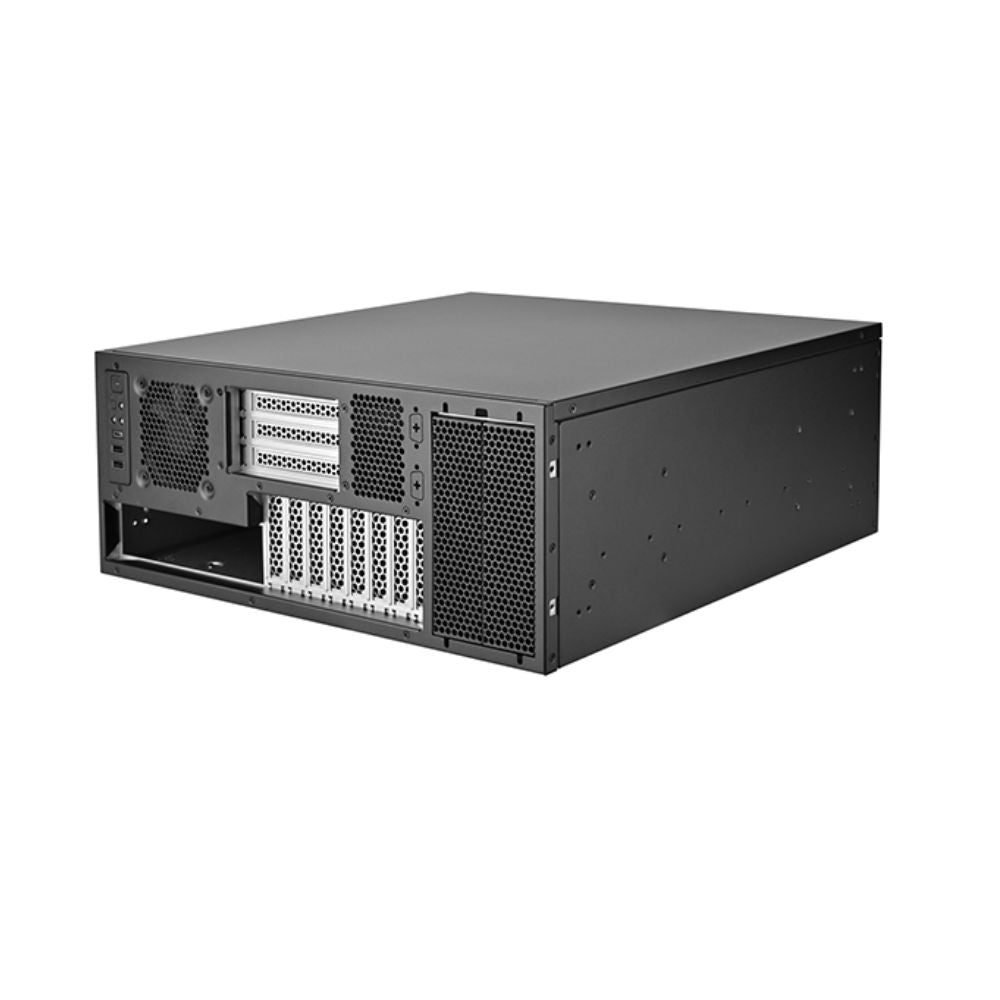

SilverStone RM47-502-I 4U Rackmount Server Chassis

SilverStone RM47-502-I is a 4U rackmount chassis with 11 front-accessible expansion slots for one big graphics card plus many add-in cards. It takes SSI-EEB boards and fits a rear radiator up to 280mm. Local Singapore warranty support through Mansa.

Who it suits

• If you run one high-end consumer GPU alongside NICs, HBAs or capture cards, you get 3 vertical standard-height slots plus 8 low-profile slots.

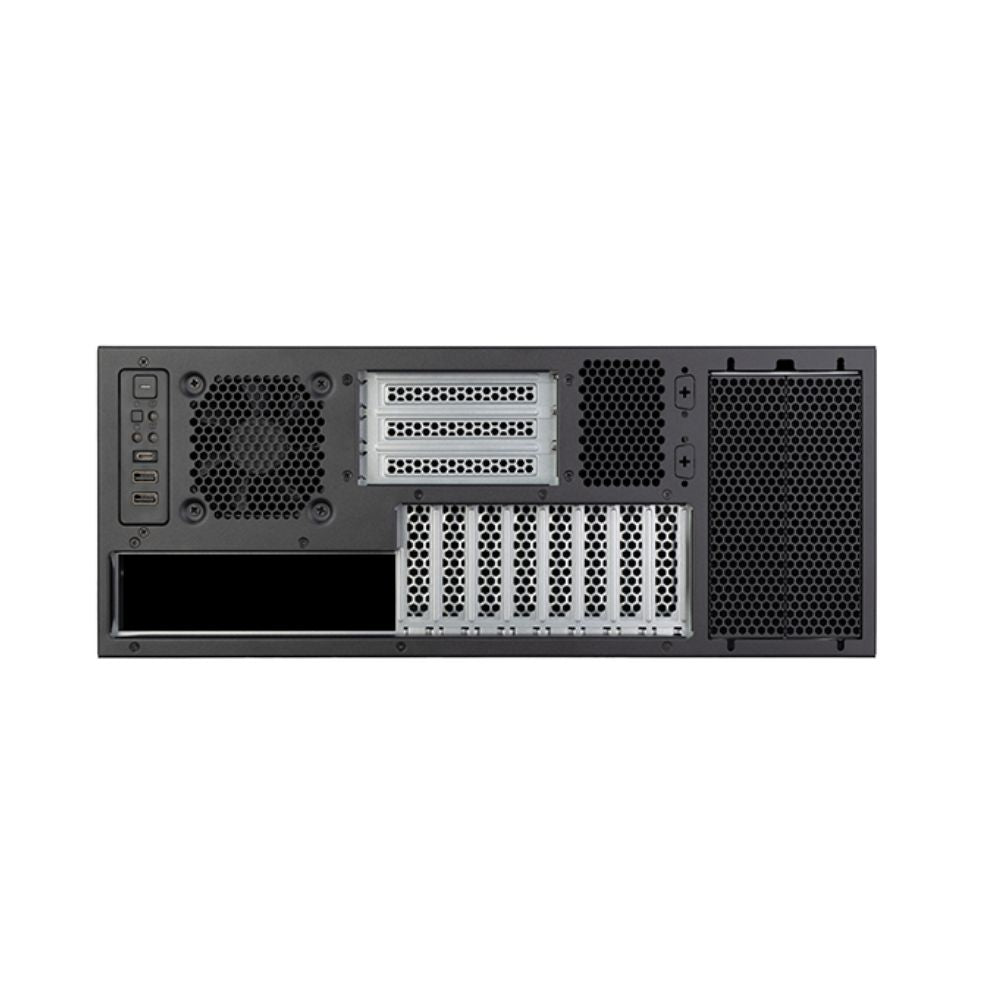

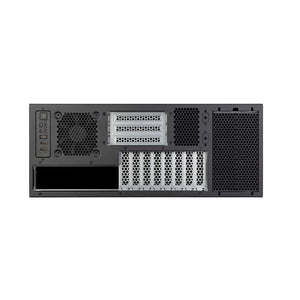

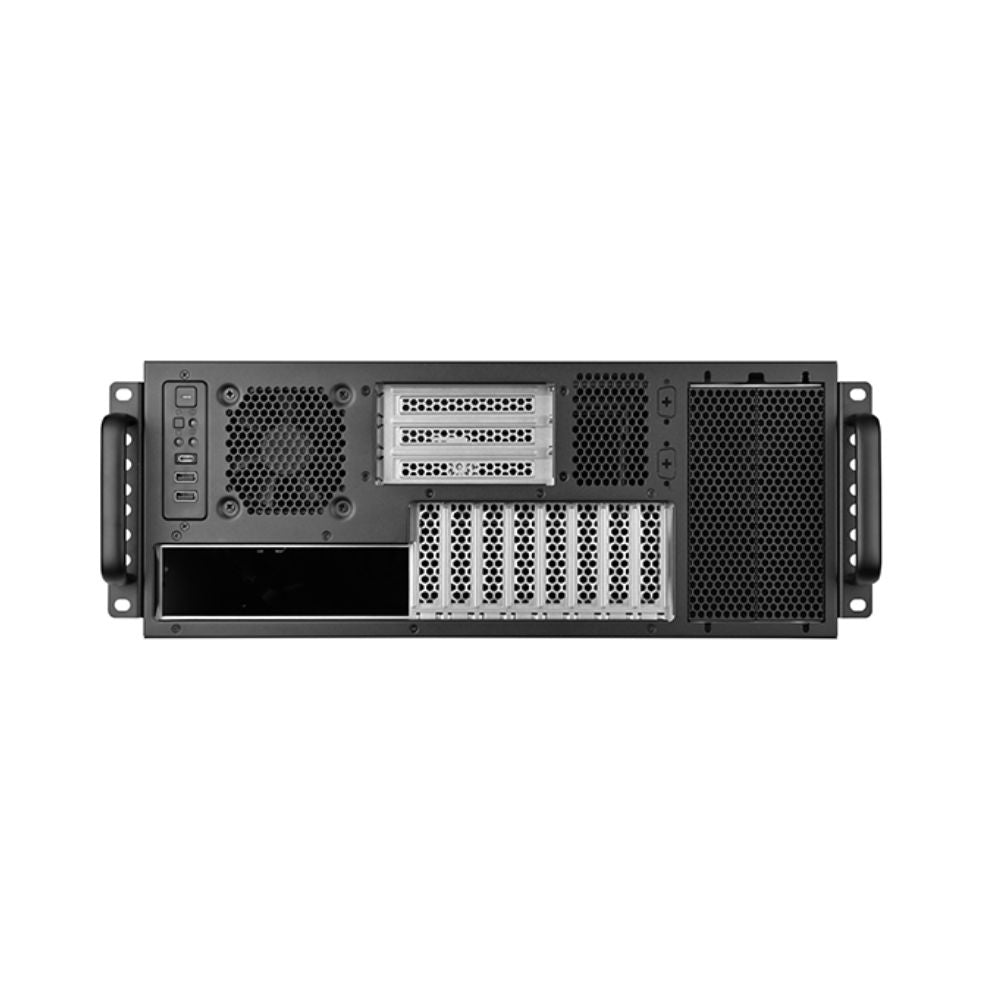

• Front-facing expansion slots and I/O let you reach your cards without pulling the chassis out of the rack.
• Liquid-cooled builds fit a rear radiator up to 280mm, or two 120mm, 140mm or 160mm fans.
• Less suitable for multi-GPU configurations. SilverStone positions the RM47-502-I for one high-end consumer graphics card alongside multiple expansion cards, while the RM46-502-I supports up to four server-grade GPUs.

Before you buy

• CPU cooler height drops to 114mm when a graphics card sits in the standard-height slots. It is 148mm with those slots empty.
• Card width is 167mm for standard-height slots and 142mm for low-profile slots. Cards can be up to 437mm long without rear fans or a radiator.
• PSU plus any 5.25" device must total 430mm or less. 2U Redundant PSUs need RM47-502-I V2.0 or later.

Model
SST-RM47-502-I

Chassis Form Factor
4U rackmount

Material
Steel

Motherboard Support
SSI-EEB, SSI-CEB, Extended ATX, ATX, Micro-ATX, Mini-ITX

Drive Support - External
5.25" x 2 (downwards compatible with 2.5" SSD x 4 or 3.5" HDD x 2)

Drive Support - Internal
2.5" x 2

Cooling - Front
80mm x 1 (1 x 80mm fan included)

Cooling - Rear
120mm x 2 / 140mm x 2 / 160mm x 2

Radiator Support
Rear: 120mm x 2 / 240mm x 1 / 280mm x 1

CPU Cooler Clearance
114mm with graphics card in standard-height slots, 148mm without

Expansion Slots
8 low-profile + 3 standard height (vertical), front-accessible

Graphics Card Capacity
1 high-end consumer graphics card (SilverStone rating)

Expansion Card Length
437mm (without rear fans and radiator installed)

Expansion Card Width
Standard-height slots 167mm, low-profile slots 142mm

Power Supply
PS2 (ATX) / Mini Redundant / 2U Redundant (V2.0 or after) / 2U 1+1 CRPS

PSU Limitation
PSU + ODD / 5.25" device: 430mm

Front I/O
1 x USB Type-C, 2 x USB 3.0

LED Indicators
Power LED x 1, HDD Access x 1, LAN LED x 2

Extras
Anti-theft lock, 2 x reserved RS232 mounting ports (ECD01 adapter sold separately)

Vertical Orientation
Needs optional RAC-CF4-440 vertical kit

Compatible Slide Rail
RMS05-22 (chassis depth limit 560mm)

Dimensions
440mm (W) x 176mm (H) x 456mm (D)

Volume
35.3 litres

Net Weight
9.28 kg

1 YEAR WARRANTY

Avertek Enterprises Pte Ltd
25 Kallang Ave #03-03, Singapore 339416
Contact: 6341 7839

How long will it take to receive my purchase?

Standard Shipping - 3 to 5 days
Express Shipping - 1 to 2 days

Can I opt for store pickup?

Yes, we are open daily for collection from 11 AM - 6.30 PM.
Address: 1 Ubi View #01-22, Focus One Building Singapore 408555 (Door located nearest to carpark exit gantry) We will contact you once your order is ready for collection!

What is the difference between the RM47-502-I and RM46-502-I?

Both share the same 440 × 176 × 456mm external dimensions. The RM47-502-I has 8 low-profile and 3 vertical standard-height slots for one high-end consumer GPU, while the RM46-502-I has 8 standard-height slots for up to four server-grade GPUs. CPU cooler clearance, expansion-card width limits and chassis weight also differ.

Does the RM47-502-I come with rack rails?

SilverStone lists the RMS05-22 slide rail as compatible. The spec sheet does not say rails are in the box, so treat them as separate unless we confirm otherwise.
