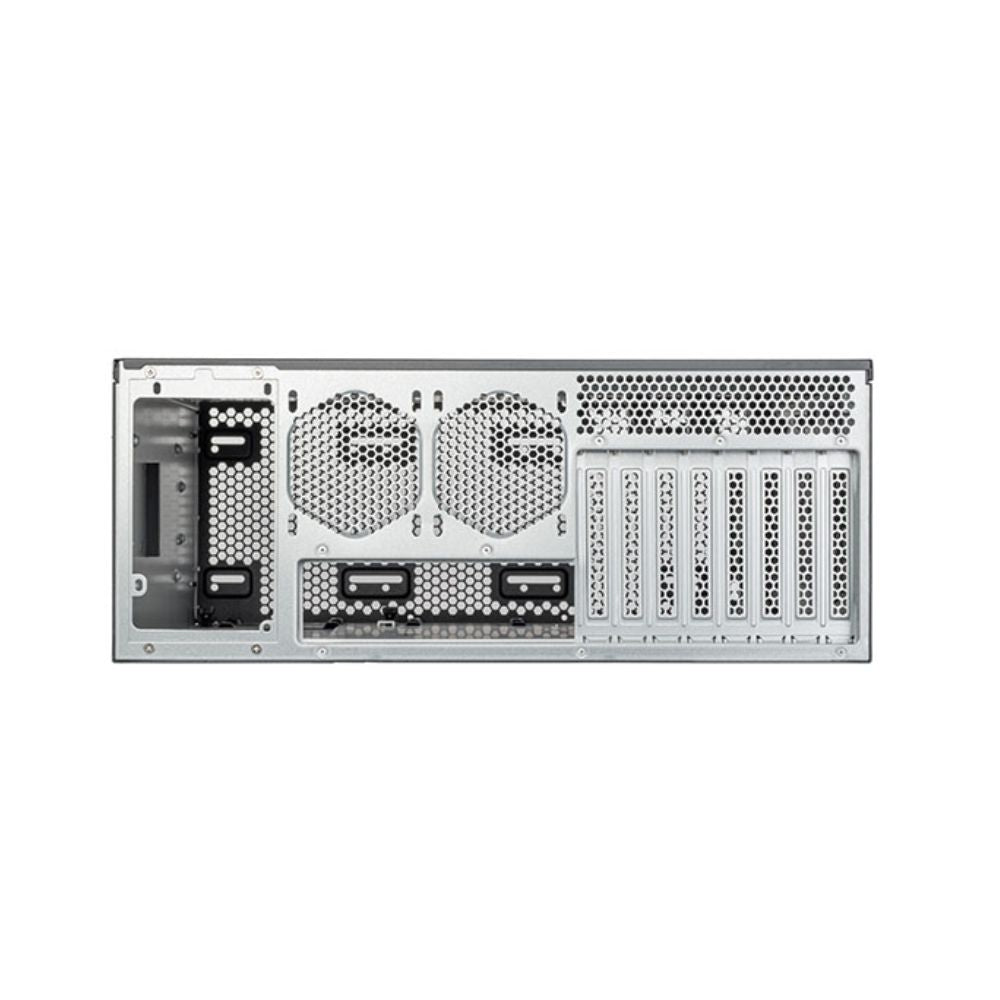

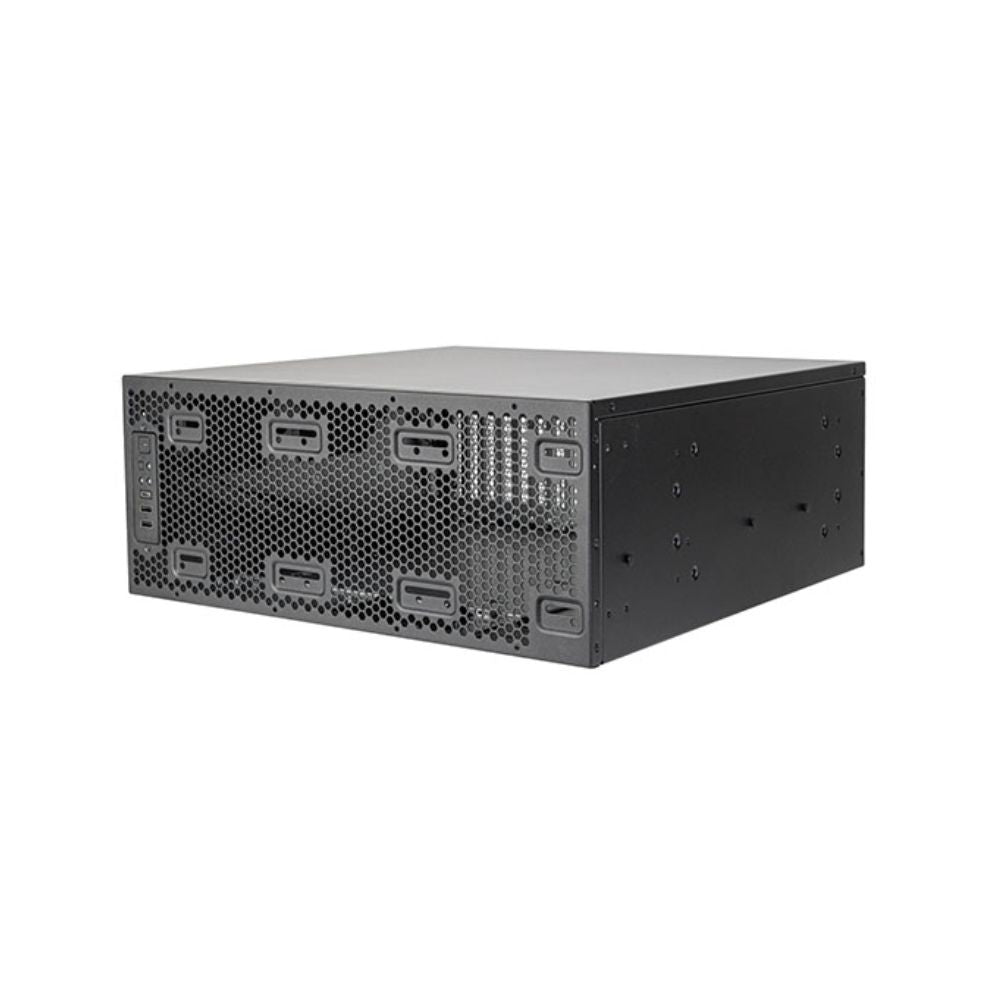

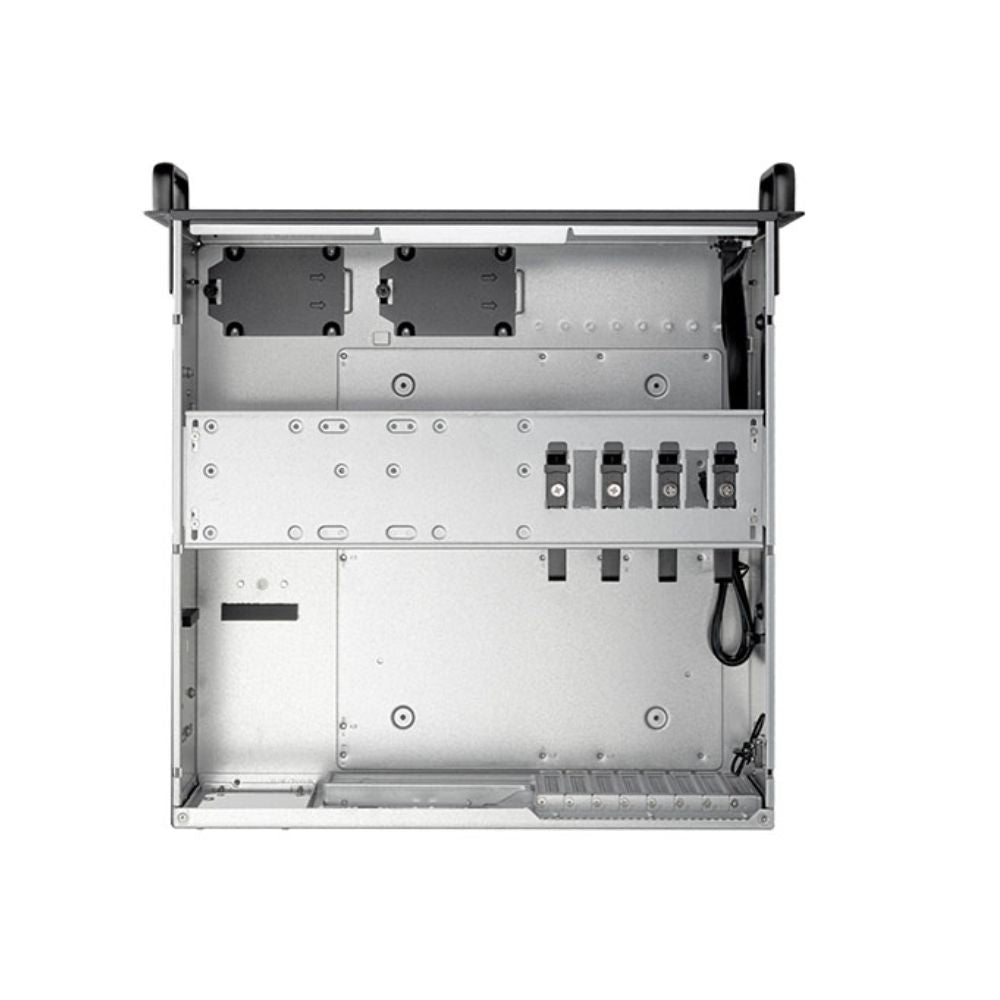

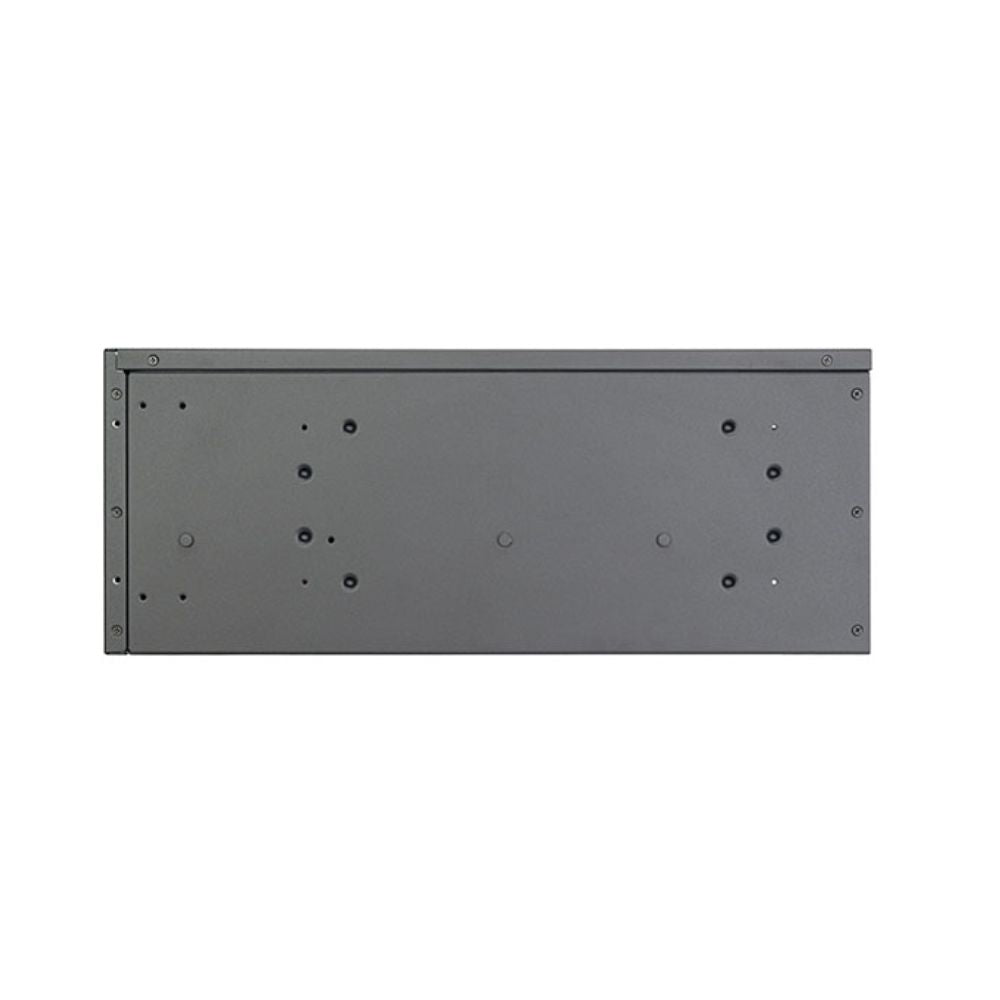

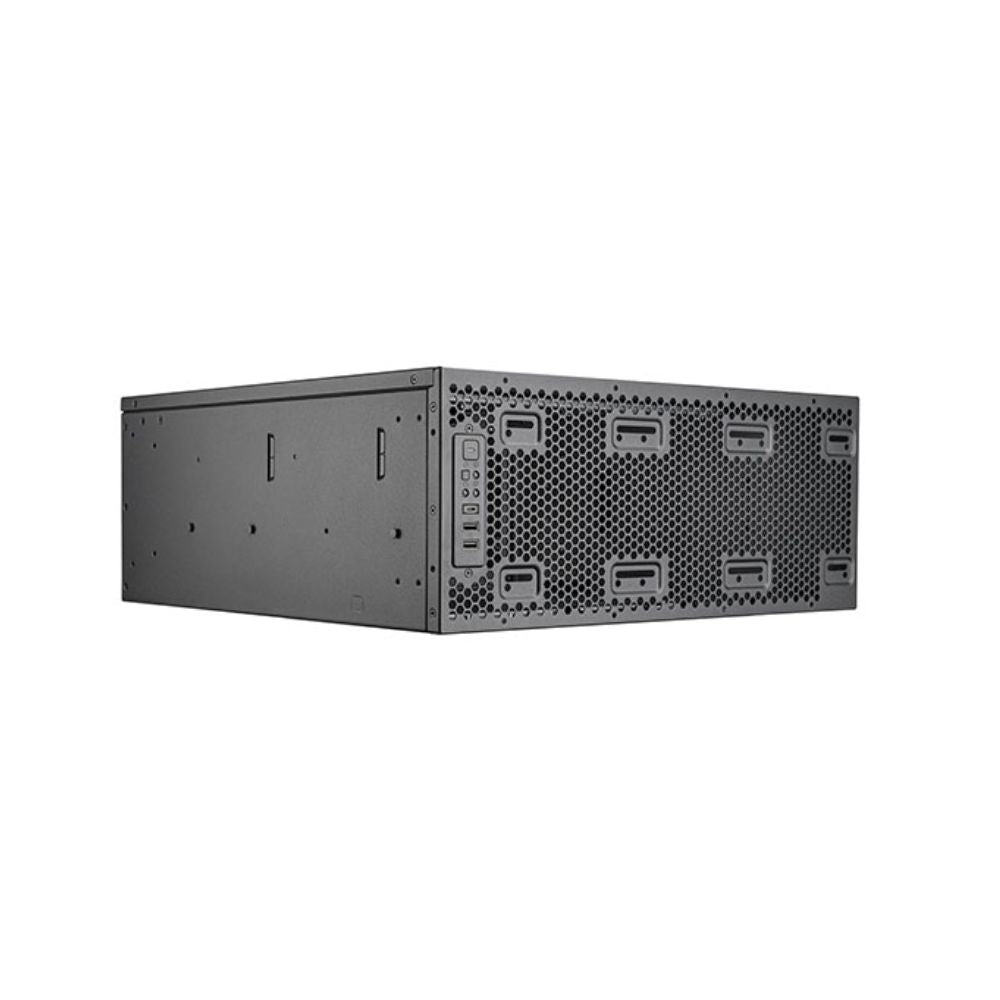

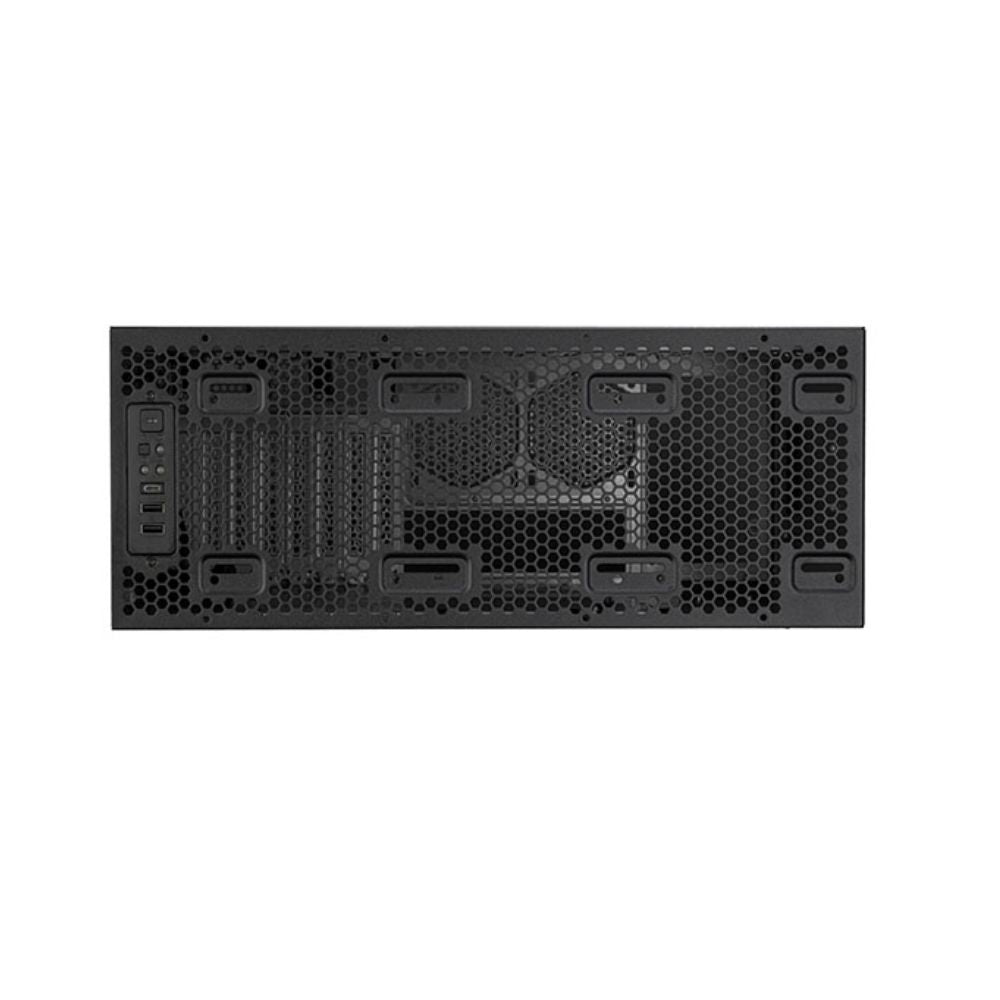

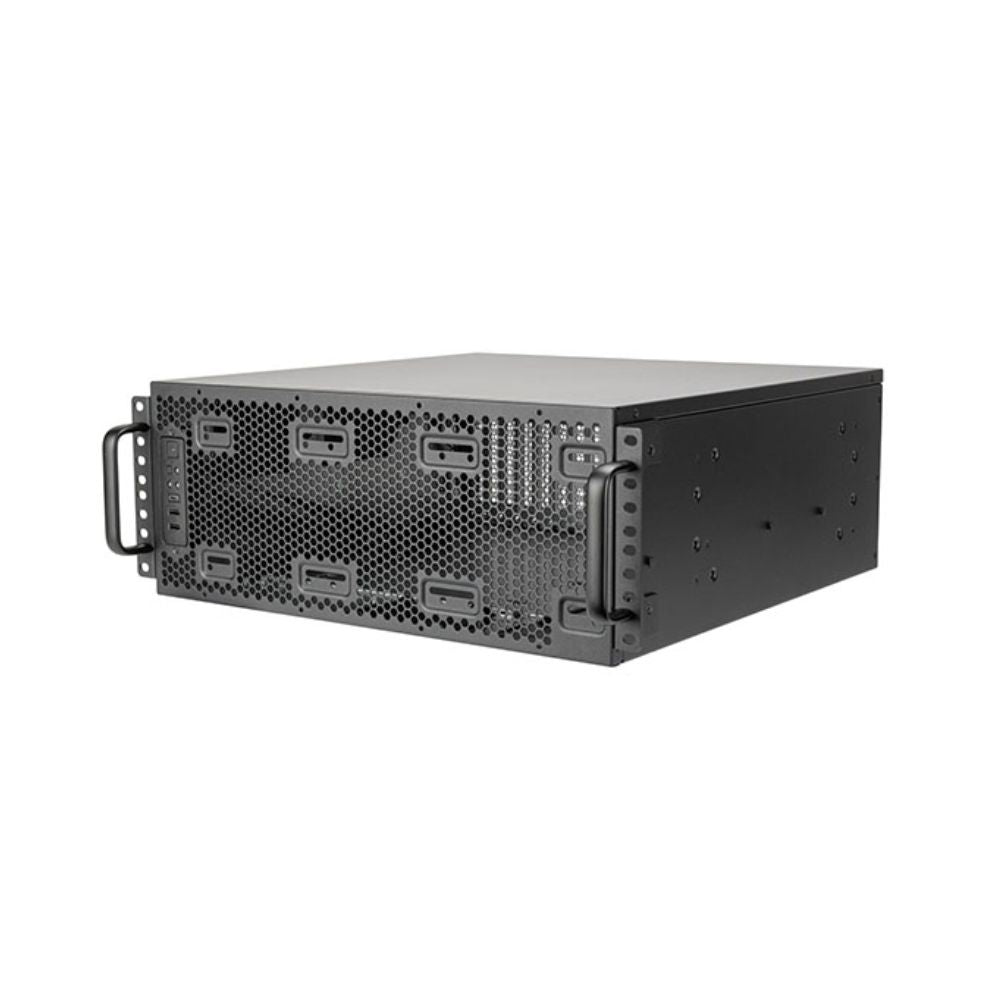

SilverStone RM4A 4U Rackmount Server Chassis

SilverStone RM4A is a 4U rackmount chassis for GPU servers built around a standard ATX power supply. It takes SSI-EEB boards, 8 expansion slots for cards up to 424mm, and a front 360mm radiator. Local Singapore warranty support through Mansa.

Who it suits

• If you want a GPU server without paying for redundant power, the RM4A uses a regular ATX PSU up to 255mm long.
• Heavy graphics cards are held by the included expansion card retainer, which SilverStone adds to stop sagging.
• Water-cooled workstation builders can install a front 360mm radiator, a 240mm + 120mm combination, or three separate 120mm radiators.
• Not for servers needing redundant power. RM4A supports PS2 (ATX) only; RM44 supports Mini Redundant and 2U Redundant PSUs (V3.0 or later).

Before you buy

• CPU cooler height is 137mm with the expansion card retainer installed, or 148mm without it.
• The 424mm card length applies only without front fans or radiators installed. A front radiator reduces it.
• All storage mounts are internal, accommodating two 3.5" drives or three 2.5" drives, plus four additional 2.5" drives, without hot-swap bays.

Model
SST-RM4A

Chassis Form Factor
4U rackmount

Material
Steel

Motherboard Support
SSI-EEB, SSI-CEB, Extended ATX, ATX, Micro-ATX, Mini-ITX

Drive Support - Internal
3.5" x 2 (compatible with 2.5" x 3), 2.5" x 4

Cooling - Front
120mm x 3

Cooling - Rear
80mm x 2

Radiator Support
Front: 120mm x 3 / 120mm x 1 + 240mm x 1 / 360mm x 1

CPU Cooler Clearance
137mm with expansion card retainer, 148mm without

Expansion Slots
8

Expansion Card Length
424mm (without front fans and radiators installed)

Expansion Card Width
113mm with expansion card retainer, 154mm without

Graphics Card Support
Expansion card retainer included to secure graphics cards

Power Supply
PS2 (ATX)

PSU Length Limit
255mm

Front I/O
1 x USB Type-C, 2 x USB 3.0

LED Indicators
Power status x 1, HDD activity x 1, LAN activity x 2

Extra
Side switch for chassis intrusion security

Compatible Slide Rail
RMS05-22 (chassis depth limit 560mm)

Dimensions
440mm (W) x 176mm (H) x 446mm (D)

Volume
34.54 litres

Net Weight
7.63 kg

1 YEAR WARRANTY

Avertek Enterprises Pte Ltd
25 Kallang Ave #03-03, Singapore 339416
Contact: 6341 7839

How long will it take to receive my purchase?

Standard Shipping - 3 to 5 days
Express Shipping - 1 to 2 days

Can I opt for store pickup?

Yes, we are open daily for collection from 11 AM - 6.30 PM.
Address: 1 Ubi View #01-22, Focus One Building Singapore 408555 (Door located nearest to carpark exit gantry) We will contact you once your order is ready for collection!

What is the difference between the RM4A and RM44?

Both support SSI-EEB motherboards, eight expansion slots, front radiators up to 360mm, and cards up to 424mm without front fans or radiators. The RM4A is 446mm deep and supports PS2 (ATX) power supplies only. The RM44 is 468mm deep and additionally supports Mini Redundant and 2U Redundant (V3.0 or later) power supplies.

Does the RM4A come with rack rails?

SilverStone lists the RMS05-22 slide rail as compatible. The spec sheet does not say rails are in the box, so treat them as separate unless we confirm otherwise.
