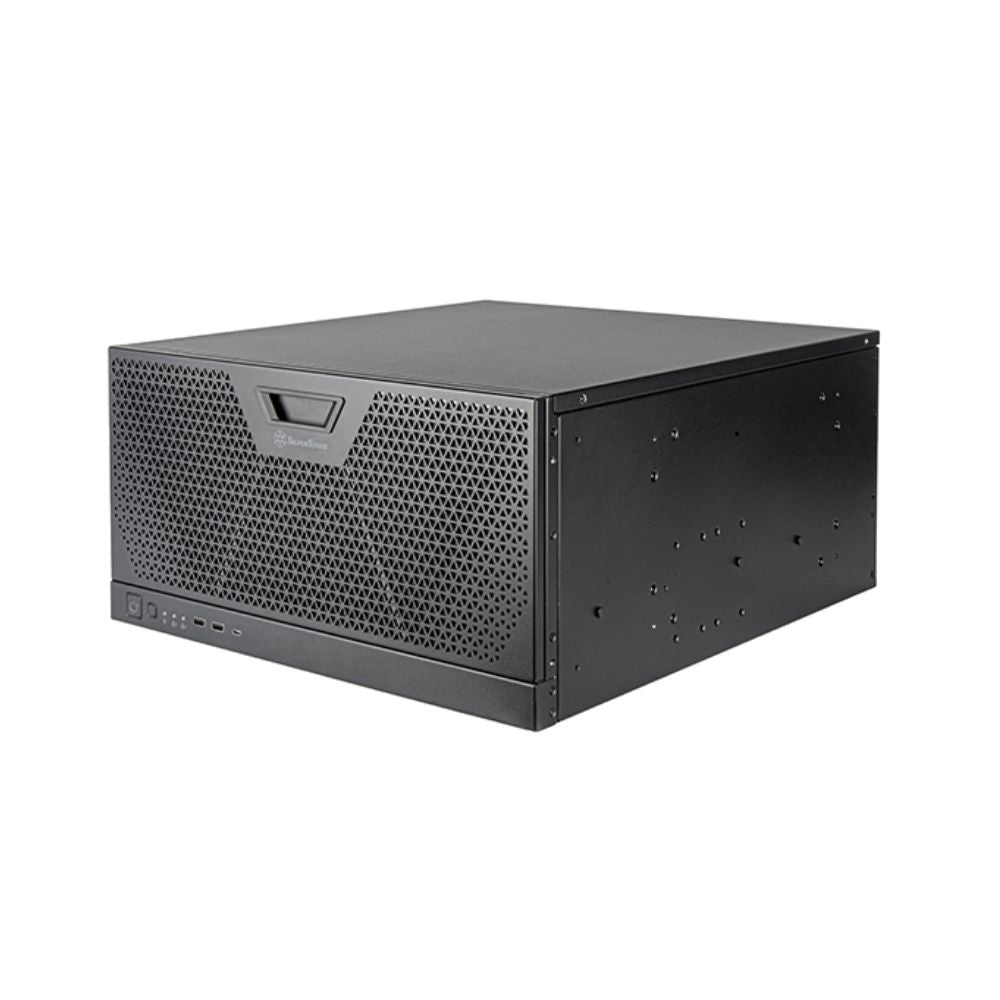

SilverStone RM51 5U Rackmount Server Chassis

The SilverStone RM51 is a 5U rackmount chassis for GPU servers and high-end home systems. It supports SSI-EEB motherboards, CPU coolers up to 181mm with the expansion card retainer or 192mm without, and includes two 180mm Air Penetrator 184i PRO fans.

Who it suits

• Air-cooling enthusiasts get 181mm CPU cooler clearance with the expansion card retainer installed, or 192mm without it.
• GPU server builders get eight expansion slots and up to 455mm card length without front fans or radiators. Card width is limited to 157mm with the retainer, 198mm without.
• Home lab users can position the chassis vertically or horizontally, with an optional secondary SFX PSU replacing the 3.5" drive cage.
• Less suitable for high-density storage servers requiring hot-swap bays. The RM51 offers internal drive mounting but no built-in hot-swap bays.

Before you buy

• CPU cooler height is limited to 181mm with the expansion card retainer installed, or 192mm without it.
• Primary PSU length is limited to 160–190mm depending on configuration, with no stated limit after removing the 3.5" drive cage. Compatible 2U redundant PSUs require V3.0 or later.
• Rack rails are sold separately. SilverStone specifies the RMS05-22 as the compatible slide rail model.

Model
SST-RM51

Chassis Form Factor
5U rackmount, horizontal or vertical placement

Material
Steel

Motherboard Support
SSI-EEB, SSI-CEB, Extended ATX, ATX, Micro-ATX, Mini-ITX

Drive Support - Internal
3.5" x 2 (compatible with 2.5" x 3) + 3.5" x 2 (compatible with SFX PSU), 2.5" x 4

Cooling - Front

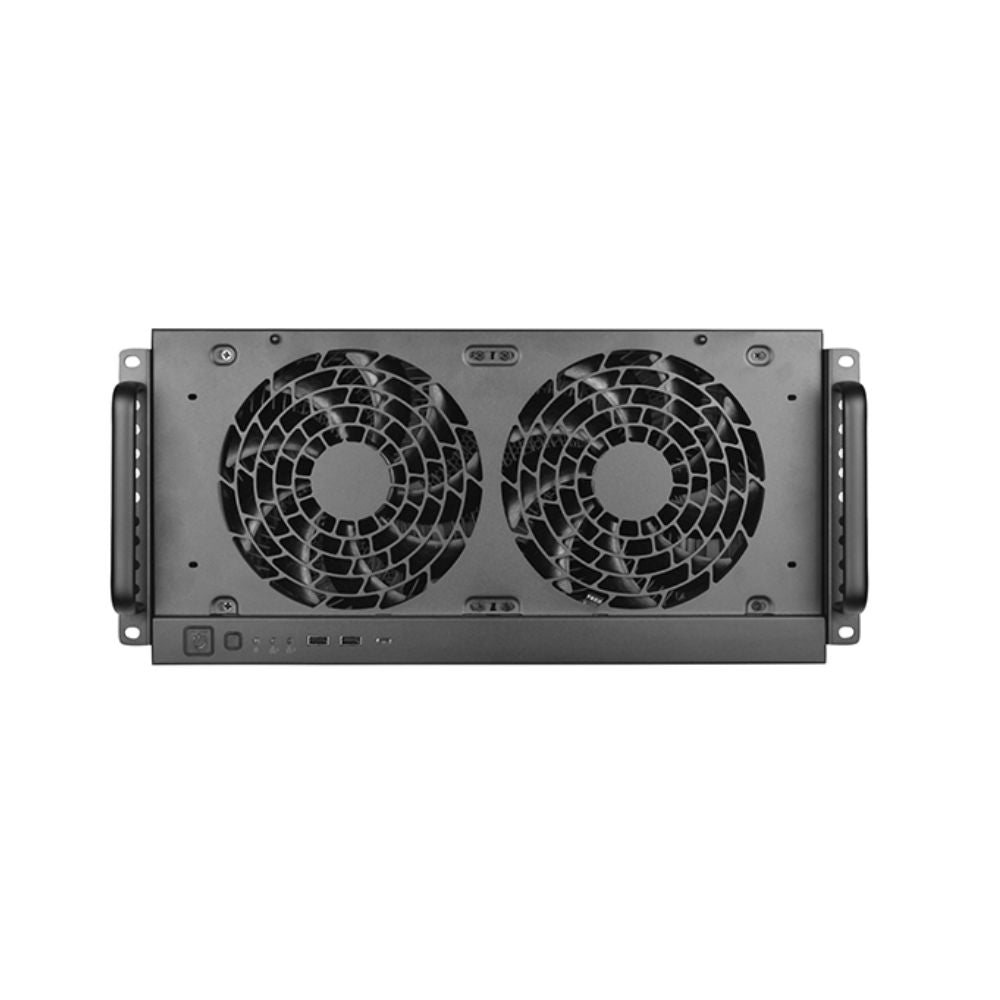

120mm x 3 / 180mm x 2 (2 x Air Penetrator 184i PRO fans included)

Cooling - Rear
Rear I/O: 120mm x 1 / 140mm x 1; rear fan cage: 80mm x 2

Radiator Support - Front
120mm x 3 / 120mm + 240mm / 360mm (120mm x 3) / 360mm (180mm x 2)

Radiator Support - Rear
120mm x 1

CPU Cooler Clearance
181mm with expansion card retainer, 192mm without

Expansion Slots
8

Expansion Card Length
455mm (without front fans and radiators installed)

Expansion Card Width
157mm with expansion card retainer, 198mm without

Graphics Card Support
Expansion card retainer included, with drive mounting holes

Power Supply - Primary
PS2 (ATX) / Mini Redundant / 2U Redundant (V3.0 or after)

Power Supply - Secondary
SFX / SFX-L (occupies 3.5" bracket)

PSU Length Limit
160mm to 190mm (no limit with 3.5" drive cage removed)

Front I/O
1 x USB Type-C, 2 x USB 3.0

LED Indicators
Power status x 1, HDD activity x 1, LAN activity x 2

Extra
Side switch for chassis intrusion security

Slide Rail
RMS05-22 (sold separately, chassis depth limit 560mm)

Dimensions
440mm (W) x 220mm (H) x 530mm (D) incl. rear fan cage; 485mm (D) excl.

Volume
51.3 litres incl. rear fan cage, 46.95 litres excl.

Net Weight
10.6 kg

1 YEAR WARRANTY

Avertek Enterprises Pte Ltd
25 Kallang Ave #03-03, Singapore 339416
Contact: 6341 7839

How long will it take to receive my purchase?

Standard Shipping - 3 to 5 days
Express Shipping - 1 to 2 days

Can I opt for store pickup?

Yes, we are open daily for collection from 11 AM - 6.30 PM.
Address: 1 Ubi View #01-22, Focus One Building Singapore 408555 (Door located nearest to carpark exit gantry) We will contact you once your order is ready for collection!

Does the RM51 come with rack rails?

No. SilverStone sells the matching RMS05-22 slide rails separately. The chassis has reserved mounting holes for them.

Can I use the RM51 as a desktop case at home?

Yes. SilverStone designs it for industrial rack use or high-end home systems, and it can stand vertically or lie horizontally.
