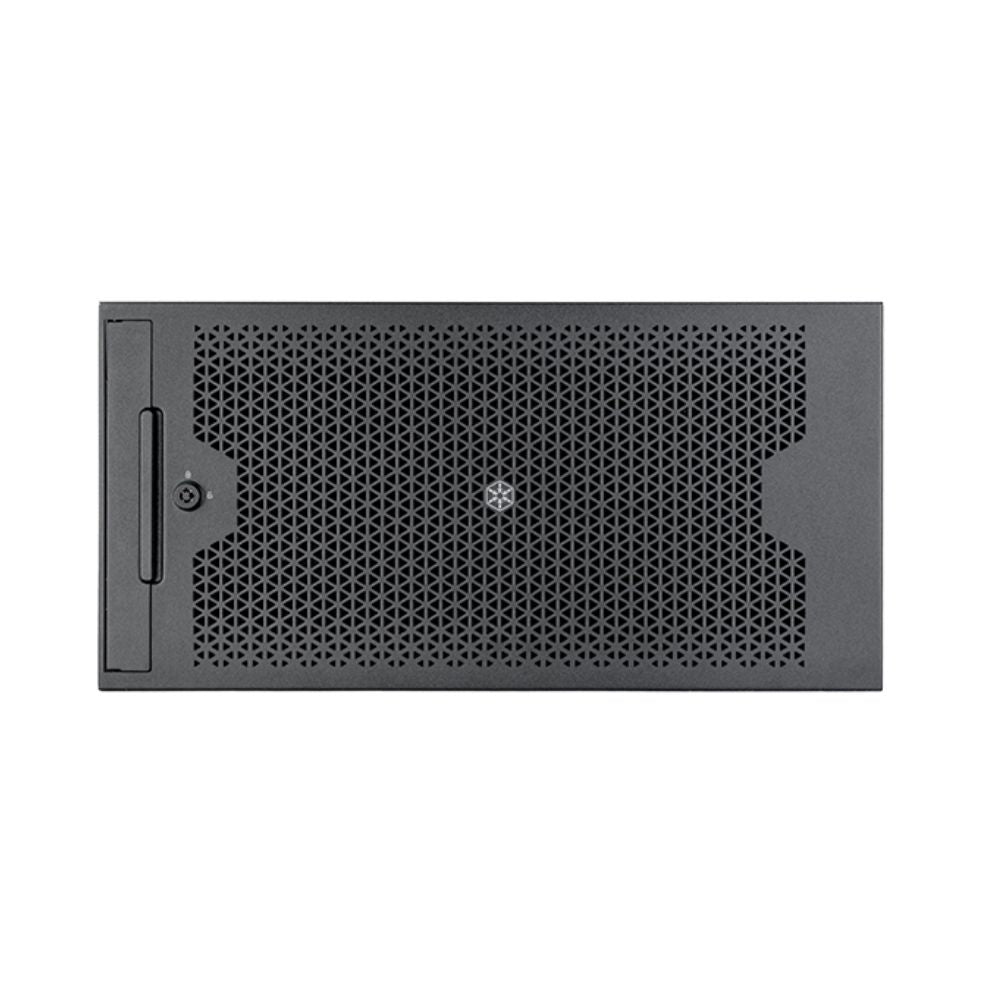

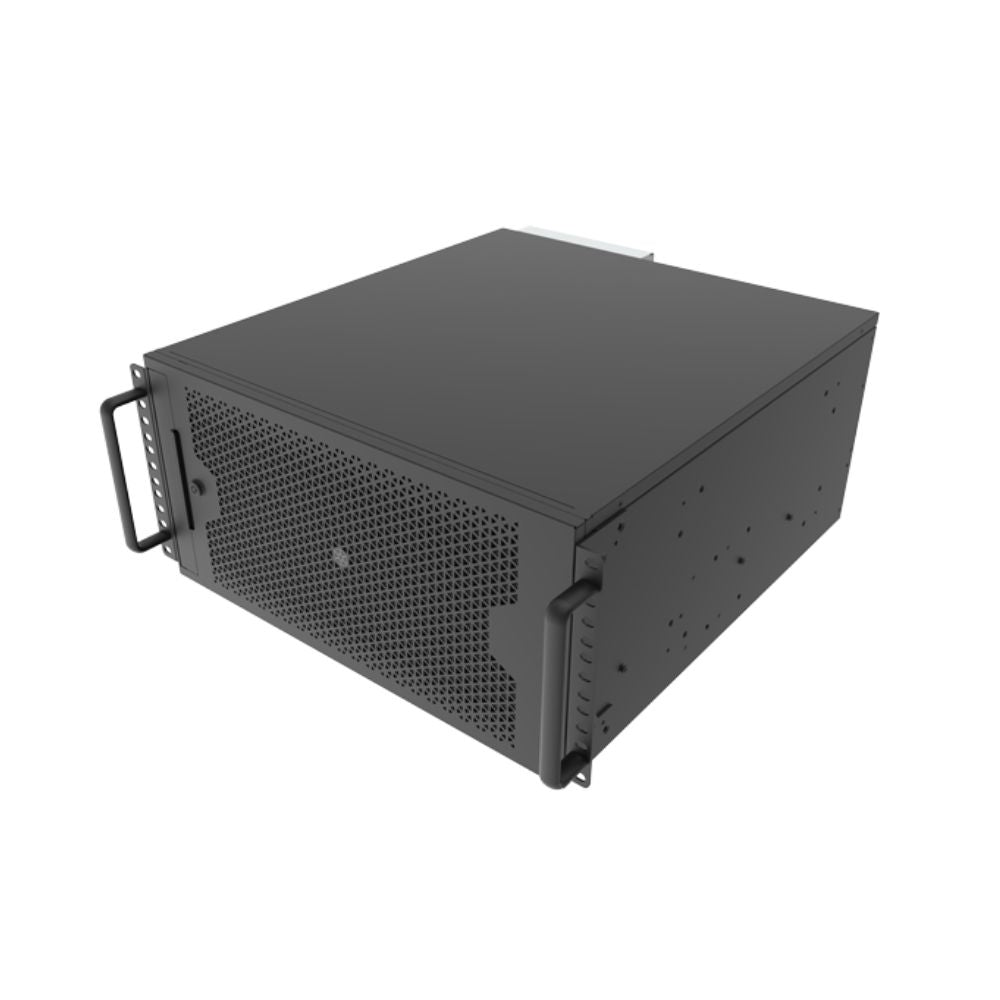

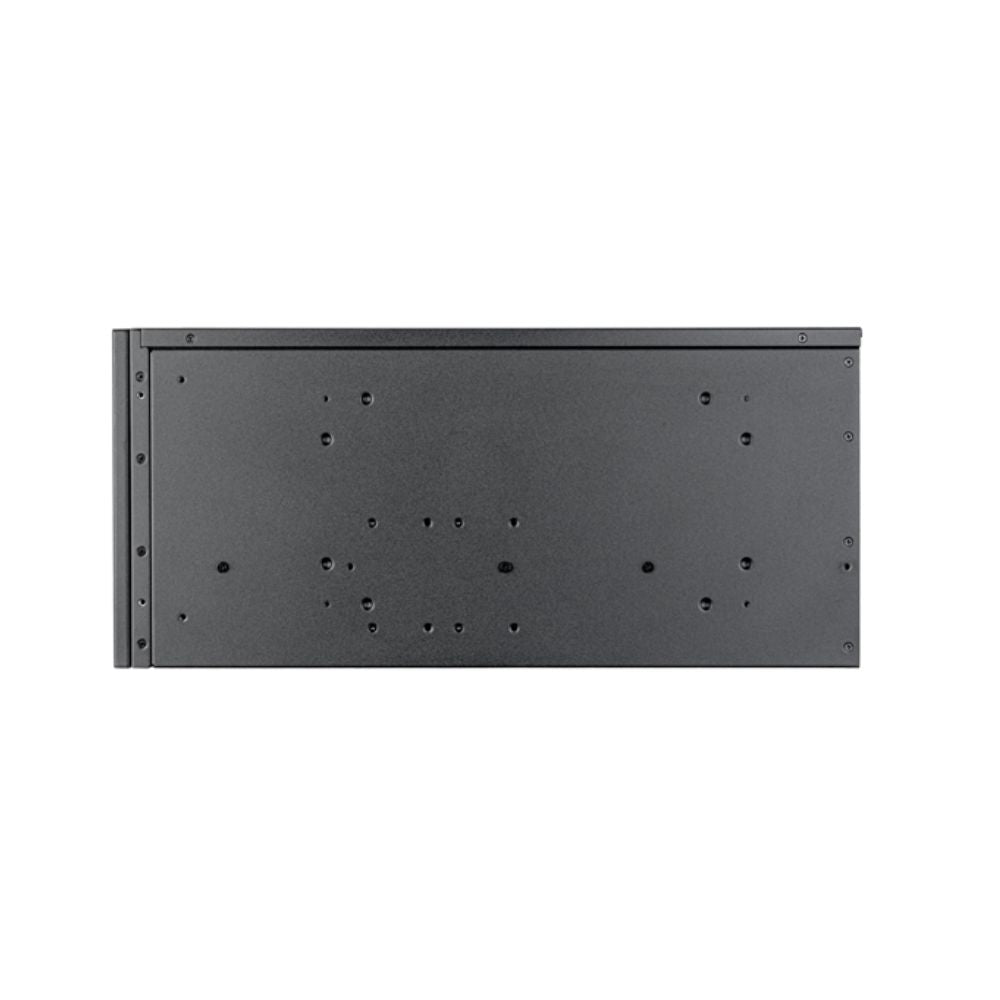

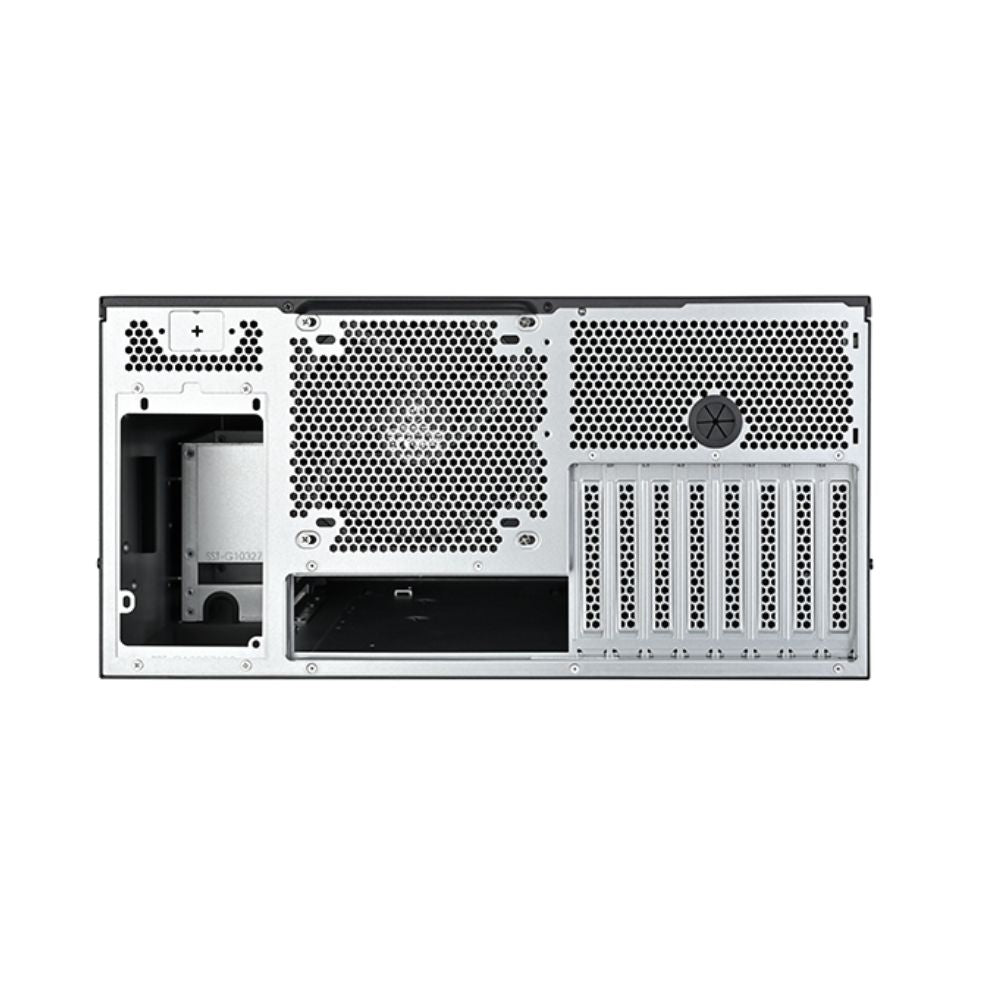

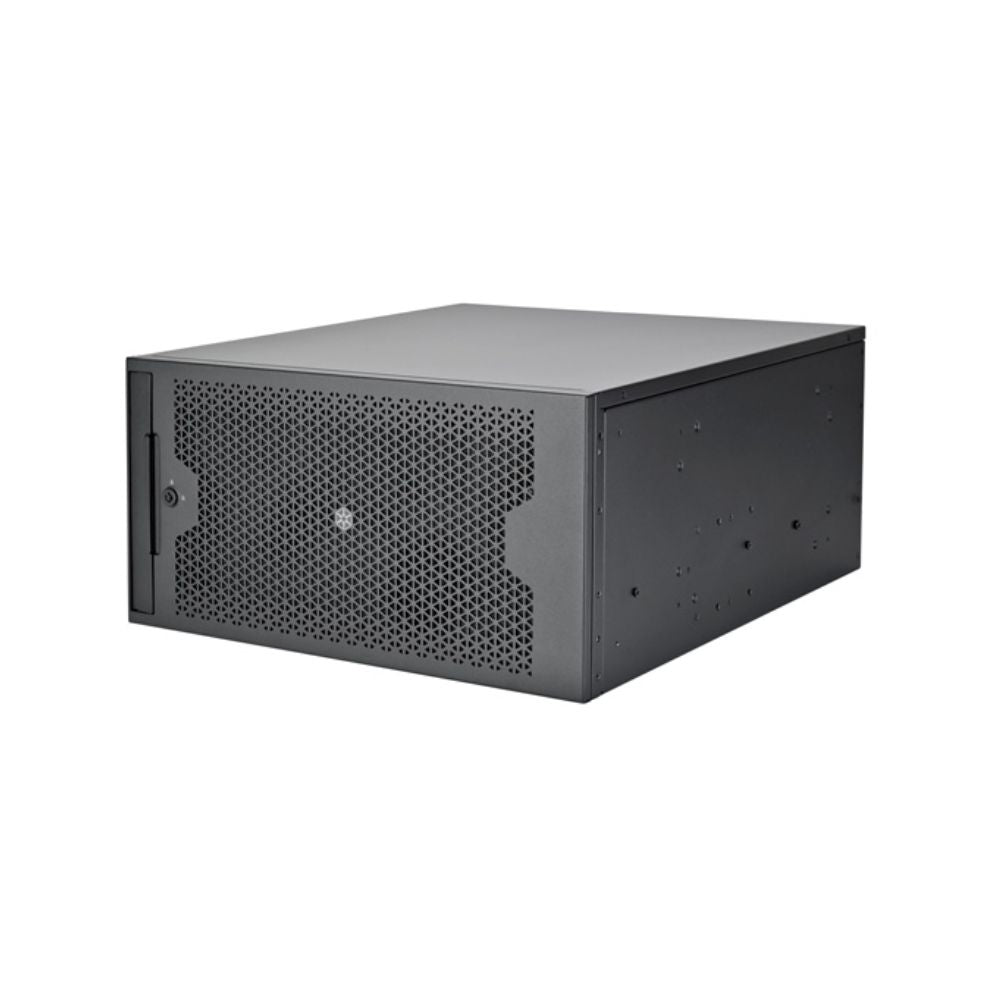

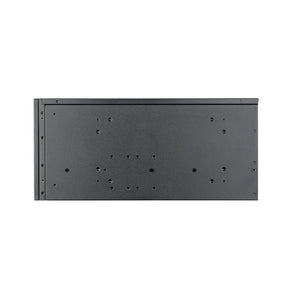

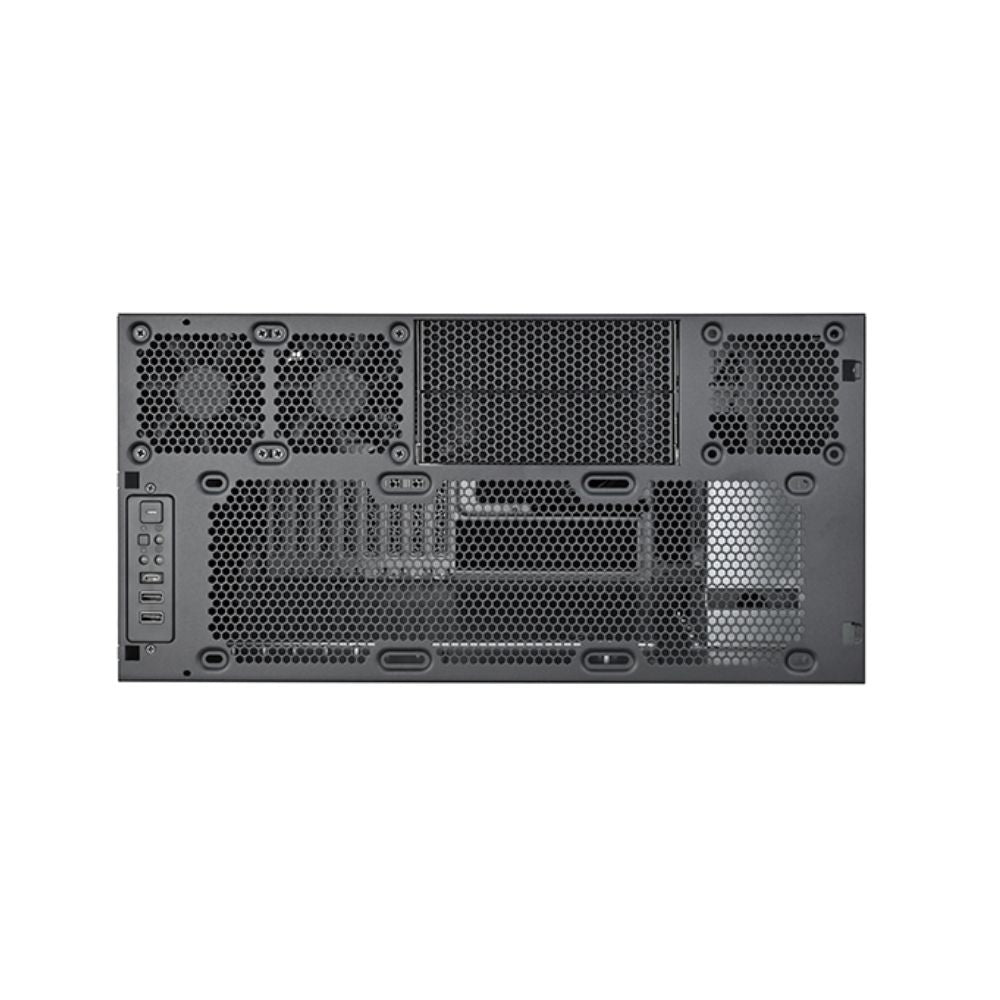

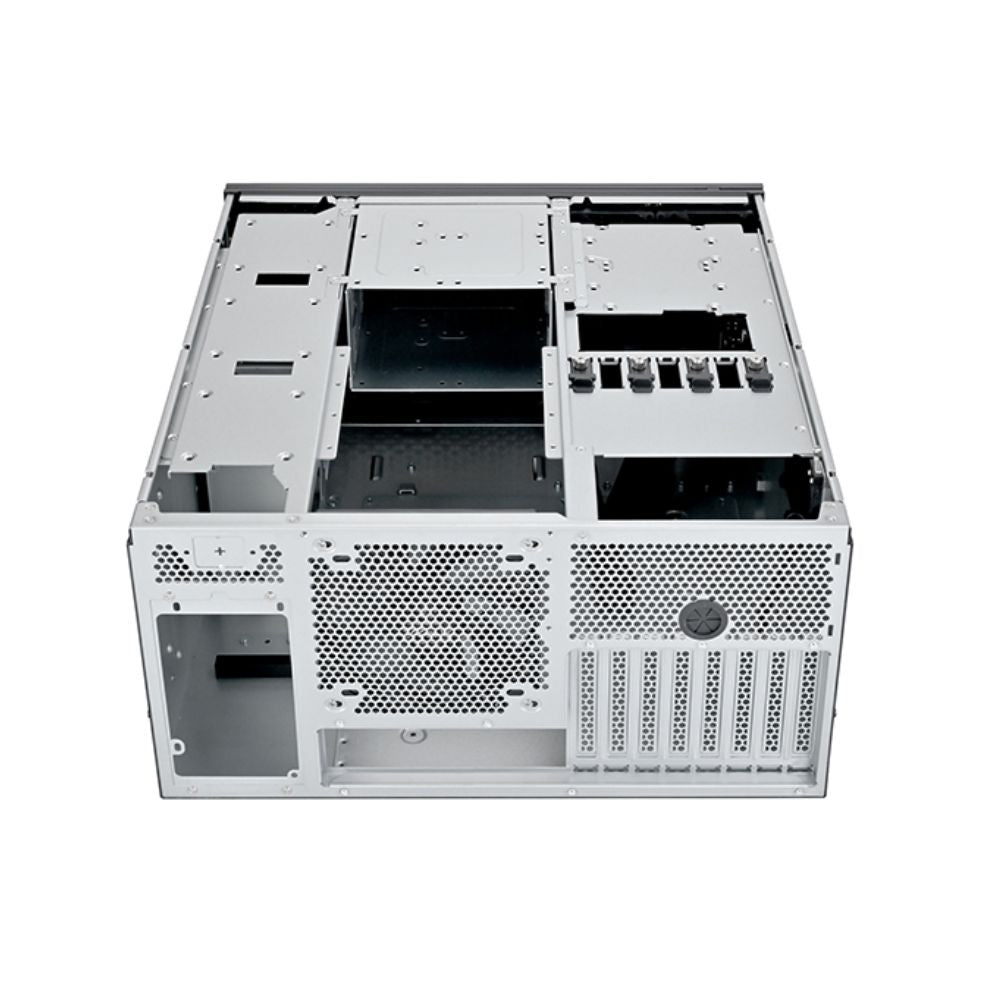

SilverStone RM53-502 5U Rackmount Server Chassis

SilverStone RM53-502 is a 5U rackmount chassis for dual-CPU and GPU servers that also need front drive bays. It takes SSI-EEB boards, CPU coolers up to 178mm, and has 2 x 5.25" bays plus room for a 360mm radiator. Local Singapore warranty support through Mansa.

Who it suits

• The two front 5.25" bays accommodate compatible 5.25" devices or can be configured for four 2.5" or two 3.5" drives.
• Dual-CPU server boards fit, with cooler clearance ranging from 101mm to 178mm depending on the motherboard and configuration.
• GPU builds get eight expansion slots and support cards up to 454mm long without front fans or radiators.
• Not ideal for high-density hot-swap NAS builds. The chassis has no dedicated hot-swap bays; consider the RM43-320-RS for larger hot-swappable arrays.

Before you buy

• Dual-CPU cooler clearance ranges from 101mm to 178mm depending on layout. Check SilverStone's manual for your motherboard.
• The 454mm graphics card clearance applies only without front fans or radiators installed. Front cooling components reduce available length.
• Primary PSU length is limited to 190mm with the 3.5" drive cage installed. A secondary SFX PSU up to 130mm occupies a 3.5" bracket.

Model
SST-RM53-502

Chassis Form Factor
5U rackmount

Material
Steel

Motherboard Support
SSI-EEB, SSI-CEB, Extended ATX, ATX, Micro-ATX, Mini-ITX

Drive Support - External
5.25" x 2 (compatible with 2.5" x 4 or 3.5" x 2)

Drive Support - Internal
3.5" x 1 (compatible with 2.5" x 2), 3.5" x 2 (compatible with SFX PSU x 1), 2.5" x 5 (two occupy the 8th slot position)

Cooling - Front
120mm x 3, 80mm x 3 (2 x 80mm fans included)

Cooling - Rear
Rear I/O: 120mm x 1 / 140mm x 1 (1 x 140mm fan included); rear fan cage: 80mm x 2

Radiator Support - Front
120mm / 240mm / 360mm

Radiator Support - Rear
120mm

CPU Cooler Clearance
Single CPU: 178mm; dual CPU: 101mm to 178mm (see manual)

Expansion Slots
8

Expansion Card Length
454mm (without front fans or radiators installed)

Expansion Card Width
160mm with GPU holder, 185mm without

Power Supply - Primary
PS2 (ATX) / Mini Redundant / 2U CRPS Redundant

Power Supply - Secondary
SFX / SFX-L (occupies 3.5" bracket)

PSU Length Limit
Primary 190mm (no limit with 3.5" drive cage removed), secondary 130mm

Front I/O
1 x USB Type-C, 2 x USB 3.0

LED Indicators
Power status x 1, HDD activity x 1, LAN activity x 2

Extra
Side switch for chassis intrusion security

Compatible Slide Rail
RMS05-22 (chassis depth limit 560mm)

Dimensions
440mm (W) x 220mm (H) x 530mm (D) incl. rear fan cage; 485mm (D) excl.

Volume
51.3 litres incl. rear fan cage, 46.95 litres excl.

Net Weight
11.47 kg
