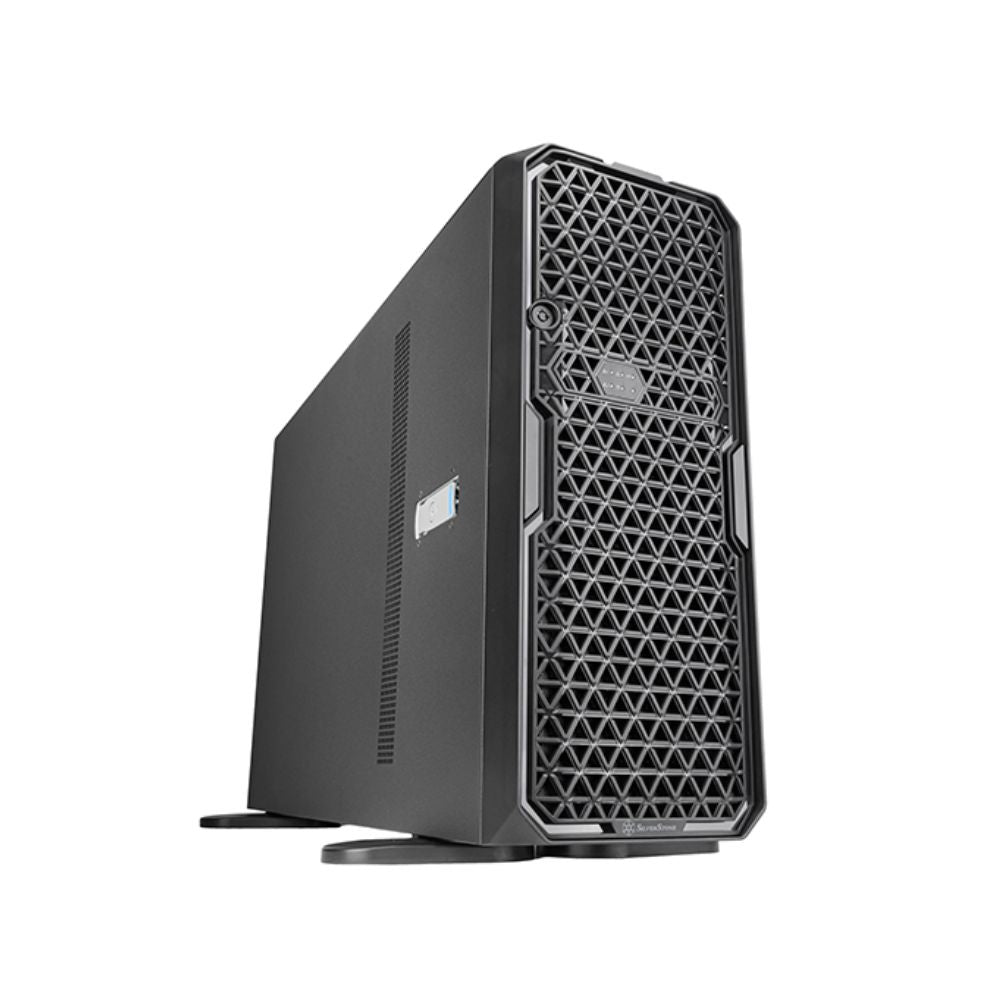

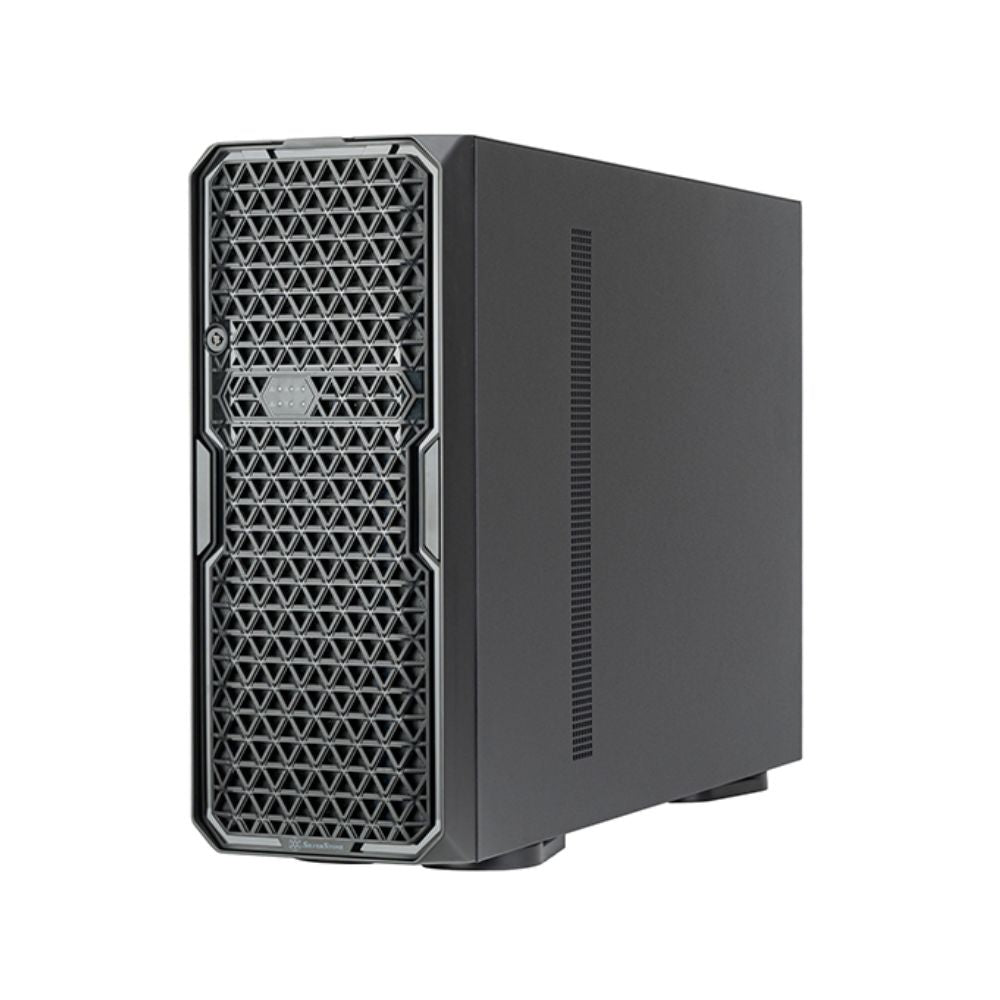

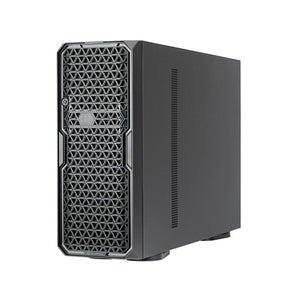

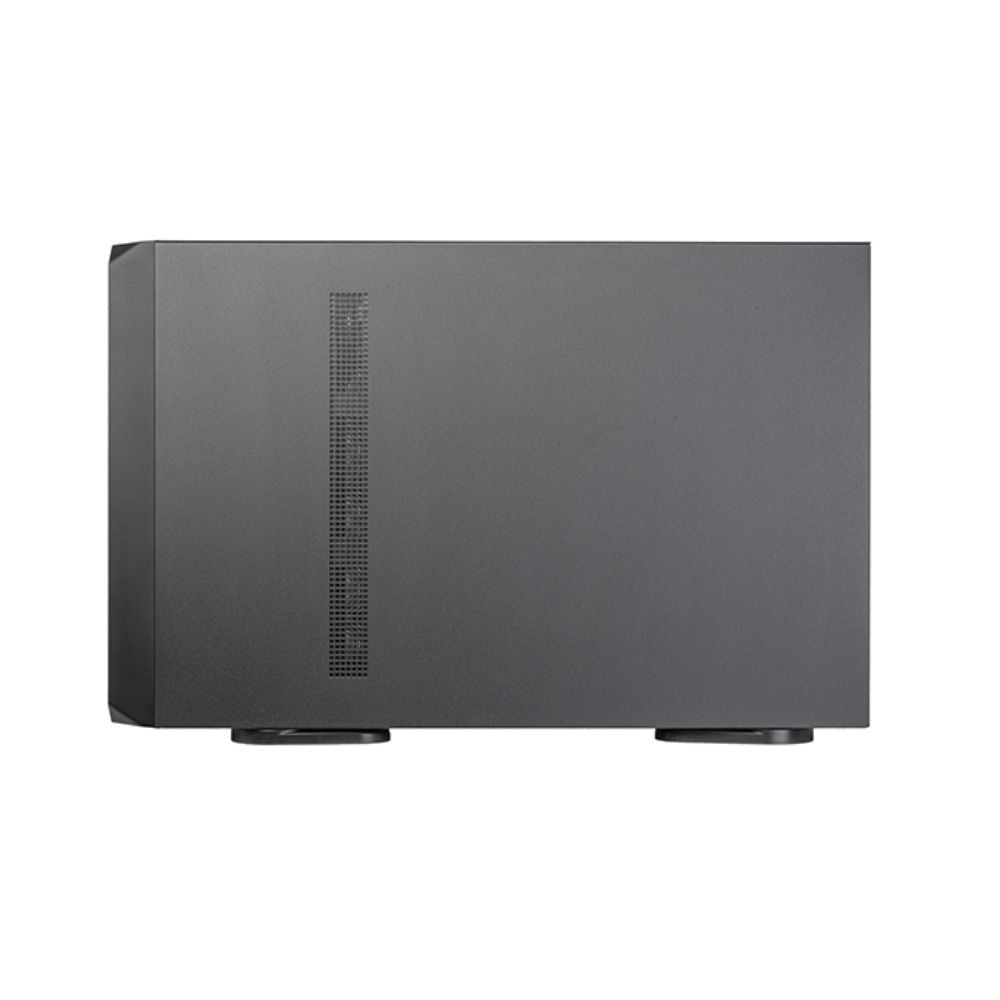

SilverStone WS380-E Professional Workstation Chassis

SilverStone WS380-E is a workstation chassis with 8 hot-swap drive trays for data-heavy work like AI, rendering and local storage. It takes SSI-EEB boards, 8 expansion slots and an internal 360mm radiator. Local Singapore warranty support through Mansa.

Who it suits

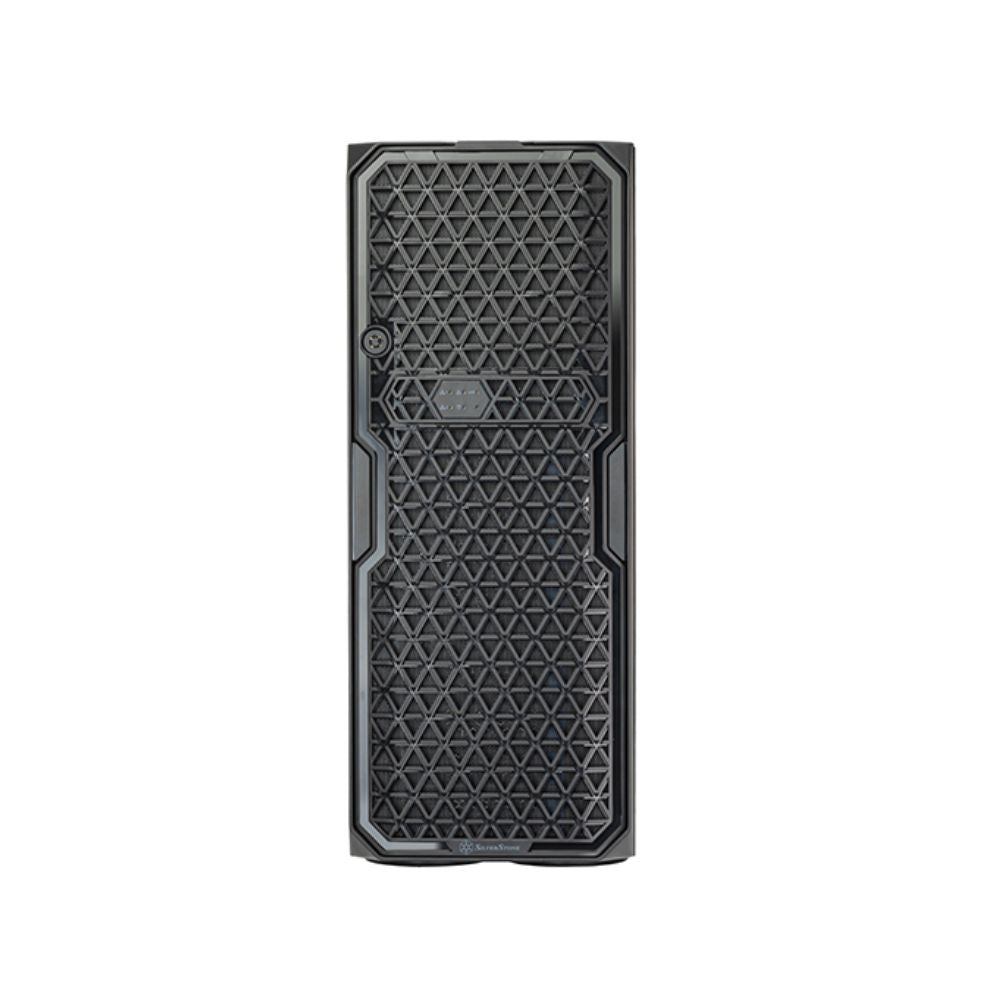

• If your workstation also holds your data, 8 front hot-swap trays take 2.5" or 3.5" SAS or SATA drives through a Mini-SAS HD backplane with SGPIO.
• GPU and compute builders get eight expansion slots for cards up to 370mm long, with support for SSI-EEB motherboards.

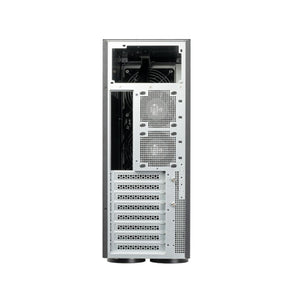

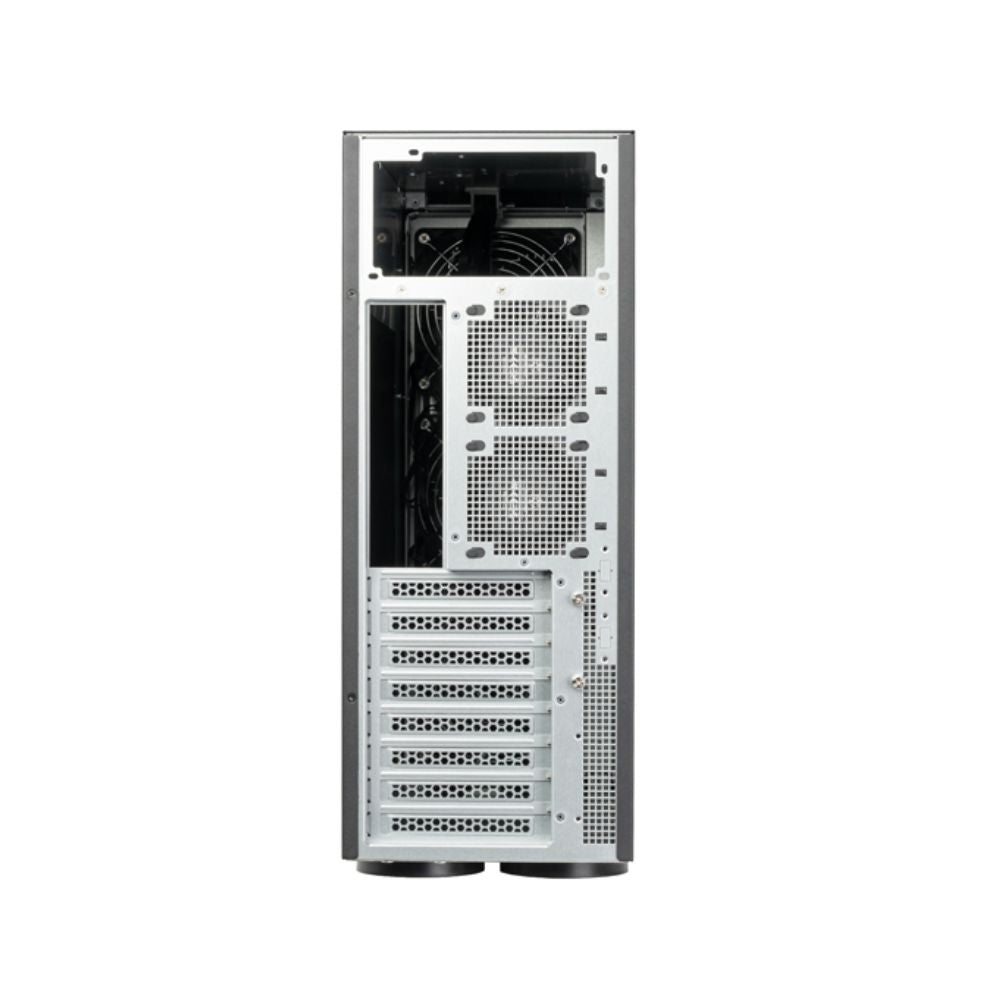

• The WS380-E includes three 120mm internal fans and two 80mm rear fans, with internal radiator support up to 360mm.
• Not ideal for small desks or compact workspaces. The WS380-E measures 683mm deep and weighs 16.62kg without installed components.

Before you buy

• CPU cooler height is 134mm with the GPU holder installed, or 145mm without it.
• SAS drives require a compatible SAS controller or HBA. The eight-port backplane uses 2 x Mini-SAS HD SFF-8643 connectors with SGPIO support. Ensure compatible controller ports and cables are available.
• Supports PS2 (ATX) or 2U Redundant power supplies. Confirm PSU availability and compatibility before purchase.

Model
SST-WS380-E

Material
Plastic front panel, galvanized steel body

Main Metal Thickness
1.0mm to 1.2mm

Motherboard Support
SSI-EEB, SSI-CEB, Extended ATX, ATX, Micro-ATX, Mini-ITX

HDD Backplane
8 ports SAS / SATA to Mini-SAS HD SFF-8643 x 2 with SGPIO

Backplane Power
4-pin peripheral x 2

Interface
SAS-1 / SAS-2 / SAS-3, SATA-1 / SATA-2 / SATA-3

Drive Support - External
2.5" / 3.5" SAS / SATA hot-swap x 8, 5.25" x 2, 3.5" x 1

Cooling - Rear
80mm x 2 (2 x 8038 black fans included)

Cooling - Internal
120mm x 3 (3 x 12025 black fans included)

Radiator Support
Internal: 120mm / 240mm / 360mm

CPU Cooler Clearance
134mm with GPU holder, 145mm without

Expansion Slots
8

Expansion Card Size
370mm length, 150mm width

Power Supply
PS2 (ATX) / 2U Redundant

Front I/O
1 x USB Type-C, 2 x USB 3.0, 1 x speaker, 1 x mic

Front Buttons
Power On/Off, system reset

LED - Chassis
Power (green), HDD Access (white), LAN x 2 (green), UID (white), Sys Error (red)

LED - HDD Tray
HDD Power (green), HDD Access (blue blinking)

Dimensions
453mm (H) x 175mm (W) x 683mm (D)

Net Weight
16.62 kg

1 YEAR WARRANTY

Avertek Enterprises Pte Ltd
25 Kallang Ave #03-03, Singapore 339416
Contact: 6341 7839

How long will it take to receive my purchase?

Standard Shipping - 3 to 5 days
Express Shipping - 1 to 2 days

Can I opt for store pickup?

Yes, we are open daily for collection from 11 AM - 6.30 PM.
Address: 1 Ubi View #01-22, Focus One Building Singapore 408555 (Door located nearest to carpark exit gantry) We will contact you once your order is ready for collection!

Can the WS380-E go into a server rack?

The WS380-E is designed as a professional workstation chassis. SilverStone's specifications do not confirm rackmount compatibility or list compatible rack rails or mounting brackets. Please contact us to verify installation requirements before planning a server rack setup.

Are fans included with the WS380-E?

Yes. SilverStone includes 3 x 120mm (12025) internal fans and 2 x 80mm (8038) rear fans, all black.
