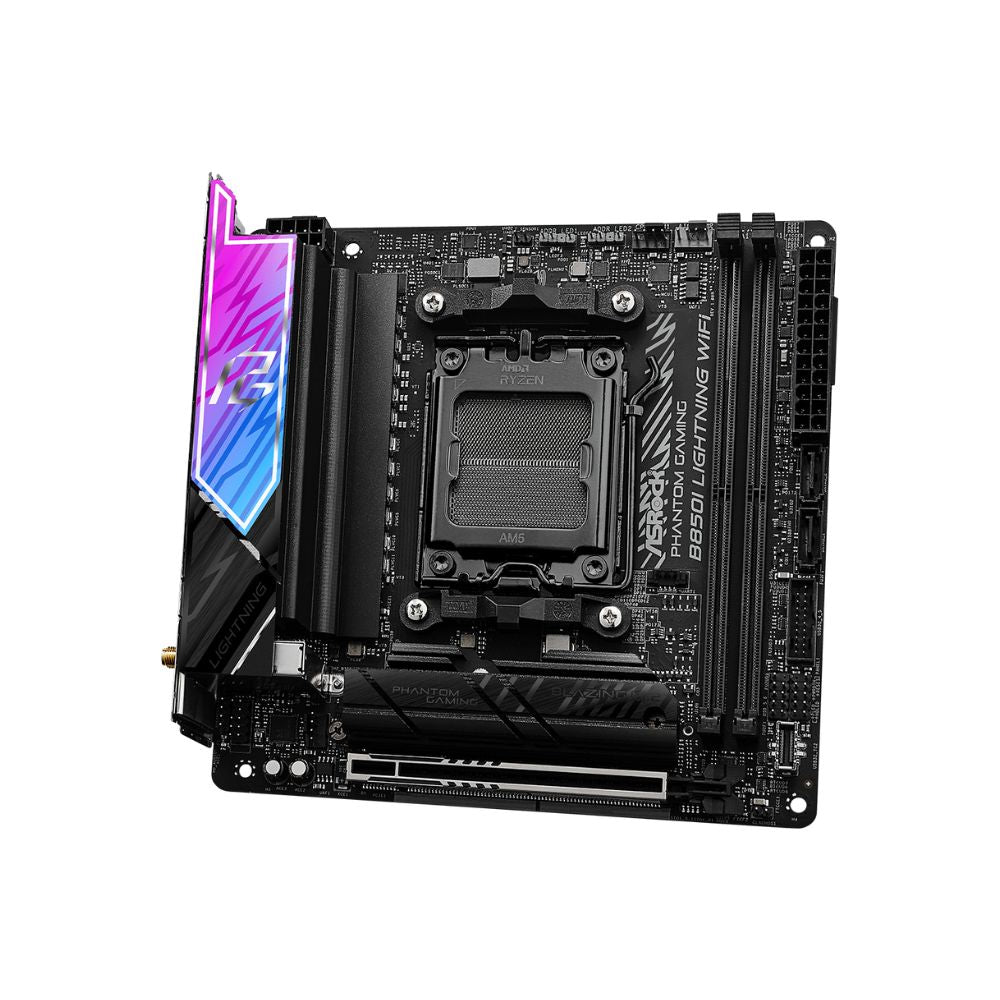

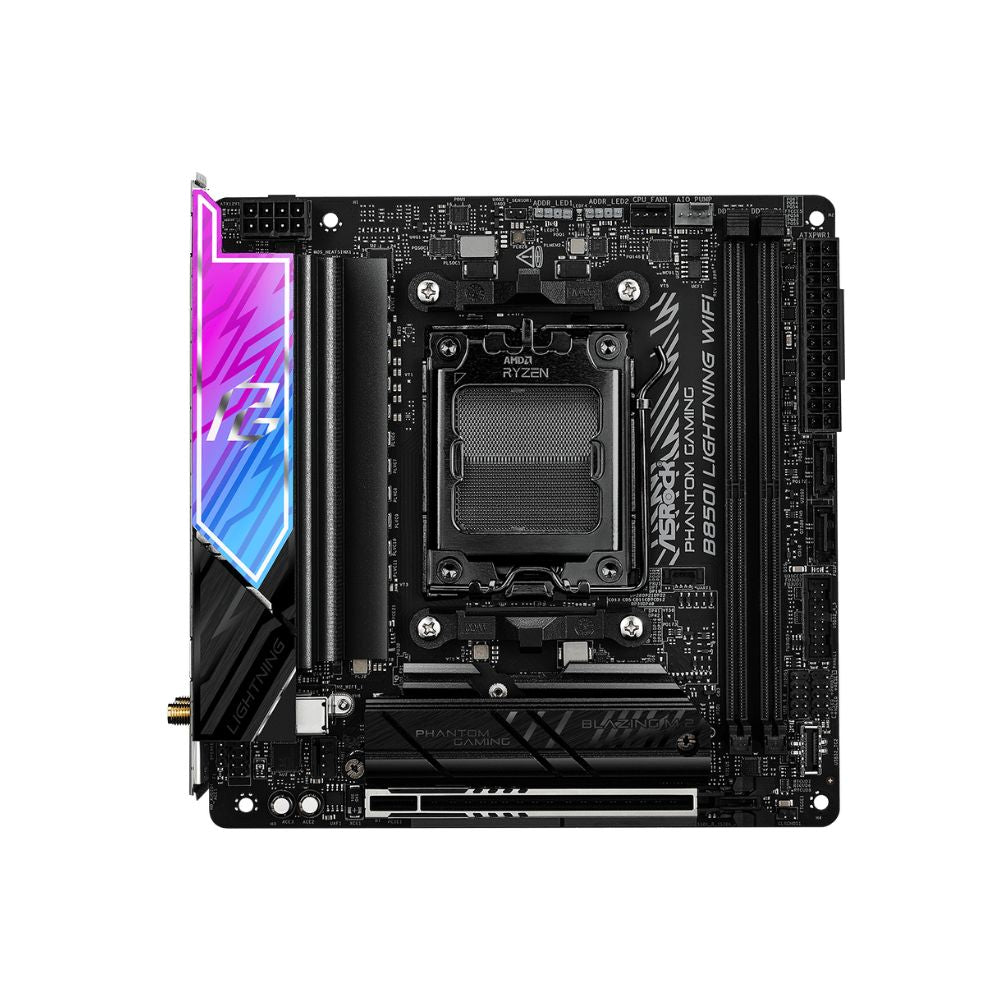

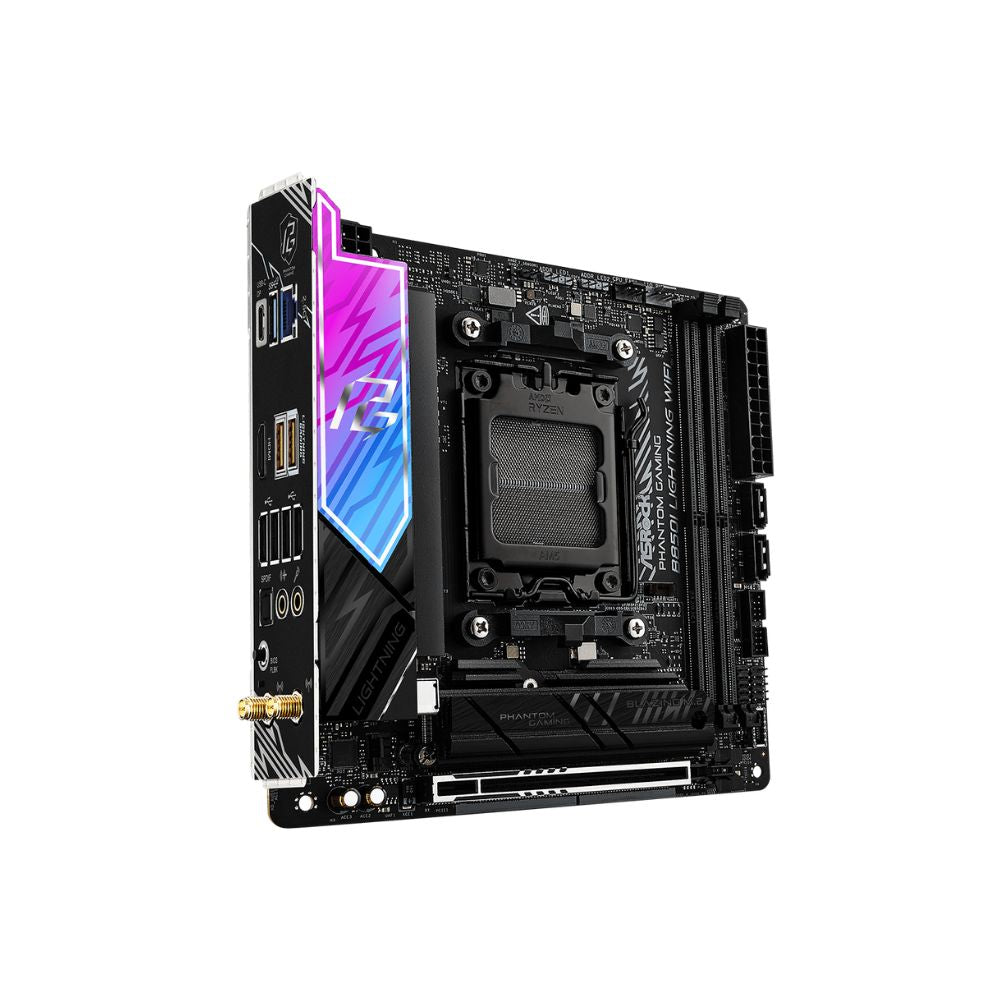

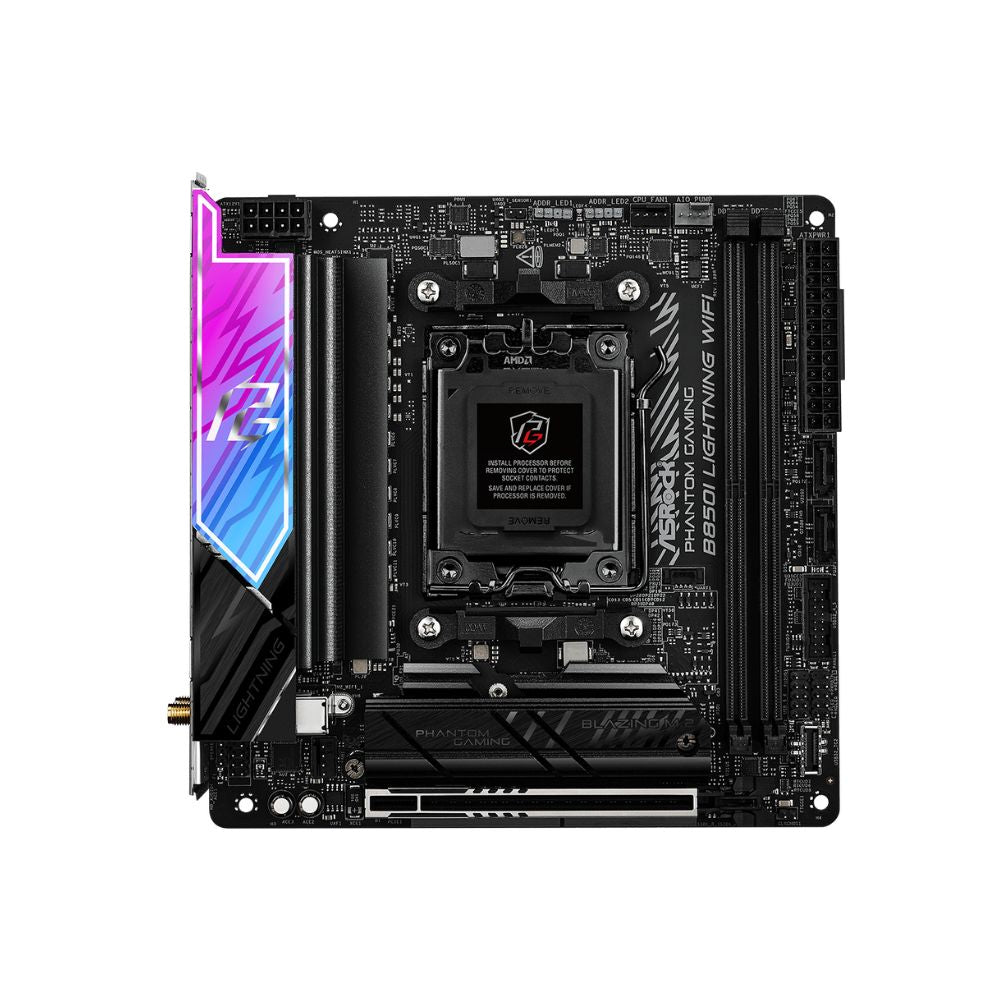

Model Name
B850I

Brand
ASRock

CPU
AMD Socket AM5, supports Ryzen™ 9000 / 8000 / 7000 Series
Expansion slot availability varies by CPU (see PCIe/M.2 bandwidth table)

Chipset
AMD B850

Memory
2 × DDR5 DIMM, dual channel
Supports DDR5 ECC / non-ECC, un-buffered memory up to 8200+ MHz (OC)
Max. capacity: 128 GB
Supports XMP and EXPO memory modules
OS note: Windows 32-bit reserves <4GB; no limitation under 64-bit OS

Graphics (Integrated AMD RDNA™, CPU dependent)
HDMI 2.1 (TMDS/FRL 8G): HDR, HDCP 2.3, up to 4K@120Hz
USB 3.2 Gen2 Type-C (DP 1.4 HBR3 Alt Mode): up to 4K@60Hz
Support varies by CPU

Audio
Realtek® ALC1220 HD Audio Codec, 7.1 CH with Content Protection
Impedance sensing on rear out port
Individual PCB layers for R/L audio channel
Nahimic Audio
Optical SPDIF Out

Networking
Killer E3100G 2.5GbE LAN (10/100/1000/2500 Mbps)
Killer LAN Software with presets (gaming, browser, streaming)
802.11axe Wi-Fi 6E, Dual-Band 2×2, extended 6GHz band (Windows 11 required)
Bluetooth® 5.2, MU-MIMO support

Expansion Slots
CPU: 1 × PCIe 5.0 x16 (x16 / x8 / x4 depending on CPU)
Chipset: 1 × Vertical M.2 (Key E) for Wi-Fi/BT module
Supports NVMe SSD boot disks

Storage
CPU:
1 × Blazing M.2 (Gen5x4, 2280)
Chipset:
1 × Hyper M.2 (Gen4x4, 2280)
2 × SATA3 6Gb/s
RAID:
NVMe: RAID 0/1/10 (RAID 10 requires additional M.2 NVMe cards)
SATA: RAID 0/1

USB
Rear I/O
1 × USB 3.2 Gen2 Type-C (10Gbps, DP Alt Mode supports DP 1.4a; up to 40Gbps with select CPUs)
2 × USB 3.2 Gen2 Type-A (10Gbps, Lightning Gaming Ports)
1 × USB 3.2 Gen1
4 × USB 2.0
Front I/O (via headers)
1 × USB 3.2 Gen1 Type-C
2 × USB 3.2 Gen1 Type-A
1 × USB 2.0 header (2 ports)

Internal Connectors
Power: 24-pin ATX, 8-pin CPU
Cooling: 1 × CPU fan, 1 × AIO pump, 1 × chassis fan (all Smart Fan, up to 3A/36W, auto-detect 3-pin/4-pin)
RGB: 2 × ARGB headers (5V, 15W total), 1 × RGB header (12V, 36W total)
Thermistor header
Front panel audio, USB headers (USB-C, USB 3.2 Gen1, USB 2.0)
Clear CMOS jumper

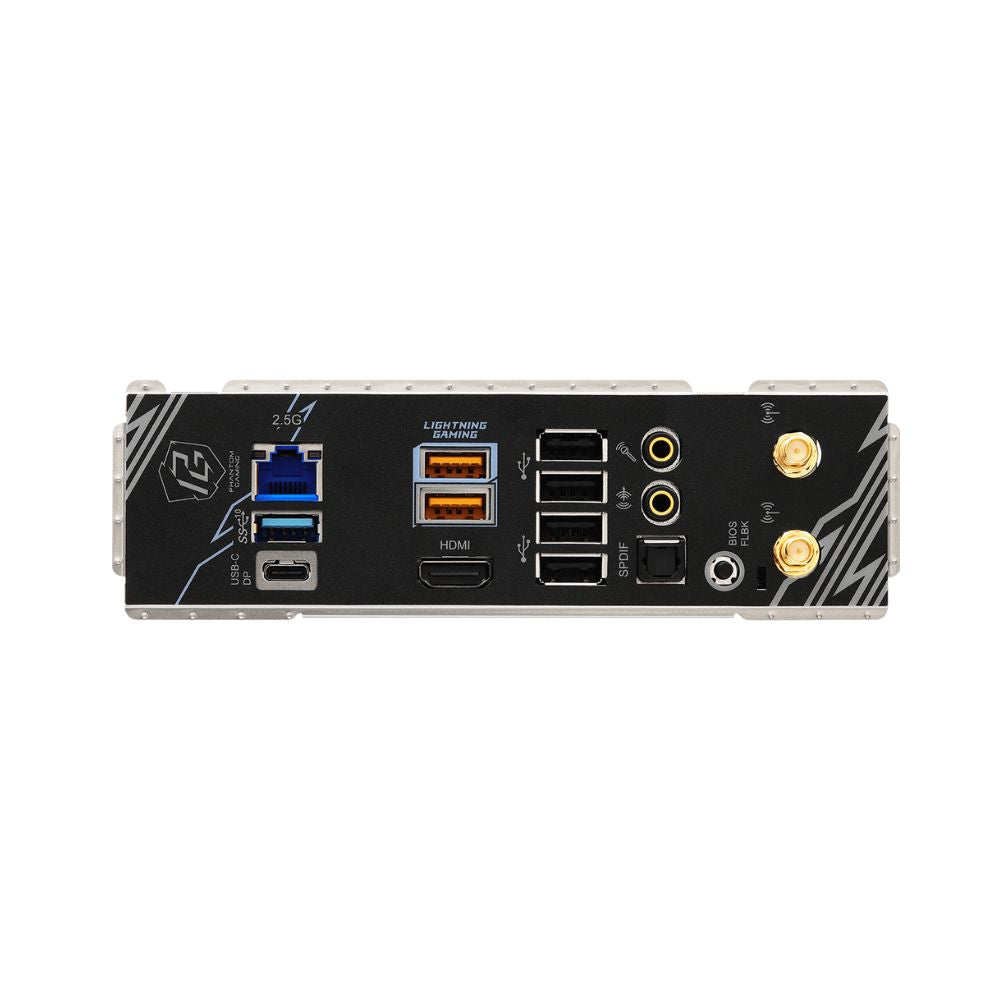

Rear I/O
2 × Antenna ports
1 × HDMI 2.1
1 × USB-C (Gen2, DP Alt Mode)
2 × USB 3.2 Gen2 Type-A (red)
1 × USB 3.2 Gen1
4 × USB 2.0
1 × RJ-45 (2.5G LAN)
1 × Optical SPDIF Out
1 × Line Out (gold)
1 × Mic In (gold)
1 × BIOS Flashback Button

BIOS & Software
256Mb AMI UEFI Legal BIOS (GUI, EZ Mode, Instant Flash, Auto Driver Installer)
ASRock Polychrome SYNC, Phantom Gaming Tuning, Killer Control Center

Unique Features
Superb Productivity: PCIe Gen5 (Graphics, M.2), Dual Channel DDR5
Rock-Solid Durability: 10+1+1 Power Phase, 110A SPS for VCore, Enlarged Heatsink Armor, Flexible Integrated I/O Shield
Ultrafast Gaming: Killer 2.5G LAN, 802.11axe Wi-Fi 6E, Lightning Gaming Ports
EZ Update: BIOS Flashback Button, Auto Driver Installer
EZ Troubleshooter: Post Status Checker

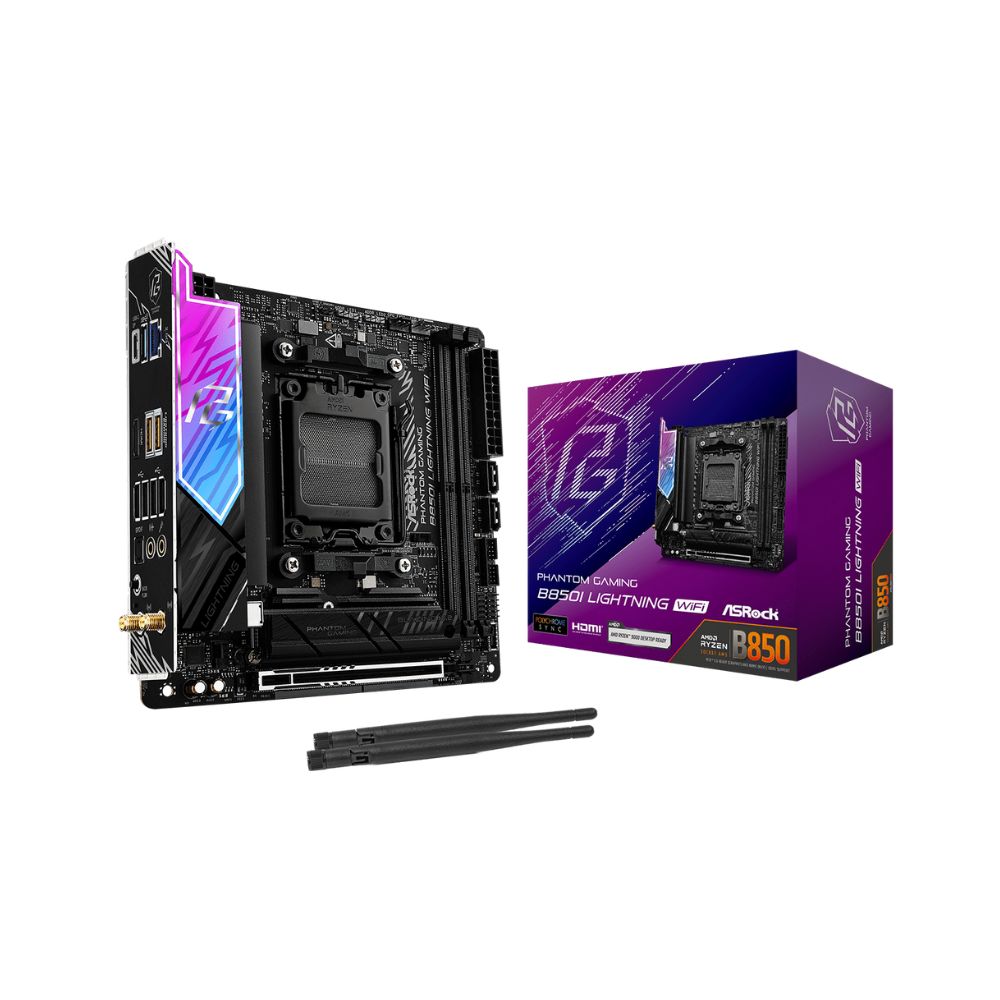

Accessories
2 × SATA cables
2 × Wi-Fi 2.4/5/6 GHz antennas
2 × M.2 screws
1 × Thermistor cable

Form Factor
Mini-ITX, 17.0 × 17.0 cm, 8-layer PCB

OS Support
Windows® 10 64-bit / Windows® 11 64-bit

Certifications
FCC, CE
ErP/EuP ready (requires compliant PSU)
