Model Name

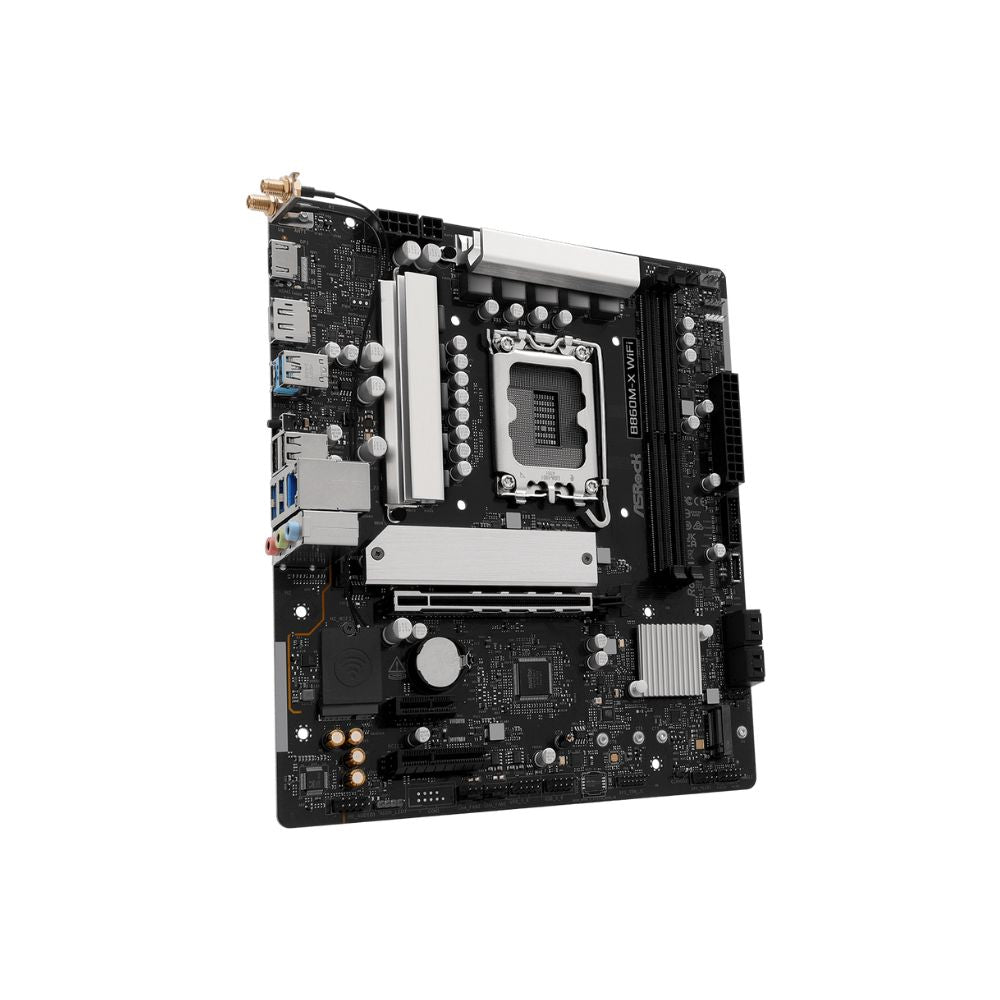

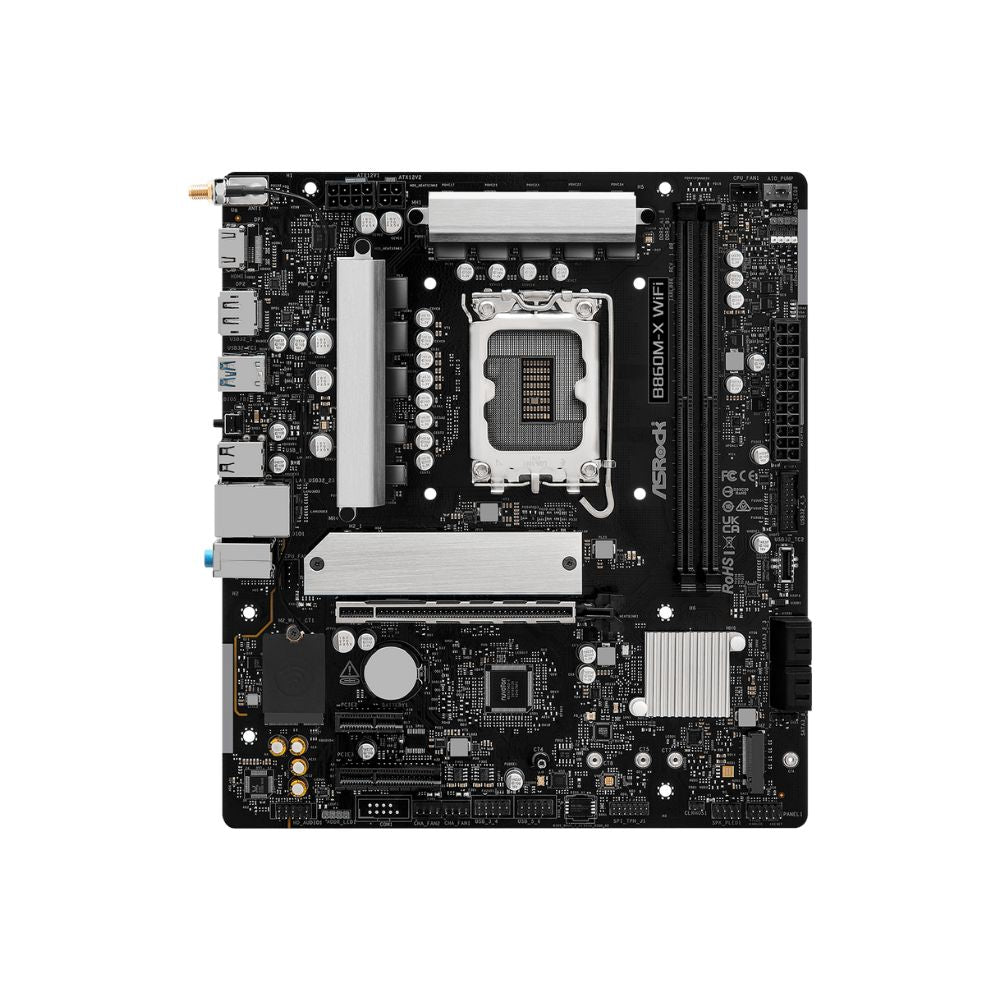

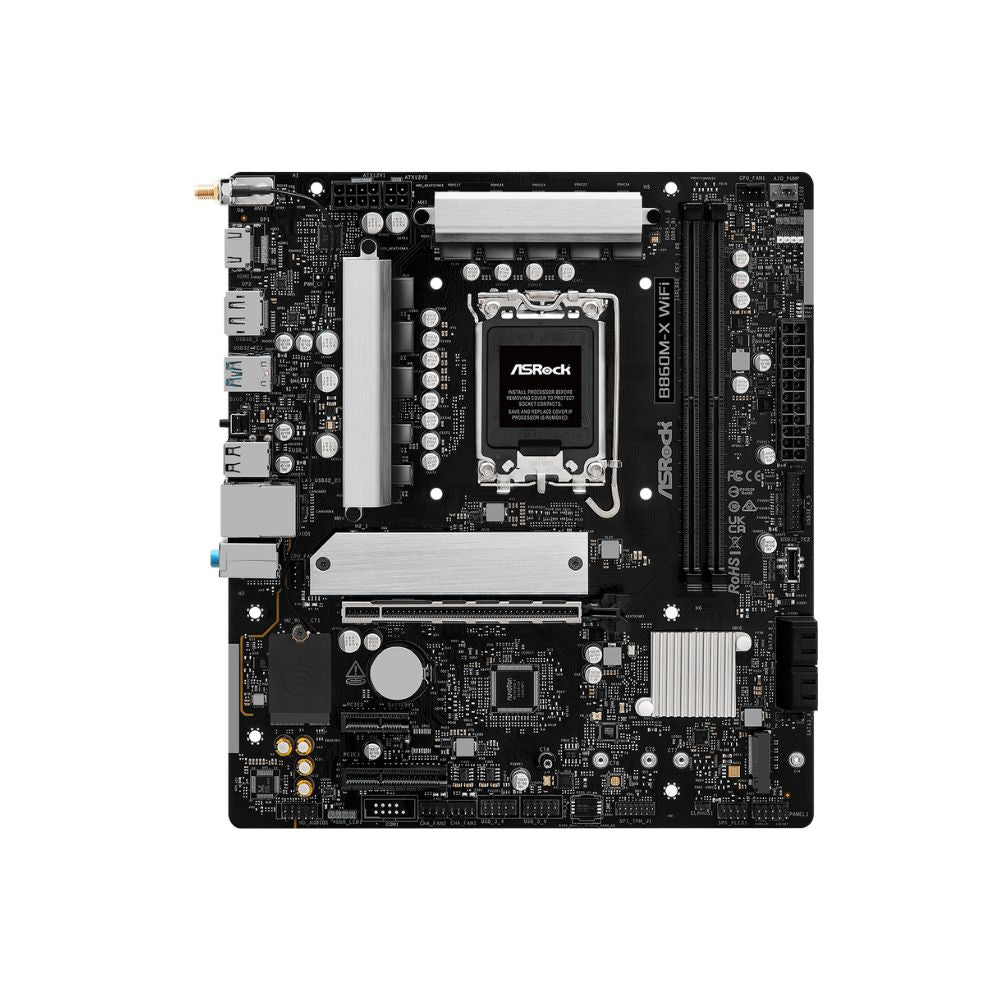

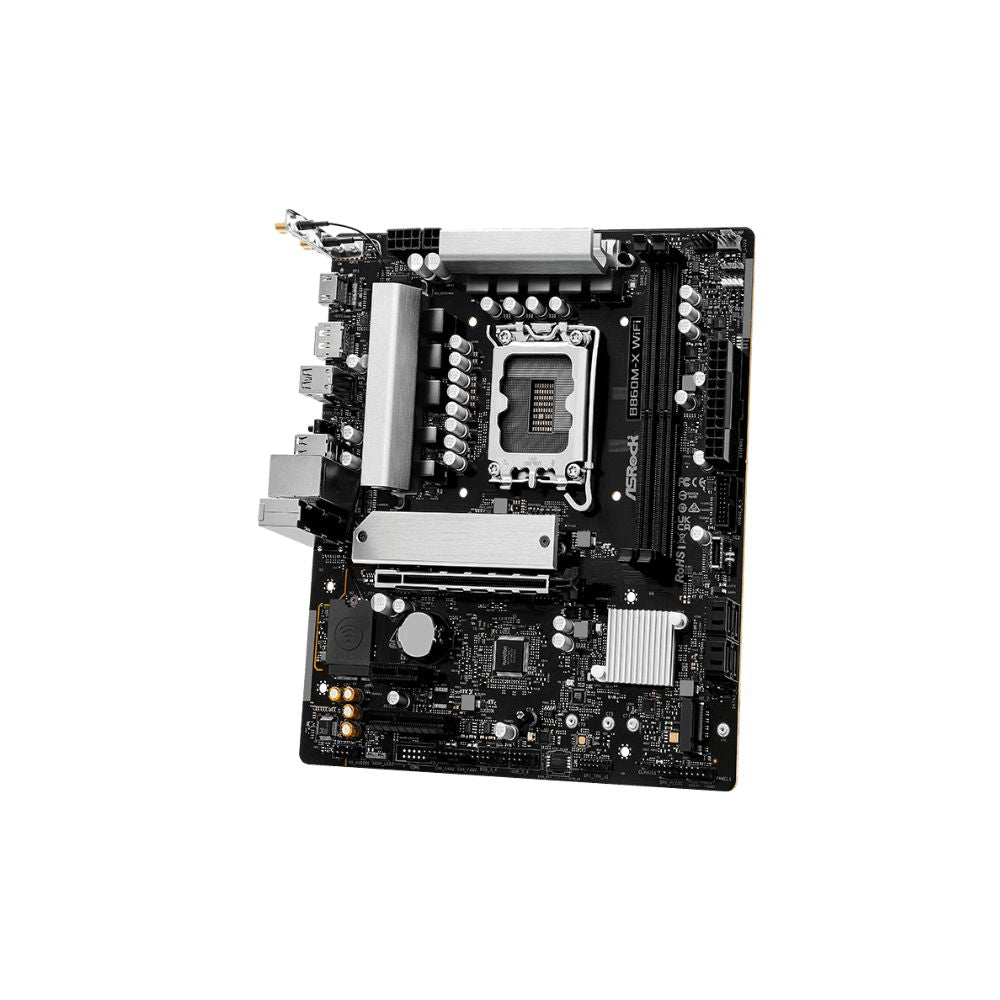

B860M-X WiFi

Brand
ASRock

CPU Support
Intel® LGA1851 socket
Supports Intel® Core™ Ultra (Series 2) Processors
Intel® Hybrid, Turbo Boost Max 3.0, Thermal Velocity Boost (TVB), Adaptive Boost (ABT)
Integrated NPU for AI acceleration

Chipset
Intel® B860

Memory
2× DDR5 DIMM, dual channel, up to 128GB
DDR5 up to 9066+ MHz (OC), 6400 MHz native
Supports Clocked Unbuffered DIMM (CUDIMM), Intel® XMP 3.0

Graphics (CPU dependent)
Intel® Xe LPG Graphics
HDMI 2.1 (4K@120Hz, HDR, HDCP 2.3)
DisplayPort 1.4 (8K@60Hz / 5K@120Hz with DSC)

Audio
Realtek® ALC897, 7.1 CH HD Audio

Networking
Dragon 2.5G LAN with bandwidth control + gaming/streaming/browser presets
Wi-Fi 6E (802.11axe, 2×2), extended 6GHz band (Win11 only), Bluetooth 5.3

Expansion Slots
1× PCIe 4.0 x16 (CPU)
1× PCIe 4.0 x4 (Chipset)
1× PCIe 4.0 x1 (Chipset)
1× M.2 (Key E, Wi-Fi/BT)

Storage
1× Blazing M.2 (PCIe Gen5x4, CPU)
1× Hyper M.2 (PCIe Gen4x4, Chipset)
4× SATA3 6Gb/s
RAID 0/1/5/10 (SATA); Intel® VMD; NVMe SSD boot

USB
Rear: 1× USB-C 3.2 Gen2x2 (20Gbps), 3× USB-A 3.2 Gen1, 2× USB 2.0
Front: 1× USB-C 3.2 Gen1, 2× USB-A 3.2 Gen1, 4× USB 2.0

Cooling & RGB
2× CPU fan headers, 1× AIO pump, 2× chassis fan headers
1× RGB header (12V), 2× ARGB headers (5V)

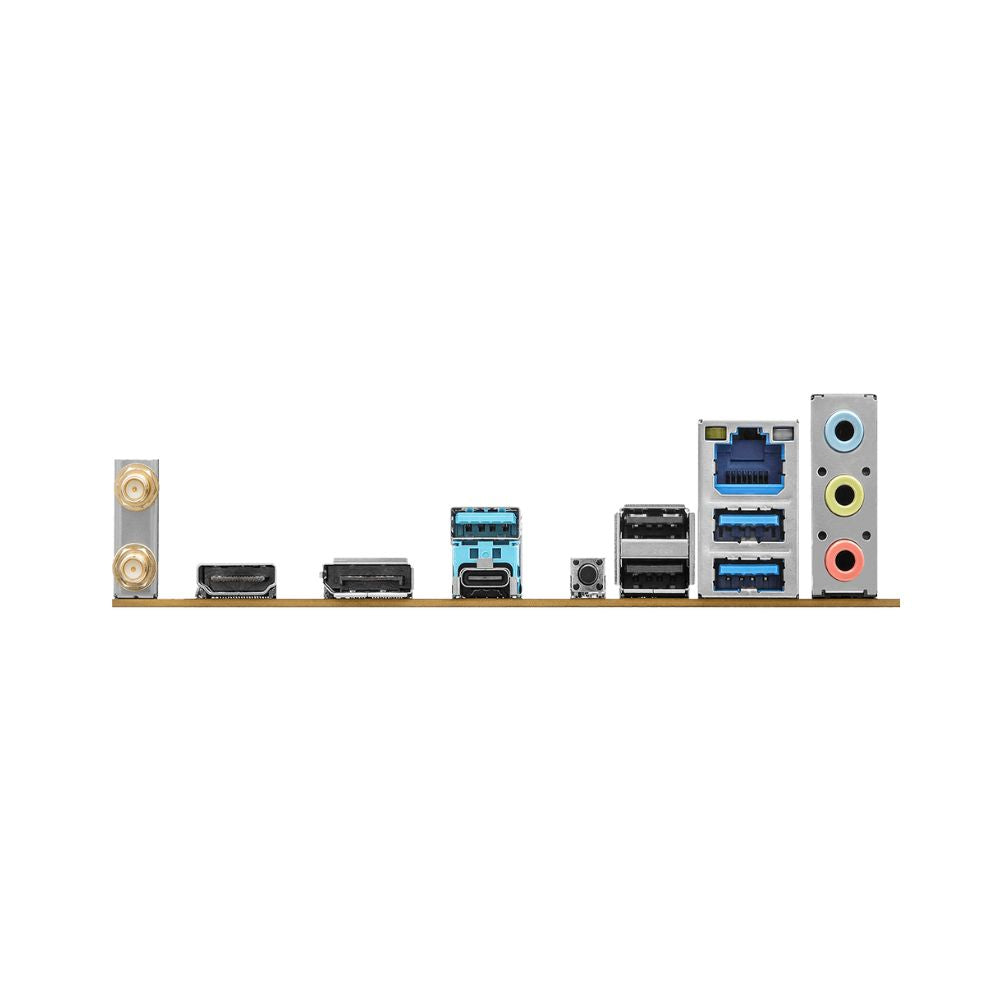

Rear I/O
2× antenna ports, HDMI, DP 1.4
USB-C (Gen2x2), 3× USB-A 3.2, 2× USB 2.0
RJ-45 (2.5G LAN), BIOS Flashback button
HD audio jacks (Line-in, Front Speaker, Mic)

BIOS / Software
256Mb AMI UEFI BIOS, EZ Mode, Instant Flash, My Favorites
ASRock Polychrome SYNC, A-Tuning, Auto Driver Installer, Dragon LAN Software

Accessories

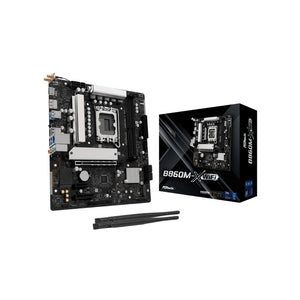

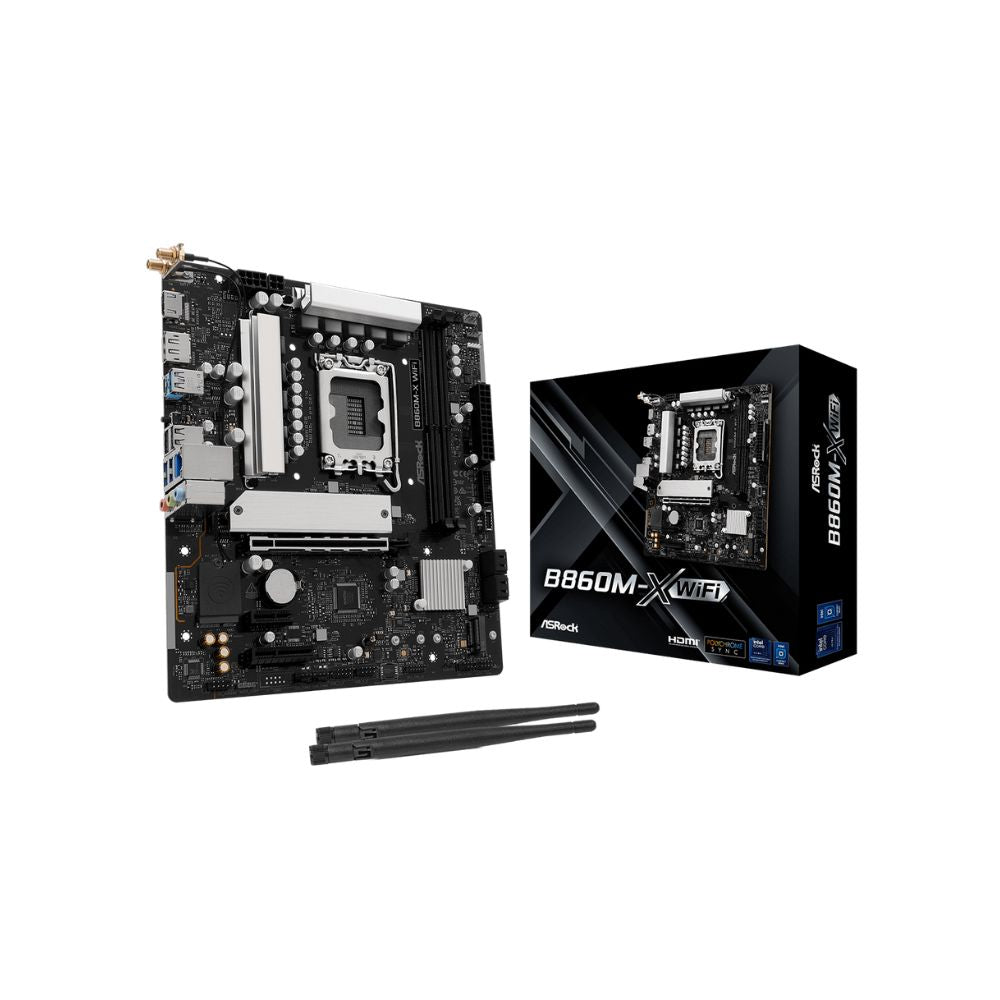

I/O shield, 2× SATA cables, 2× Wi-Fi antennas, M.2 screw + standoff

Unique Features
Superb Productivity: PCIe Gen5 M.2, Dual Channel DDR5
Rock-Solid Durability: 7+1+1+1+1 Power Phase, Dr.MOS
Ultrafast Connectivity: 2.5G LAN, Wi-Fi 6E (802.11axe), Bluetooth 5.3
EZ Update: BIOS Flashback, Auto Driver Installer
EZ Troubleshooter: ASRock Post Status Checker

Form Factor
Micro-ATX (24.4 × 21.8 cm)

OS Support
Windows 11 64-bit only

Certifications
FCC, CE, ErP/EuP ready

3 YEARS WARRANTY
