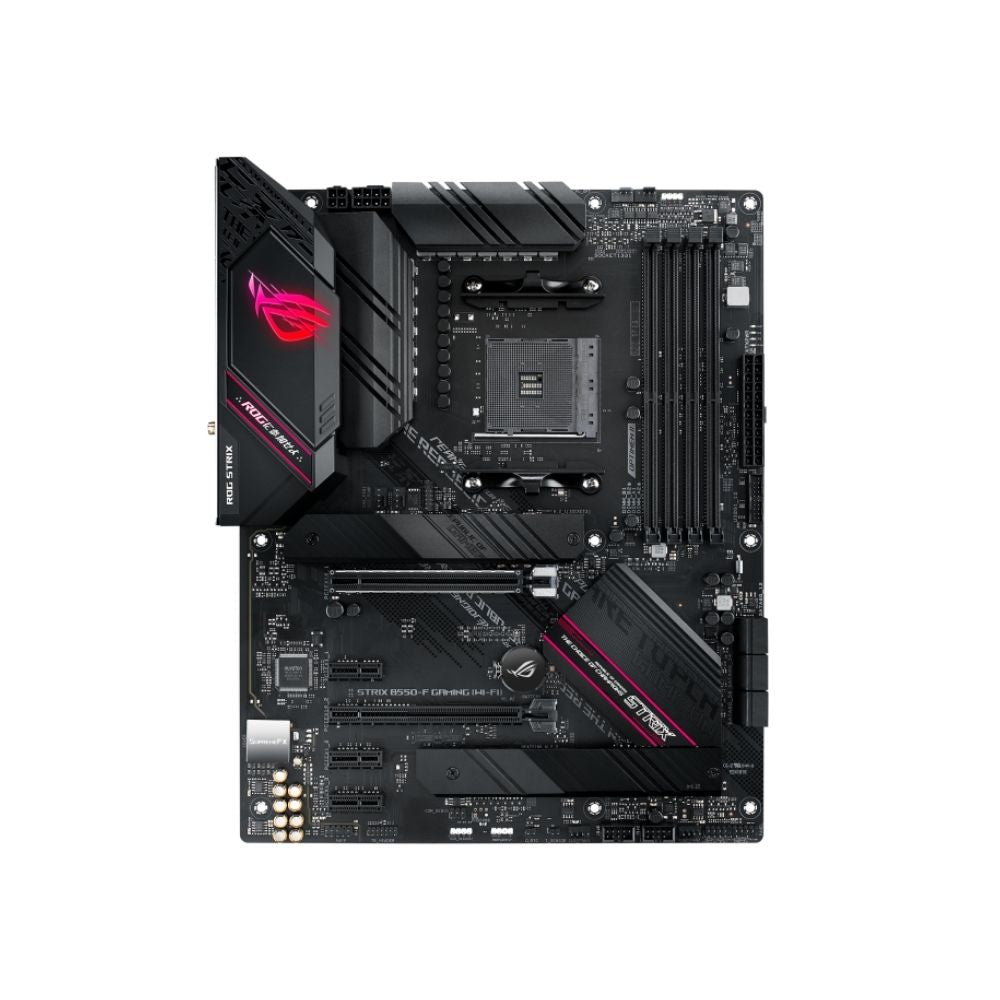

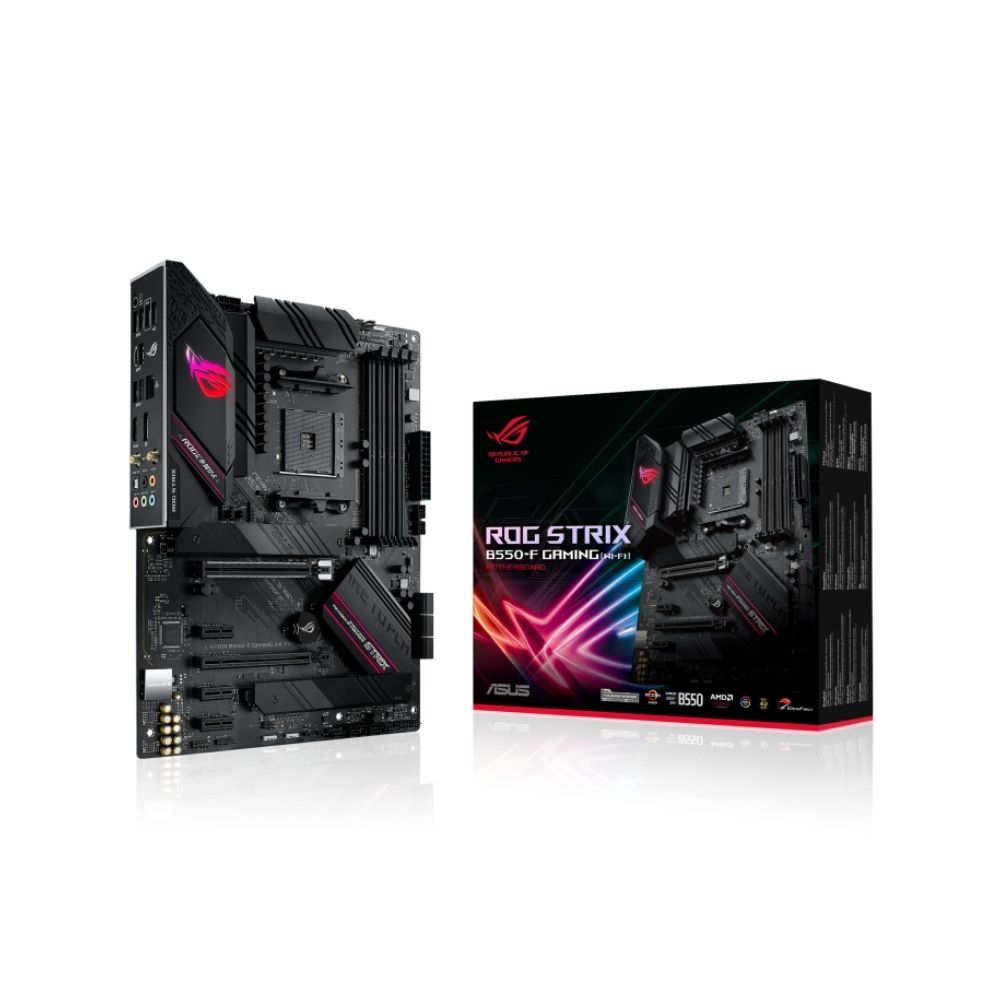

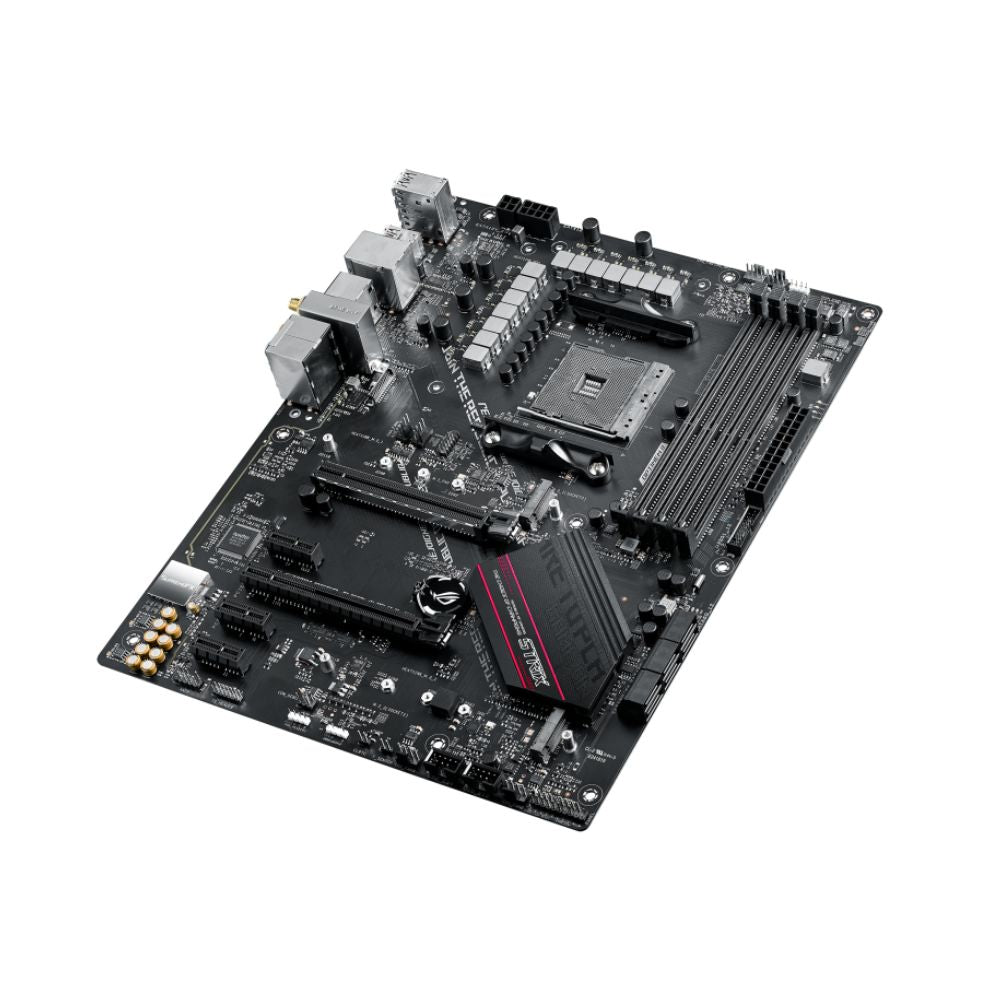

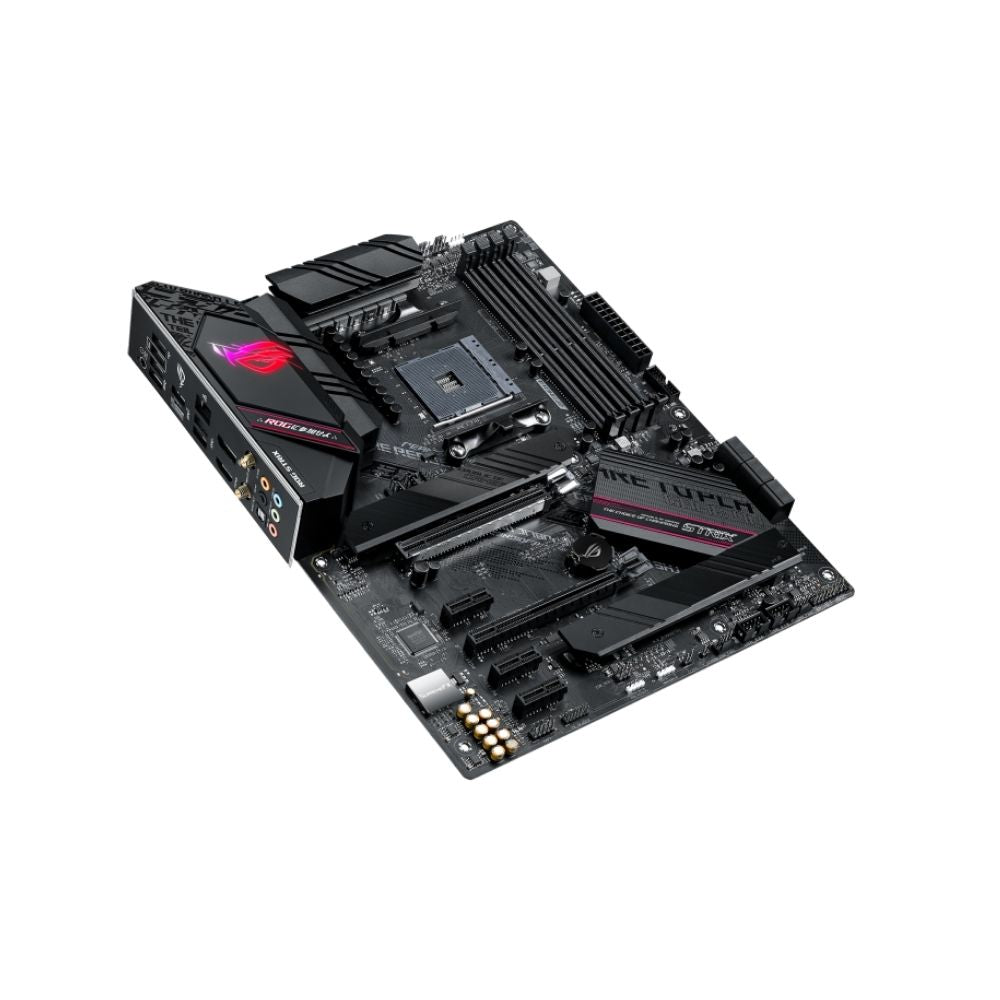

ASUS ROG STRIX B550-F GAMING WI-FI Motherboard

Model
ROG STRIX B550-F GAMING (WI-FI)

CPU
AMD AM4 Socket for AMD Ryzen 5000 Series, 4000 G-Series, 3000 Series Desktop Processors

Chipset
AMD B550

Memory
AMD Ryzen 4000 G-Series Processors
4 x DIMM, Max. 128GB, DDR4 5100(O.C) / 4800(O.C.) / 4600(O.C) / 4400(O.C) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3600(O.C.) / 3466(O.C.) / 3200 / 3000 / 2800 / 2666 / 2400 / 2133 MHz Memory
4 x DIMM, Max. 128GB, DDR4 4600(O.C) / 4400(O.C) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3600(O.C.) / 3466(O.C.) / 3200 / 3000 / 2800 / 2666 / 2400 / 2133 MHz Un-buffered Memory
OptiMem II
Dual Channel Memory Architecture
ECC Memory (ECC mode) support varies by CPU

Graphics
1 x HDMI 2.1 (4K@60Hz)
1 x DisplayPort 1.2

Multi-GPU Support
Supports AMD 2-Way CrossFireX Technology

Expansion Slots
AMD Ryzen 5000 Series / 3000 Series Desktop Processors
1 x PCIe 4.0 x16 (x16 mode)
AMD B550 Chipset
1 x PCIe 3.0 x16 (x16 mode)
1 x PCIe 3.0 x16 (x4 mode)
3 x PCIe 3.0 x1

Storage
Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports
AMD Ryzen 4000 G-Series Processors
1 x M.2_2 Socket 3, M key, type 2242/2260/2280/22110 (SATA & PCIe 3.0 x4 mode)
1 x M.2_1 Socket 3, M key, type 2242/2260/2280/22110 (SATA & PCIe 4.0 x4 mode)
AMD Ryzen 5000 Series / 3000 Series Desktop Processors
1 x M.2_2 Socket 3, M key, type 2242/2260/2280/22110 (SATA & PCIe 3.0 x4 mode)
1 x M.2_1 Socket 3, M key, type 2242/2260/2280/22110 (SATA & PCIe 4.0 x4 mode)
AMD B550 Chipset
1 x M.2_1 Socket 3, M key, type 2242/2260/2280/22110 (SATA & PCIe 3.0 x4 mode)
6 x SATA 6Gb/s ports
Support RAID 0, 1, 10

LAN
Intel I225-V 2.5Gb Ethernet
ASUS LANGuard

Wireless Data Network
2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) supporting 1024QAM, OFDMA, MU-MIMO
Supports dual band 2.4 / 5 GHz
Supports channel bandwidth HT20 / HT40 / HT80 / HT160
Intel Wi-Fi 6 AX200

Bluetooth
Bluetooth v5.1

Audio
ROG SupremeFX 7.1-Channel High Definition Audio CODEC S1220A
Optical S/PDIF out port at back panel
Dual OP Amplifiers
Impedance sense for front and rear headphone outputs
Supports jack-detection, multi-streaming, front panel jack-retasking
High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
Supports up to 32-bit / 192 kHz playback

Audio Features
SupremeFX Shielding Technology
Audio shielding
Premium Japanese audio capacitors
Audio cover

USB Ports
Front USB Port (Total 6)
Rear USB Port (Total 8)
4 x USB 3.2 Gen 1 ports (4 x Type-A)
2 x USB 3.2 Gen 2 ports (1 x Type-A + 1 x USB Type-C)
2 x USB 3.2 Gen 1 ports
2 x USB 2.0 ports
4 x USB 2.0 ports

Software Features
ROG Exclusive Software
RAMCache III
ROG CPU-Z
GameFirst VI
Sonic Studio III + Sonic Studio Virtual Mixer
Sonic Radar III
DTS Sound Unbound
Overwolf
Anti-virus software
ASUS Exclusive Software Features
Armoury Crate with Aura Creator, Aura Sync, AI Noise Cancelling Microphone
AI Suite 3 with PPSU, EPU, DIGI+ VRM, Fan Xpert 4, TurboV EVO, EZ Update
WinRAR
UEFI BIOS with ASUS CrashFree BIOS 3, ASUS EZ Flash 3, ASUS UEFI BIOS EZ Mode

ASUS Special Features
Aura Sync with standard RGB headers and Addressable Gen 2 RGB headers
ASUS Q-Design with Q-DIMM, Q-LED (DRAM [yellow], CPU [red], VGA [white], Boot Device [yellow green]), Q-Slot
ASUS Thermal Solution with aluminum M.2 heatsink
ASUS EZ DIY with BIOS FlashBack button and LED, Clear CMOS header, ProCool, pre-mounted I/O shield, SafeSlot

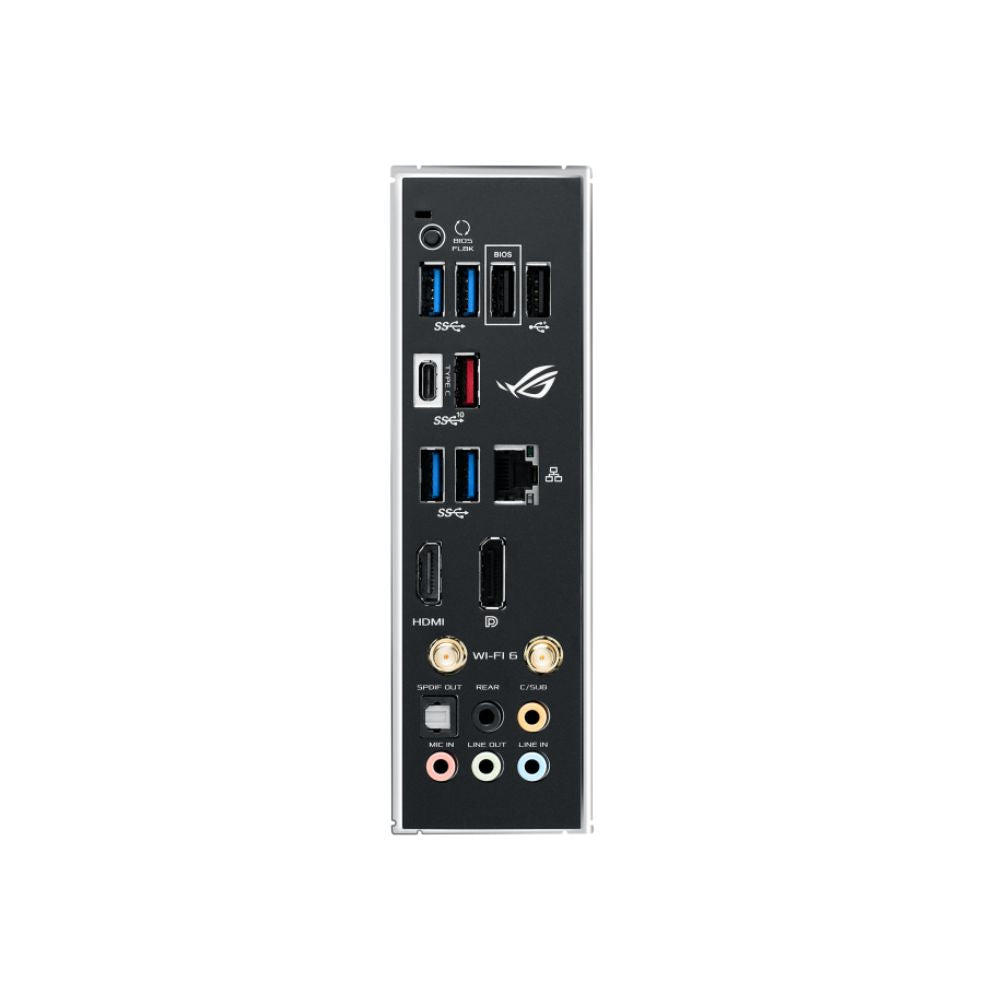

Back I/O Ports
1 x BIOS FlashBack button
2 x USB 3.2 Gen 2 (1 x Type-A + 1 x USB Type-C)
1 x Intel I225-V 2.5Gb Ethernet
4 x USB 3.2 Gen 1
1 x DisplayPort
1 x HDMI
2 x USB 2.0
1 x Optical S/PDIF out
ASUS Wi-Fi module (Wi-Fi 802.11 a/b/g/n/ac and Bluetooth v5.0)
5 x Audio jacks

Internal I/O Ports
1 x AAFP connector
1 x M.2 Socket 1, M key, type 2242/2260/2280/22110 (SATA & PCIe 4.0 x4 mode)
1 x M.2 Socket 2, M key, type 2242/2260/2280/22110 (SATA & PCIe 3.0 x4 mode)
1 x USB 3.2 Gen 1 connector (up to 5Gbps, supports 2 additional USB 3.2 Gen 1 ports)
1 x Thunderbolt header
1 x CPU Fan connector
1 x CPU OPT Fan connector
3 x Chassis Fan connectors
1 x AIO_PUMP connector
2 x Aura RGB Strip headers
1 x Addressable Gen 2 header
2 x USB 2.0 connectors (support 4 additional USB 2.0 ports)
6 x SATA 6Gb/s connectors
1 x 24-pin EATX Power connector
1 x 8-pin ATX 12V Power connector
1 x 4-pin ATX 12V Power connector
1 x System panel
1 x Thermal sensor connector
1 x Clear CMOS jumper

Accessories
1 x M.2 SSD screw package
1 x M.2 rubber package

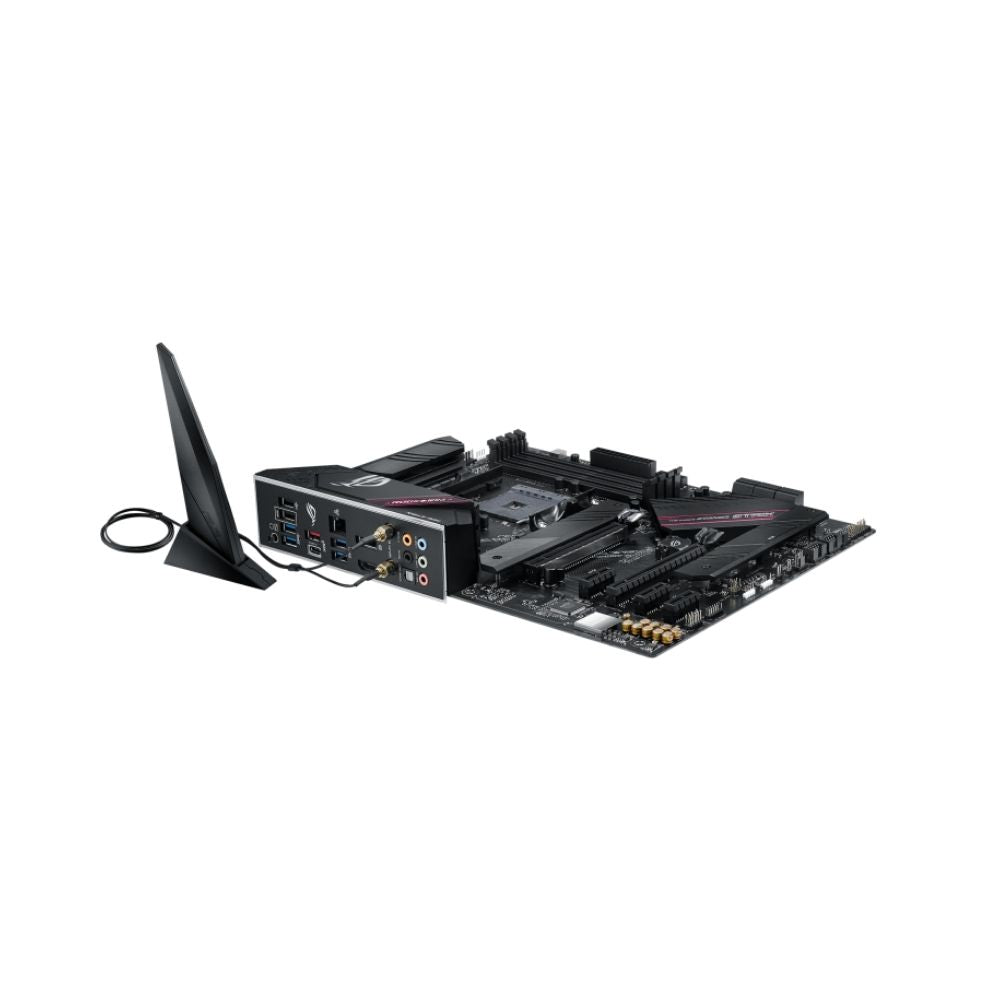

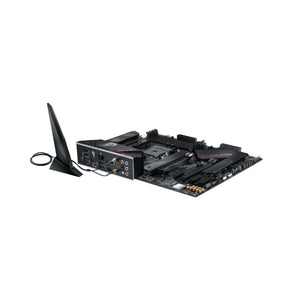

1 x Wi-Fi moving antenna
4 x SATA 6Gb/s cables
1 x Supporting DVD
1 x ROG Strix stickers
1 x Cable ties pack
1 x Extension cable for Addressable LED
1 x ROG Thank you card
User manual

BIOS
256 Mb Flash ROM, UEFI AMI BIOS

Manageability
WOL by PME, PXE

Operating System
Windows 10 64-bit

Form Factor
ATX Form Factor, 12 inch x 9.6 inch (30.5 cm x 24.4 cm)

3 YEARS WARRANTY
