Model Name
B650 AORUS ELITE AX ICE

Brand
GIGABYTE

CPU
AMD Socket AM5, supports Ryzen™ 7000 / 8000 / 9000 Series

Chipset
AMD B650

Memory
4 × DDR5 DIMM, up to 256 GB (64 GB per DIMM), dual channel
Supports DDR5 8000(OC)–4400 MT/s
Supports non-ECC unbuffered DIMM 1Rx8/2Rx8/1Rx16
Supports AMD EXPO™ & XMP profiles

Graphics (CPU dependent)
Integrated Radeon™ Graphics
1 × DisplayPort 1.4: max 3840×2160@144Hz, HDR
1 × HDMI 2.1: max 4096×2160@60Hz, HDCP 2.3, native TMDS

Audio
Realtek® HD Audio CODEC, 2/4/5.1/7.1-channel, S/PDIF Out

Networking
LAN: Realtek® 2.5GbE (2.5G/1G/100M)
Wi-Fi 6E + Bluetooth 5.3
PCB rev. 1.0: Realtek® RTL8852CE
PCB rev. 1.1: Intel® AX210 (2.4/5/6 GHz, 160MHz; actual rates may vary)

Expansion Slots
CPU: 1 × PCIe x16 (Ryzen 7000/9000: PCIe 4.0 x16; Phoenix 1: x8; Phoenix 2: x4) – GPU or NVMe SSD only
Chipset: 2 × PCIe 3.0 x1

Storage
CPU: M.2 (M2A): PCIe 5.0/4.0 x4/x2 (25110/22110/2580/2280), M.2 (M2B): PCIe 4.0 x4/x2 (25110/22110/2580/2280; Phoenix 2: x2)
Chipset: M.2 (M2C): PCIe 4.0 x4/x2 (25110/22110/2580/2280), 4 × SATA 6Gb/s
Supports RAID 0/1/10 for NVMe & SATA

USB
CPU (rear): 1 × USB-C (3.2 Gen2), 2 × USB-A (3.2 Gen2 red), 4 × USB 2.0
Chipset (internal): 1 × USB-C (3.2 Gen2x2), 3 × USB-A (3.2 Gen1), 4 × USB 2.0
Back panel total: 1 × USB-C (Gen2), 2 × USB-A (Gen2 red), 5 × USB-A (Gen1), 4 × USB 2.0

Internal I/O
24-pin ATX, 8-pin + 4-pin CPU power
Cooling: CPU fan, CPU/water pump, 3 × system fans, 1 × system/water pump
RGB: 3 × ARGB Gen2, 1 × RGB, 1 × CPU cooler LED
Storage: 3 × M.2, 4 × SATA
USB: USB-C (Gen2x2), USB-A (Gen1), 2 × USB 2.0
Other: TPM header, serial port, THB_U4, reset button, reset jumper, Clear CMOS

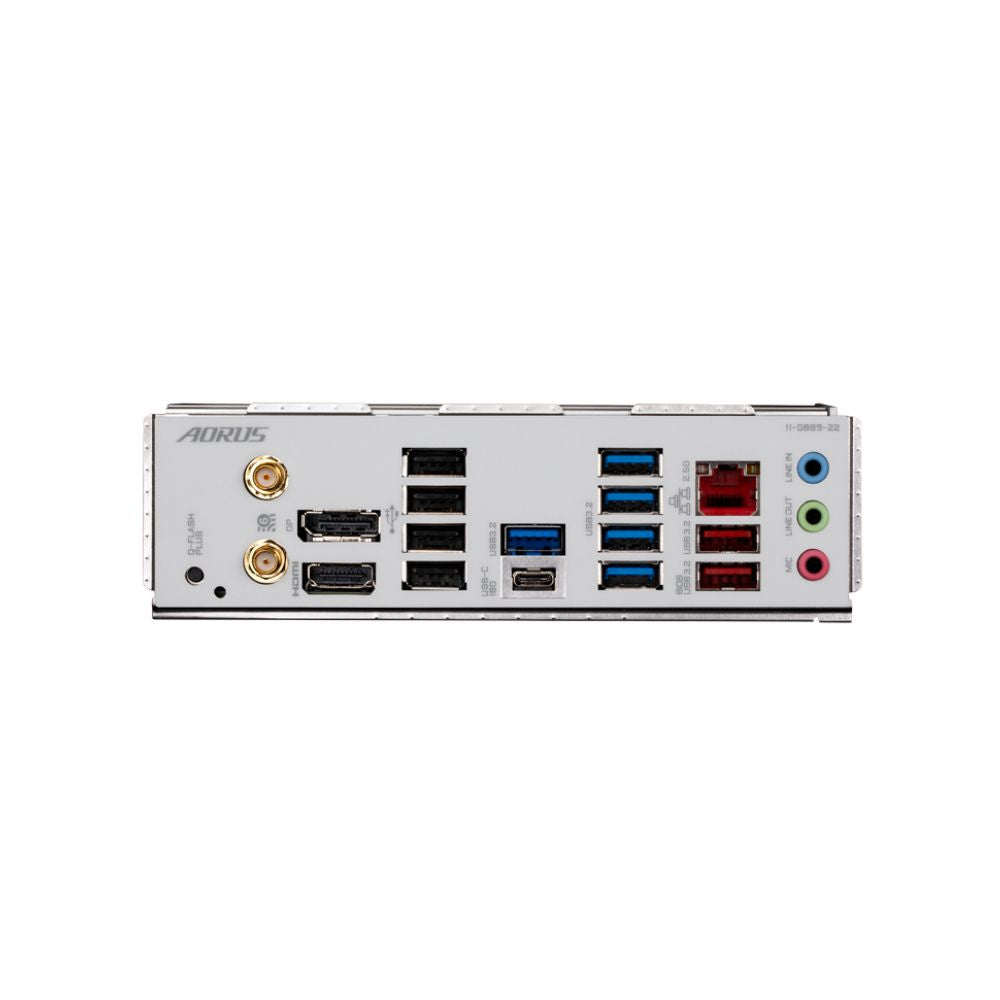

Back Panel
Q-Flash Plus, 2 × SMA antenna, DP, HDMI
USB: 1 × USB-C (Gen2), 2 × USB-A (Gen2 red), 5 × USB-A (Gen1), 4 × USB 2.0
RJ-45, 3 × audio jacks

Controller & Monitoring
iTE® I/O Controller, voltage/temp/fan/water flow monitoring, fan fail warning, fan control

BIOS
AMI UEFI BIOS, 256 Mbit flash, PnP 1.0a, DMI 2.7, WfM 2.0, SMBIOS 2.7, ACPI 5.0

Features
GIGABYTE Control Center, Q-Flash, Q-Flash Plus

Software
Norton® Internet Security (OEM), LAN bandwidth management

OS Support
Windows 11 64-bit, Windows 10 64-bit

Form Factor
ATX, 30.5 × 24.4 cm

3 YEARS WARRANTY
