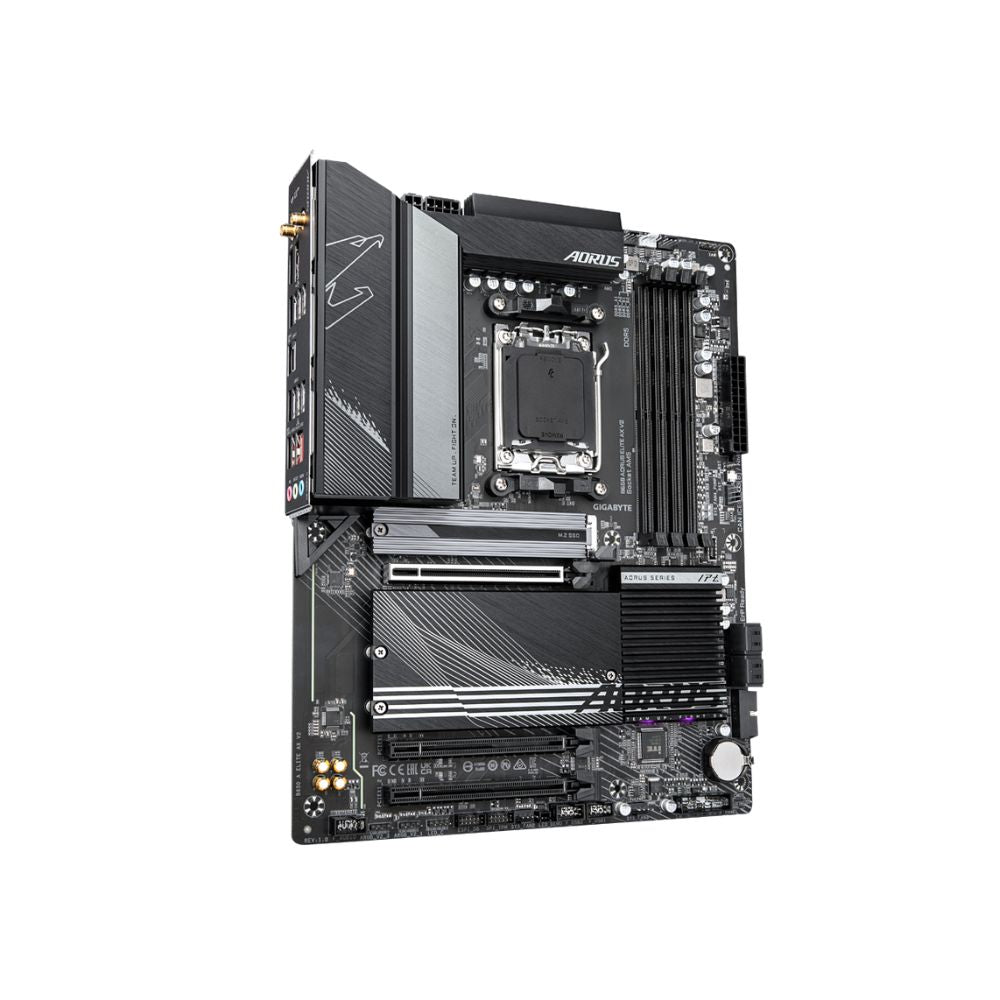

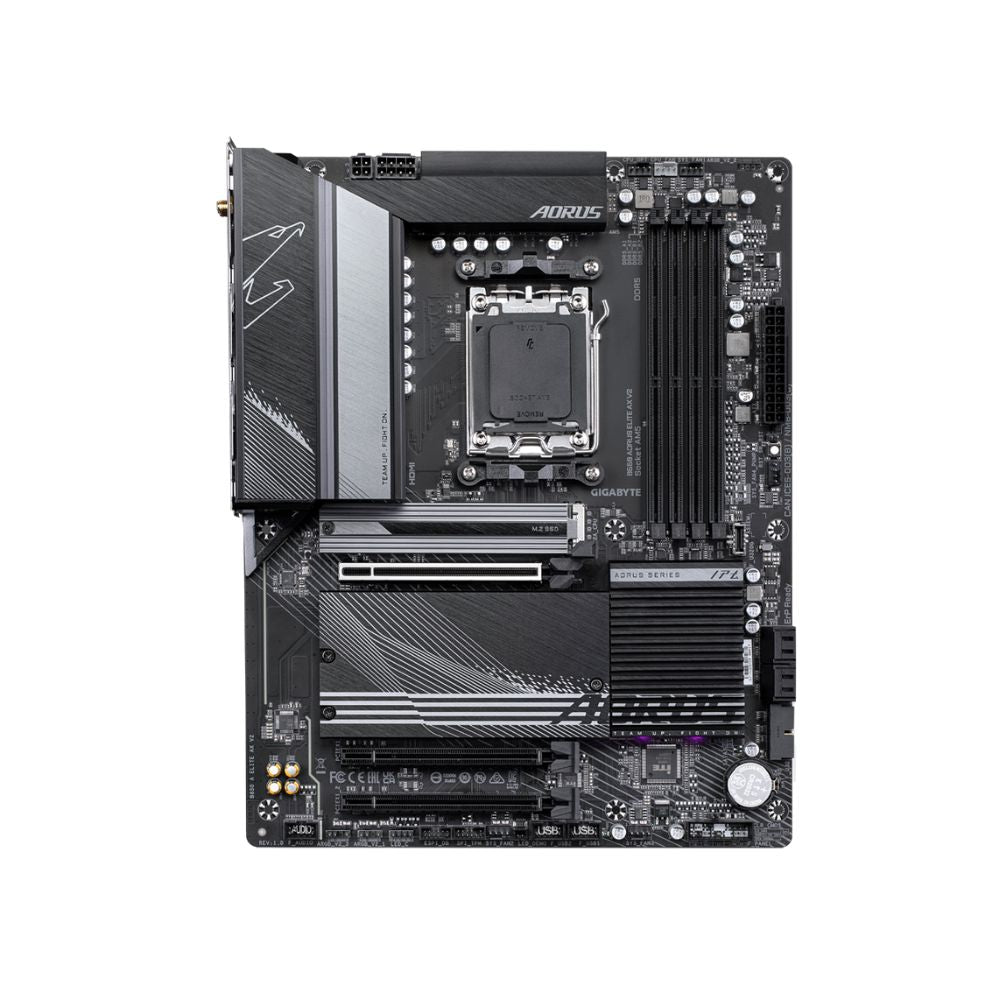

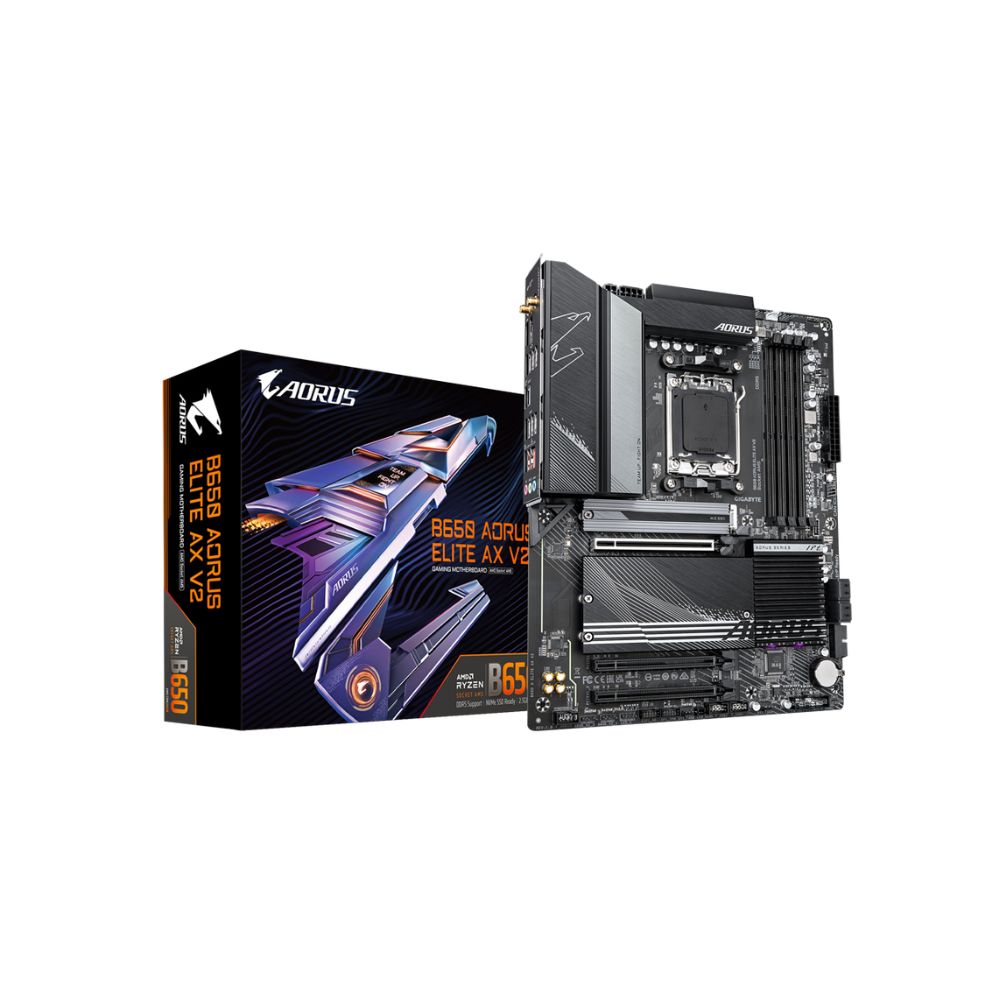

Gigabyte B650 Aorus Elite AX V2 Motherboard

Gigabyte B650 Aorus Elite AX V2 Motherboard

Name: Gigabyte B650 Aorus Elite AX V2 Motherboard
Brand: Mansa Computers
Price: 349.0 SGD
Availability: InStock

SKU: B650 A

FAST ∙ STABLE ∙ ADVANCED

You demand speed. You demand stability. You demand a system that endures.

This board drives DDR5 up to 8000 MT/s. Memory is sharp, responsive, and always ready when you are. It carries PCIe 5.0 M.2 storage. Data moves at next-gen speeds, cutting load times to seconds.

It connects through Wi-Fi 6E and 2.5GbE LAN. Your network is faster, cleaner, and built for tomorrow. This is not just a motherboard. This is your foundation for power.

Key Features

Chipset: AMD B650

Memory: 4 × DDR5 DIMM, up to 256 GB (64 GB single DIMM capacity)

Expansion Slots: 1 x PCI Express x16 slot PCIEX16 (CPU), 2 x PCI Express x16 slots (Chipset)

Storage: CPU: M.2 (M2A): PCIe 5.0/4.0 x4/x2 (25110/22110/2580/2280), M.2 (M2B): PCIe 4.0 x4/x2 (25110/22110/2580/2280; Phoenix 2: x2), Chipset: M.2 (M2C): PCIe 4.0 x4/x2 (25110/22110/2580/2280), 4 × SATA 6Gb/s

Form Factor: ATX

3 Years Warranty

Ultra-fast Memory

Fast Wi-Fi 6E

$349.00

Full Specifications

Model Name
B650 A ELITE AX V2

Brand
GIGABYTE

CPU
AMD Socket AM5, supports Ryzen™ 7000 / 8000 / 9000 Series (see CPU Support List).

Chipset
AMD B650

Memory
DDR5 8000(OC)–4400 MT/s
4 × DDR5 DIMM, up to 256 GB (64 GB per DIMM), dual channel
Supports non-ECC unbuffered DIMM 1Rx8/2Rx8/1Rx16
Supports AMD EXPO™ & XMP profiles

Graphics (CPU dependent)
Integrated Radeon™ Graphics
1 × DisplayPort 1.4: max 3840×2160@144Hz, HDR
1 × HDMI 2.1: max 4096×2160@60Hz, HDCP 2.3, native TMDS

Audio
Realtek® HD Audio CODEC, 2/4/5.1/7.1-channel, S/PDIF Out

Networking
LAN: Realtek® 2.5GbE (2.5G/1G/100M)
Wi-Fi 6E + Bluetooth 5.3
PCB rev. 1.0: Realtek® RTL8852CE
PCB rev. 1.1: Intel® AX210
(2.4/5/6 GHz, 160MHz; actual rates may vary)

Expansion Slots
CPU: 1 × PCIe x16 (Ryzen 7000/9000: 4.0 x16; Phoenix 1: x8; Phoenix 2: x4) – GPU or NVMe SSD only
Chipset: 2 × PCIe 3.0 x1

Storage
CPU:
M.2 (M2A): PCIe 5.0/4.0 x4/x2 (25110/22110/2580/2280)
M.2 (M2B): PCIe 4.0 x4/x2 (25110/22110/2580/2280; Phoenix 2: x2)

Chipset:
M.2 (M2C): PCIe 4.0 x4/x2 (25110/22110/2580/2280)
4 × SATA 6Gb/s
RAID 0/1/10 for NVMe & SATA

USB
CPU:
Rear: 1 × USB-C (3.2 Gen2), 2 × USB-A (3.2 Gen2 red), 4 × USB 2.0

Chipset:
Internal: 1 × USB-C (3.2 Gen2x2), 3 × USB-A (3.2 Gen1), 4 × USB 2.0
Back Panel Total: 1 × USB-C (Gen2), 2 × USB-A (Gen2 red), 5 × USB-A (Gen1), 4 × USB 2.0

Internal I/O
24-pin ATX, 8-pin + 4-pin CPU power
Cooling: CPU fan, CPU/water pump, 3 × system fans, 1 × system/water pump
RGB: 3 × ARGB Gen2, 1 × RGB, 1 × CPU cooler LED
3 × M.2, 4 × SATA
USB-C (Gen2x2), USB-A (Gen1), 2 × USB 2.0
TPM header, serial port, THB_U4 connector
Reset button, reset jumper, Clear CMOS

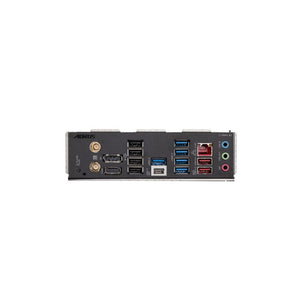

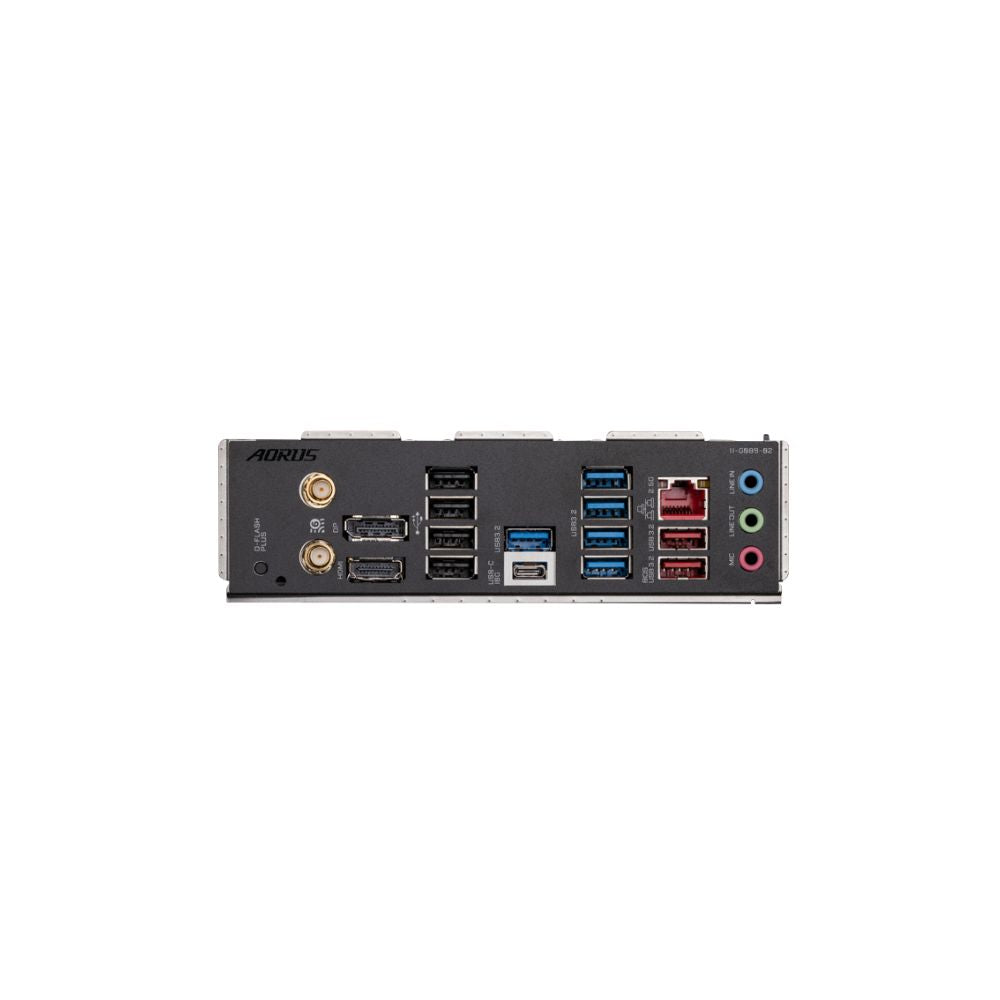

Back Panel
Q-Flash Plus, 2 × SMA antenna, DP, HDMI
USB: 1 × USB-C (Gen2), 2 × USB-A (Gen2 red), 5 × USB-A (Gen1), 4 × USB 2.0
RJ-45, 3 × audio jacks

Controller & Monitoring
iTE® I/O Controller
Voltage, temp, fan, water flow monitoring
Fan fail warning, fan control

BIOS
AMI UEFI BIOS, 256 Mbit flash
PnP 1.0a, DMI 2.7, WfM 2.0, SMBIOS 2.7, ACPI 5.0

Features
GIGABYTE Control Center, Q-Flash, Q-Flash Plus

Software
Norton® Internet Security (OEM), LAN bandwidth management

OS Support
Windows 11 64-bit, Windows 10 64-bit

Form Factor
ATX, 30.5 × 24.4 cm

Warranty

3 YEARS WARRANTY
