Model Name

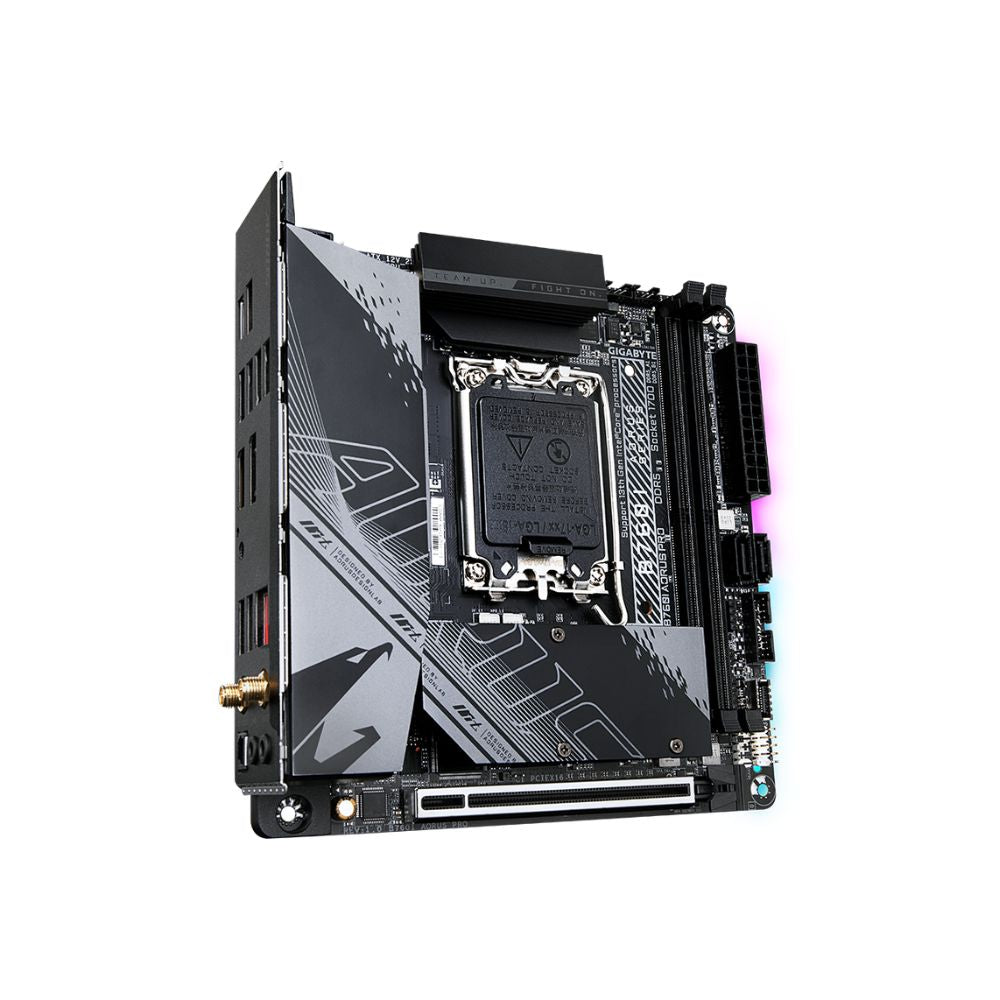

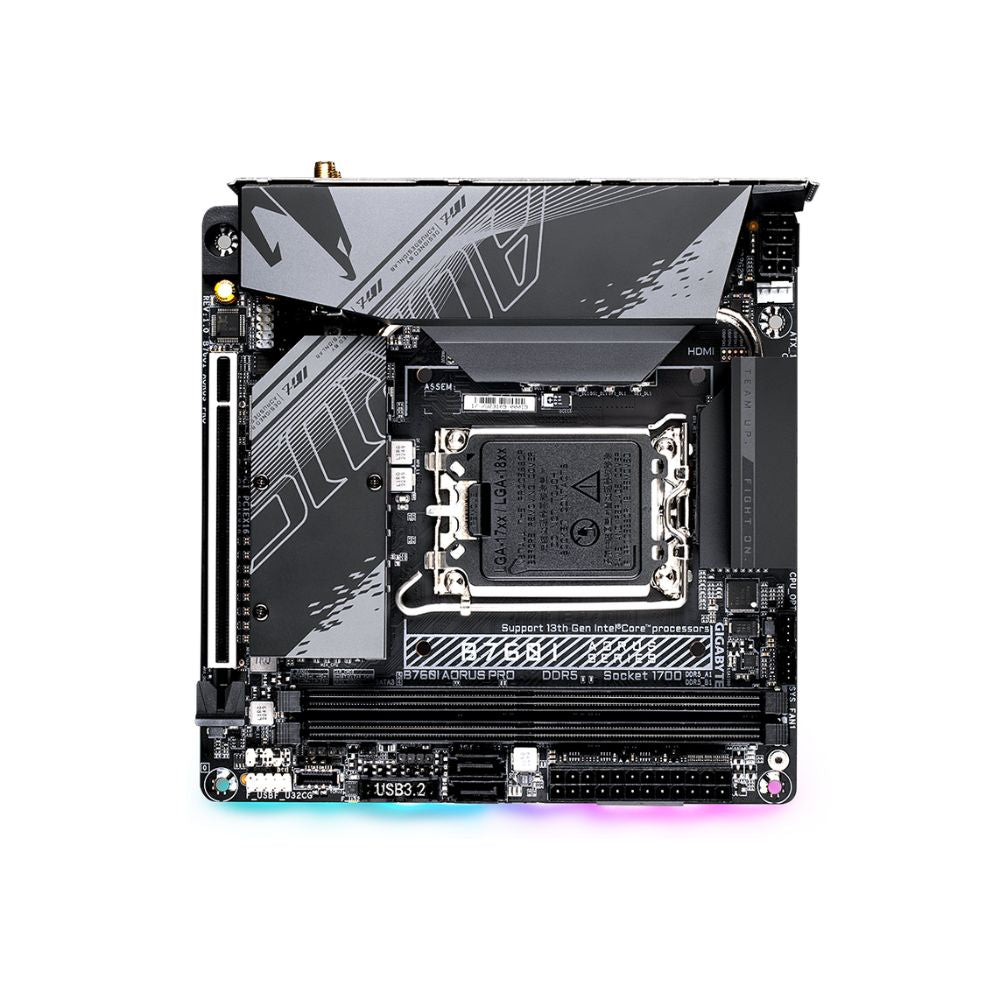

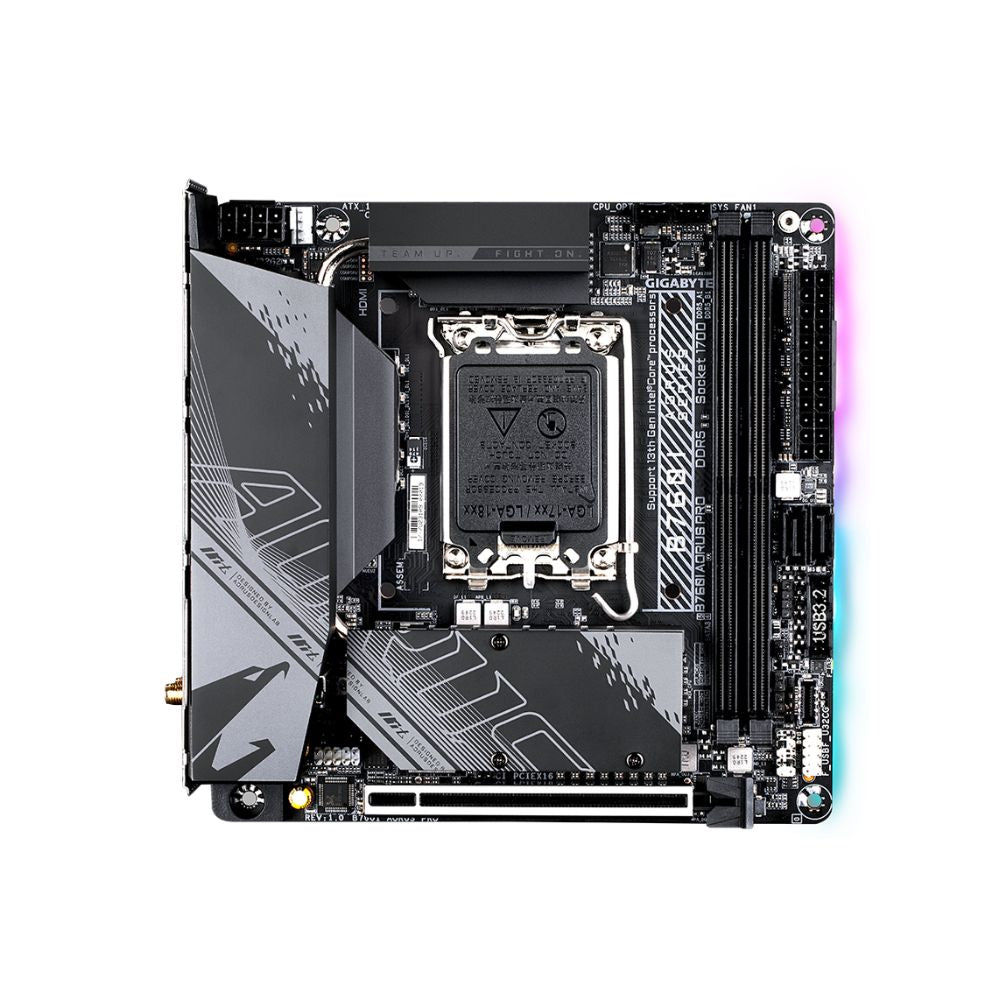

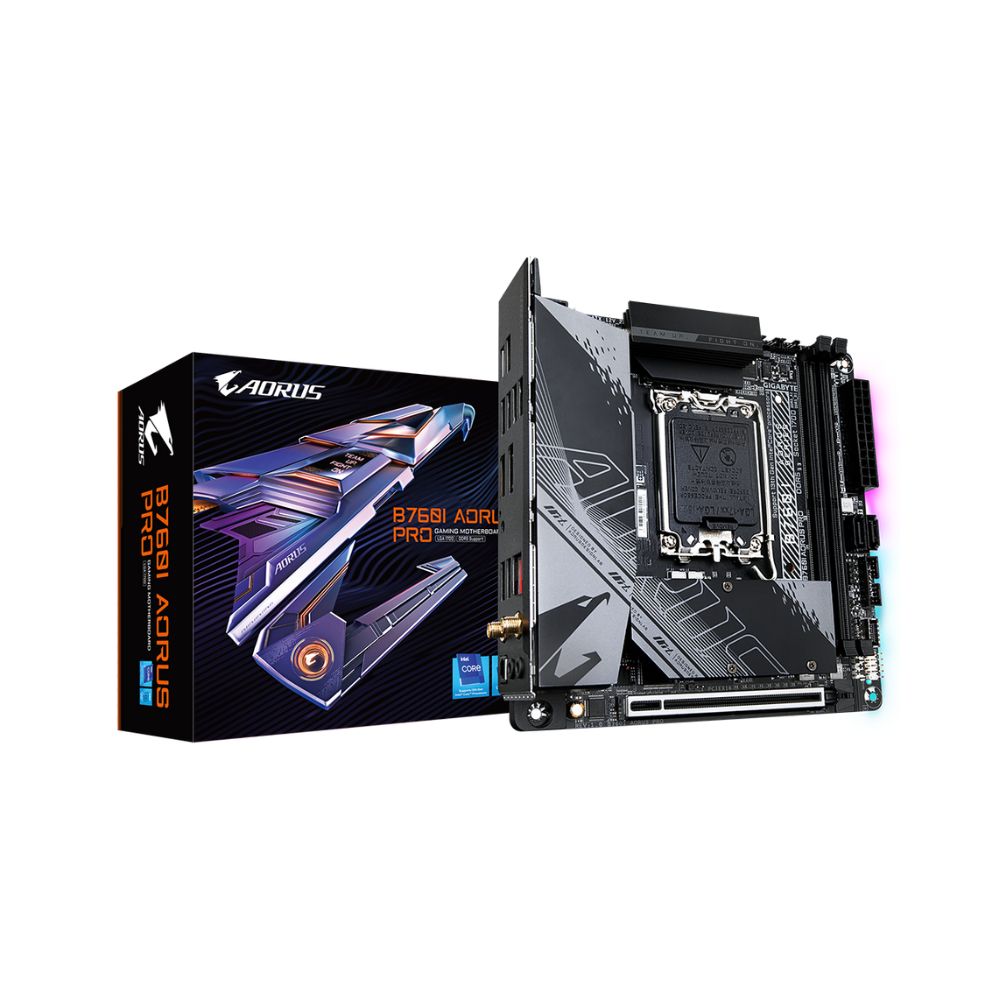

B760I AORUS PRO

Brand
GIGABYTE

CPU
LGA1700 socket, supports Intel® 14th / 13th / 12th Gen Core™, Pentium® Gold, Celeron® processors
L3 cache varies with CPU

Chipset
Intel® B760 Express Chipset

Memory
2 × DDR5 DIMM slots, up to 128 GBDDR5 8000(O.C.) → 4000 MT/s supported
Dual channel architecture
ECC & non-ECC Un-buffered DIMMs (non-ECC mode)
XMP support

Onboard Graphics (via CPU)
1 × DisplayPort 1.2, max 4096×2304@60Hz, HDCP 2.31 × HDMI 2.1, max 4096×2160@60Hz, HDCP 2.3, TMDS compatible

Audio
Realtek® Audio CODEC, High Definition Audio
2/4/5.1/7.1-channel, Support for S/PDIF Out

LAN & Wireless
Intel® 2.5GbE LAN chip (2.5 Gbps / 1 Gbps / 100 Mbps)
Intel® Wi-Fi 6E AX211 (rev. 1.0) – Wi-Fi a/b/g/n/ac/ax, 2.4/5/6 GHz, Bluetooth 5.3, 11ax 160MHz
Realtek® Wi-Fi 6E RTL8852CE (rev. 1.1) – Wi-Fi a/b/g/n/ac/ax, 2.4/5/6 GHz, Bluetooth 5.3, 11ax 160MHz

Expansion Slots
1 × PCIe 4.0 x16 slot (GPU or NVMe SSD only)

Storage Interface
1 × M.2 (Socket 3, M key, 2280, PCIe 4.0 x4/x2) (CPU, M2A_CPU)
1 × M.2 (Socket 3, M key, 2280, PCIe 4.0 x4/x2 (Chipset, M2P_SB, back of board)
2 × SATA 6Gb/s connectors
RAID 0, 1 support (SATA only)

USB
Rear: 1 × USB-C 3.2 Gen2, 1 × USB-A 3.2 Gen2, 4 × USB 3.2 Gen1, 2 × USB 2.0
Internal: 1 × USB-C 3.2 Gen1 header, 1 × USB 3.2 Gen1 header, 1 × USB 2.0 header

Internal I/O
24-pin ATX main power, 8-pin ATX 12V power
1 × CPU fan header, 1 × CPU fan/water pump header, 1 × system fan header
1 × Addressable LED header, 1 × RGB LED header
2 × M.2 connectors, 2 × SATA connectors
1 × Front panel header, 1 × Front panel audio header, 1 × Speaker header
1 × USB-C header (3.2 Gen1), 1 × USB 3.2 Gen1 header, 1 × USB 2.0 header
1 × Reset jumper, 1 × Clear CMOS jumper, 1 × Chassis intrusion header

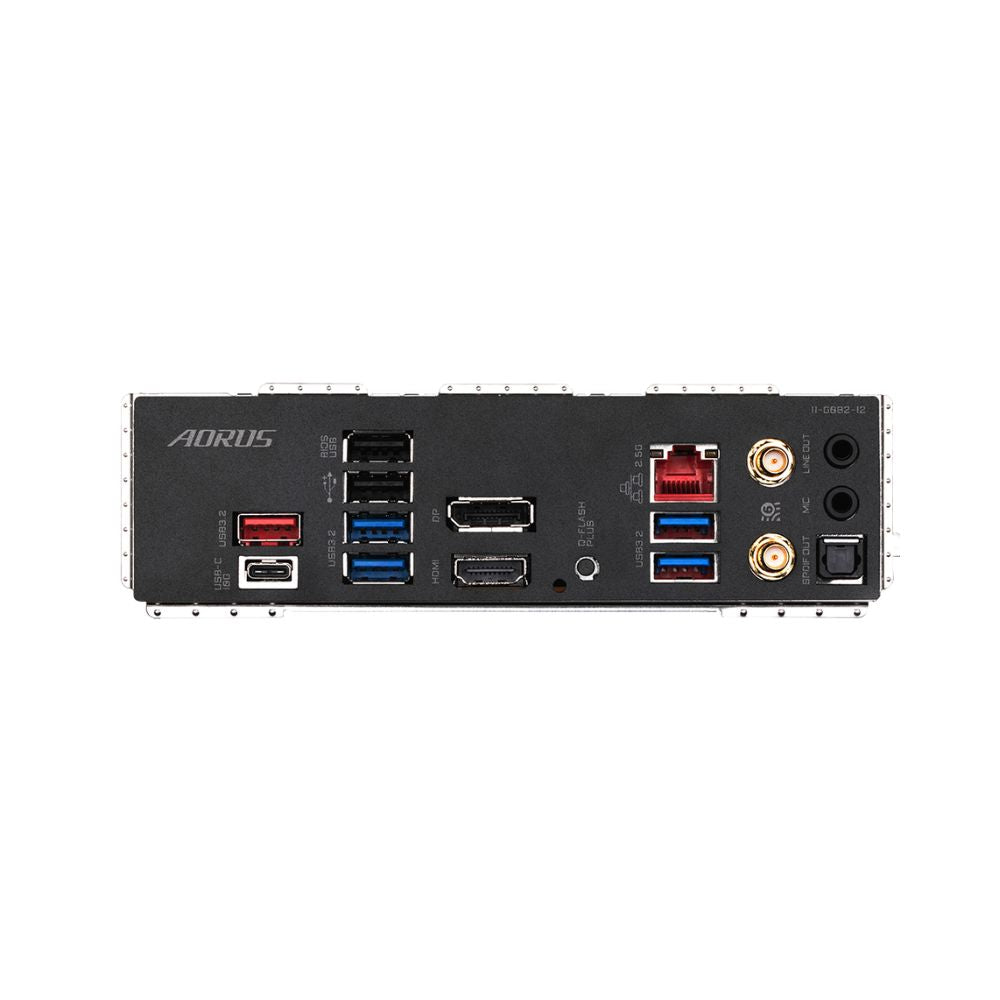

Back Panel
1 × USB-C (3.2 Gen2)
1 × USB-A (3.2 Gen2, red)
4 × USB 3.2 Gen1
2 × USB 2.0
1 × DisplayPort, 1 × HDMI
1 × RJ-45 LAN (2.5G)
1 × Optical S/PDIF Out
2 × Audio jacks
2 × SMA antenna connectors (2T2R)
1 × Q-Flash Plus button

I/O Controller
iTE® I/O Controller Chip

H/W Monitoring
Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control

BIOS
AMI UEFI BIOS, 256 Mbit flash

Unique Features
GIGABYTE Control Center (GCC)
Q-Flash, Q-Flash Plus

Bundled Software
Norton® Internet Security (OEM version)
LAN bandwidth management software

Operating System
Windows 11 64-bit / Windows 10 64-bit

Form Factor
Mini-ITX Form Factor; 17.0cm x 17.0cm

3 YEARS WARRANTY
