Model Name

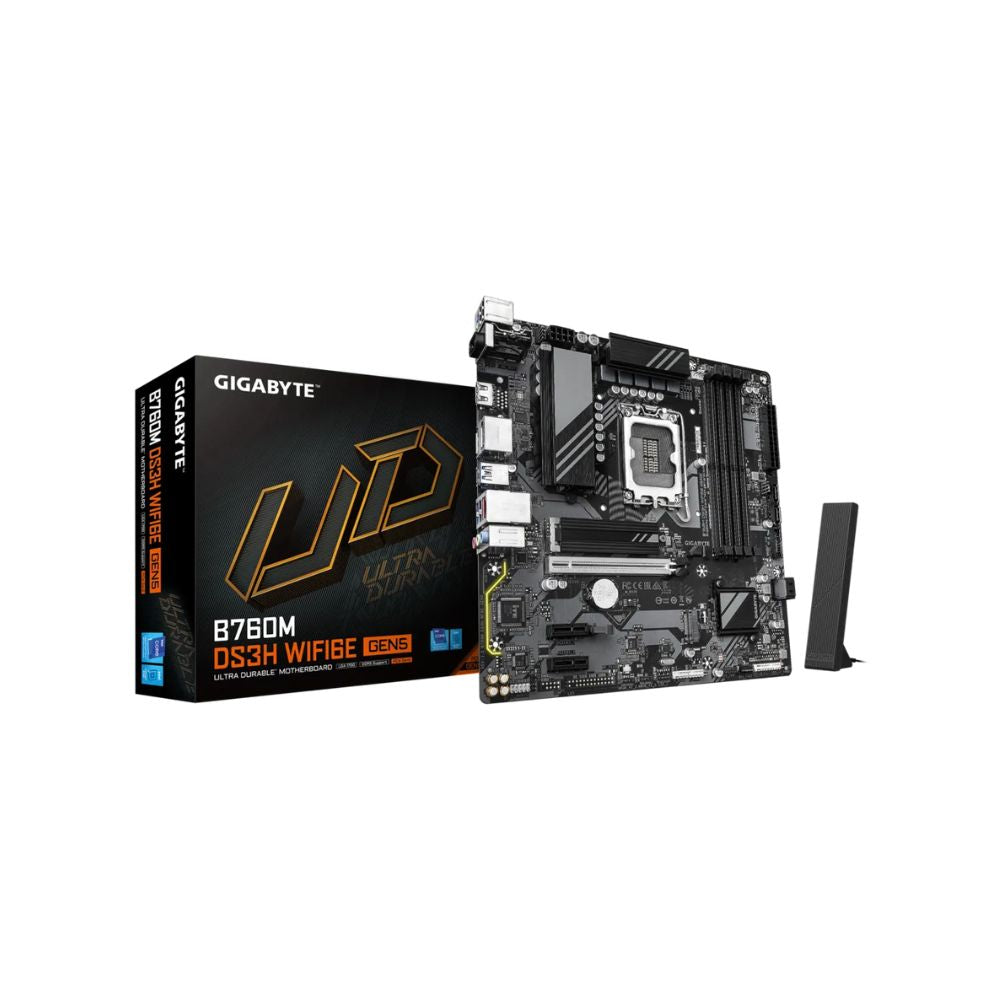

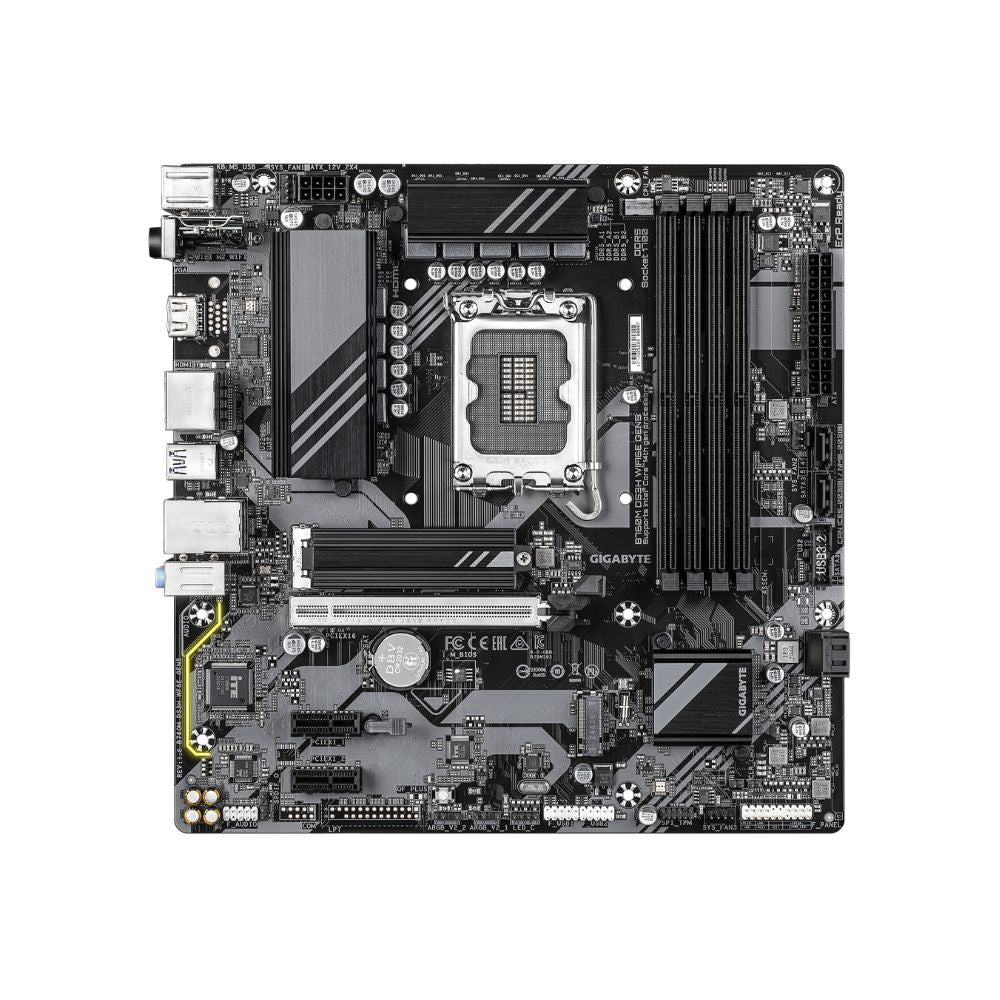

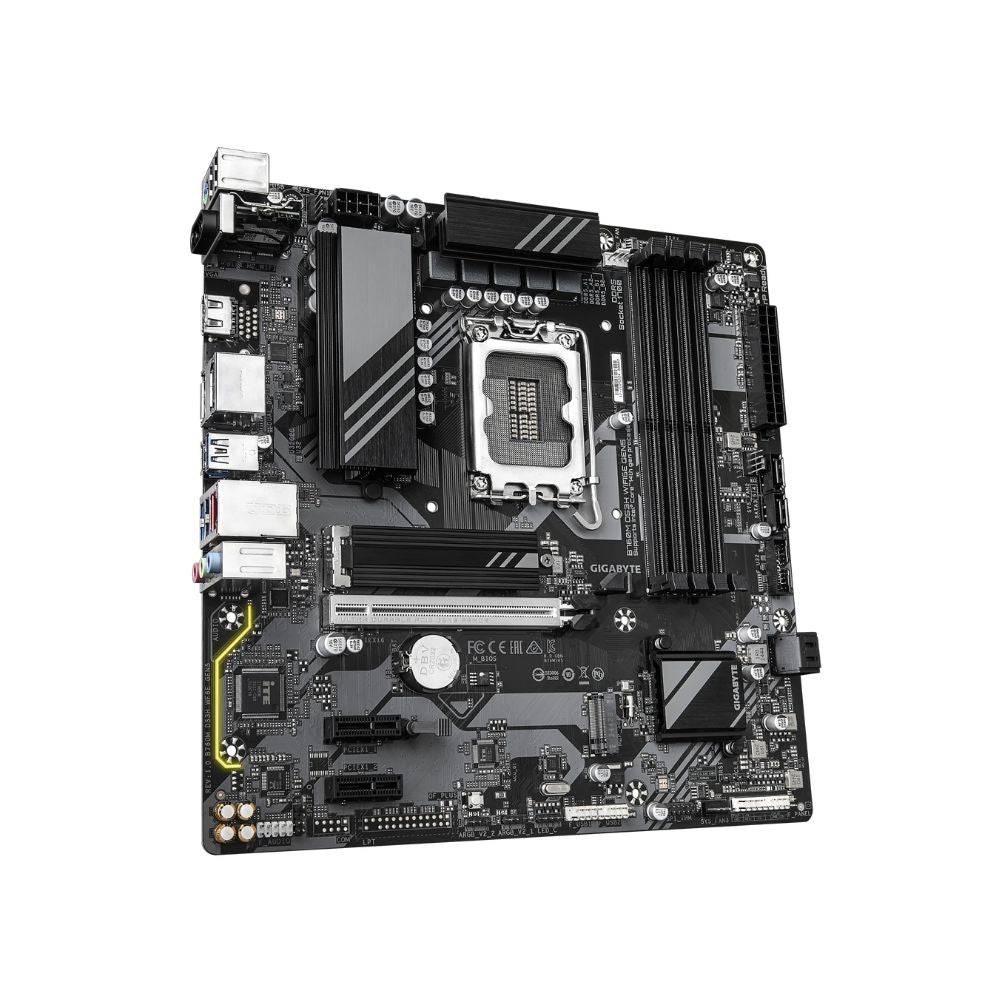

B760M DS3H WIFI6E GEN5

Brand
GIGABYTE

CPU
LGA1700 socket: Supports Intel® 14th / 13th / 12th Gen Core™, Pentium® Gold, Celeron® processors
L3 cache varies with CPU

Chipset
Intel® B760 Express Chipset

Memory
14th / 13th Gen Core™ i9/i7: DDR5 7600(O.C.)–5200/4800/4400 MT/s
13th Gen i5/i3 & 12th Gen Core™/Pentium®/Celeron®: DDR5 4800/4400 MT/s
4 × DDR5 DIMM, up to 256 GB (64 GB per DIMM)
Dual channel architecture
ECC Un-buffered DIMM 1Rx8/2Rx8 (non-ECC mode)
Non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16
Extreme Memory Profile (XMP) supported

Onboard Graphics (via CPU)
HDMI 2.1: max 4096×2160@60Hz, HDCP 2.3, TMDS compatible
DisplayPort 1.2 ×2: max 4096×2304@60Hz, HDCP 2.3
Triple-display support (CPU dependent)

Audio
Realtek® Audio CODEC, High Definition Audio
2/4/5.1/7.1-channel (configurable via software)
S/PDIF Out

LAN & Wireless
Realtek® 2.5GbE LAN (2.5G/1G/100 Mbps)
Intel® Wi-Fi 6E AX210: Wi-Fi a/b/g/n/ac/ax, 2.4/5/6 GHz, Bluetooth 5.3, 11ax 160MHz
Data rate may vary by environment/equipment

Expansion Slots
CPU: 1 × PCIe 5.0 x16 slot (GPU or NVMe SSD only)
Chipset: 2 × PCIe 3.0 x1 slots

Storage
CPU: 1 × M.2 (2280, PCIe 4.0 x4/x2, M2A_CPU)
Chipset: 1 × M.2 (2280, PCIe 4.0 x4/x2, M2P_SB)
4 × SATA 6Gb/s
RAID 0, 1, 5, 10 (SATA)

USB
Rear: 1 × USB-C (3.2 Gen2), 3 × USB 3.2 Gen1, 2 × USB 2.0
Internal: 1 × USB 3.2 Gen1 header (2 ports), 2 × USB 2.0 headers (4 ports)
Total: 5 × USB 3.2 Gen1, 1 × USB 3.2 Gen2-C, 2 × USB 2.0 (rear), 4 × USB 2.0 (internal)

Internal I/O
24-pin ATX, 8-pin ATX 12V power
1 × CPU fan, 3 × system fan headers
2 × ARGB Gen2 headers, 1 × RGB header
2 × M.2 connectors, 4 × SATA connectors
Front panel, front audio, S/PDIF Out header
1 × USB 3.2 Gen1 header, 2 × USB 2.0 headers
1 × TPM header (for GC-TPM2.0 SPI module)
1 × Reset jumper, 1 × Clear CMOS jumper, Q-Flash Plus button

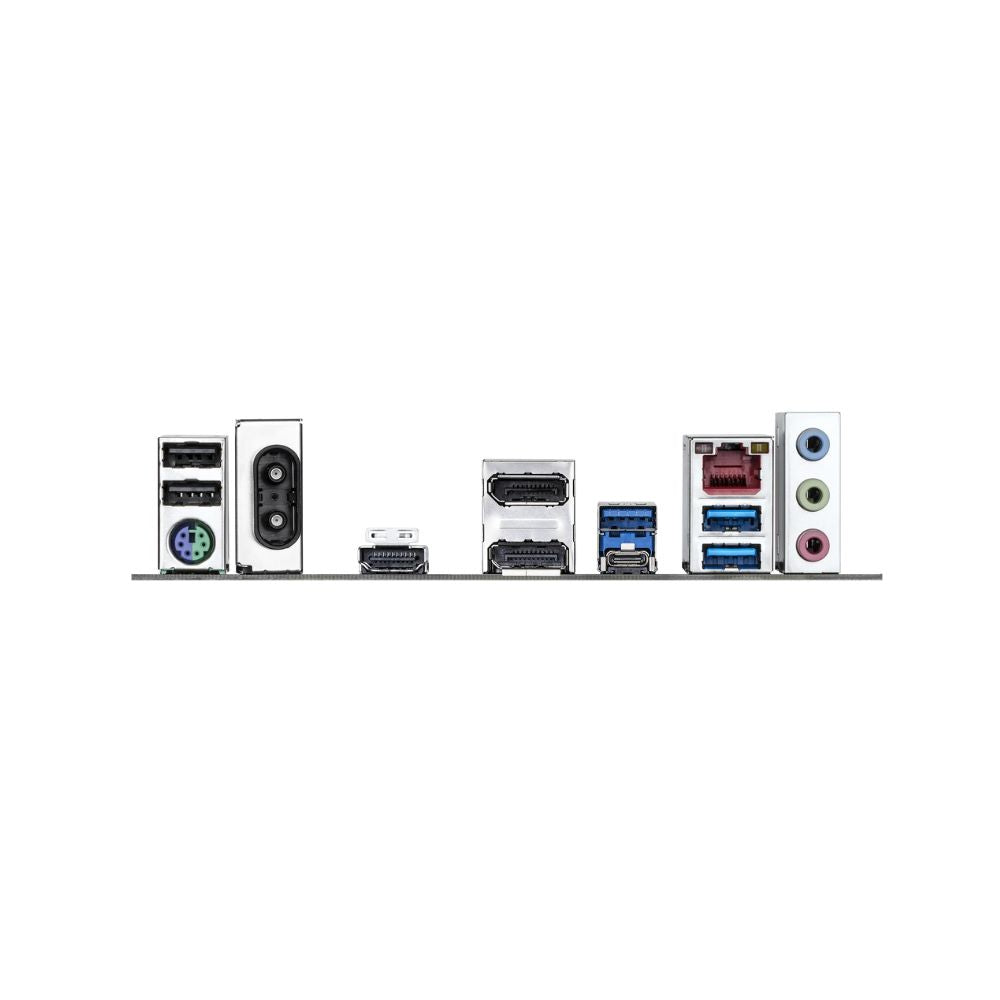

Back Panel
2 × USB 2.0, 3 × USB 3.2 Gen1, 1 × USB-C (3.2 Gen2)
1 × PS/2 keyboard/mouse port
1 × HDMI, 2 × DisplayPort (CPU dependent)
1 × RJ-45 LAN (2.5G)
2 × Antenna connectors (2T2R)
3 × Audio jacks, 1 × Optical S/PDIF Out
1 × Q-Flash Plus button

Controller & Monitoring
iTE® I/O Controller Chip
Voltage, temp, fan speed, water cooling flow rate detection
Fan fail warning, fan speed control (depends on installed hardware)

BIOS
AMI UEFI BIOS, 128 Mbit flash
PnP 1.0a, DMI 2.7, WfM 2.0, SMBIOS 2.7, ACPI 5.0

Features
GIGABYTE Control Center (apps vary by model)
Q-Flash, Q-Flash Plus, Smart Backup

Software
Norton® Internet Security (OEM)

OS
Windows 11 64-bit, Windows 10 64-bit

Form Factor
Micro-ATX, 24.4 × 24.4 cm

3 YEARS WARRANTY
