Model Name

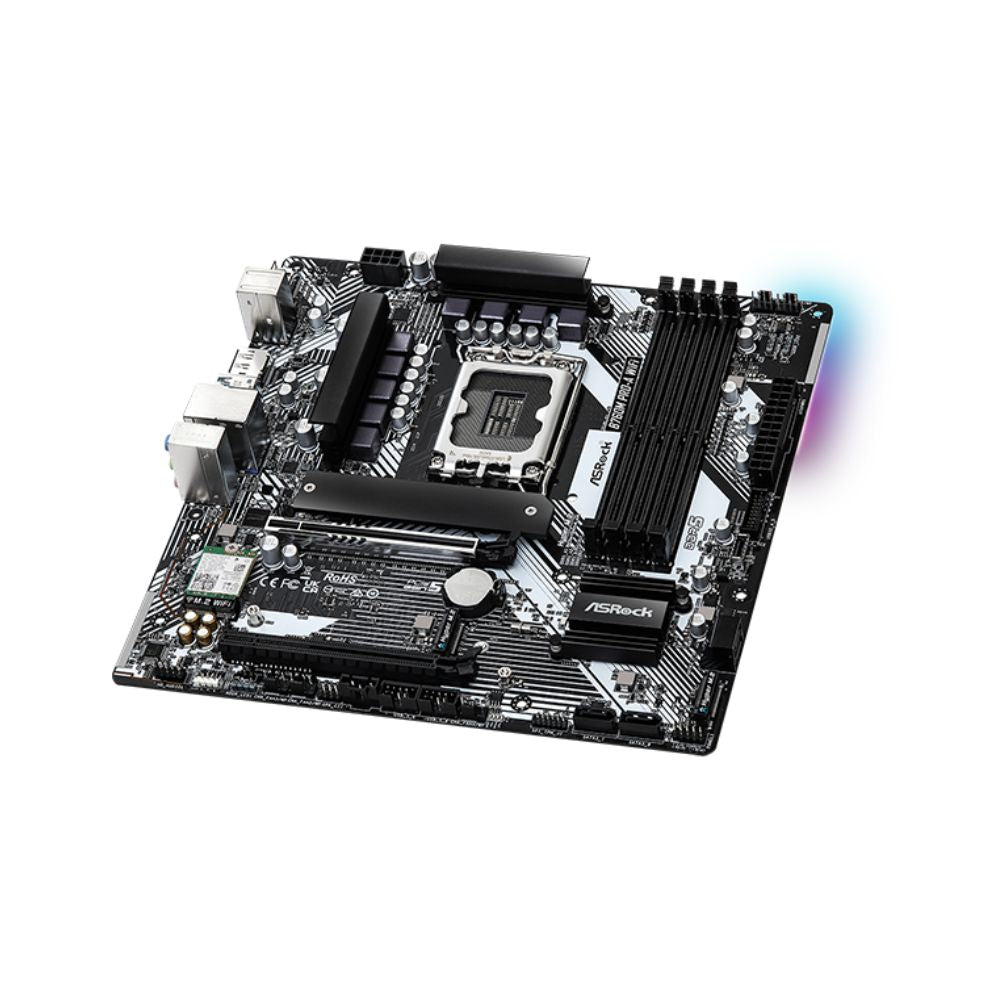

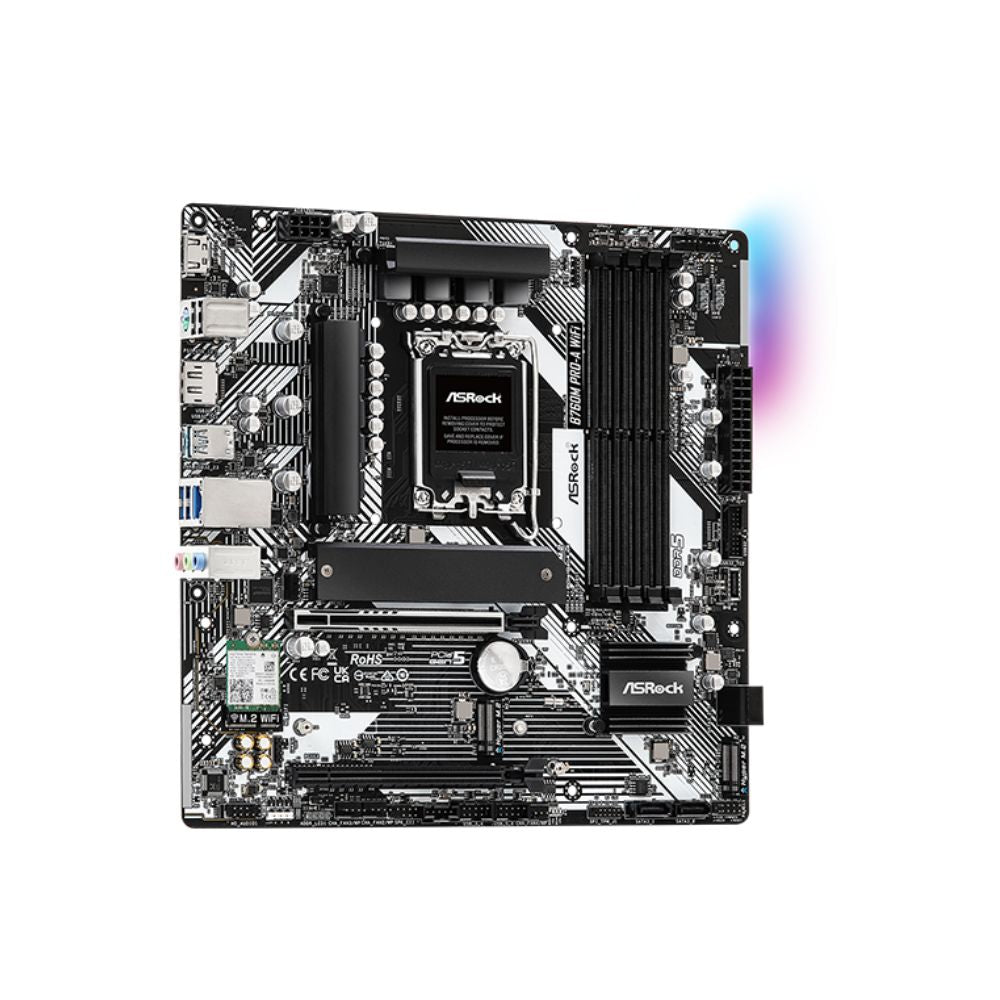

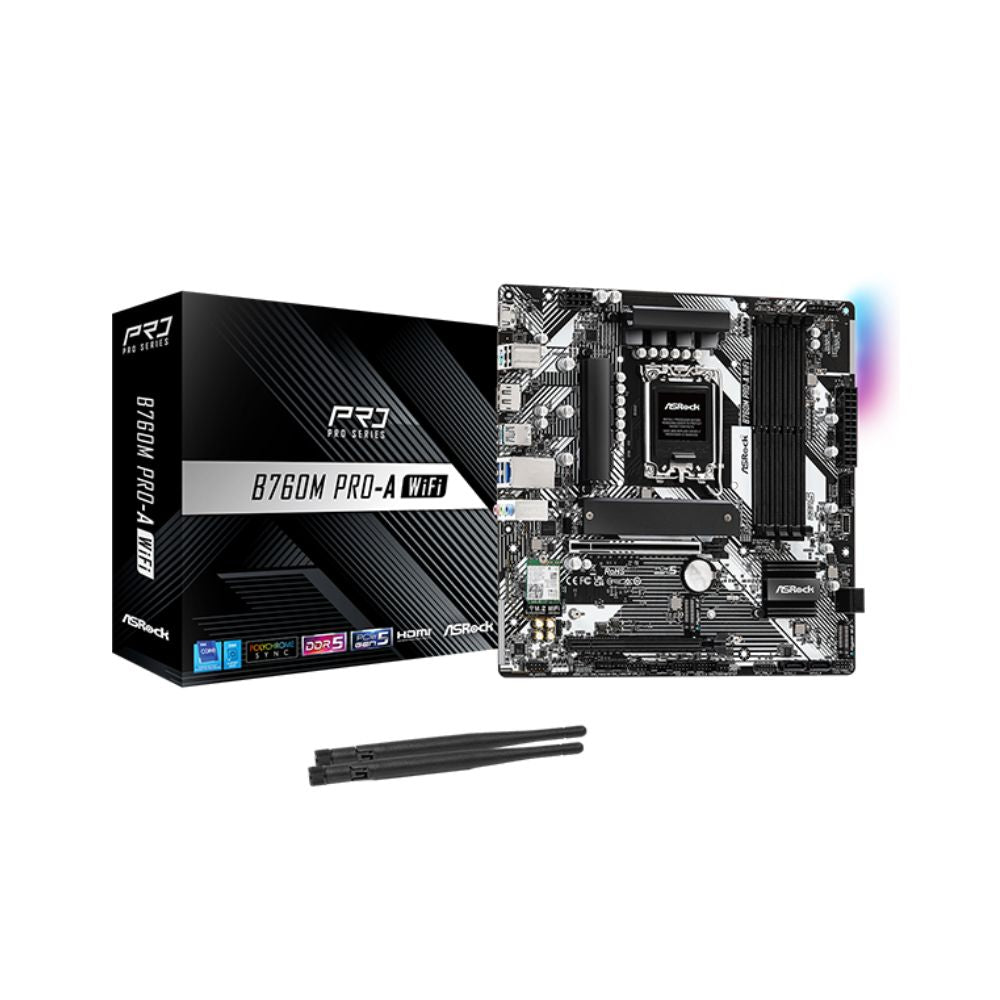

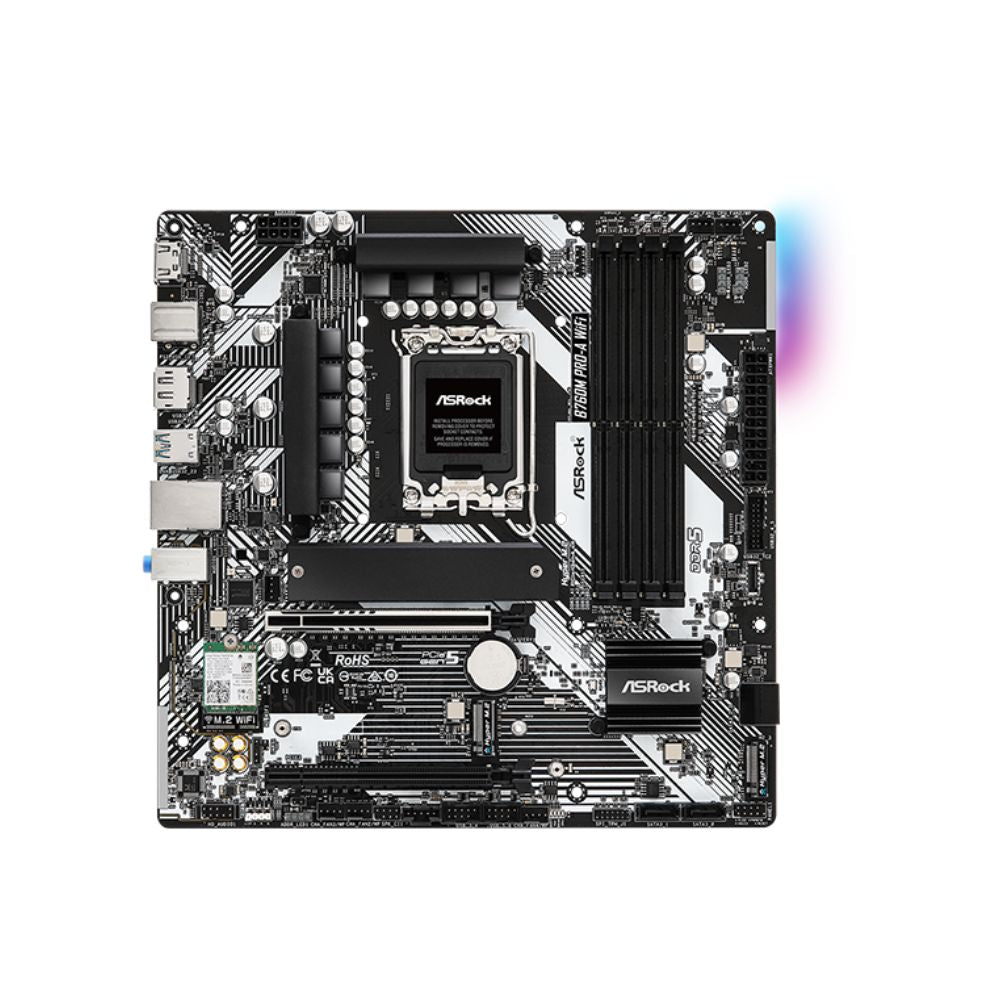

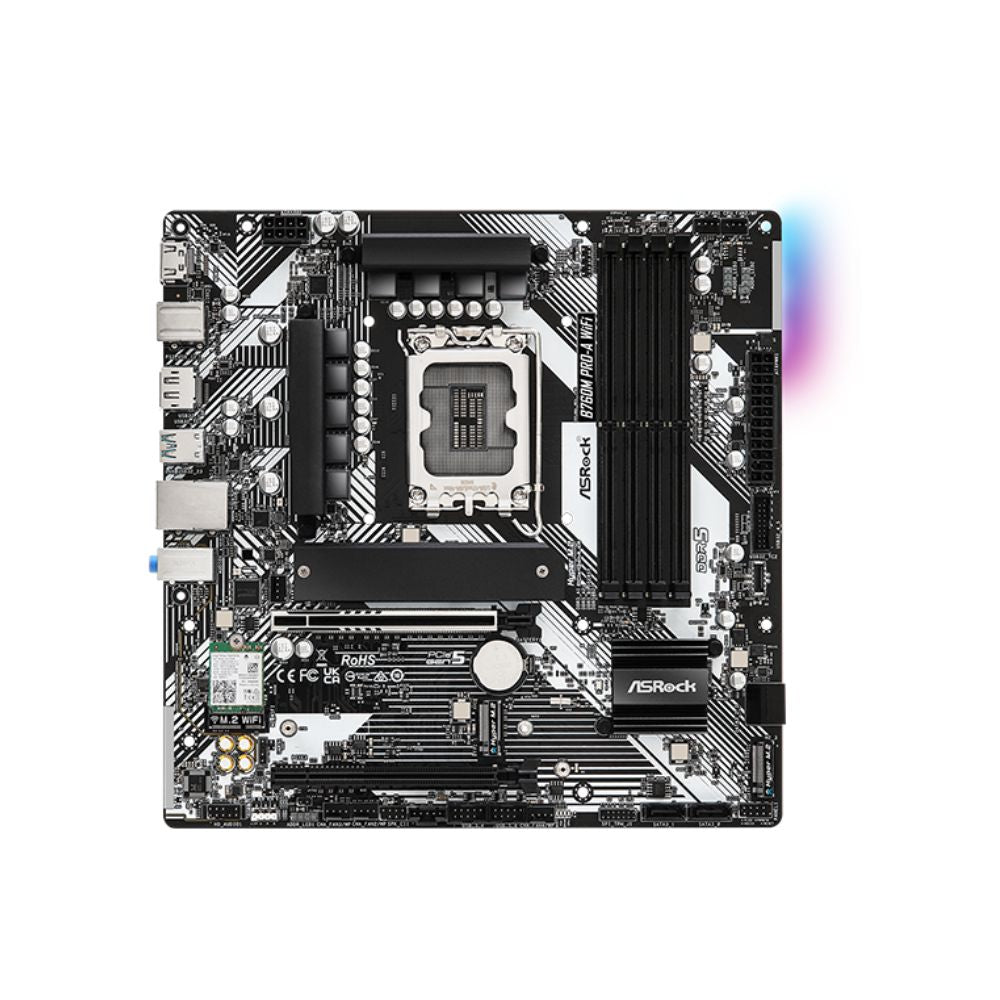

B760M Pro-A WiFi

Brand
ASRock

CPU
Intel® LGA1700 socket
Supports 14th / 13th / 12th Gen Intel® Core™, Pentium® Gold, Celeron®
Intel® Hybrid, Turbo Boost Max 3.0, Thermal Velocity Boost (TVB), Adaptive Boost Technology (ABT)

Chipset
Intel® B760

Memory
4 × DDR5 DIMM slots, dual channel, up to 256GB
DDR5 up to 7200+ MHz (OC)*
Supports Intel® XMP 3.0
Non-ECC, un-buffered memory

Graphics (CPU dependent)
Intel® Xe Graphics Architecture (Gen 12)
HDMI 2.1: 4K@60Hz, HDCP 2.3
DisplayPort 1.4: up to 8K@60Hz / 5K@120Hz with DSC

Audio
Realtek® ALC897, 7.1 CH HD Audio

Networking
2.5G LAN (Dragon RTL8125BG), with Smart Auto Bandwidth Control + Gaming/Streaming/Browser presets
Killer Wi-Fi 6E (802.11axe), Dual-Band 2×2, 160MHz, extended 6GHz band (Windows 11 only), Bluetooth 5.3

Expansion Slots
CPU: 1 × PCIe 5.0 x16 (GPU/NVMe SSD)
Chipset: 1 × PCIe 3.0 x16 (x4 mode), 1 × M.2 Key E (Wi-Fi/BT)
Supports AMD CrossFire™

Storage
CPU: 1 × Hyper M.2 (PCIe Gen4 x4, 2242/2260/2280)
Chipset: 2 × Hyper M.2 (PCIe Gen4 x4, 2280)
4 × SATA3 6Gb/s
Supports Intel® VMD, NVMe SSD boot, RAID 0/1/5/10

USB
Rear I/O: 1 × USB-C 3.2 Gen1, 3 × USB-A 3.2 Gen1, 2 × USB 2.0
Internal: 1 × USB-C 3.2 Gen1, 2 × USB-A 3.2 Gen1, 2 × USB 2.0 headers (4 ports)
Total: 2 × USB-C, 5 × USB-A 3.2 Gen1, 6 × USB 2.0
All ports with ESD protection

Internal Connectors
24-pin ATX, 8-pin 12V power
Cooling: 1 × CPU fan, 1 × CPU/water pump, 4 × chassis/water pump fan headers
RGB: 1 × RGB header, 3 × ARGB headers (5V)
Thunderbolt™ AIC header
SPI TPM header, chassis intrusion, speaker header
USB: 1 × USB-C Gen1, 1 × USB 3.2 Gen1 header (2 ports), 2 × USB 2.0 headers (4 ports)

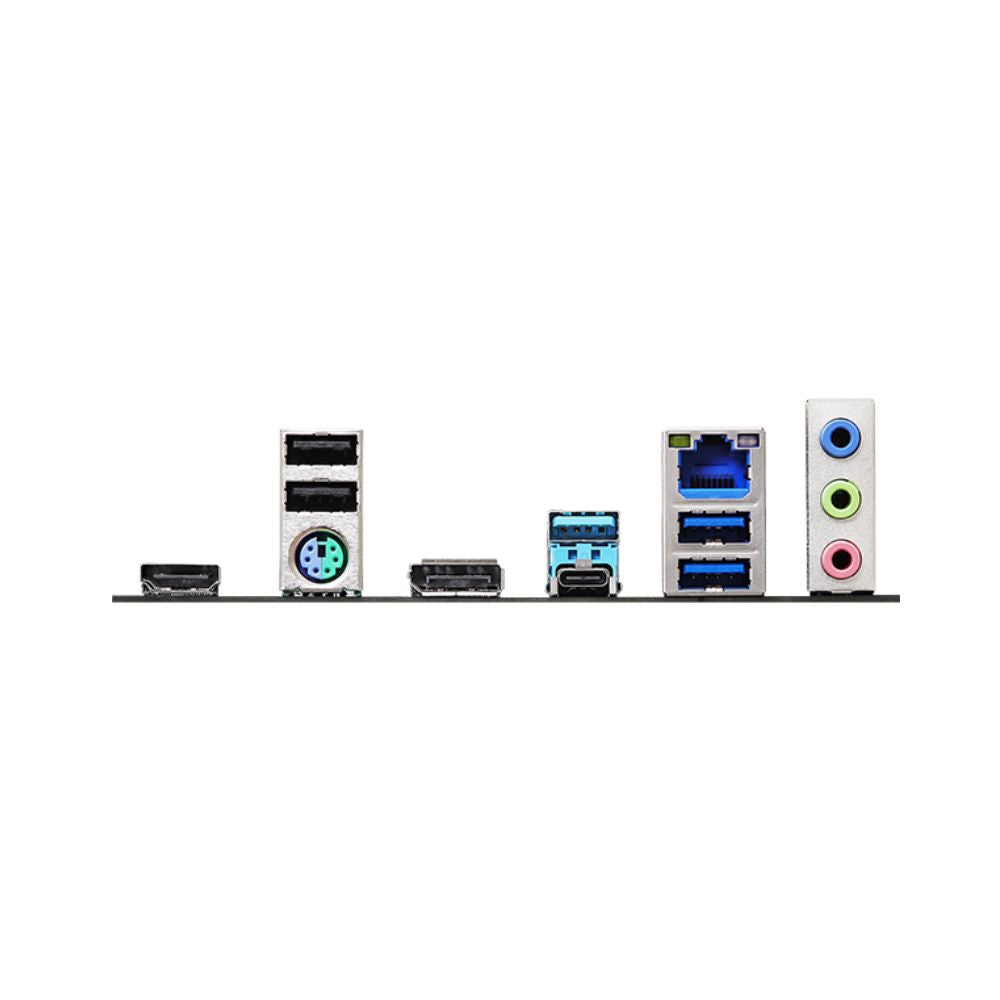

Rear I/O
2 × Antenna ports
1 × PS/2 keyboard/mouse
1 × HDMI, 1 × DisplayPort 1.4
1 × USB-C 3.2 Gen1
3 × USB-A 3.2 Gen1
2 × USB 2.0
1 × RJ-45 (2.5G LAN)
3 × Audio jacks (Line-in, Front speaker, Mic)

BIOS
128Mb AMI UEFI Legal BIOS, GUI support
ASRock EZ Mode, Instant Flash, Easy RAID Installer, Auto Driver Installer

Software
ASRock Polychrome SYNC
Dragon 2.5G LAN Software
Killer Control Center
ASRock A-Tuning Utility
Live Update & APP Shop

Accessories
User manual, I/O shield
2 × SATA cables
2 × SMA Wi-Fi antenna cables + antennas
M.2 screws & standoff

Form Factor
Micro ATX: 24.4 × 24.4 cm

OS Support
Microsoft Windows 10 64-bit / Windows 11 64-bit

Certifications
FCC, CE, ErP/EuP ready

3 YEARS WARRANTY

Tech Dynamic Pte Ltd
514 Chai Chee Ln, #05-09, Singapore 469029
Contact: 6717 3000
