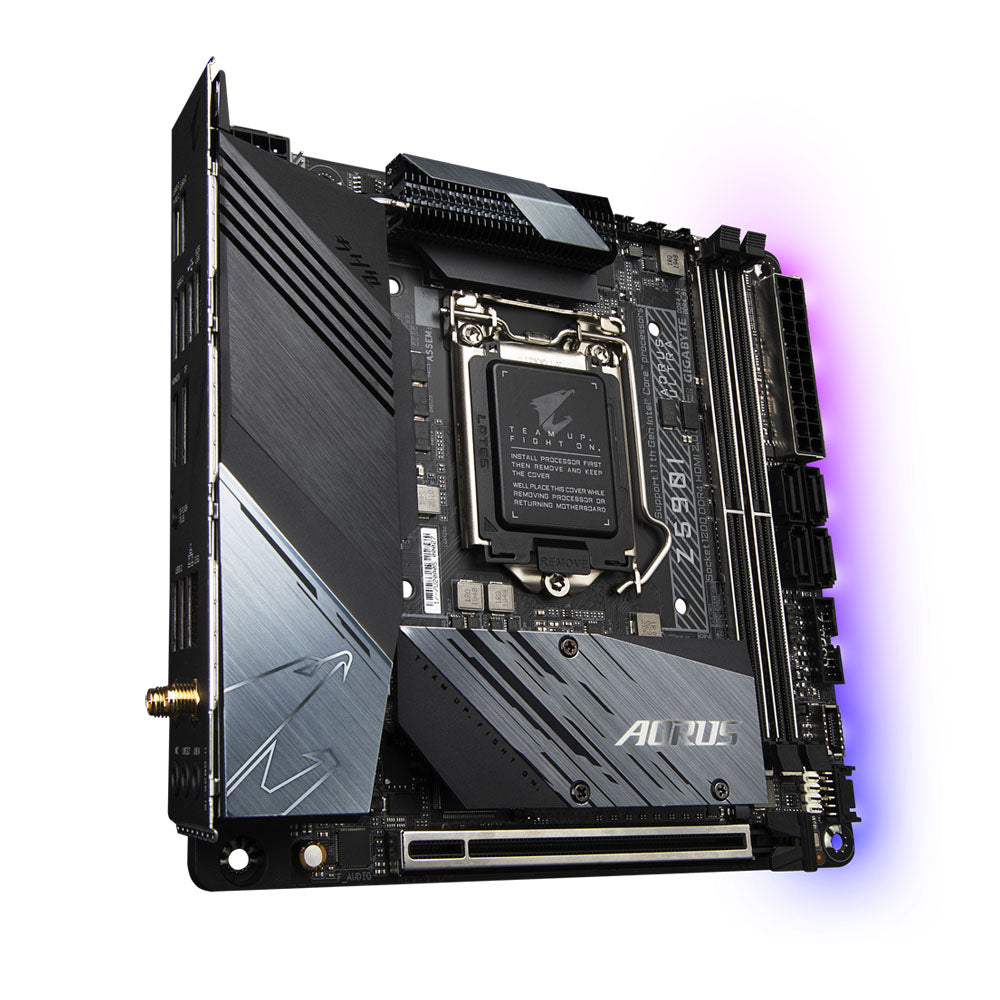

Gigabyte Z590I Aorus Ultra

  • Z590I AORUS ULTRA is a mini-ITX motherboard perfect for building a small form factor PC for people who demands higher performance but also cares about aesthetics and size. For the Z590 series, protective and optimized memory trace enhance the performance; faster read and write speed save time and improve efficiency; and generous M.2 Storage with thermal guards ensure unthrottled read and write performance. Future upgrades to the Z590 are made possible by the use of PCIe 4.0-ready components.

    SPECIFICATIONS

    Socket: LGA 1200
    No. of Ram Slots: 2
    Compatible Ram Speed: DDR4 4600(O.C.) / 4500(O.C.) / 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz
    Compatible Ram Type: Non-ECC, Un-bufferedMemory
    Ports: 1 x HDMI port, 1 x DisplayPort, 1 x M.2 connector (Socket 3, M key - 11th Gen processors only), 1 x M.2 connector on back of motherboard (Socket 3, M key), 4 x SATA 6Gb/s connectors, 1 x USB Type-C port (USB 3.2 Gen 2x2 support), 1 x USB Type-C port (USB 3.2 Gen 1 support), 3 x USB 3.2 Gen 2 Type-A ports (red), 2 x USB 3.2 Gen 1 ports, 2 x USB 2.0/1.1 ports, 1 x RJ-45 port, 3 x audio jacks, 2 x SMA antenna connectors (2T2R)
    Expansion Slots: 1 x PCIe x16 (x16) (Supported by 11th Gen processors only)
    LAN Port: Intel 2.5GbE LAN chip
    Motherboard Connectors: 1 x 24-pin ATX main power connector, 1 x 8-pin ATX 12V power connector, 1 x CPU Fan header, 3 x system fan headers, 1 x addressable LED strip header, 1 x RGB LED strip header, 4 x SATA 6Gb/s connectors, 2 x M.2 Socket 3, 1 x front panel header, 1 x front panel audio header, 1 x USB Type-C (USB 3.2 Gen 1 support), 1 x USB 3.2 Gen 1 header, 1 x USB 2.0/1.1 header, 1 x Clear CMOS jumper
    Built in WiFi and Bluetooth: Yes - Intel Wi-Fi 6 AX200, Bluetooth 5.1

    DIMENSIONS

    Mini-ITX Form Factor: 17.0 cm x 17.0 cm



Delivery

Free delivery. 3 years warranty. Ready in 1 day.

Frequently Asked Questions

Will the functions be compromised because of the size?
The Mini PC is catered to users who runs light softwares such as web-browsing, Microsoft Word, Microsoft Excel and their accounting softwares. This Mini PC is not able to handle gaming or higher requirement softwares like video-editing. It is suitable for someone who does not have alot of table space and wants something more powerful than a laptop!
What is your warranty policy for Mini PC?
Asus Mini PC: 3 years on-site warranty.
Gigabyte BRICs Mini PC: 3 years warranty, no on-site warranty.
What is VESA mount?
All of the mini PC comes with VESA mount compatibility. You will be able to mount them to the back of your monitor if your monitor is VESA compatible. The Mini PC will be able to be mounted onto 75mm x 75mm and 100mm x 100mm VESA monitors.
How many monitors can the Mini PC support?
All of the mini PC listed can support up to 2 monitors. Only the Asus Ryzen mini PC can support up to 4 monitors.
Will I need to install Windows and the drivers myself?
No bro (or sis)! We will handle the essential software installation for you. This includes, your Windows operating system, the latest drivers for your hardware and the most updated version of the BIOS (motherboard software). All you need to do when you receive the PC is to plug in the power cord, your peripherals, hook up your monitor and you’re all set!
