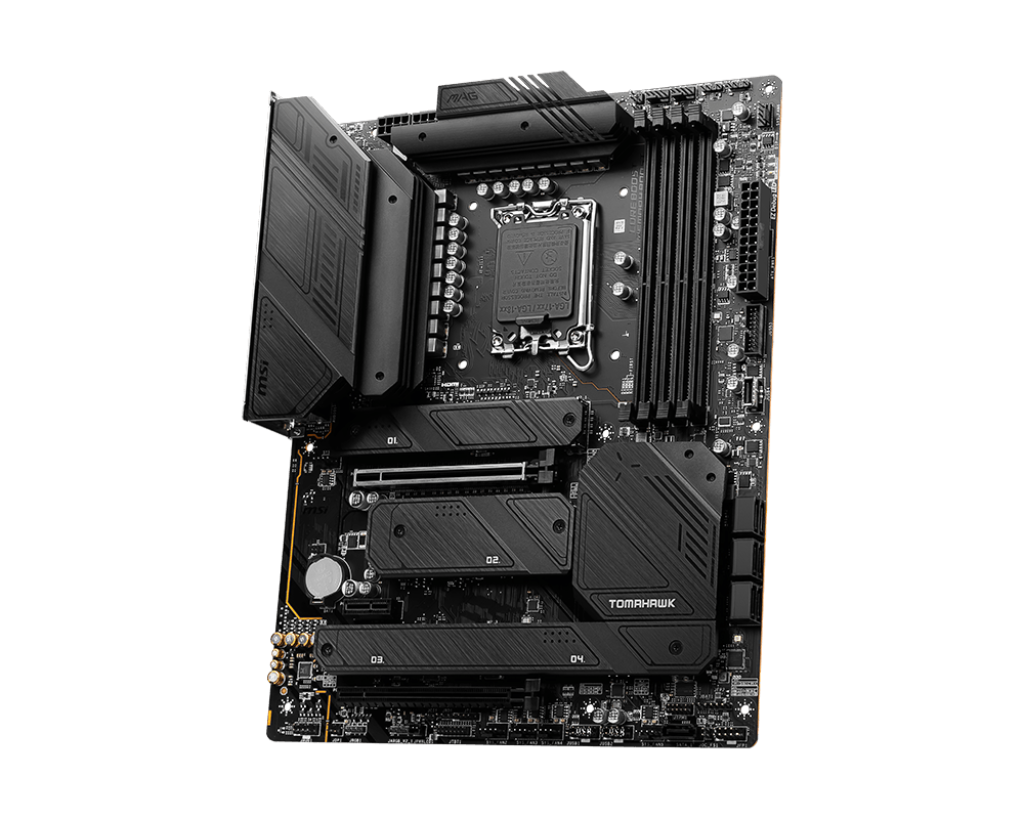

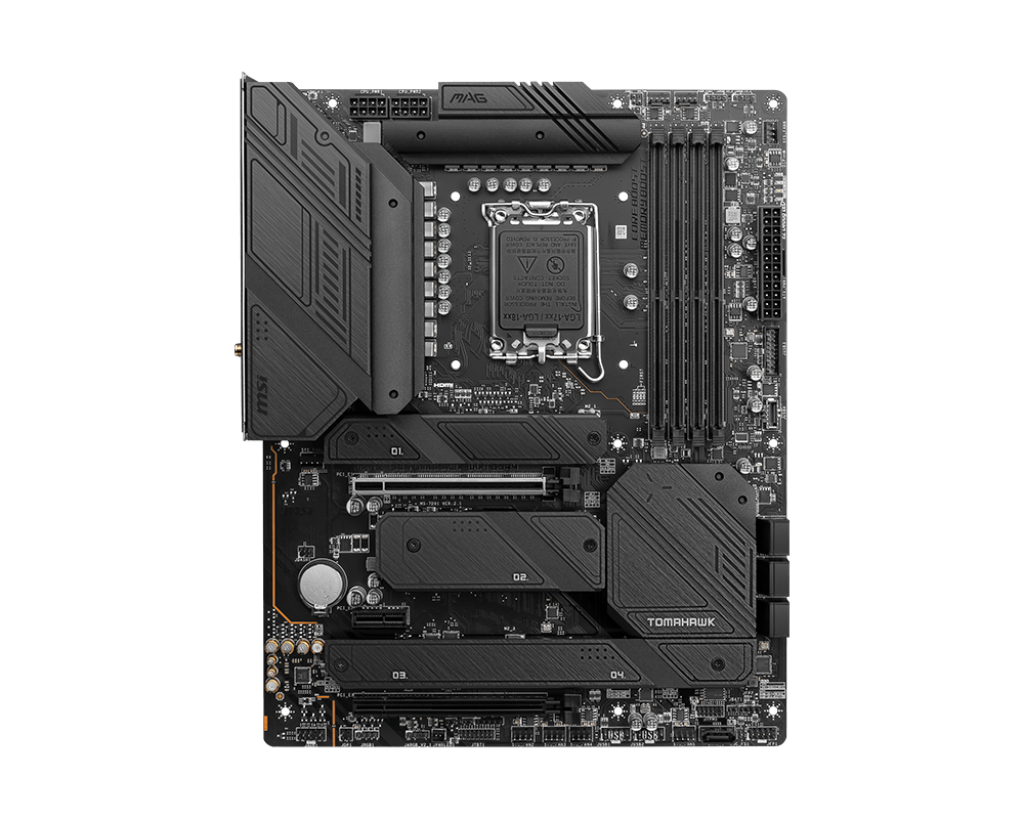

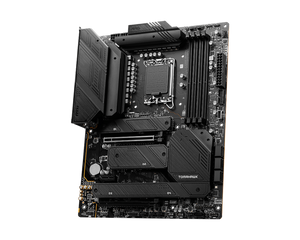

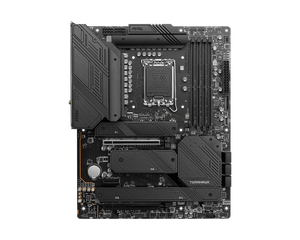

MSI MAG Z790 TOMAHAWK WIFI DDR4

$360.00

Overview
Specifications
FAQs

3 YEARS LOCAL DISTRIBUTOR WARRANTY

Corbell Technology Pte Ltd
4012 Ang Mo Kio Ave 10, #06-04 Techplace 1
Singapore 569628
Contact: 6452 4122

KEY FEATURES

Enhanced Power Design: 16+1+1 Mirrored Power Arrangement, dual 8-pin CPU power connectors, Core Boost, Memory Boost

Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2x2

Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works

AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience

High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material
CHIPSET:

INTEL Z790

CPU SUPPORT:

Supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors

MEMORY:

4x DDR4, Maximum Memory Capacity 128GB

Memory Support 5333/ 5200/ 5066/ 5000/ 4800/ 4600/ 4533/ 4400/ 4266/ 4000/ 3866/ 3733/ 3600/ 3466/ 3333(O.C.)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133(By JEDCE & POR)

Max. overclocking frequency:

• 1DPC 1R Max speed up to 5333+ MHz

• 1DPC 2R Max speed up to 4800+ MHz

• 2DPC 1R Max speed up to 4400+ MHz

• 2DPC 2R Max speed up to 4000+ MHz

Supports Dual-Channel mode

Supports non-ECC, un-buffered memory

Supports Intel® Extreme Memory Profile

ONBOARD GRAPHICS:

1x HDMI™

Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz*

1x DisplayPort

Support DP 1.4, maximum resolution of 8K 60Hz*

*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

EXPANSION SLOT:

2x PCI-E x16 slot

Supports x16/x4

1x PCI-E x1 slot

PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)

PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)

PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)

STORAGE:

4x M.2

M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices

M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices

M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices

M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices

7x SATA 6G

RAID:

Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices*

Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices

* SATA_A1_A2 do not support RAID function.

USB:

4x USB 2.0 (Front)

4x USB 3.2 Gen1 Type A (Rear)

2x USB 3.2 Gen1 Type A (Front)

4x USB 3.2 Gen2 Type A (Rear)

1x USB 3.2 Gen2 Type C (Rear)

1x USB 3.2 Gen2 Type C (Front)

1x USB 3.2 Gen2x2 Type C (Rear)

LAN:

Intel® 2.5Gbps LAN

WIRELESS / BLUETOOTH:

Intel® Wi-Fi 6E

The Wireless module is pre-installed in the M.2 (Key-E) slot

Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps

Supports 802.11 a/ b/ g/ n/ ac/ ax

Supports Bluetooth® 5.3, FIPS, FISMA

* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.

** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.

AUDIO:

Realtek® ALC4080 Codec

7.1-Channel USB High Performance Audio

Supports S/PDIF output

Supports up to 32-Bit/384 kHz playback on front panel

INTERNAL I/O:

1x Power Connector(ATX_PWR)

2x Power Connector(CPU_PWR)

1x CPU Fan

1x Pump Fan

6x System Fan

2x Front Panel (JFP)

1x Chassis Intrusion (JCI)

1x Front Audio (JAUD)

1x TBT connector (JTBT, supports RTD3)

1x Tuning Controller connector(JDASH)

3x Addressable V2 RGB LED connector (JARGB_V2)

1x RGB LED connector(JRGB)

1x TPM pin header(Support TPM 2.0)

4x USB 2.0 ports

2x USB 3.2 Gen1 Type A ports

1x USB 3.2 Gen2 Type C ports

LED FEATURE:

4x EZ Debug LED

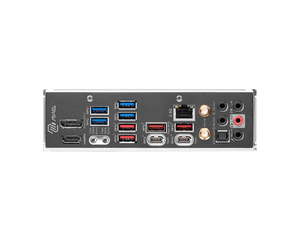

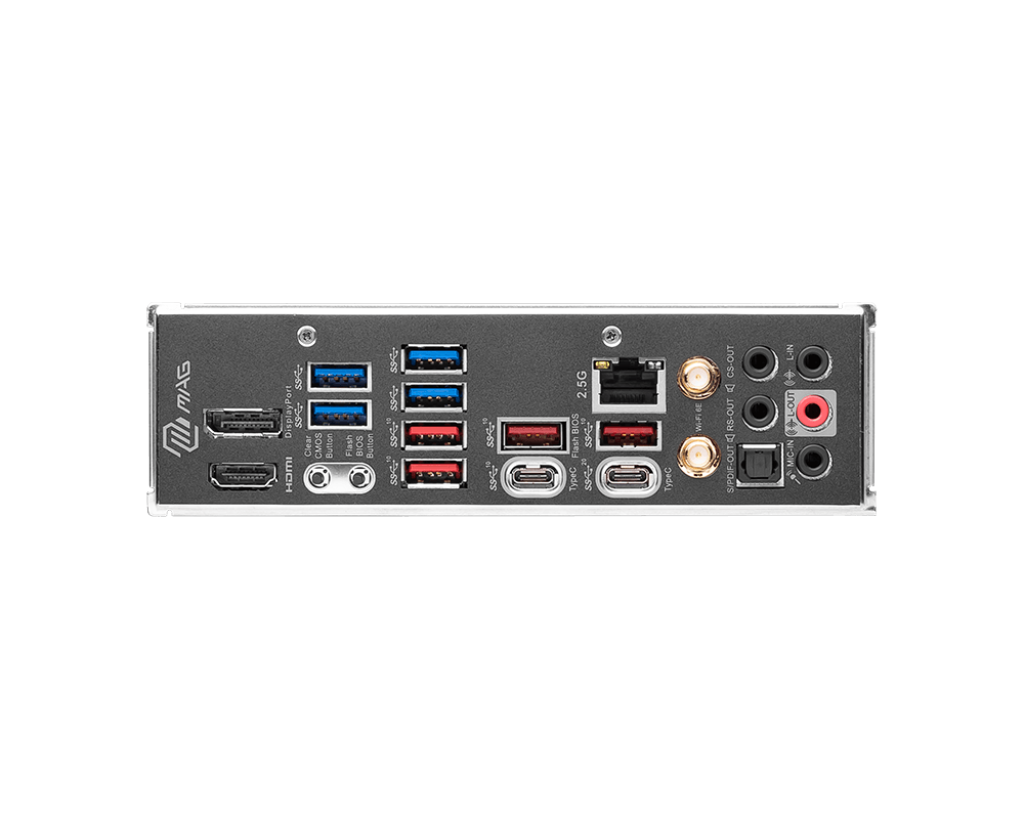

BACK PANEL PORTS:

DisplayPort 1.4

USB 3.2 Gen 1 5Gbps Type-A

USB 3.2 Gen 2 10Gbps Type-A

2.5G LAN Port,

HD Audio Connectors

HDMI™ 2.1 Port

Clear CMOS Button

Flash BIOS Button

USB 3.2 Gen 2 10Gbps Type-C

USB 3.2 Gen 2x2 20Gbps Type-C

Wi-Fi / Bluetooth Antenna

Optical S/PDIF OUT

OPERATING SYSTEM:

Support for Windows® 11 64-bit, Windows® 10 64-bit

PCB DIMENSION (W × L):

ATX

243.84mmx304.8mm

Full Specifications Page
