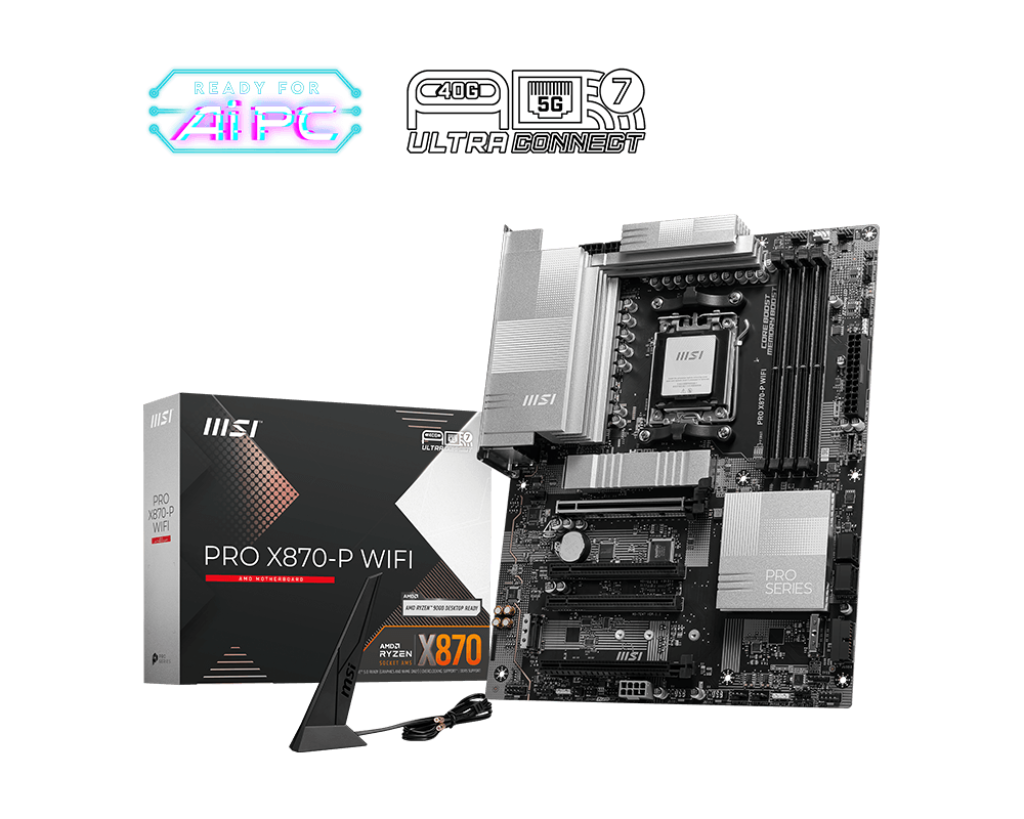

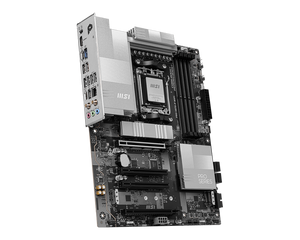

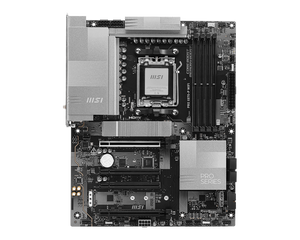

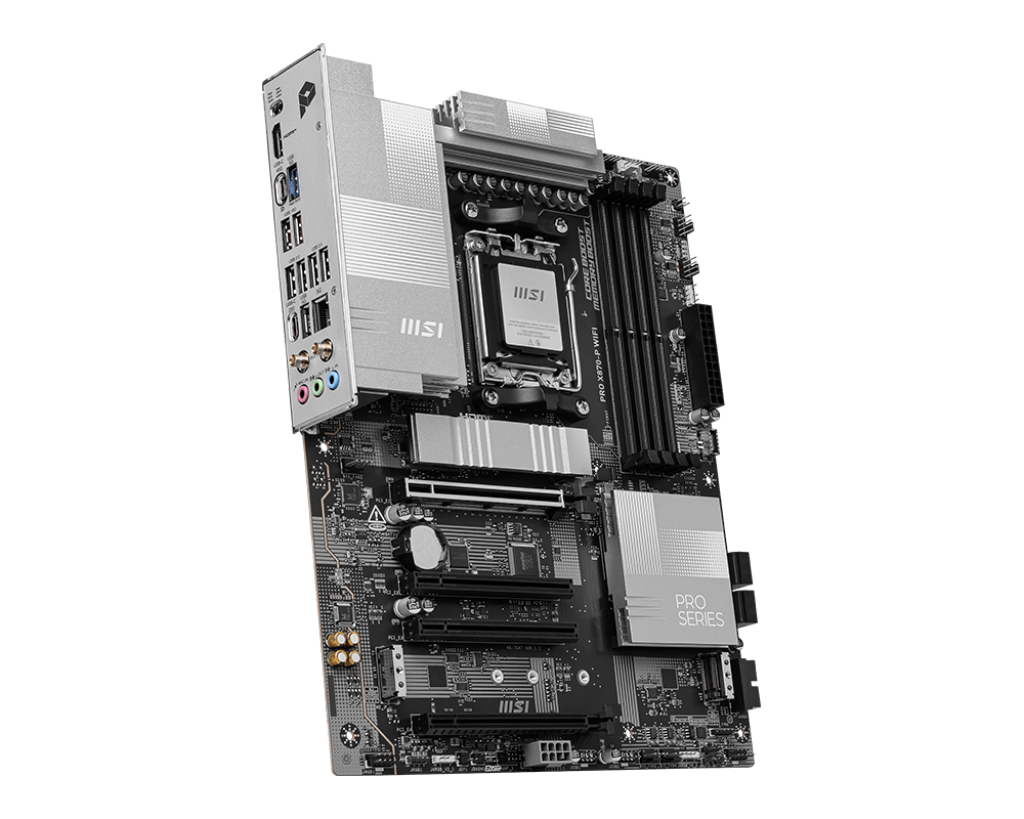

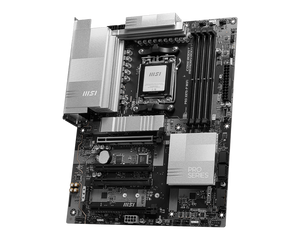

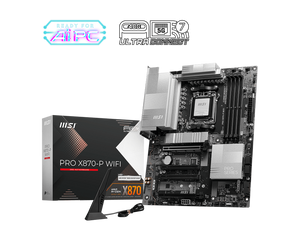

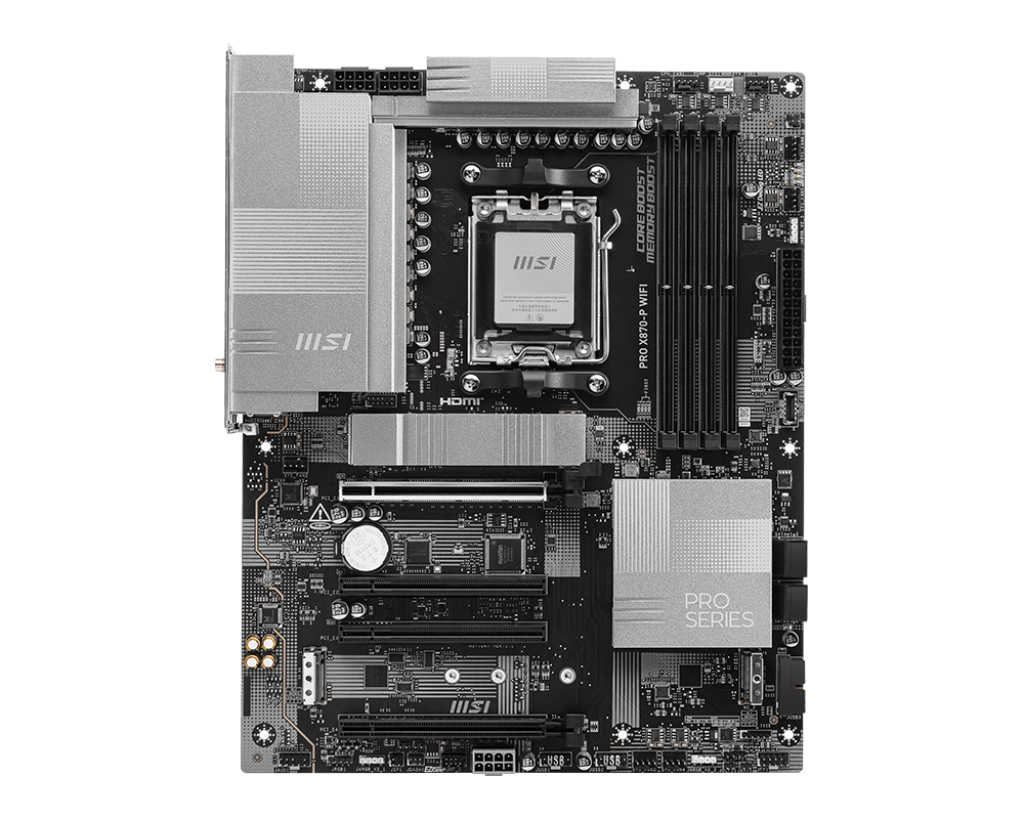

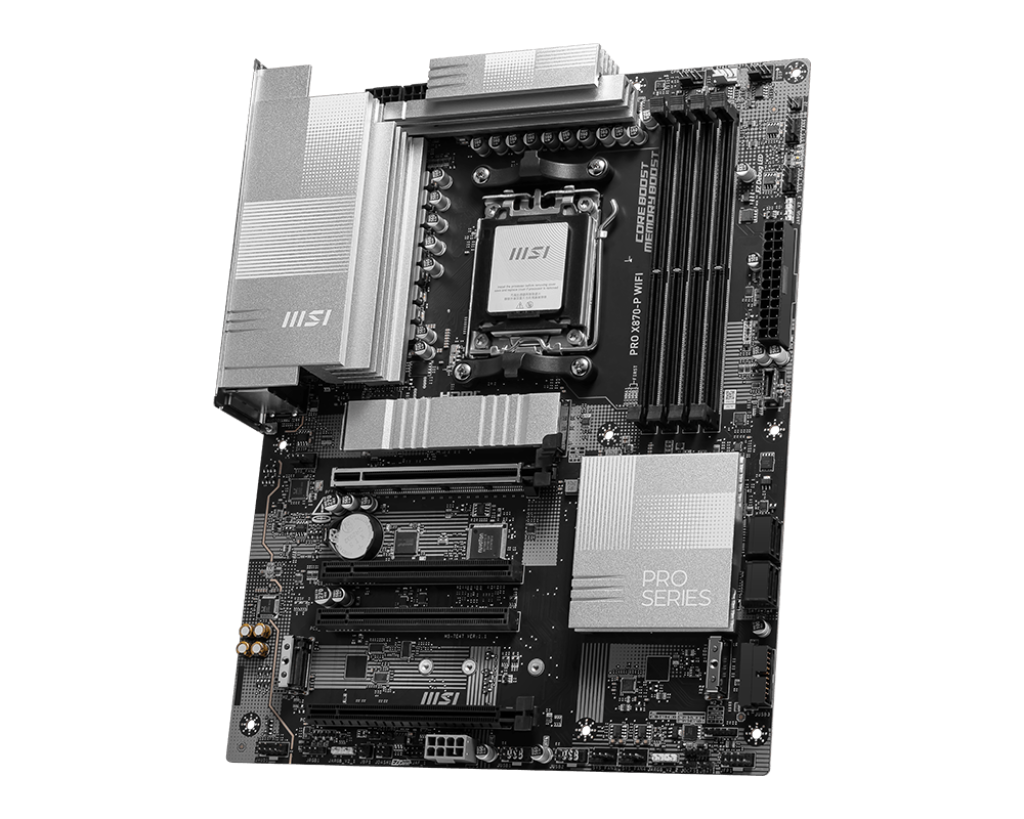

MSI X870-P Pro Wi-Fi 7 & Bluetooth DDR5 ATX Motherboard

MSI X870-P Pro Wi-Fi 7 & Bluetooth DDR5 ATX Motherboard

$549.00

OVERVIEW
SPECIFICATIONS
FAQs

3 YEAR DISTRIBUTOR WARRANTY

Corbell Technology Pte Ltd
4012 Ang Mo Kio Ave 10, #06-04 Techplace 1
Singapore 569628
Contact: 6452 4122

KEY FEATURES

-Enhanced Audio Experience: Incorporates the Realtek® ALC897 codec, delivering high-definition audio for an immersive sound experience.

-Sleek Silver Design: The motherboard features a simple design with a harmonious silver color scheme, perfectly matching both white and black PC builds.

-5G LAN Support: Features a Realtek® 8126VB 5G LAN controller, providing high-speed wired networking capabilities suitable for bandwidth-intensive tasks and seamless online experiences.
Chipset:

AMD X870

CPU:

Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors

Socket AM5

Memory:

4x DDR5 UDIMM, Maximum Memory Capacity 256GB

Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s

Ryzen™ 9000 Series Processors max. overclocking frequency:

• 1DPC 1R Max speed up to 8200+ MT/s

• 1DPC 2R Max speed up to 6400+ MT/s

• 2DPC 1R Max speed up to 6400+ MT/s

• 2DPC 2R Max speed up to 4800+ MT/s

Supports AMD POR Speed and JEDEC Speed

Supports Memory Overclocking and AMD EXPOTM

Supports Dual-Channel mode

Supports Non-ECC, Un-buffered memory

Supports CUDIMM, Clock Driver bypass mode only*

* CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility.

• The DIMM slots on this motherboard have double-sided latches.

• Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/.

Onboard Graphics:

1x HDMI™

Support HDMITM 2.1, maximum resolution of 4K 60Hz*

1x Type-C DisplayPort

USB4® port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K 60Hz*

*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

Slot:

4x PCI-E x16 slot

PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)

PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)

PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset)

PCI_E4 Gen PCIe 4.0 supports up to x4 (From Chipset)

PCI_E1 slot

• Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors)

• Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors)

• Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processors)

* PCI_E4 slot will run at x2 speed when installing M.2 SSD in the M2_3 slot.

Audio:

Realtek® ALC897

7.1-Channel High Definition Audio

Storage:

3x M.2

M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices

M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices

M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280/2260 devices

4x SATA 6G

M2_1 slot

• Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors)

• Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors)

*Please refer to the manual for M.2 SSD heatsink restrictions.

RAID:

Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices

*SATA_A1~A4 do not support RAID function.

*RAID 5 configuration is only supported by Ryzen™ 9000 series processors.

USB:

4x USB 2.0 (Rear)

4x USB 2.0 (Front)

2x USB 5Gbps Type A (Rear)

2x USB 5Gbps Type A (Front)

2x USB 10Gbps Type A (Rear)

1x USB 10Gbps Type C (Front)

1x USB 20Gbps Type C (Rear)

1x USB 40Gbps Type C (Rear)

LAN:

Realtek® 8126VB 5G LAN

Internal IO:

1x Power Connector(ATX_PWR)

2x Power Connector(CPU_PWR)

1x Power Connector(PCIE_PWR 8pin)

1x CPU Fan

1x Combo Fan (Pump_Sys Fan)

6x System Fan

1x EZ Conn-header (JAF_1)

2x Front Panel (JFP)

1x Chassis Intrusion (JCI)

1x Front Audio (JAUD)

1x Tuning Controller connector(JDASH)

3x Addressable V2 RGB LED connector (JARGB_V2)

1x RGB LED connector(JRGB)

1x TPM pin header(Support TPM 2.0)

4x USB 2.0 ports

2x USB 5Gbps Type A ports

1x USB 10Gbps Type C ports

WIRELESS LAN & BLUETOOTH:

Wi-Fi 7

The Wireless module is pre-installed in the M.2 (Key-E) slot

Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps

Supports 802.11 a/ b/ g/ n/ ac/ ax/ be

Supports Bluetooth® 5.4**, MLO, 4KQAM

* 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2.

** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2.

LED FEATURE:

4x EZ Debug LED

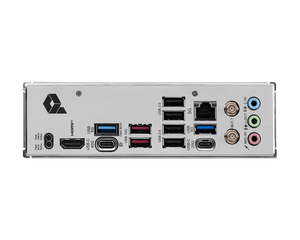

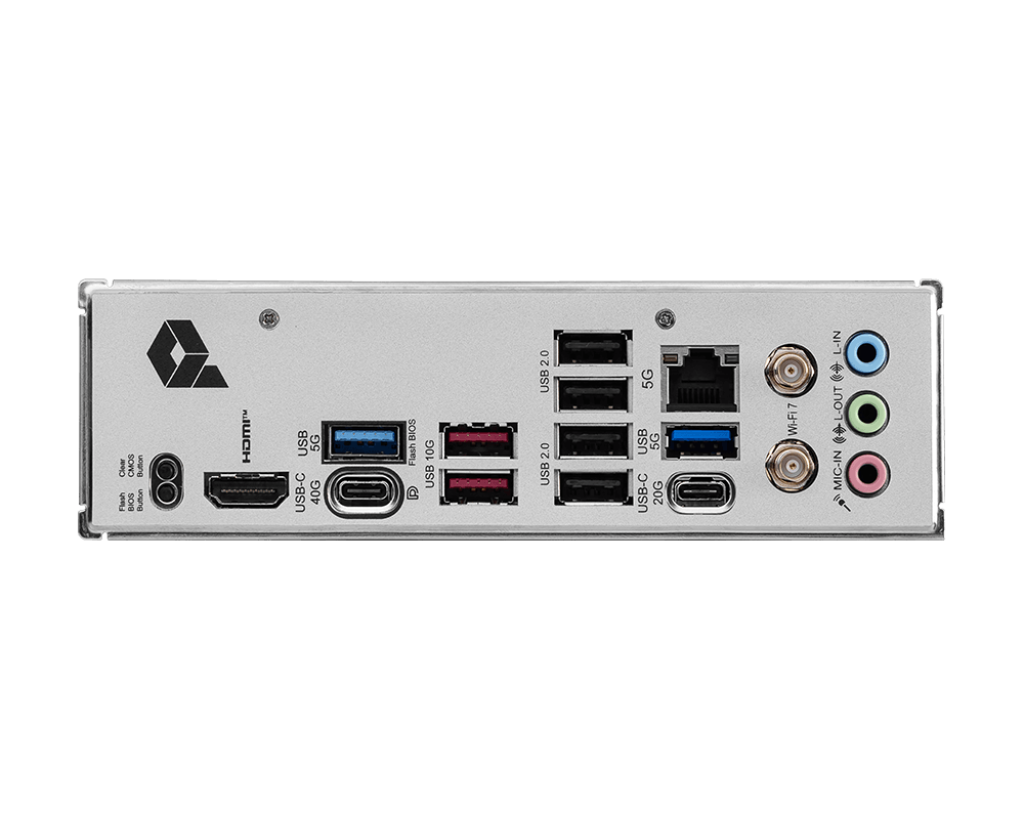

BACK PANEL PORTS:

Clear CMOS Button

USB 5Gbps Type-A

USB 2.0

5G LAN

Wi-Fi / Bluetooth

Audio connectors

Flash BIOS Button

HDMI™

USB 40Gbps Type-C

USB 10Gbps Type-A

USB 20Gbps Type-C

OPERATING SYSTEM:

Support for Windows® 11 64-bit

BOX CONTENT:

1 to 2 EZ Conn-Cable (V1)

Sata Cables x 2

EZ Wi-Fi Antenna

EZ M.2 Clips II

EZ M.2 Clip II Remover

Quick Installation Guide

PCB Info:

ATX

243.84mm x 304.8mm
