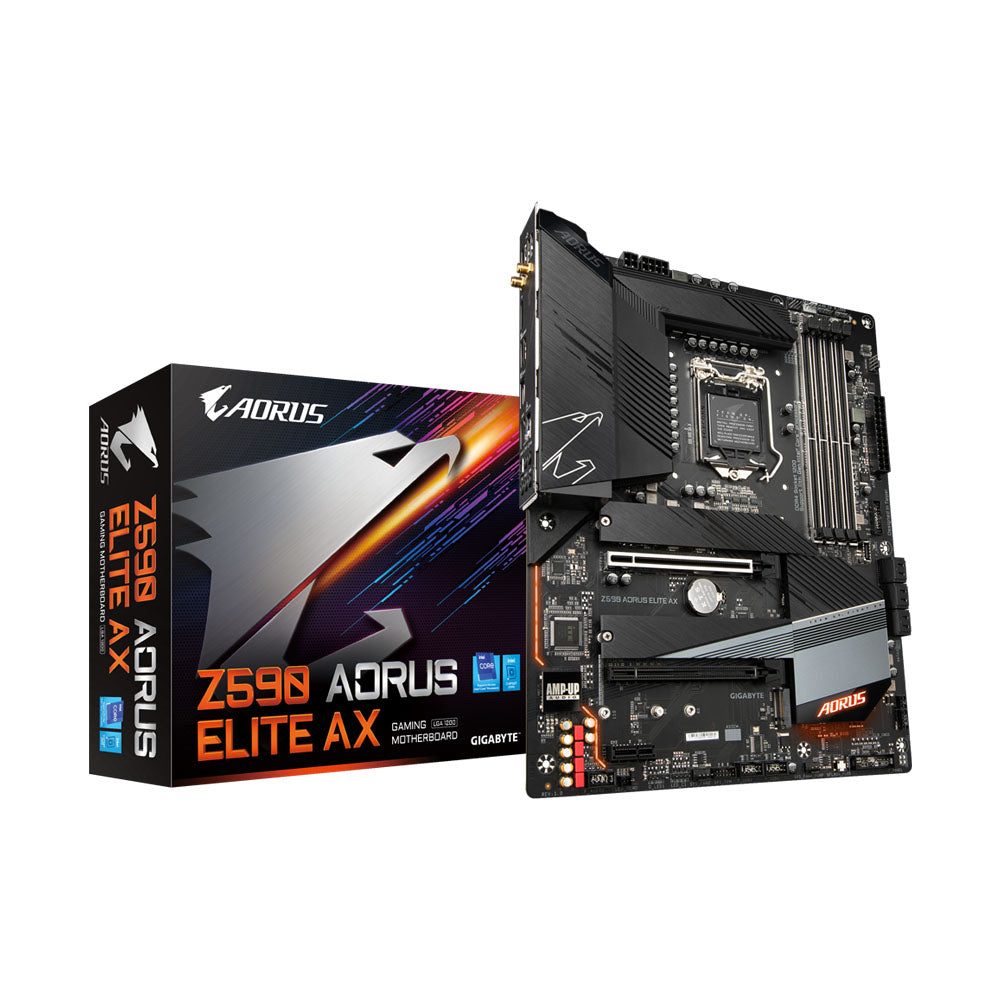

Z590 Aorus Elite AX

  • PERFORMANCE

    Z590 AORUS ELITE AX being in the mid-range series of the Intel Z590 chipset, is a good value, full-featured motherboard that comes with robust power delivery, latest audio codec and Wi-Fi 6. Its design also follows a simple black and silver color scheme, with RGB LEDs built into the Aorus logo at the bottom of the chipset heatsink. The brushed-aluminum accents also give a more premium appearance than other board around same price point. With the reasonable price tag, it is considered a great option for new Intel-based builds, especially when you get most USB ports - 13 rear USB ports, including USB 3.2 Gen 2x2 Type-C port.

    SPECIFICATIONS

    Form Factor: Standard ATX (ATX)
    Dimensions: 30.5cm x 24.4cm
    # of Ram Slots: 4
    Chipset: Intel Z590
    Compatible Ram Type: Non-ECC, Un-buffered Memory
    Compatible Ram Speed: 11th Gen - Support for DDR4 5400 (O.C)/ DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz
    Socket: Intel 11th Gen - LGA 1200

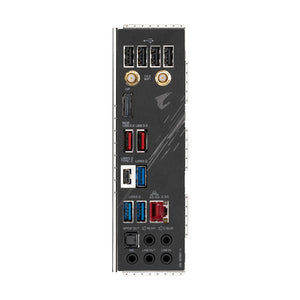

    Ports: 1 x USB Type-C with USB 3.2 Gen 2x2 support, 2 x USB 3.2 Gen 2 Type-A (red), 3 x USB 3.2 Gen 1, 4 x USB 2.0/1.1 port, 2 x SMA antenna connectors (2T2R), 1 x DisplayPort, 1 x RJ-45 port, 1 x optical S/PDIF Out connector, 5 x audio jacks
    Expansion Slots: 2 x PCIe 3.0 x16 (Modes will vary), 1 x PCIe 3.0 x1
    LAN Port:Realtek 2.5GbE LAN chip
    Built in WiFi & Bluetooth: Yes, Intel Wi-Fi 6 AX201, Bluetooth 5.1
