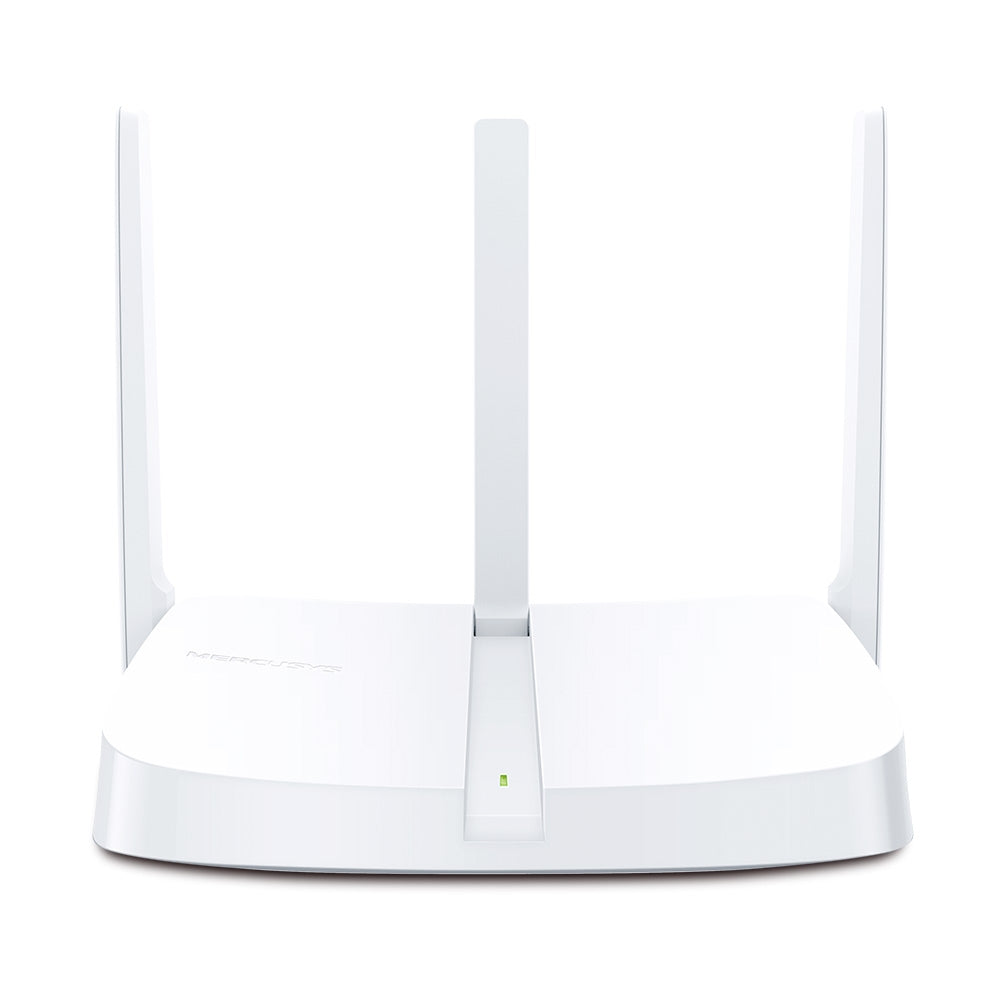

Mercusys MW306R 300 Mbps Multi-Mode Wireless N Router

Wireless Standards:
IEEE 802.11 b/g/n

Frequency:
2.4-2.5 GHz

WiFi Speeds:
• 11n: Up to 300Mbps (Dynamic)
• 11g: Up to 54Mbps (Dynamic)
• 11b: Up to 11Mbps (Dynamic)

Reception Sensitivity:
• 270M: -70dBm@10% PER • 11M: -87dBm@10% PER
• 130M: -72dBm@10% PER • 6 M: -92dBm@10% PER
• 54M: -74dBm@10% PER • 1 M: -94dBm@10% PER

Transmission Power:
<20dBm (EIRP)

Wireless Security:
WPA-PSK/WPA2-PSK

Wireless Functions:
Enable/Disable Wireless Radio, WDS Bridging

Dimensions:
5.8 × 4.5 × 1.3 in (147 × 115 × 34 mm)

Button:
RESET/WPS Button

External Power Supply:
5V/0.6A

Antenna Type:
3x Fixed Antennas

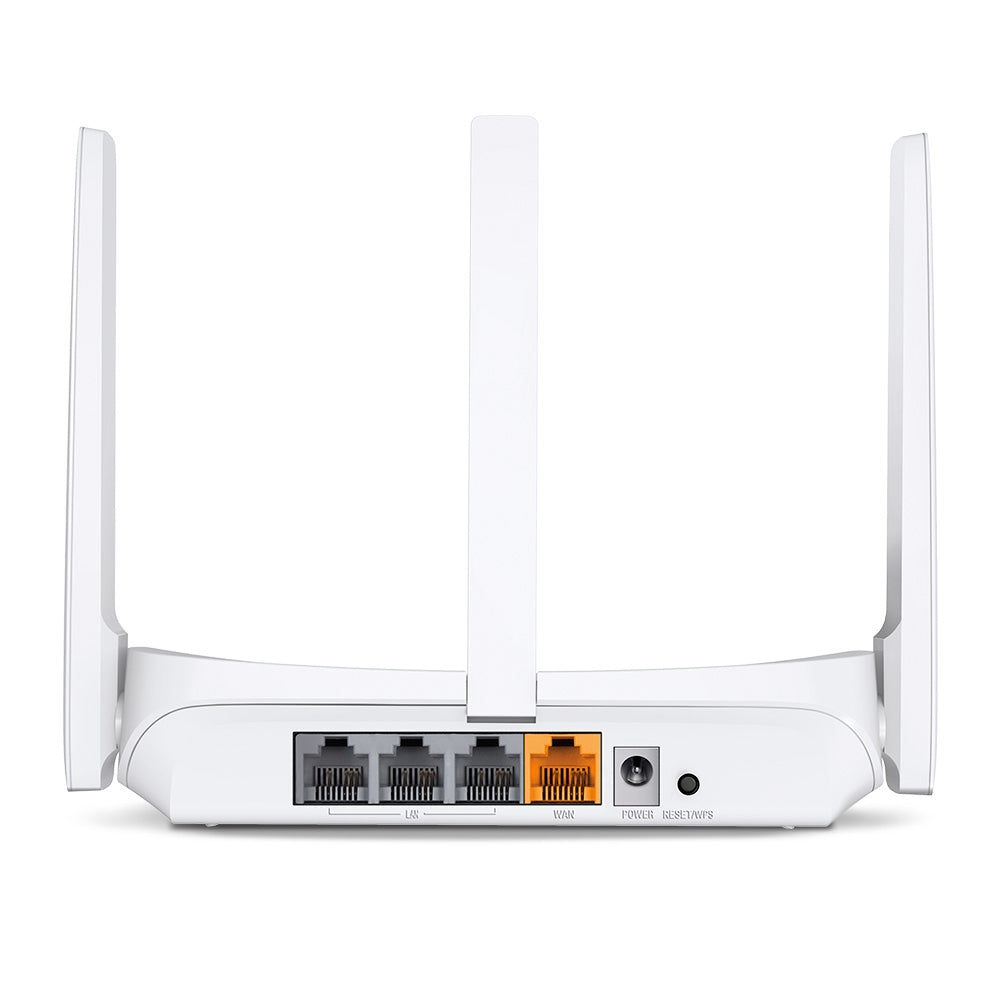

Ethernet Ports:
1x 10/100Mbps WAN Port,
3x 10/100Mbps LAN Ports

WAN Type:
Dynamic IP/Static IP/PPPoE/PPTP/L2TP

Management:
Access Control
Local Management
Remote Management

Port Forwarding:
Virtual Server, UPnP, DMZ

Firewall Security:
IP and MAC Address Binding

Guest Network:
2.4GHz Guest Network

DHCP:
DHCP Server, DHCP Client List

Package Contents:
Wi-Fi N Router (MW306R)
Power Adapter
Quick Installation Guide
Ethernet Cable

Environment:
• Operating Temperature: 0°C~40°C (32°F~104°F)
• Operating Humidity: 10%~90% Non-Condensing
