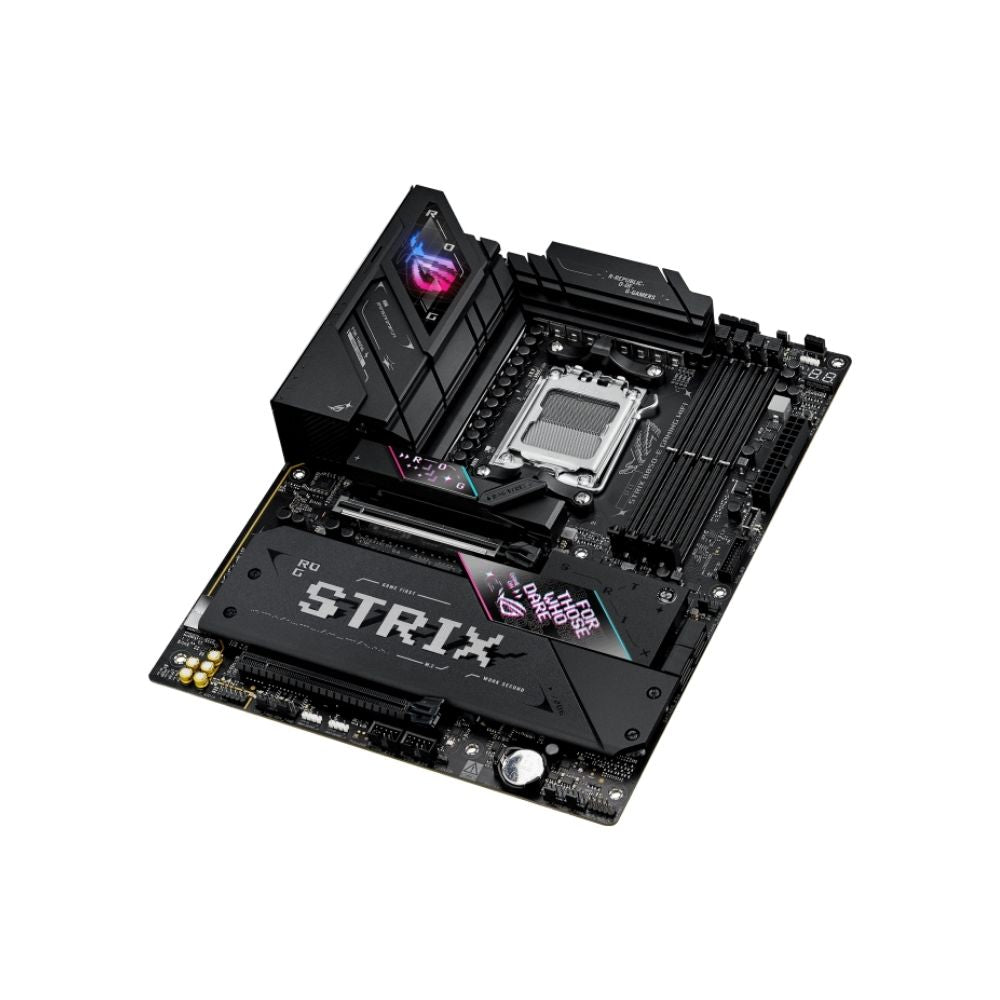

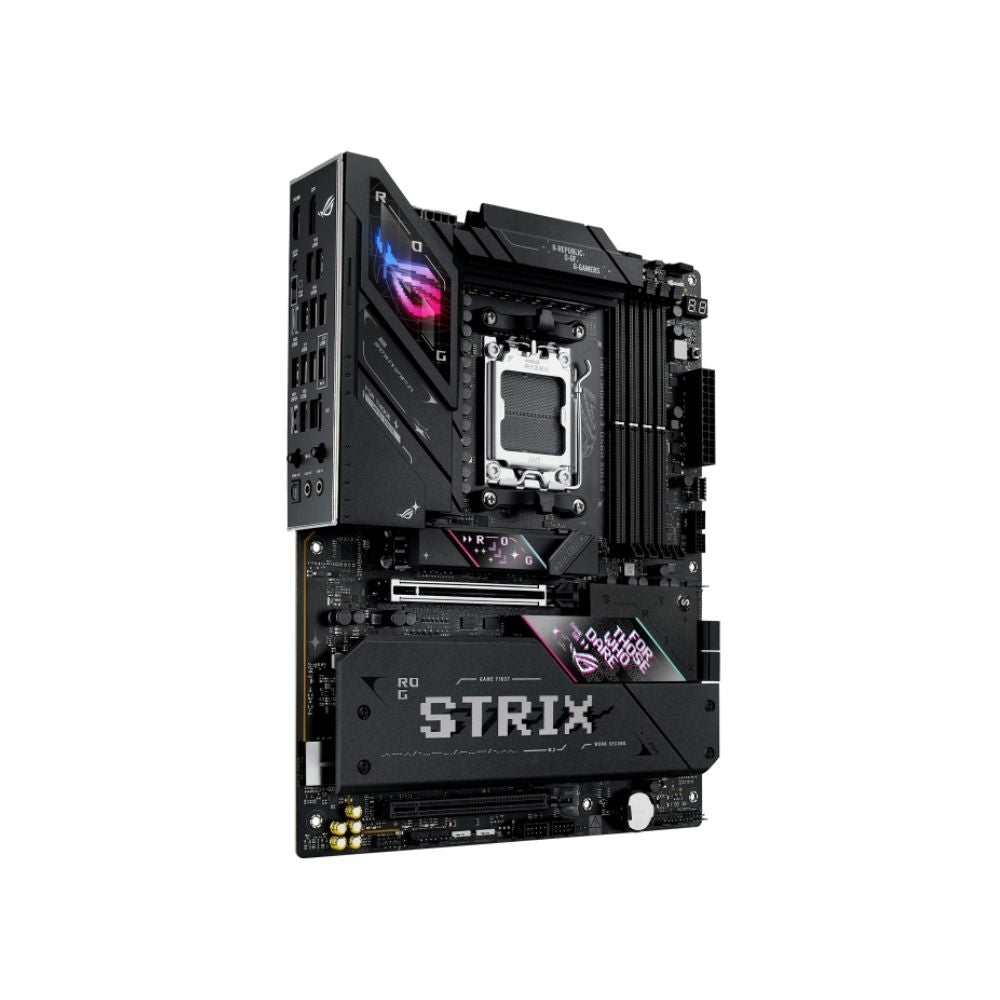

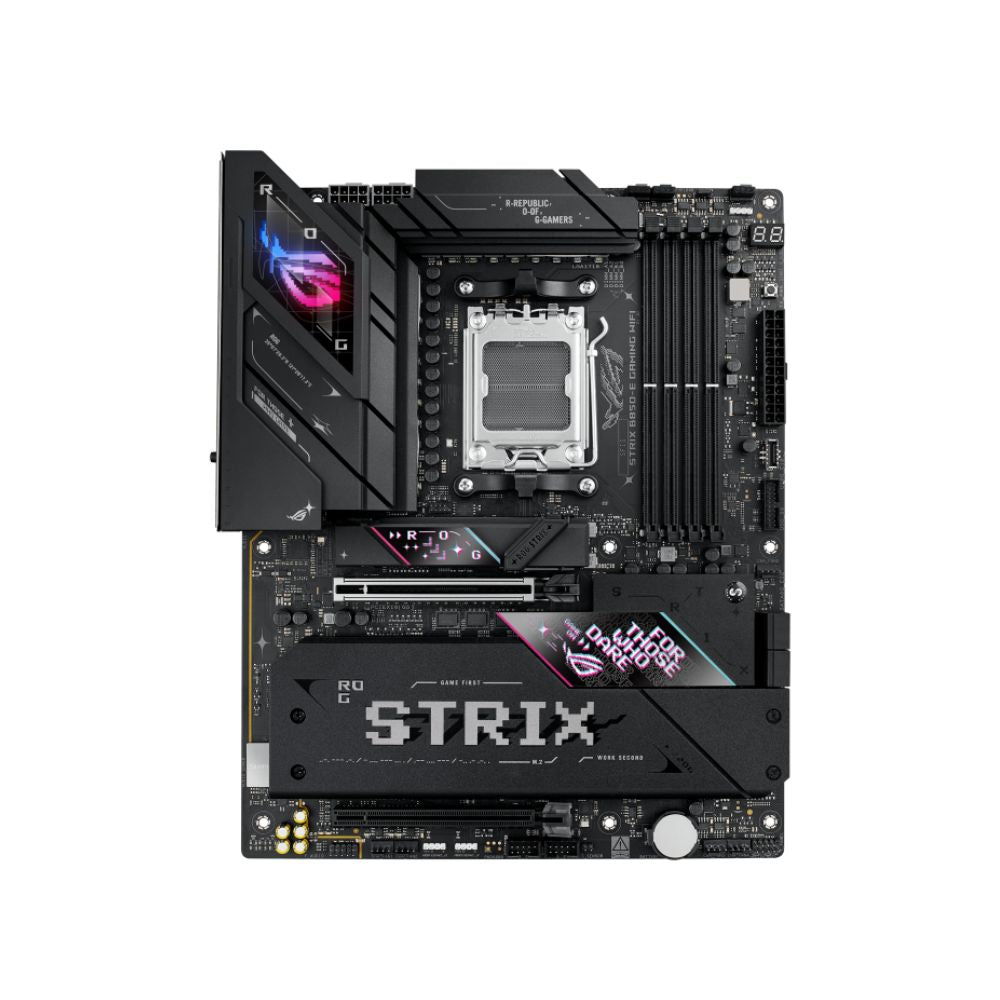

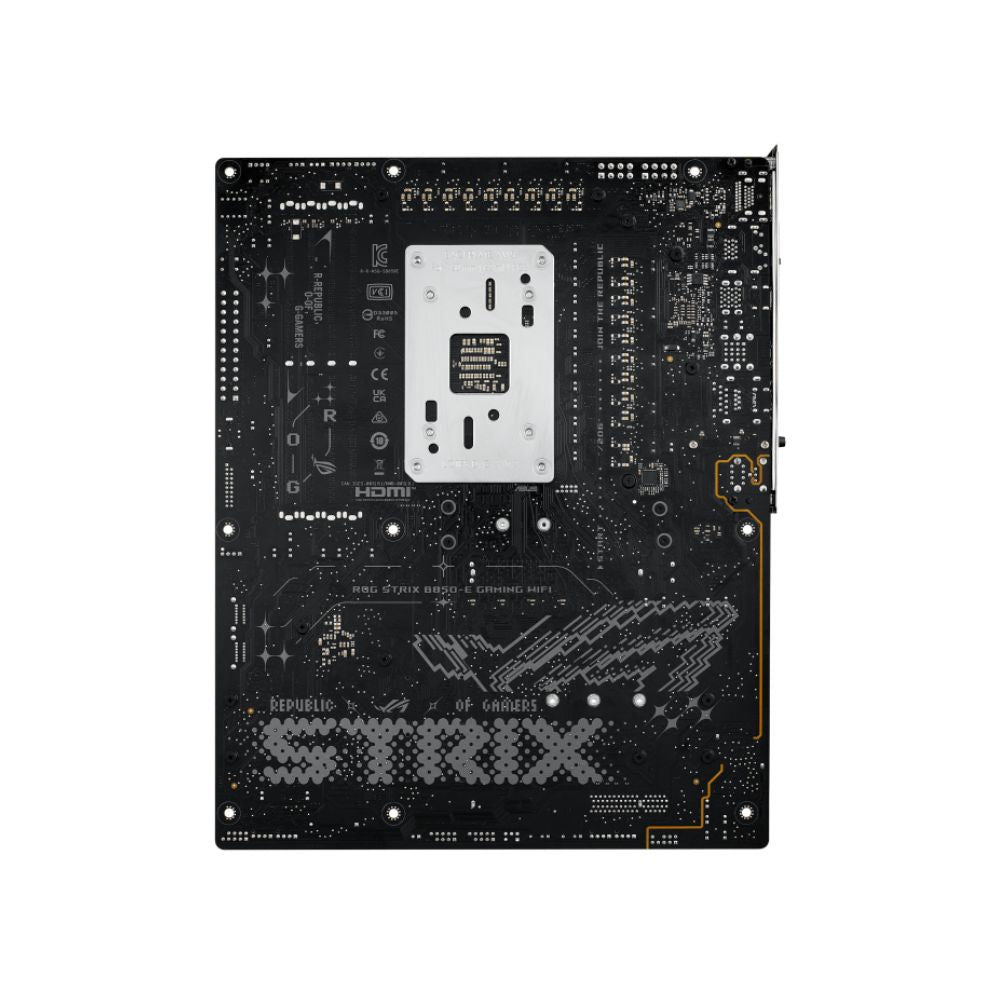

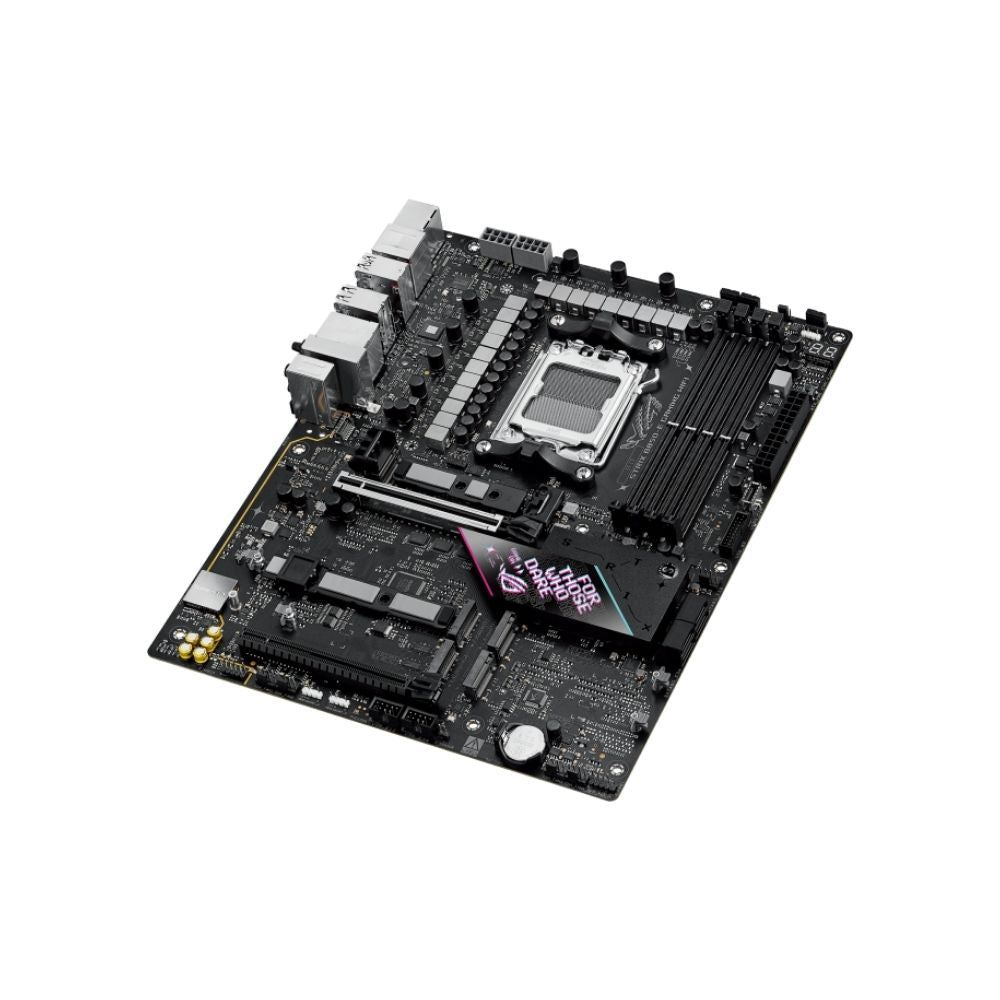

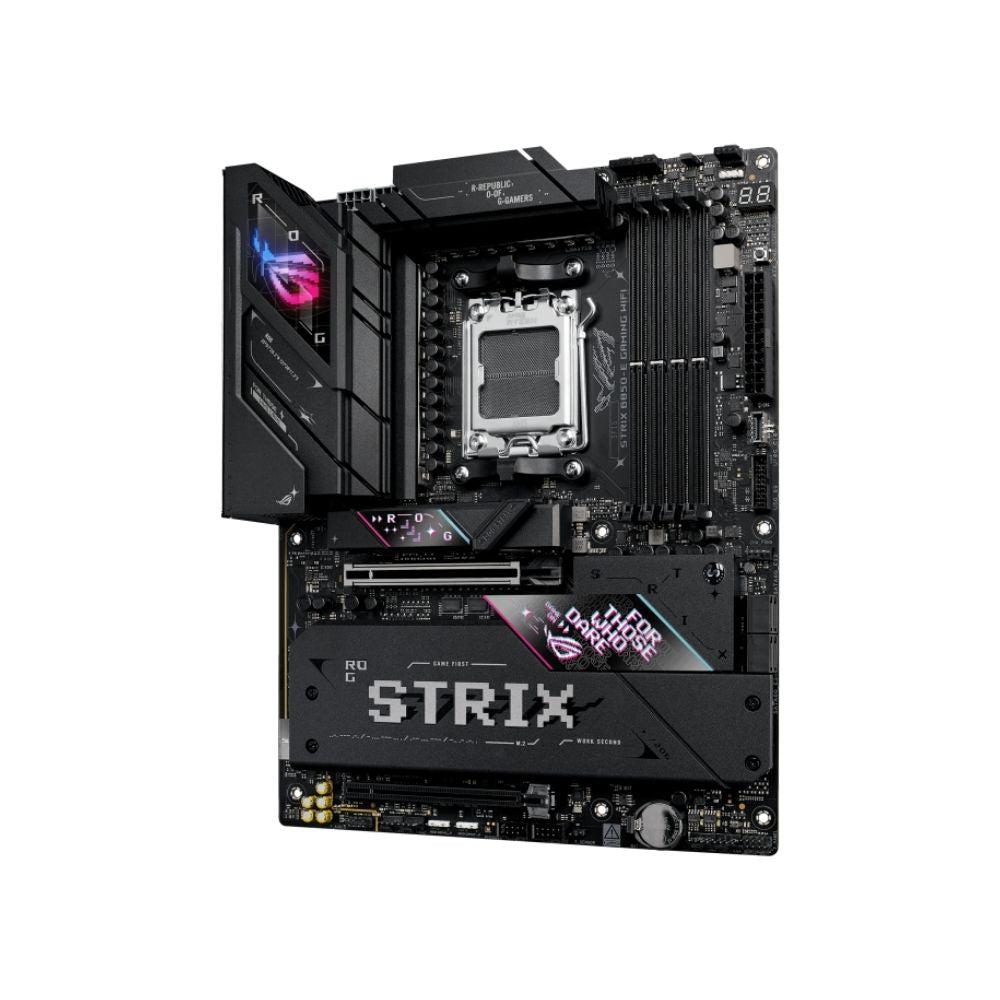

ASUS B850-E ROG STRIX GAMING WIFI 7 & Bluetooth DDR5 ATX Motherboard

Model:
ROG STRIX B850-E GAMING WIFI

CPU:
AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors.

Chipset:
AMD B850 Chipset

Memory:
4 x DIMM slots, max. 256GB, DDR5
 Supports up to 8000+MT/s (OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC, Un-buffered DIMM*
Dual channel memory architecture
Supports AMD Extended Profiles for Overclocking (EXPO™)
ASUS Enhanced Memory Profile (AEMP)
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/.
**Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

Graphics:
1 x DisplayPort
1 x HDMI™ port
1 x USB4® (40Gbps) port supports USB Type-C® display outputs
- Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.

Expansion Slots:
AMD Ryzen™ 9000 & 7000 Series Desktop Processors
1 x PCIe 5.0 x16 slot with Q-Release Slim (supports x16 or x8 modes)
AMD Ryzen™ 8000 Series Desktop Processors
1 x PCIe 5.0 x16 slot with Q-Rlease Slim (supports PCIe 4.0 x8 or x4 mode)

AMD B850 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)****

Storage:
Total supports 5 x M.2 slots and 4 x SATA 6Gb/s ports

AMD Ryzen™ 9000 & 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280  (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
M.2_3 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)

AMD Ryzen™ 8000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280  (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280/22110 (Not supports)
M.2_3 slot (Key M), type 2280 (Not supports)

AMD B850 Chipset
M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_5 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)

ASMedia ASM1061 Controller
4 x SATA 6Gb/s ports

AMD RAIDXpert2 Technology for NVMe M.2 Device only
Ryzen™ 9000 Series Processors: RAID 0/1/5/10
Ryzen™ 8000 Series Processors: RAID 0/1
Ryzen™ 7000 Series Processors: RAID 0/1/10

Ethernet:
1 x Realtek 5Gb Ethernet
ASUS LANGuard

Wireless & Bluetooth:
Wi-Fi 7
2x2 Wi-Fi 7 (802.11be)
Supports 2.4/5/6GHz frequency band
Supports Wi-Fi 7 320MHz bandwidth, up to 6.5Gbpstransfer rate.
Bluetooth® v5.4

USB:
Rear USB (Total 12 ports)
1 x USB4® (40Gbps) port(1 x USB Type-C®)*
1 x USB 20Gbps port (supports USB Type-C® with up to 30W PD/PPS Fast-charge)**
6 x USB 10Gbps ports (6 x Type-A)
4 x USB 2.0 ports (4 x Type-A)

Front USB (Total 7 ports)
1 x USB 10Gbps connector (1 x USB Type-C®)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
* USB Type-C® power delivery output: max. 5V/3A
** USB Type-C® power delivery output: 5V/9V max. 3A, 12V max 2.5A, 15V max. 2.0A

Audio:
ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080*
 - Impedance sense for front and rear headphone outputs
 - Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
 - High quality 120 dB SNR stereo playback output and 110 dB SNR recording input
 - Supports up to 32-Bit/384 kHz playback on front panel

Audio Features
- SupremeFX Shielding Technology
- Savitech SV3H712 AMP
- Gold-plated audio jacks
- Rear optical S/PDIF out port
- Premium audio capacitors
- Audio cover
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
** The LINE OUT port on the rear panel does not support spatial audio. If you wish to use spatial audio, make sure to connect your audio output device to the audio jack on the front panel of your chassis or use a USB interface audio device.

Back Panel I/O Ports:
1 x USB4® (40Gbps)(1 x USB Type-C®)
1 x USB 20Gbps port (supports USB Type-C® with up to 30W PD/PPS Fast-charge)
6 x USB 10Gbps ports (6 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x DisplayPort
1 x HDMI™ port
1 x Wi-Fi module
1 x Realtek 5Gb Ethernet port
2 x Gold-plated audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack™ button
1 x Clear CMOS button

Internal I/O Connectors:
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
5 x 4-pin Chassis Fan headers
1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connector
5 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
1 x USB 10Gbps connector (supports USB Type-C® )
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
3 x Addressable Gen 2 header(s)
1 x CPU Over voltage jumper
1 x Front Panel Audio header (F_AUDIO)
1 x Power button
1 x 10-1 pin Front System Panel header
1 x Thermal Sensor header

Special Features:
Extreme Engine Digi+
- 5K Black metallic capacitors
ASUS Q-Design
- M.2 Q-Latch
- M.2 Q-Release
- M.2 Q-Slide
- PCIe Slot Q-Release Slim (with PCIe SafeSlot)
- Q-Antenna
- Q-Code
- Q-Dashboard
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink backplate
- M.2 heatsink
ASUS EZ DIY
- BIOS FlashBack™ button
- BIOS FlashBack™ LED
- Clear CMOS button
- ProCool
- Pre-mounted I/O shield
- SafeSlot
- SafeDIMM
Aura Sync
- Addressable Gen 2 header(s)
Rear USB 20Gbps with PD Fast Charge Support
- Support: up to 30W fast charging and USB Wattage Watcher
- Output: 5V/9V max. 3A, 12V max 2.5A, 15V max2.0A
- Compatible with PD3.0

Software Features:
ROG Exclusive Software
- ROG CPU-Z
- Dolby Atmos
Armoury Crate
- AIDA64 Extreme (60 days free trial)
- Aura Creator
- Aura Sync
- GameFirst
- Fan Xpert 4
- HWiNFO
- Power Saving
ASUS DriverHub
ASUS GlideX
USB Wattage Watcher
TurboV Core
Adobe Creative Cloud (Free Trial)
Norton 360 for Gamers (60 Days Free Trial)
WinRAR (40 Days Free Trial)
AI Overclocking Guide
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
- ASUS MyHotkey
Dynamic OC Switcher
Core Flex

BIOS:
256 Mb Flash ROM, UEFI AMI BIOS

Accessories:
2 x SATA 6Gb/s cables
1 x Thermal pad for M.2 22110
1 x ASUS WiFi Q-Antenna
1 x Cable ties package
1 x M.2 Q-Slide package
1 x ROG key chain
1 x ROG Strix stickers
5 x M.2 rubbers
1 x Quick start guide

Operating System:
Windows 11

Form Factor:
ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
