Model Name
TUF GAMING B650E-E WIFI

Brand
ASUS TUF Gaming

CPU Support
AMD Socket AM5 for Ryzen™ 9000 / 8000 / 7000 Series

Chipset
AMD B650

Memory
4× DIMM DDR5, up to 256GB
Supports up to 8000+ MT/s (OC)
Dual Channel, ECC/Non-ECC, EXPO™, AEMP

Graphics
1× DisplayPort 1.4 (up to 8K@30Hz)
1× HDMI 2.1 (up to 4K@60Hz)

Expansion Slots
1× PCIe 5.0 x16 (Ryzen 9000/7000 CPUs)
1× PCIe 4.0 x16 (Ryzen 8000 CPUs, x8/x4 mode)
1× PCIe 4.0 x16 (x1 mode, chipset)
1× PCIe 4.0 x1

Storage
3× M.2 slots (PCIe 5.0 & 4.0)
4× SATA 6Gb/s ports
AMD RAIDXpert2 Technology (RAID 0/1/5/10 depending on CPU)

Networking
1× Realtek 2.5Gb Ethernet with TUF LANGuard
Wi-Fi 6E (802.11ax, 2×2)
Bluetooth® v5.3

USB Ports
Rear (8 total):
2× USB 10Gbps (1× Type-A, 1× Type-C)
3× USB 5Gbps (Type-A)
3× USB 2.0 (Type-A)

Front (7 total):
1× USB 20Gbps connector (Type-C)
1× USB 5Gbps header (2 ports)
2× USB 2.0 headers (4 ports)

Audio
Realtek 7.1 HD Audio CODEC
Premium capacitors, audio shielding, and dedicated PCB layers
Supports up to 24-bit/192 kHz playback
3× Audio jacks + Optical S/PDIF Out

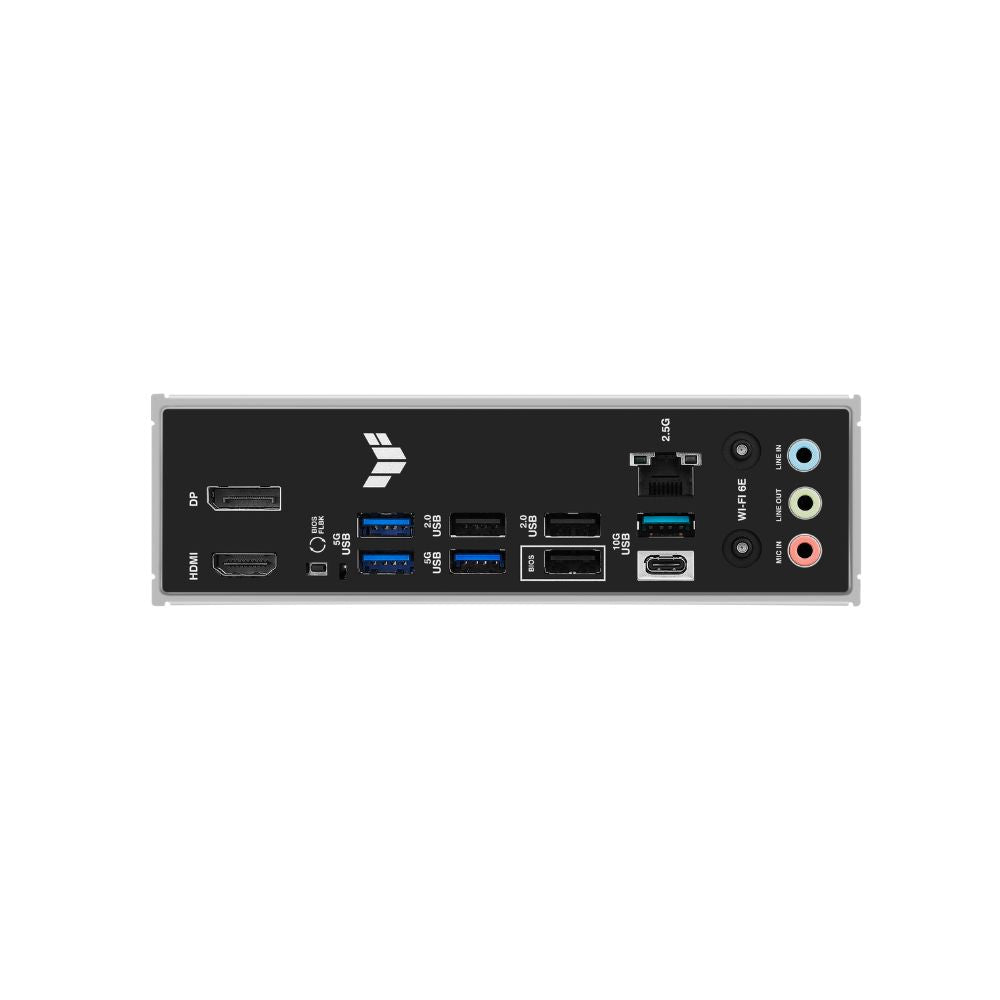

Back Panel I/O
2× USB 10Gbps (1× Type-A, 1× Type-C)
3× USB 5Gbps (Type-A)
3× USB 2.0 (Type-A)
1× DisplayPort
1× HDMI
1× Realtek 2.5Gb LAN
1× Wi-Fi Module
3× Audio Jacks
1× Optical S/PDIF Out
1× BIOS FlashBack™ button

Internal I/O
CPU Fan, OPT Fan, AIO Pump, 4× Chassis Fan headers
24-pin ATX + 8-pin + 4-pin CPU power
3× M.2 slots
4× SATA 6Gb/s ports
Front panel USB 20Gbps Type-C, USB 5Gbps, USB 2.0 headers
3× Addressable RGB Gen2 headers
Clear CMOS header, chassis intrusion header, COM port header
Thermal sensor header

Special Features
ASUS TUF Protection: DIGI+ VRM with DrMOS, ESD Guards, SafeSlot, stainless-steel I/O
ASUS Q-Design: M.2 Q-Latch, PCIe Q-Release, Q-Antenna, Q-DIMM, Q-LED, Q-Slot
ASUS EZ DIY: BIOS FlashBack™, pre-mounted I/O shield, SafeDIMM, ProCool
ASUS Thermal Solution: Flexible M.2 heatsink, VRM heatsink design
Aura Sync RGB: Addressable RGB headers

Software
Armoury Crate (Aura Sync, Fan Xpert 4, GameFirst, Aura Creator)
AI Suite 3 (TurboV EVO, DIGI+ VRM, PC Cleaner, Power Saving)
Two-Way AI Noise Cancelation
TUF GAMING CPU-Z
DTS Audio Processing
Utilities: ASUS DriverHub, GlideX, Adobe Creative Cloud trial, Norton 360 trial, WinRAR trial

BIOS
256 Mb Flash ROM, UEFI AMI BIOS

Manageability
WOL by PME, PXE

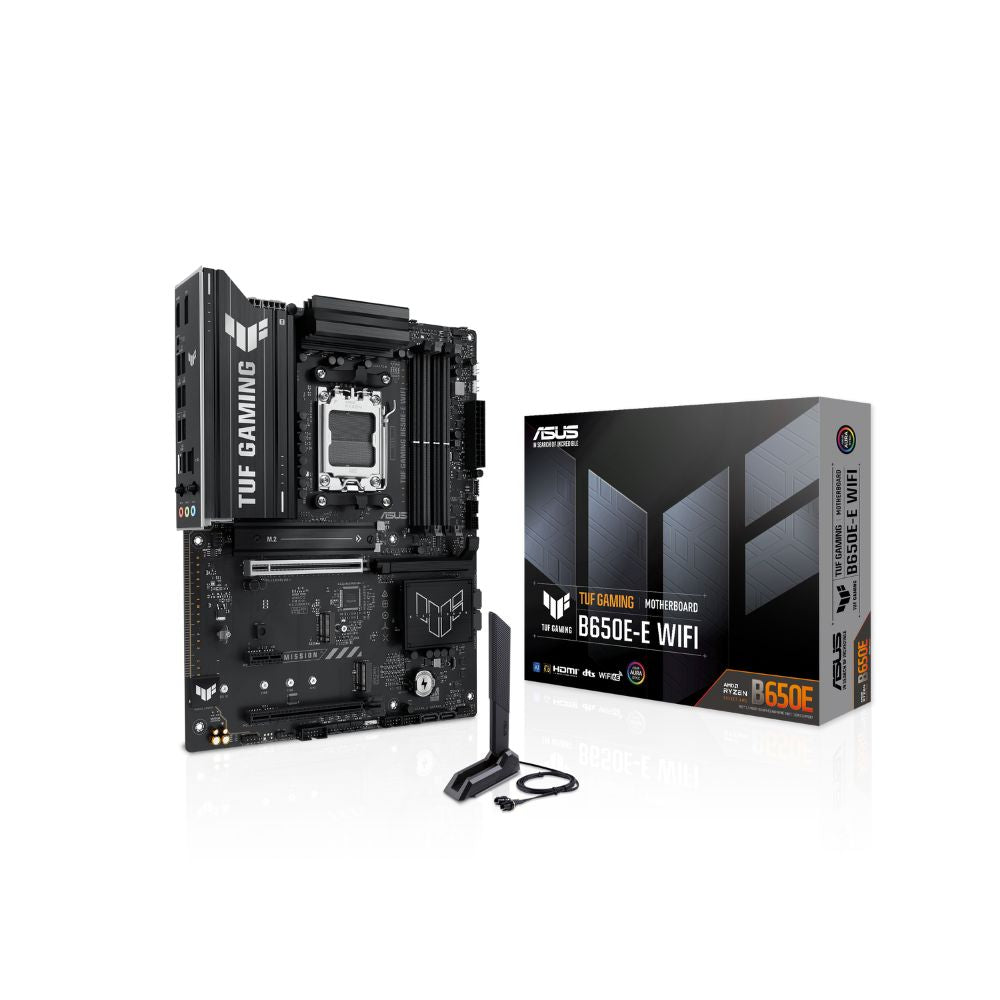

Accessories
2× SATA 6Gb/s cables
1× ASUS WiFi Q-Antenna
1× M.2 rubber package
2× M.2 screw packages
1× TUF Gaming sticker
1× Quick start guide

Operating System
Windows 11, Windows 10 (64-bit)

Form Factor
ATX (30.5 × 24.4 cm)

3 YEARS WARRANTY
