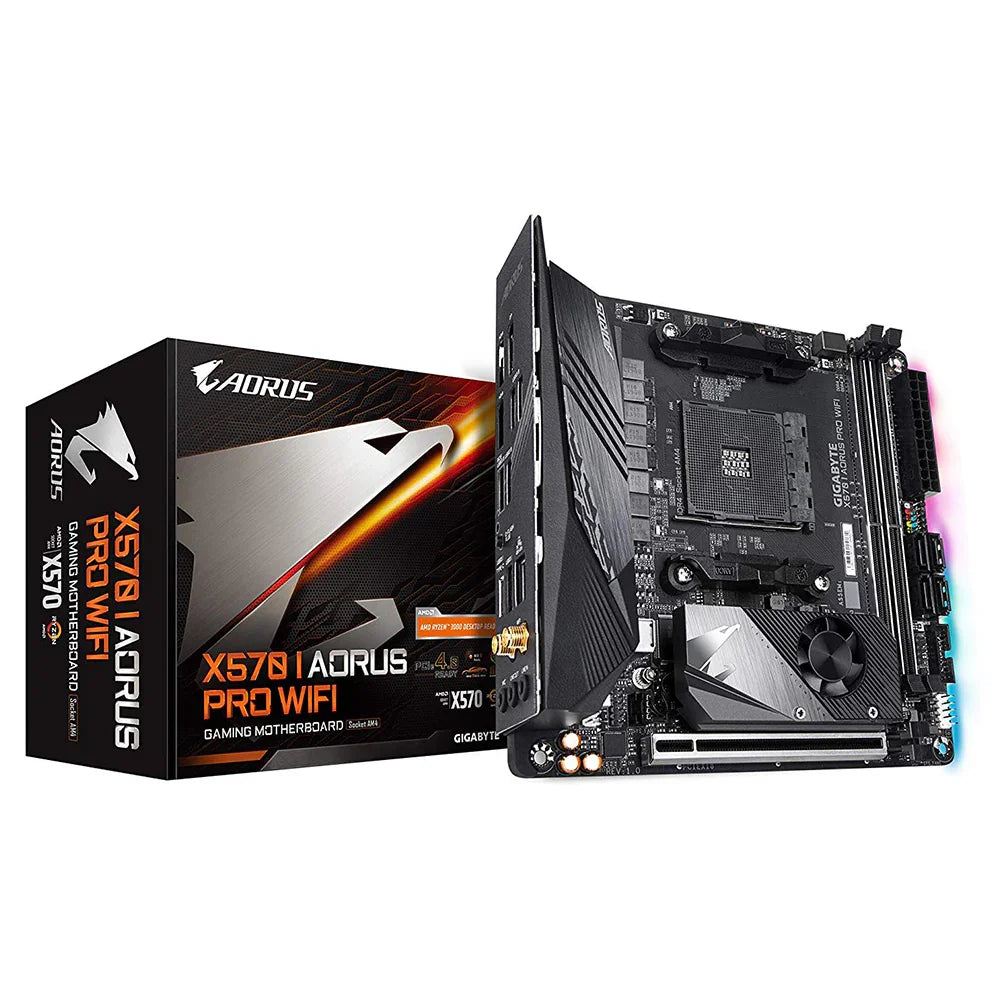

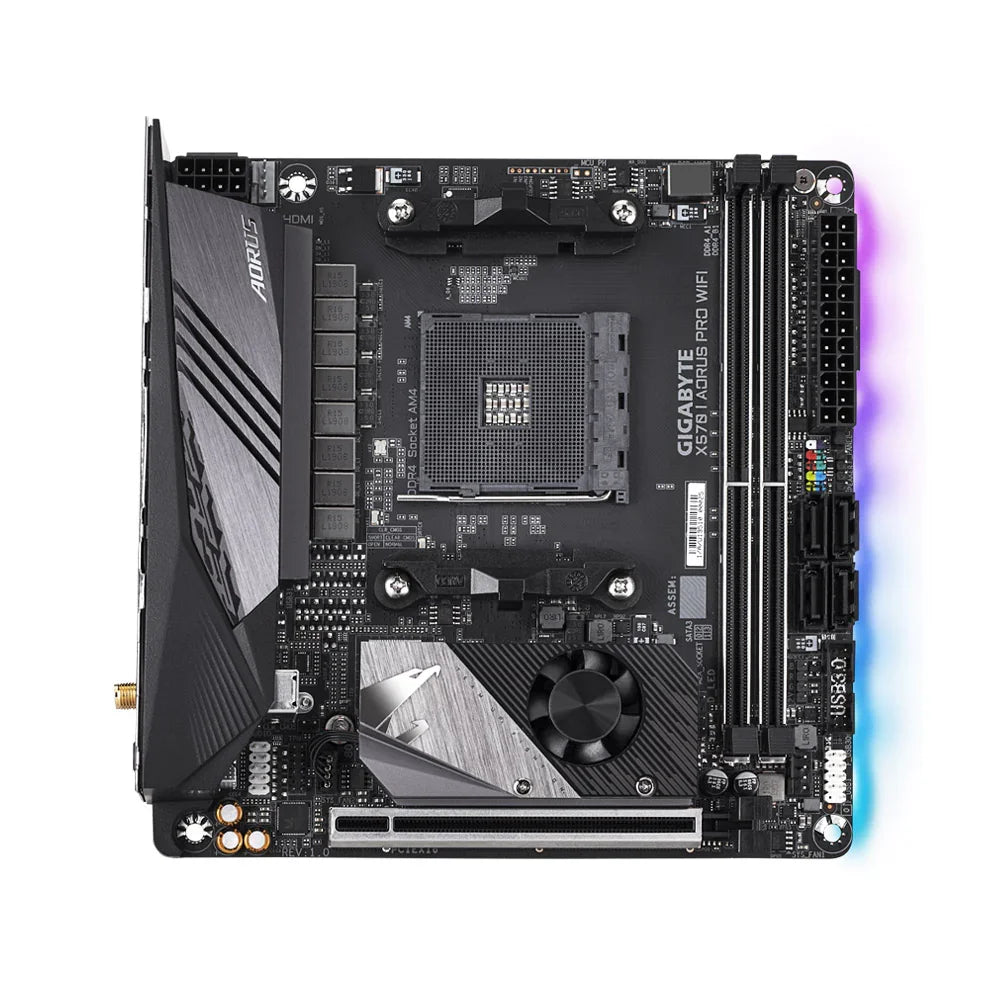

Gigabyte X570I Aorus Pro Wi-Fi

  • PERFORMANCE

    Built on the AMD X570 chipset, Gigabyte X570-I Aorus Pro Wi-Fi delivers highly optimized performance and flexibility for power users and extreme gaming enthusiasts at stock and when overclocking. The improved thermal solution consisting of heatsink with cuts as well as multi-layered heatsink helps to avoid trapping heat and causing thermal throttle on a small mini-ITX board. With a solid blend of aesthetics, this board enters the mid-range segment with a nice variety of features including a mini-ITX frame with a 6+2 power delivery, an Intel Wi-Fi 6 wireless interface and a Realtek ALC1220-VB audio codec.

    SPECIFICATIONS

    Form Factor: Mini-ITX (ITX)
    Dimensions: 17.0cm x 17.0cm
    # of Ram Slots: 2
    Compatible Ram Type: ECC & Non-ECC, Un-buffered Memory
    Compatible Ram Speed: DDR4 4400 MHz / 4300 MHz / 4266 MHz / 4133 MHz / 4000 MHz / 3866 MHz / 3800 MHz / 3733 MHz / 3600 MHz / 3466 MHz / 3400 MHz / 3333 MHz / 3300 MHz / 3200 MHz / 2933 MHz / 2667 MHz / 2400 MHz / 2133 MHz
    Socket: Ryzen 1000, 2000, 3000 Series - AM4
    Ports: 1x LAN (RJ45) port, 2x HDMI, 1 x DP, 1 x USB 3.1 Type-C, 1x USB 3.2 Gen 2, 4x USB 3.2, 3x Audio Jacks
    Expansion Slots: 1x PCIe 4.0 x16
    Motherboard Connectors: 1xA-RGB Headers, 1xRGB Headers, 1 x 24-pin ATX, 1x 8-pin ATX,1x CPU Fan, 1x Chassis Fan, 2x M.2 Socket, 4x SATA 6 Gb/s, 1x USB 3.2, 1x USB 2.0
    Built in WiFi & Bluetooth: Yes
